   CONNECTOR DETAILS

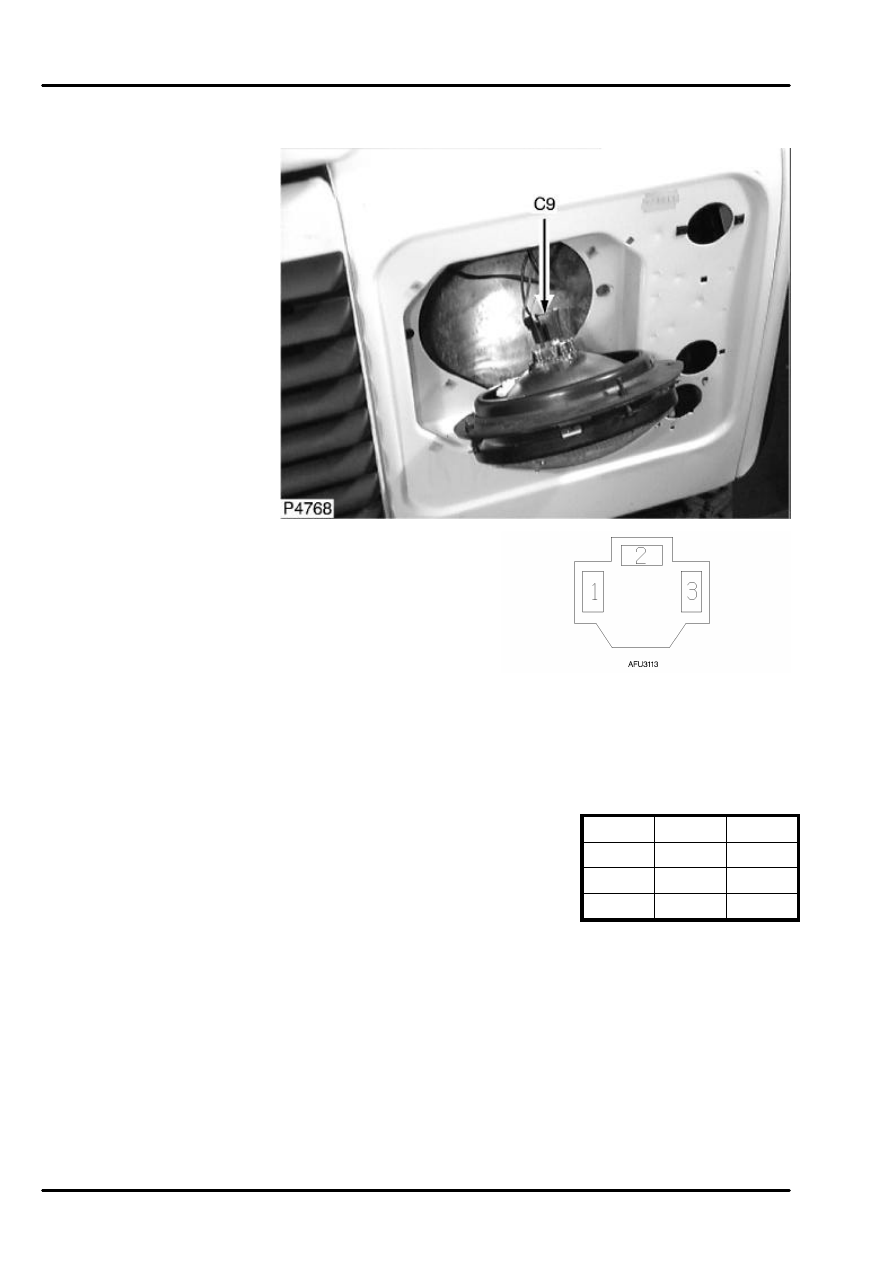

DEFENDER 90 NAS

C9

C9
HEADLAMP LH
3 Way
Female
BLACK
Behind LH headlamp

Cav

Color Cct

1

US

ALL

2

UK

ALL

3

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C11

C11
HEADLAMP RH
3 Way
Female
BLACK
Behind RH headlamp

Cav

Color Cct

1

UO

ALL

2

UB

ALL

3

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C12

C12
SIDE REPEATER RH
2 Way
Female
BLACK
On the side of the front
fender

Cav

Color Cct

1

RO

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C13

C13
SIDE REPEATER LH
2 Way
Female
BLACK
On the side of the front
fender

Cav

Color Cct

1

RB

ALL

2

B

ALL
