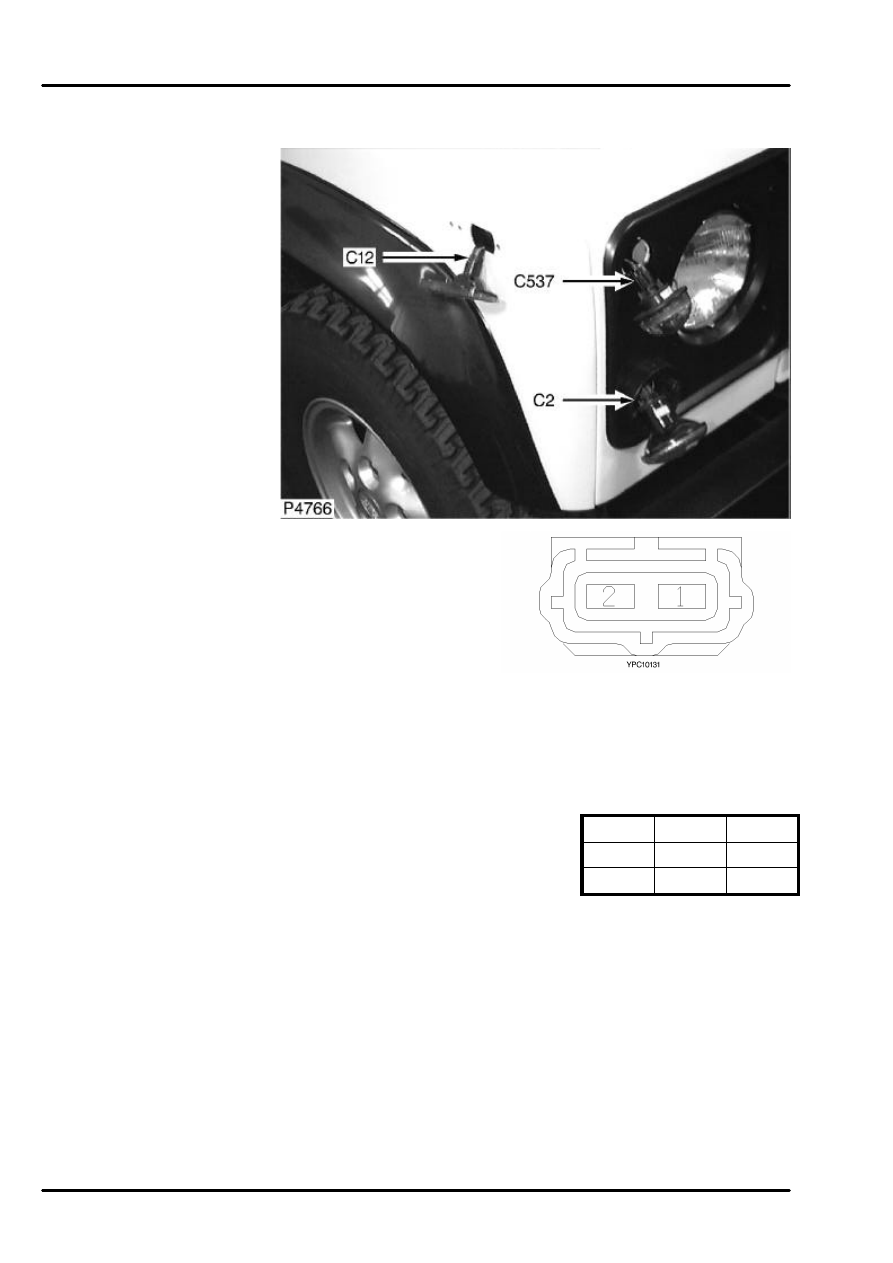

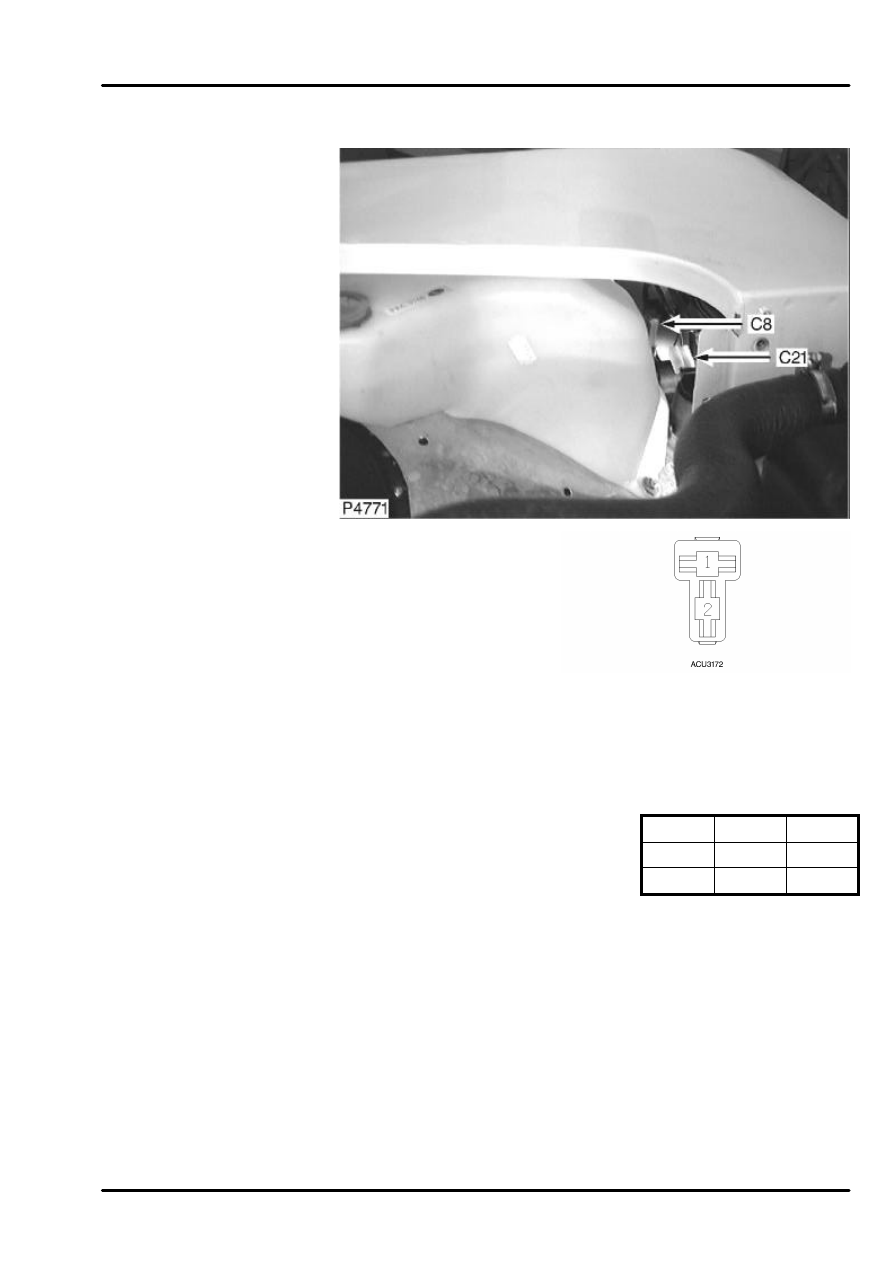

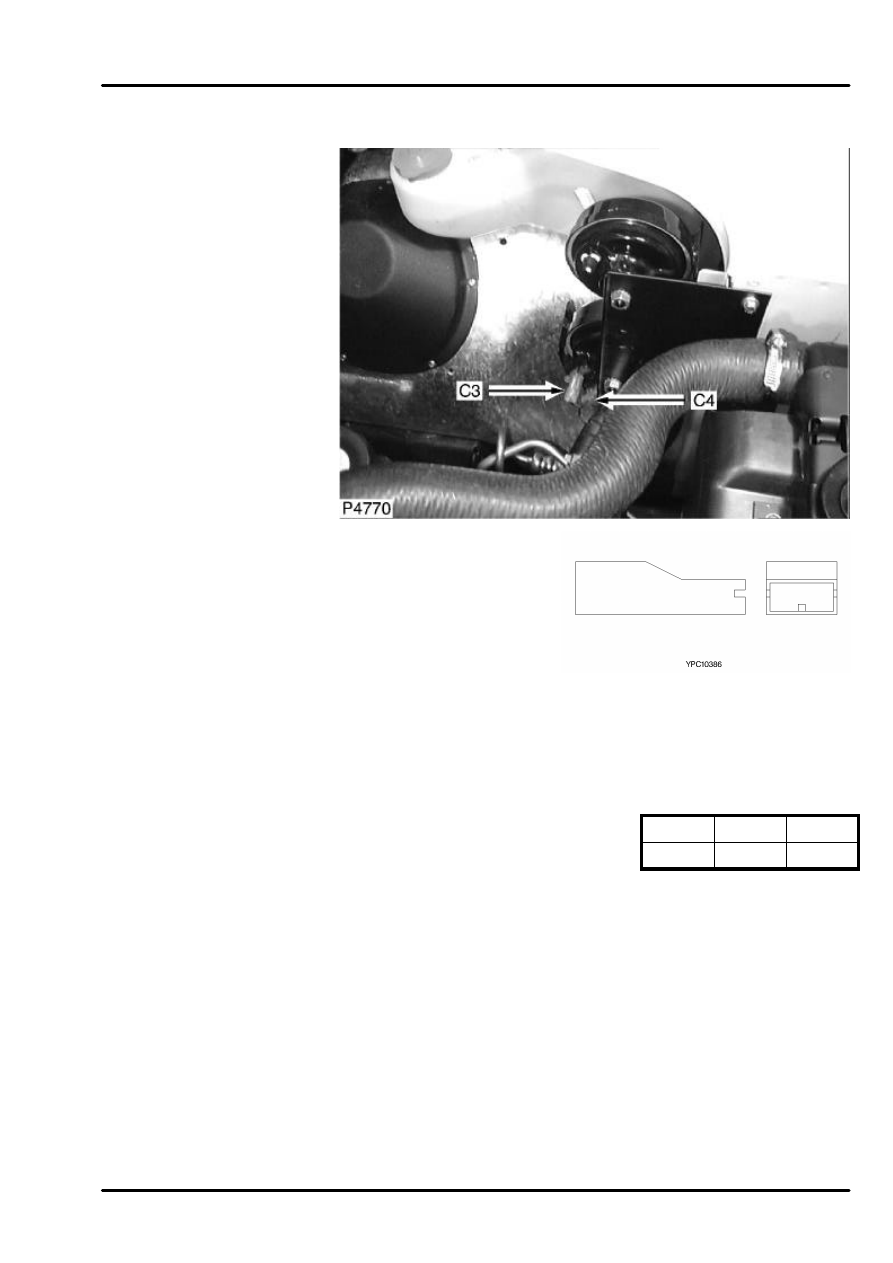

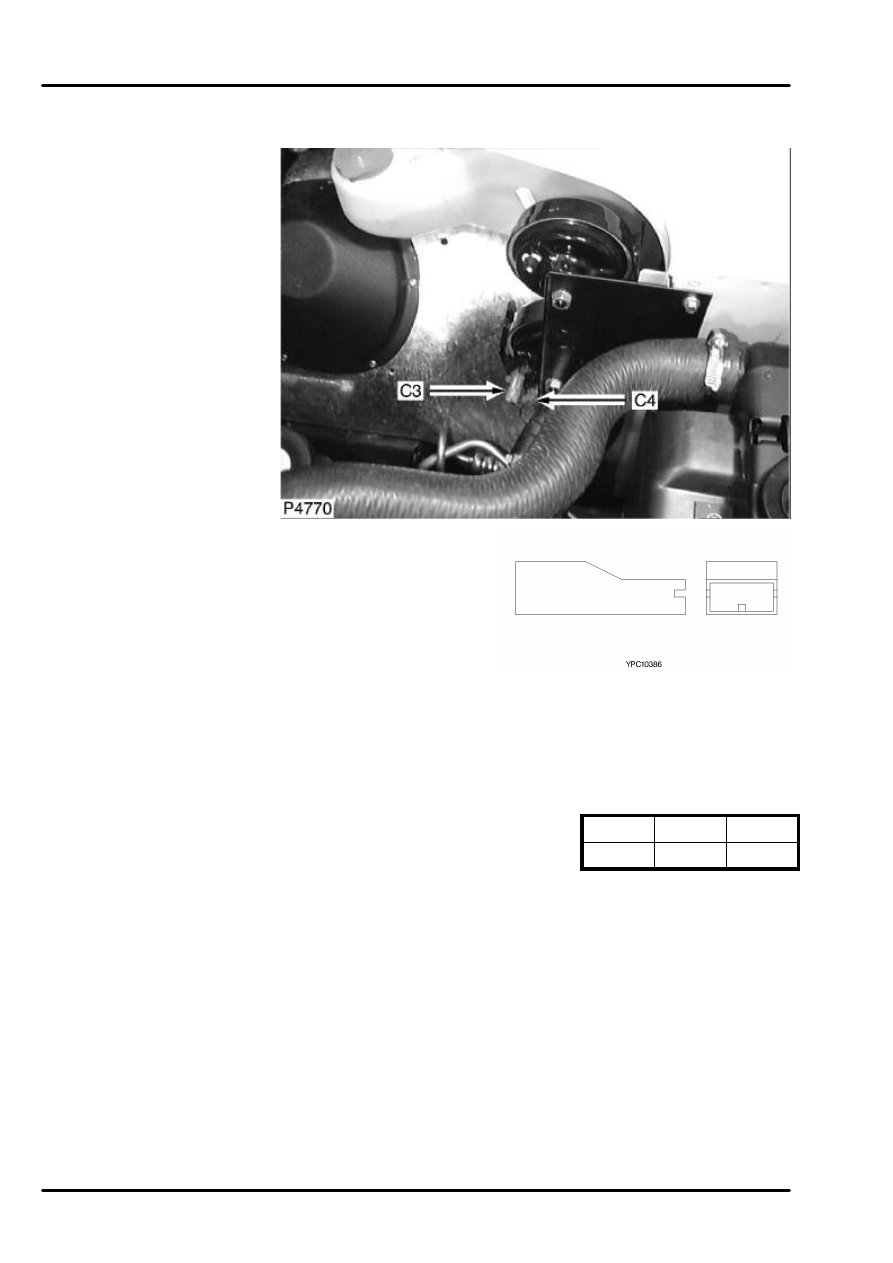

   CONNECTOR DETAILS

DEFENDER 90 NAS

C2

C2
DIRECTION
INDICATOR - RH
2 Way
Female
RED
Behind RH front indicator
lamp

Cav

Color Cct

1

B

ALL

2

GW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C3

C3
HORN
1 Way
Female
NATURAL
Under bonnet, LH inner
fender

Cav

Color Cct

1

PB

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C4

C4
HORN
1 Way
Female
NATURAL
Under bonnet, LH inner
fender

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C8

C8
WASHER PUMP -
FRONT
2 Way
Female
BLACK
Under bonnet, LH inner
fender

Cav

Color Cct

1

B

ALL

2

LGB

ALL
