Defender. Manual - part 290





Putty application areas

The following Illustrations show the treatment areas for Putty application. All areas symmetrically opposite to those

shown are also treated.

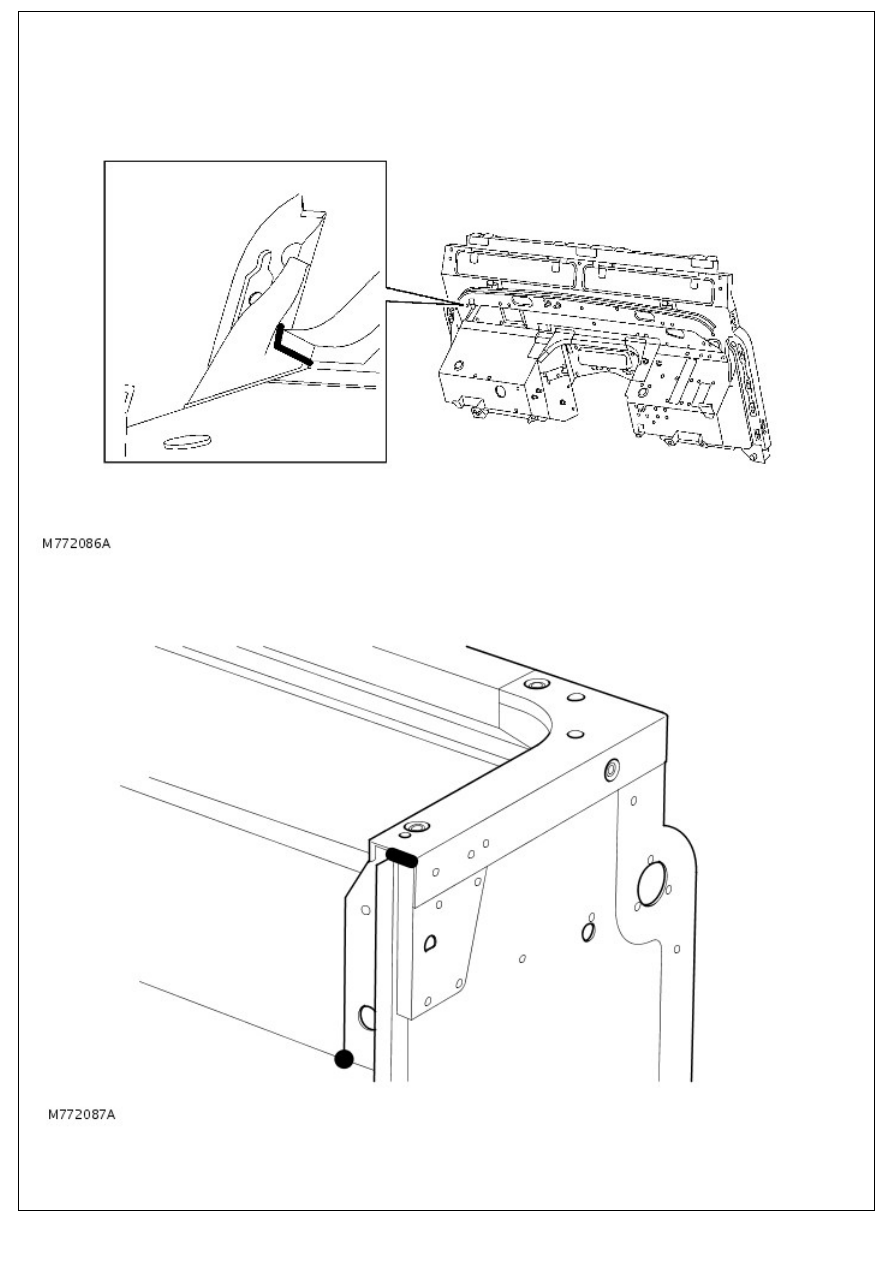

Putty location on bulkhead assembly

Putty location on rear end

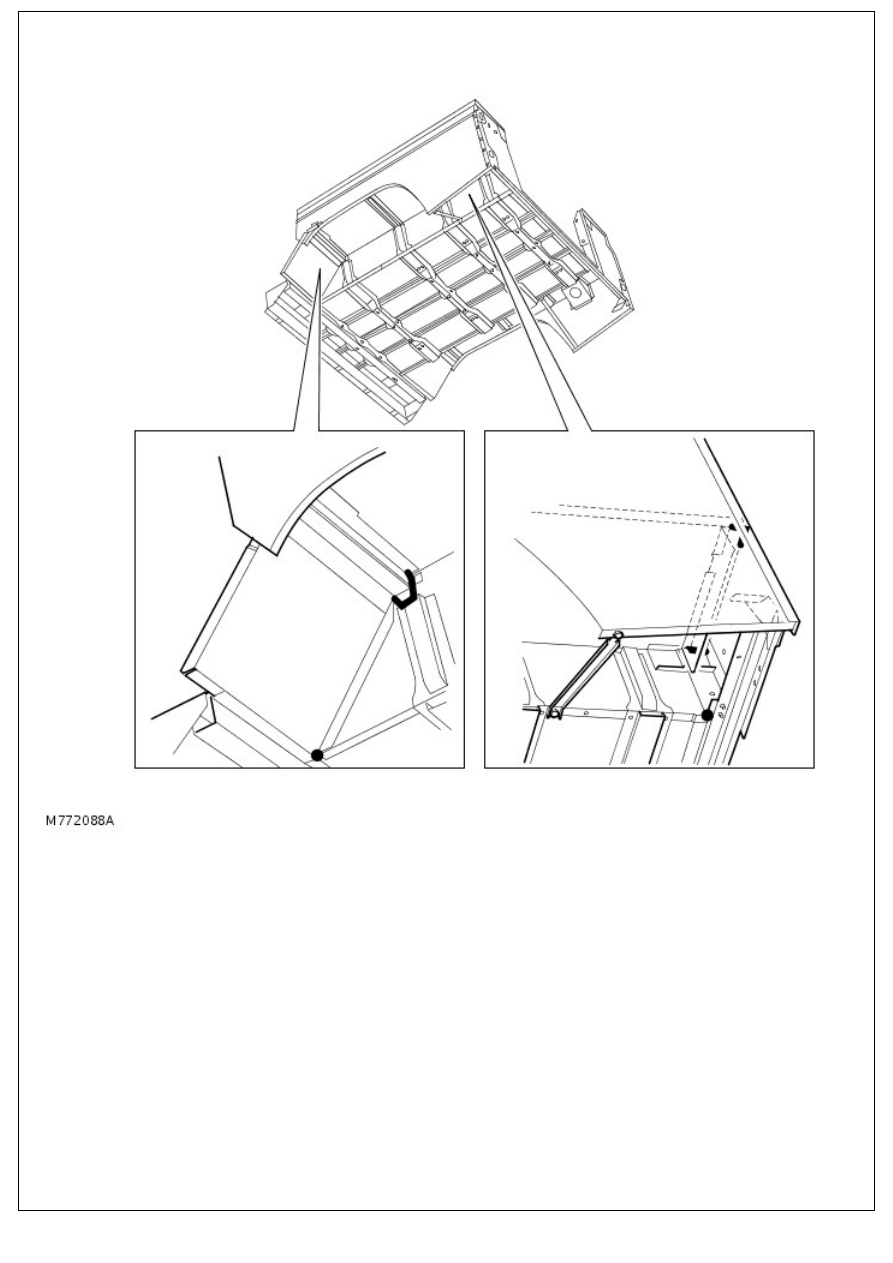

Putty location on underside of vehicle

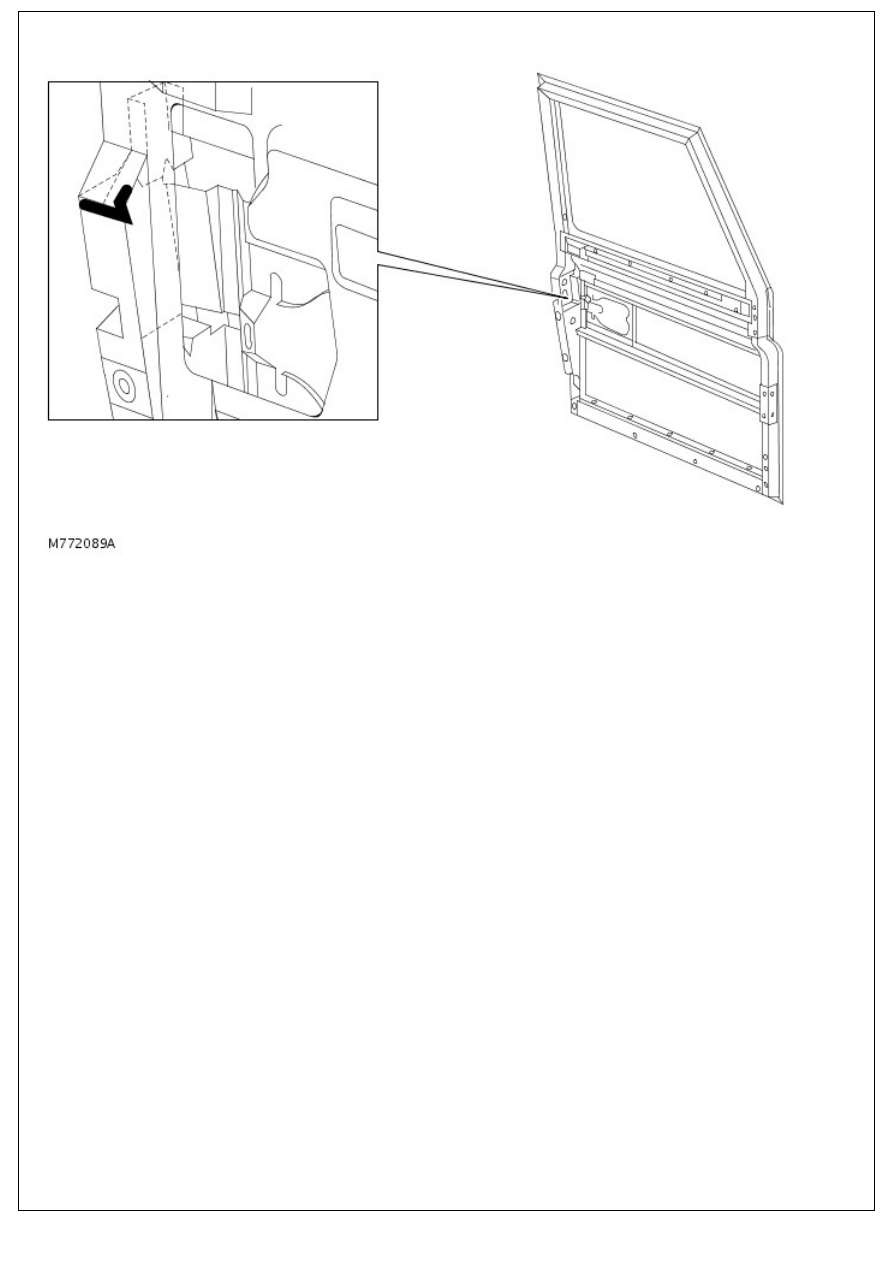

Putty location on front door

Foam/rubber seal application areas

The following Illustrations show the location of foam/rubber seals. All areas All areas symmetrically opposite to those

shown are also treated.

Body side rear
