Safety Belt System - Safety Belt System

Description and Operation

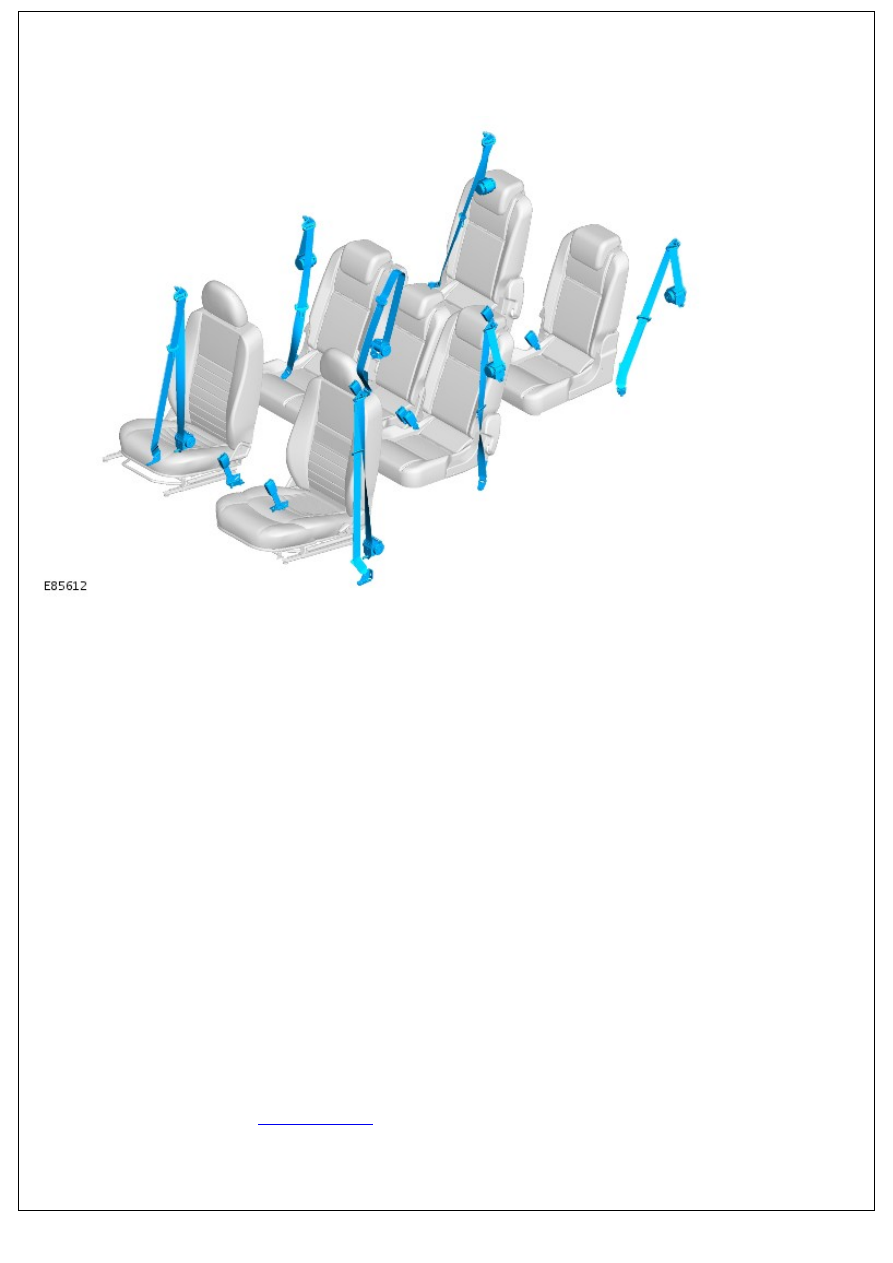

COMPONENT LOCATION

OVERVIEW

A three point safety belt is installed at each seat position. All the safety belts have Emergency Locking Retractors (ELR).

ELR retractors incorporate a liftshaft locking system with webbing sensor and car sensor activating mechanisms. The

webbing sensor activates the locking system if the webbing is subjected to a sharp pull. The car sensor activates the

locking system if the vehicle is subjected to sudden deceleration or a severe tilt angle.

FRONT SAFETY BELTS

The retractor of each front safety belt is attached to the related B pillar. The webbing runs from the retractor through an

upper mounting, attached to the B pillar, to an anchor point on the front seat.

The buckle for each front safety belt is to the vehicle body inside of the related front seat frame.

SECOND ROW SAFETY BELTS

The retractor of each outboard second row safety belt is attached to the body immediately behind the D pillar. The

webbing runs from the retractor, through an upper mounting on the D pillar, to an anchor point at the front of the

related wheel arch.

The retractor for the center second row safety belt is installed in the top of the seat back. The webbing runs from the

retractor, over the top of the seat, to an anchor point at the base of the seat frame.

The buckles for the second row safety belts are attached to the related seat frame.

THIRD ROW SAFETY BELTS (110 only)

The retractor of each third row safety belt is attached to the E pillar. The webbing runs from the retractor, through a

mounting on the E pillar to an anchor point on the floor. The buckles for the third row safety belts are attached to the

related seat frame.

BELTMINDER (GULF MARKETS ONLY)

The belt minder function provides warnings to the driver if the appropriate front safety belts are not fastened when

driving. The belt minder function is controlled by the instrument cluster

For additional information, refer to:

Instrument Cluster

 (413-01 Instrument Cluster, Description and Operation).

.

Safety Belt System - Front Safety Belt Buckle

Removal and Installation

Removal

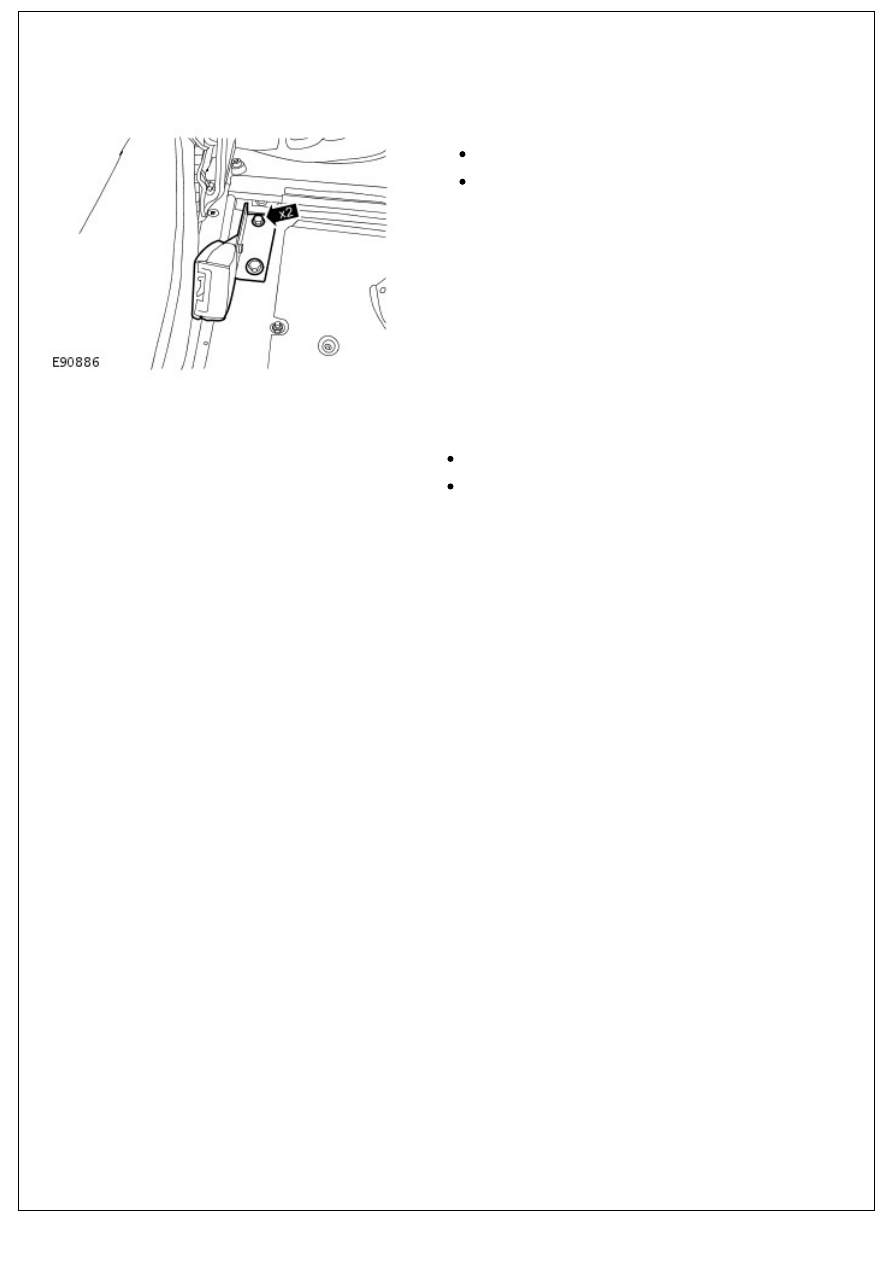

1. Remove the front safety belt buckle.

Remove the M8 bolt.

Remove and discard the M10 bolt.

Installation

1. Install the front safety belt buckle.

Tighten the new M10 bolt to 23 Nm (17 lb.ft).

Tighten the M8 bolt to 23 Nm (17 lb.ft).

Safety Belt System - Front Safety Belt Retractor

Removal and Installation

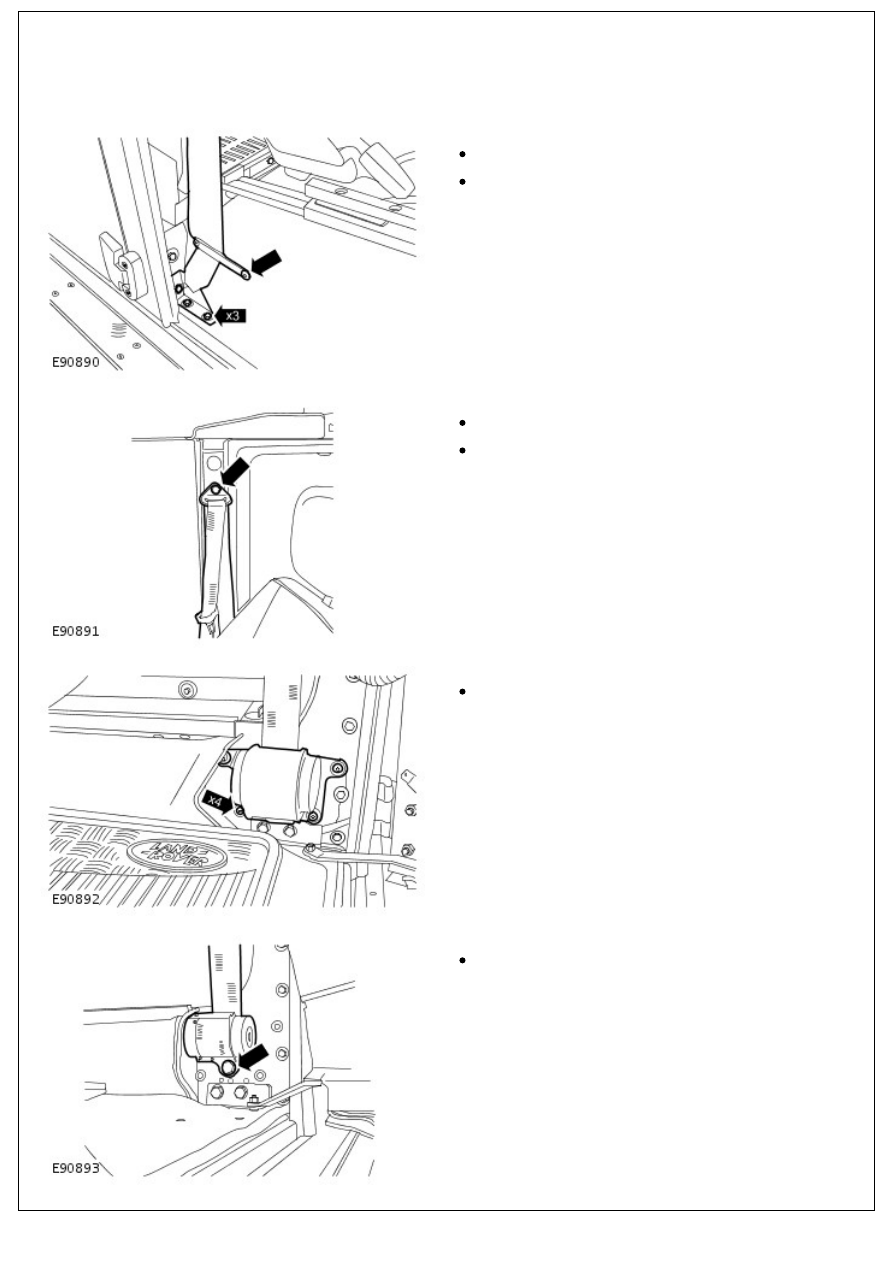

Removal

1. Release the front safety belt lower anchor.

Remove the 3 bolts.

Remove the clip.

2. Release the front safety belt upper anchor.

Remove the bolt cover.

Remove the bolt.

3. Remove the front safety belt retractor trim.

Remove the 4 scrivets.

4. Remove the front safety belt retractor.

Remove the bolt.

Installation

1. Install the front safety belt retractor.

Tighten the bolt to 31 Nm (23 lb.ft).

2. Install the front safety belt retractor trim.

Install the scrivets.

3. Secure the front safety belt upper anchor.

Tighten the bolt to 31 Nm (23 lb.ft).

Install the bolt cover.

4. Secure the front safety belt lower anchor.

Tighten the bolts to 10 Nm (7 lb.ft).

Install the clip.
