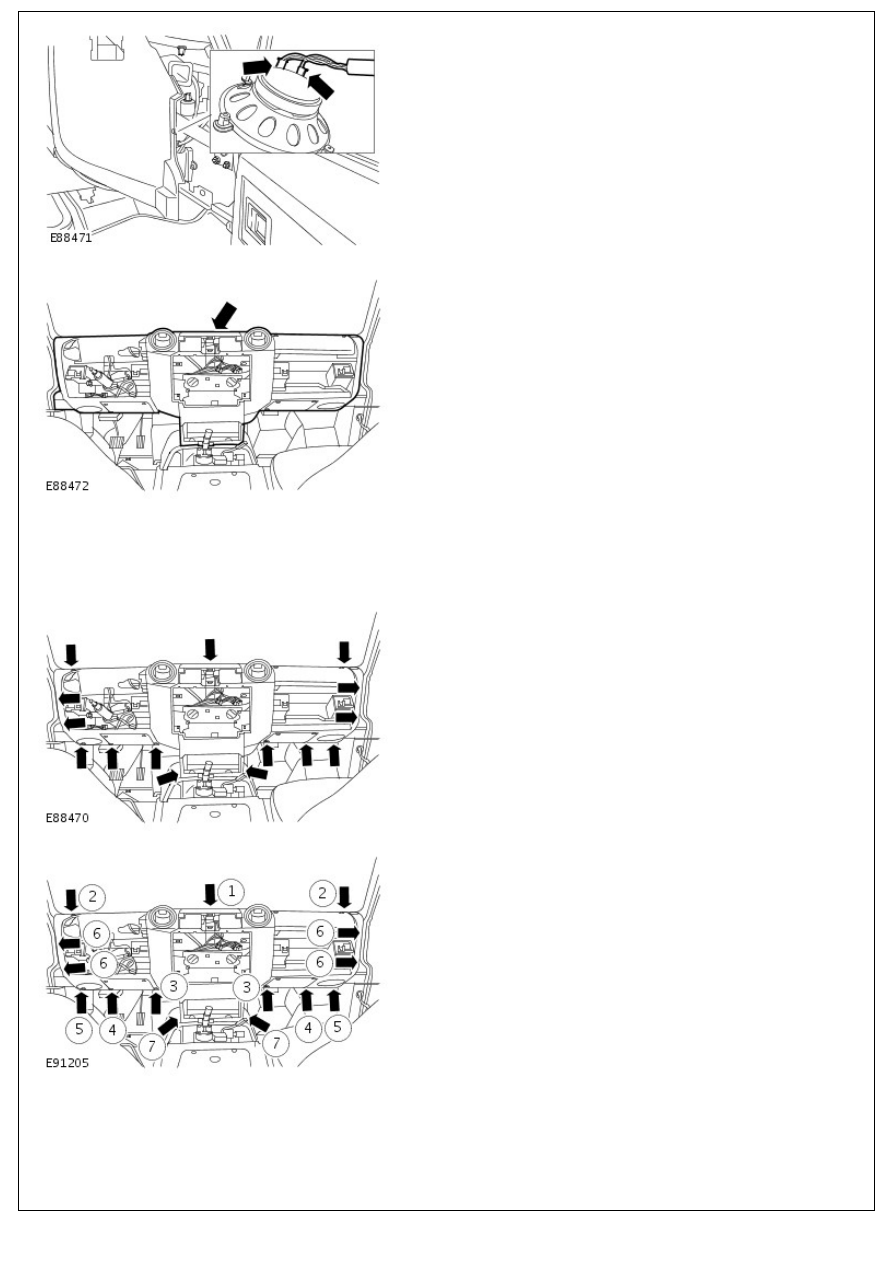

23. NOTE: RH shown, LH similar.

Disconnect the 4 electrical connectors from the instrument

panel speakers.

24. With assistance, remove the instrument panel.

Installation

1. With assistance, install the instrument panel.
2. Connect the 4 electrical connectors to the instrument panel

speakers.

3. Loosely install the instrument panel screws.

4. Tighten the screws in the order indicated in the illustration

shown.

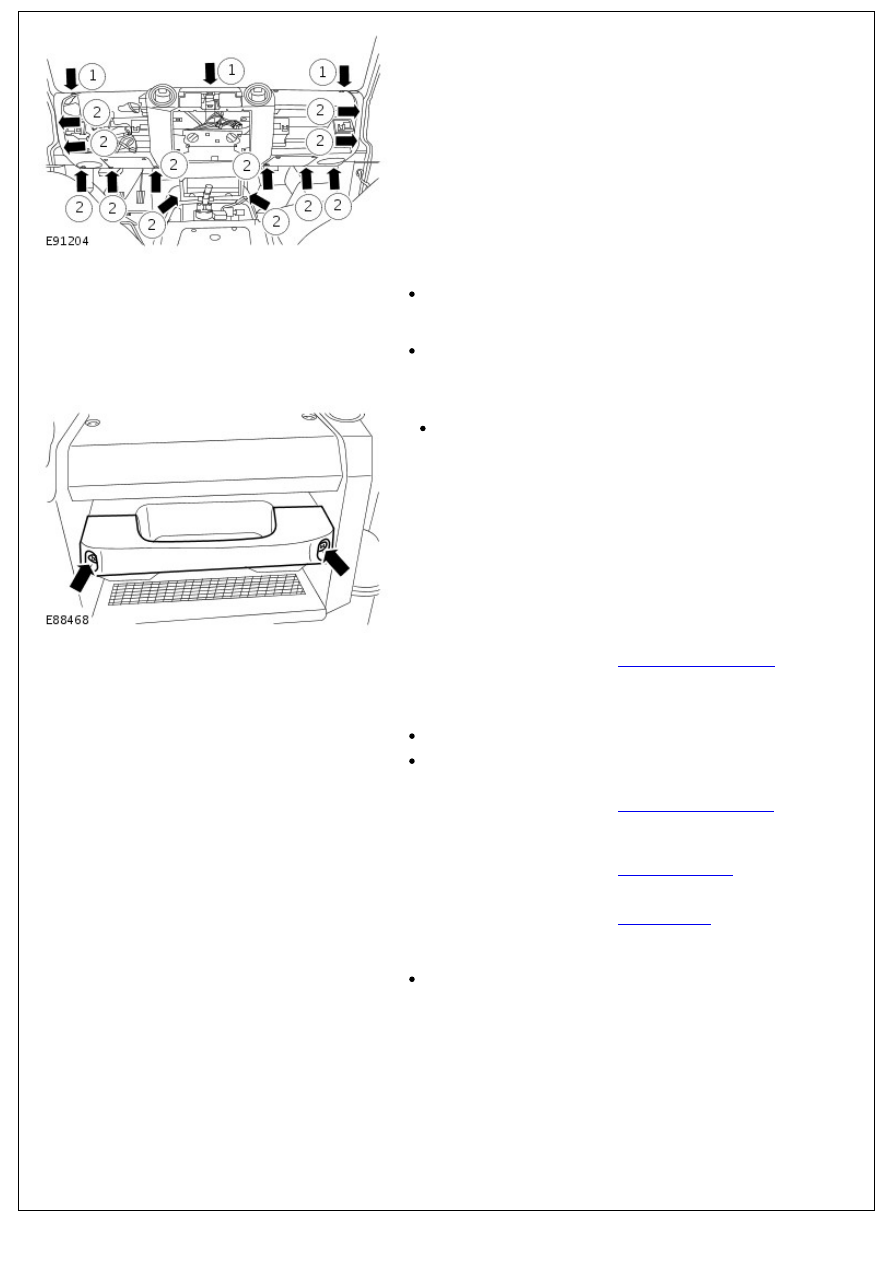

5. Tighten the screws.

5. Tighten the screws.

1. Tighten to 2 Nm (1 lb.ft).

2. Tighten to 1 Nm (1 lb.ft).

6. Secure the climate control switch panel.

Install the 4 screws.

7. Install both instrument panel speakers.

Connect the electrical connectors.

8. Install both side demister vent finishers.

9. Install the passenger side grab handle.

Tighten to 7 Nm (5 lb.ft).

10. Install the instrument panel console.

For additional information, refer to:

Instrument Panel Console

(501-12 Instrument Panel and Console, Removal and

Installation).

11. Install the multifunction switch assembly.

Connect the 3 electrical connectors.

Fully tighten the multifunction switch clamp screw.

12. Install the steering column shrouds.

For additional information, refer to:

Steering Column Shrouds

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

13. Install the instrument cluster.

For additional information, refer to:

Instrument Cluster

 (413-

01 Instrument Cluster, Removal and Installation).

14. Install the steering wheel.

For additional information, refer to:

Steering Wheel

 (211-04

Steering Column, Removal and Installation).

15. Install the transmission cover panel.

Install the 11 screws.

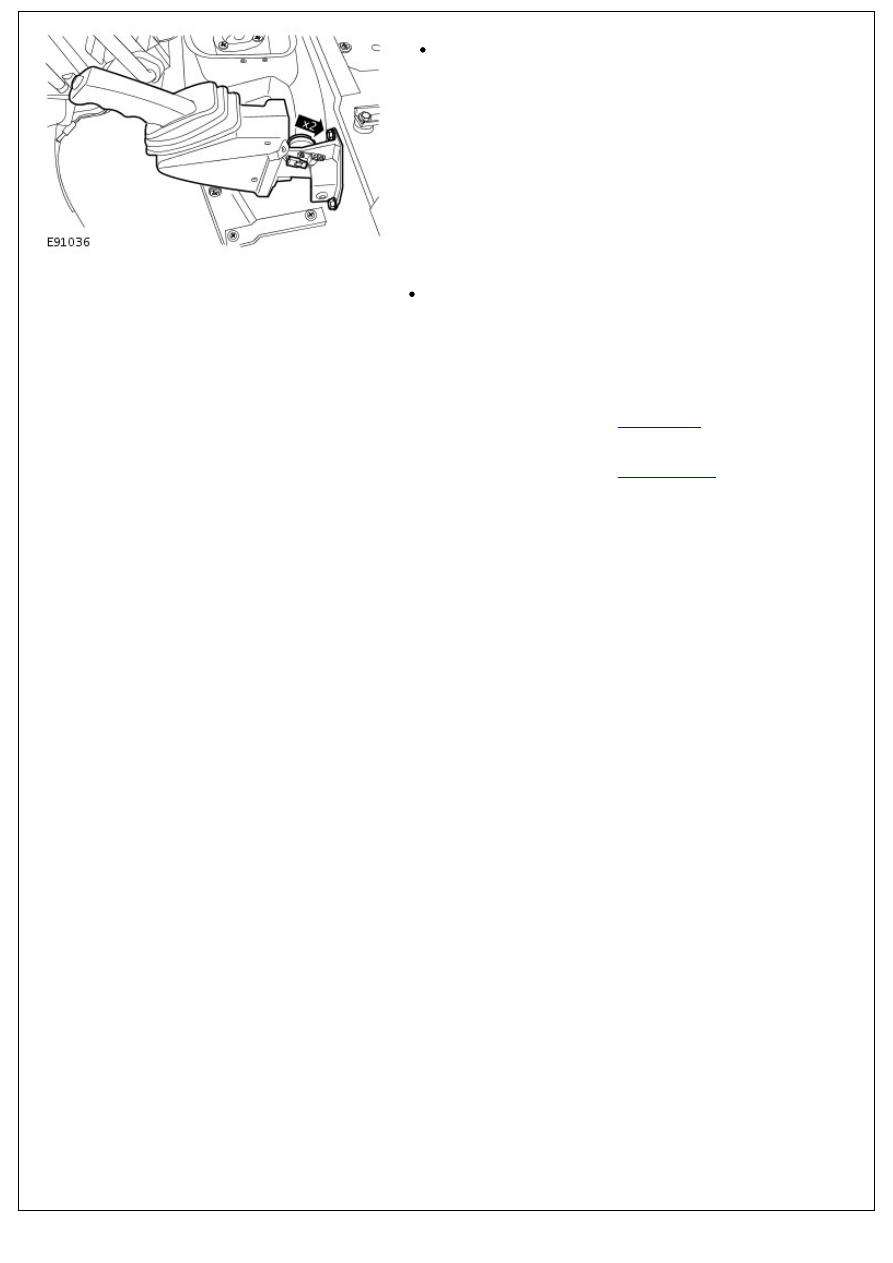

16. Secure the parking brake lever.

16. Secure the parking brake lever.

Tighten to 25 Nm (18 lb.ft).

17. Attach the parking brake lever gaiter.

Install the 3 clips.

18. Install the gear shift lever.
19. Attach the gear shift lever.
20. Install the high/low gear selector lever.
21. Install the transmission cover panel floor covering.
22. Install the floor console.

For additional information, refer to:

Floor Console

 (501-12

Instrument Panel and Console, Removal and Installation).

23. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Instrument Panel and Console - Instrument Panel Console

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the audio unit.

For additional information, refer to:

Audio Unit

 (415-01A

Audio Unit, Removal and Installation).

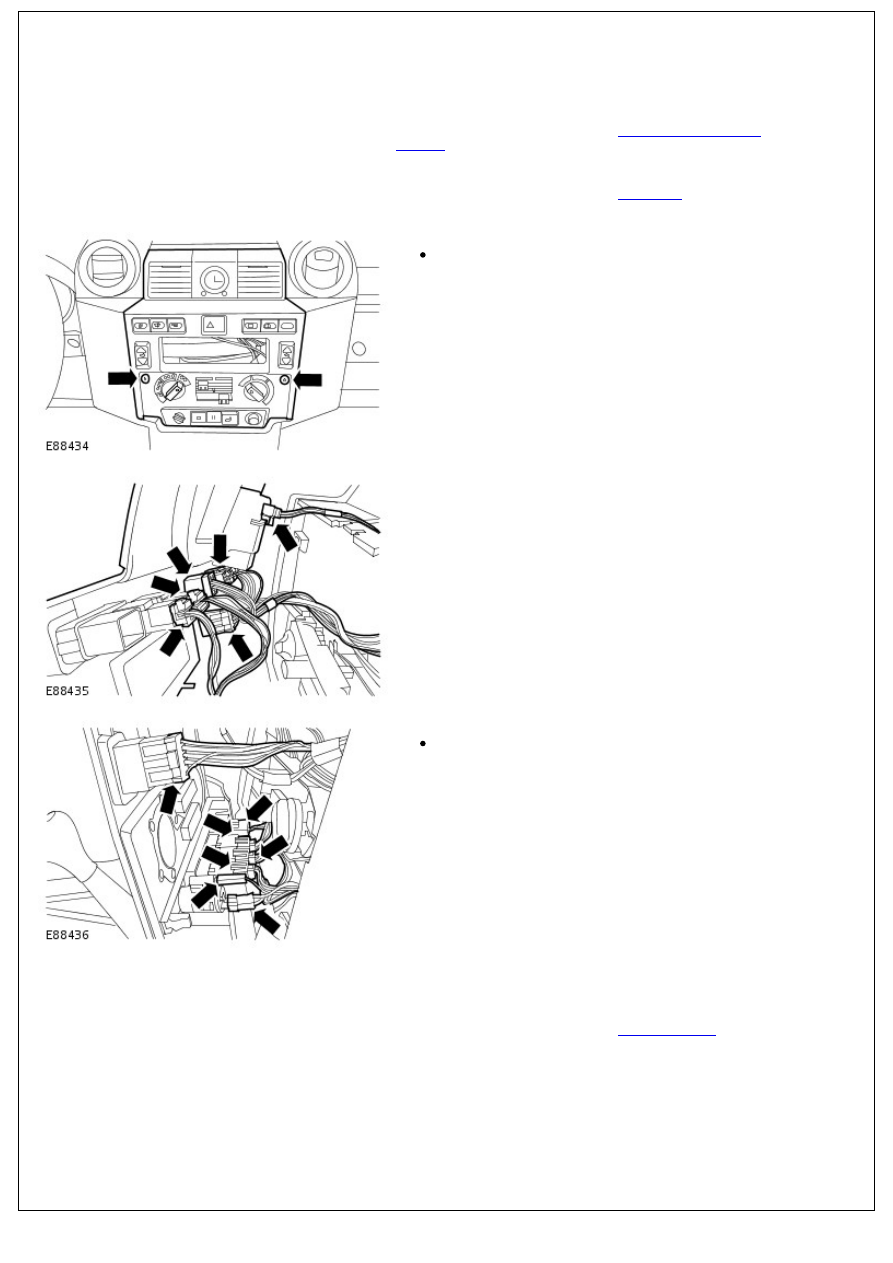

3. Release the instrument panel console.

Remove the 2 screws.

4. Disconnect the 6 electrical connectors from the instrument

panel console.

5. Remove the instrument panel console.

Disconnect the 7 electrical connectors.

Installation

1. To install, reverse the removal procedure.
2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
