5. Install check strap torsion bar and tighten nuts to 10 Nm (7

lbf.ft) .

6. Instal rear door mounting panel.

For additional information, refer to:

Rear Door Reinforcement

Panel

 (501-03 Body Closures, Removal and Installation).

Glass, Frames and Mechanisms - Rear Door Window Regulator and Motor

Removal and Installation

Removal

1. Remove rear door trim casing.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

2. Carefully release plastic sheet from rear door.

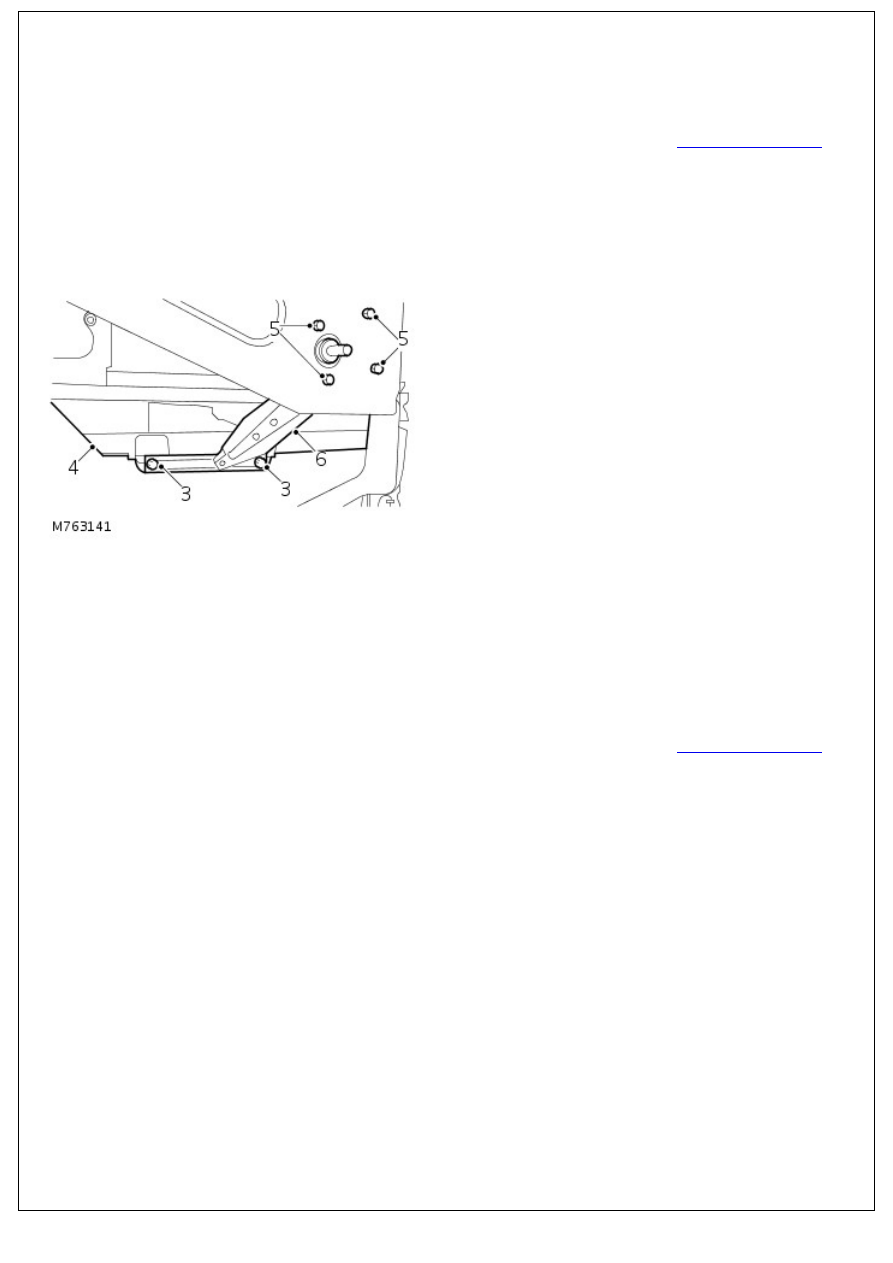

3. Remove 2 bolts securing door glass to regulator.
4. Raise glass and secure with a suitable wedge.
5. Remove 4 bolts securing glass regulator assembly to door.

6. Manoeuvre regulator through access hole at bottom of the

door.

Installation

1. Clean mating face of regulator and door glass.
2. Lubricate regulator with grease.
3. Position regulator in door and secure with bolts.
4. Remove wedge holding glass and align glass to regulator.
5. Secure glass to regulator and install and tighten bolts.
6. Install plastic sheet to rear door.
7. Install rear door trim casing.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

Glass, Frames and Mechanisms - Taildoor Window Glass

Removal and Installation

Removal

1. Remove spare wheel from taildoor.

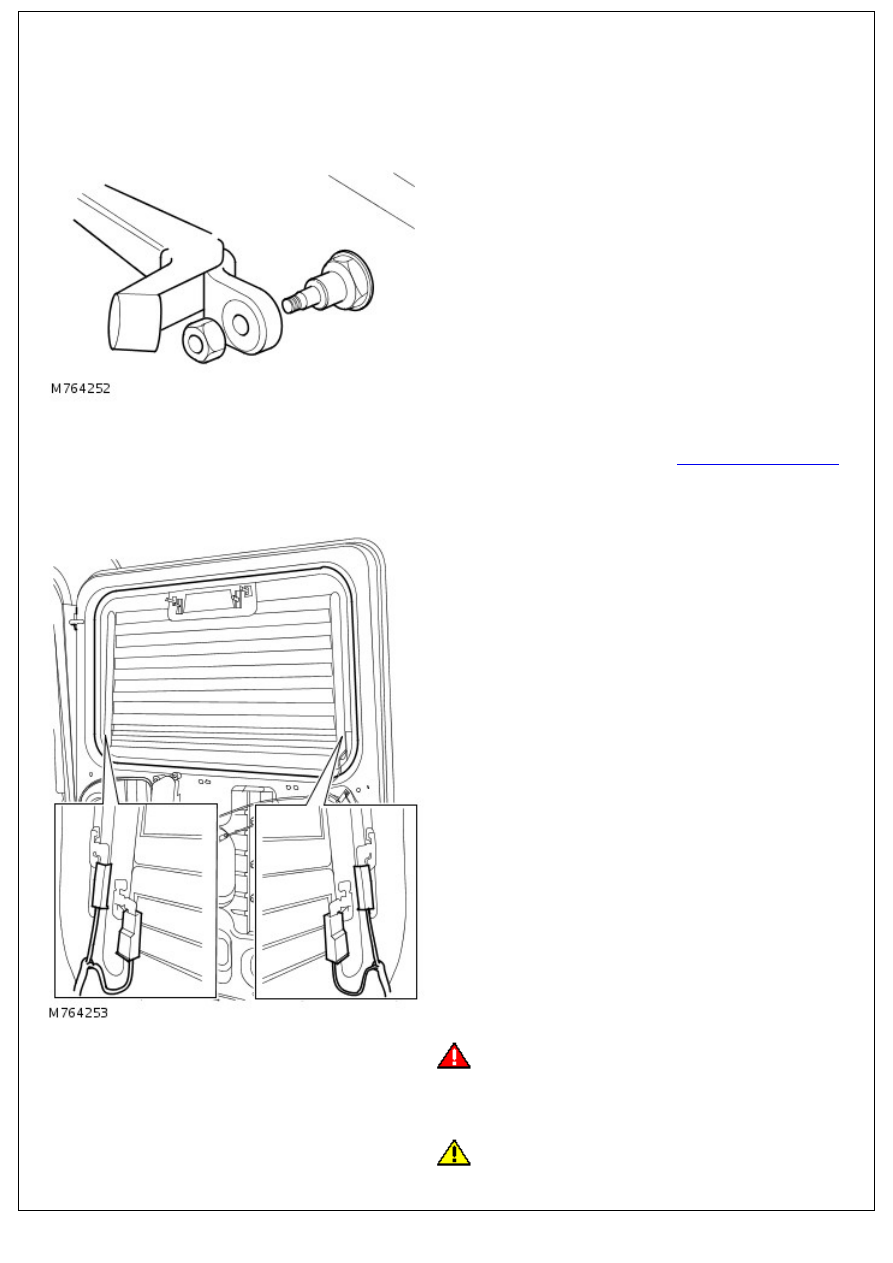

2. Raise nut cover, remove nut and release wiper arm.

3. Open taildoor.
4. Remove high mounted stop lamp.

For additional information, refer to:

High Mounted Stoplamp

(417-01 Exterior Lighting, Removal and Installation).

5. Remove 4 connectors from heated rear window.

6.

WARNING: Wear suitable eye protection when removing

and refitting glass.

With assistance, from inside of vehicle apply pressure to

glass, relieve seal lip and carefully remove glass.

7.

CAUTION: Lay glass on felt covered supports and be

careful not to damage the obscuration band. Do not stand on

edge as this can cause chips which subsequently develop into

cracks.

Remove seal from glass.

Installation

1. Clean glass and install seal. Ensure seal is fully located on

glass.

2. Thoroughly clean the taildoor window mounting flange.
3. Install drawstring to seal.
4. Lubricate seal.
5. With assistance, position glass and seal to taildoor window

aperture, locate lower edge and instal seal using drawstring.

6. Clean glass and check seal fit.
7. Fit connectors to heated rear window.
8. Install high mounted stop lamp.

For additional information, refer to:

High Mounted Stoplamp

(417-01 Exterior Lighting, Removal and Installation).

9. Install wiper arm to spindle, align blade to window and

tighten nut to 18 Nm (13 lbf.ft).

10. Install spare wheel and tighten nuts to 45 Nm (33 lbf.ft).
