Defender. Manual - part 259





The window lift system will only operate when the ignition switch is in position II (ignition on) and features anti-trap

functionality.

The rear window lift system (if fitted) comprises a handle and manually operated door window regulator in each rear

door.

Heated Windshield and Rear Window

The heated windshield contains a single heating element which is powered for up to a maximum of 8 minutes when

selected. The system is only operational when the engine is running.

The heated rear window also contains a single heating element and will operate with the ignition switch in position II

(ignition on). The heated rear window isn't constrained to an operational time limit.

PRINCIPLES OF OPERATION

Window Lift

The window lift relay coil is energized by an ignition feed from the central junction box (CJB). The energized relay

provides a battery voltage feed to the left-hand (LH) and right-hand (RH) window lift switches.

Each window lift switch has 2 connections with its respective window lift motor; feed and return. These lines switch

depending on the direction of travel requested using the switch. In each case, the motor is provided a ground path

through its switch.

Each motor has thermal cut-out protection. If the window reaches the top or bottom of its travel, or hits an obstruction,

the thermal cut-out will sense the increased load on the motor and cut the power supply to the motor brush contacts.

Thermal cut-out time is between 3.5 to 5 seconds, with a re-start time of between 1 to 10 seconds.

Heated Windshield

Operation of the heated windshield is controlled by the heated windshield module. The heated windshield module is

located behind the instrument cluster and receives an engine running signal from the engine control module (ECM). The

heated windshield module also monitors the condition of the heated windshield switch. If the switch is pressed, a ground

path is created. If both these signals are in place, the heated windshield module provides a feed to the heated windshield

element until either;

the switch is pressed a second time

8 minutes elapses

or the engine is stopped.

Heated Rear Window

The heated rear window switch is located in the center console and is provided an ignition feed from the CJB. When the

switch is pressed, a feed is provided to the heated rear window relay coil. The now energized heated rear window relay

provides a battery voltage feed from the CJB to the heated rear window element.

Glass, Frames and Mechanisms - Front Door Window Glass

Removal and Installation

Removal

1. Remove front door reinforcement panel.

For additional information, refer to:

Front Door Reinforcement

Panel

 (501-03 Body Closures, Removal and Installation).

2. Remove window regulator.

For additional information, refer to:

Front Door Window

Regulator and Motor

 (501-11 Glass, Frames and Mechanisms,

Removal and Installation).

3. Push glass up to top of its travel and support with a suitable

length of timber.

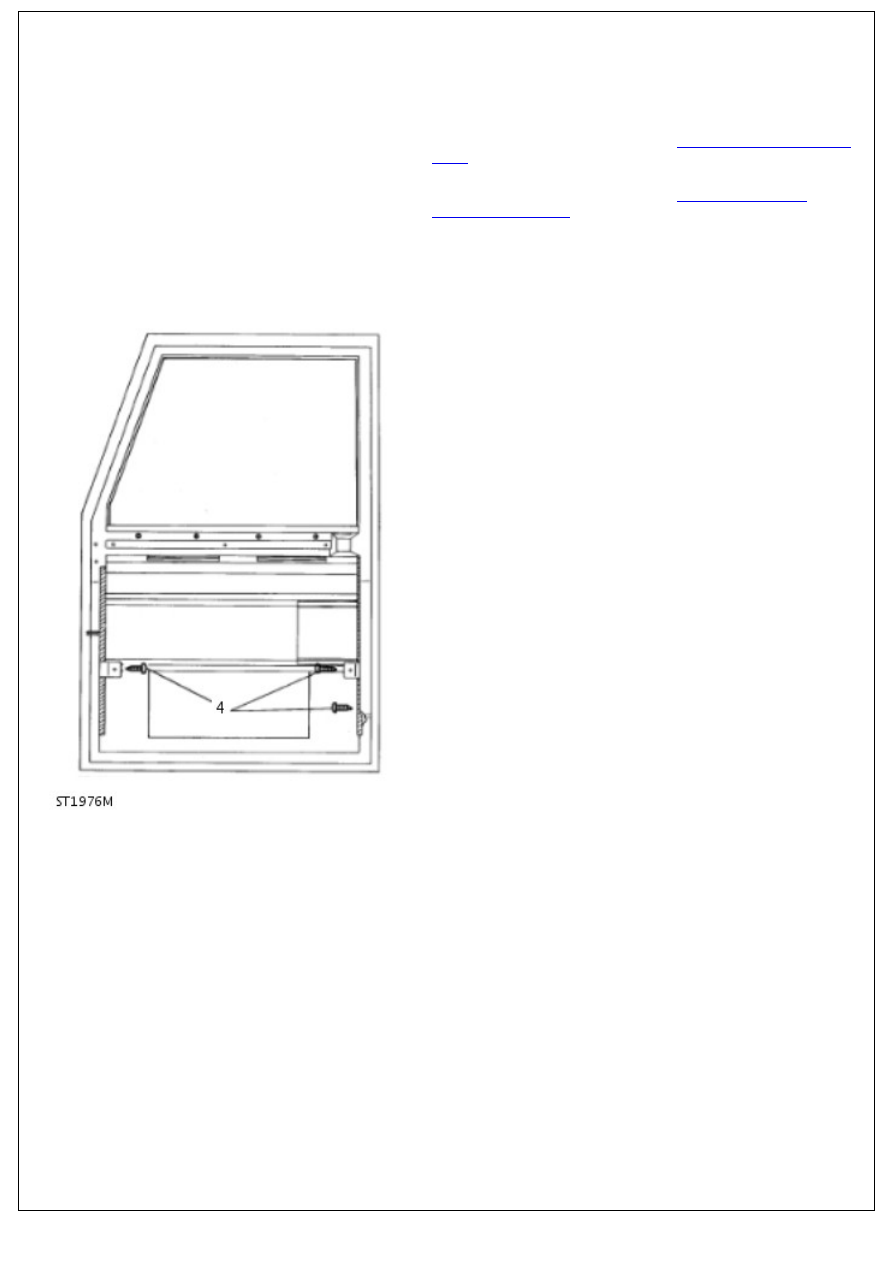

4. Remove 2 self tapping screws securing window glass

runner on latch side of door and single screw from hinge

side.

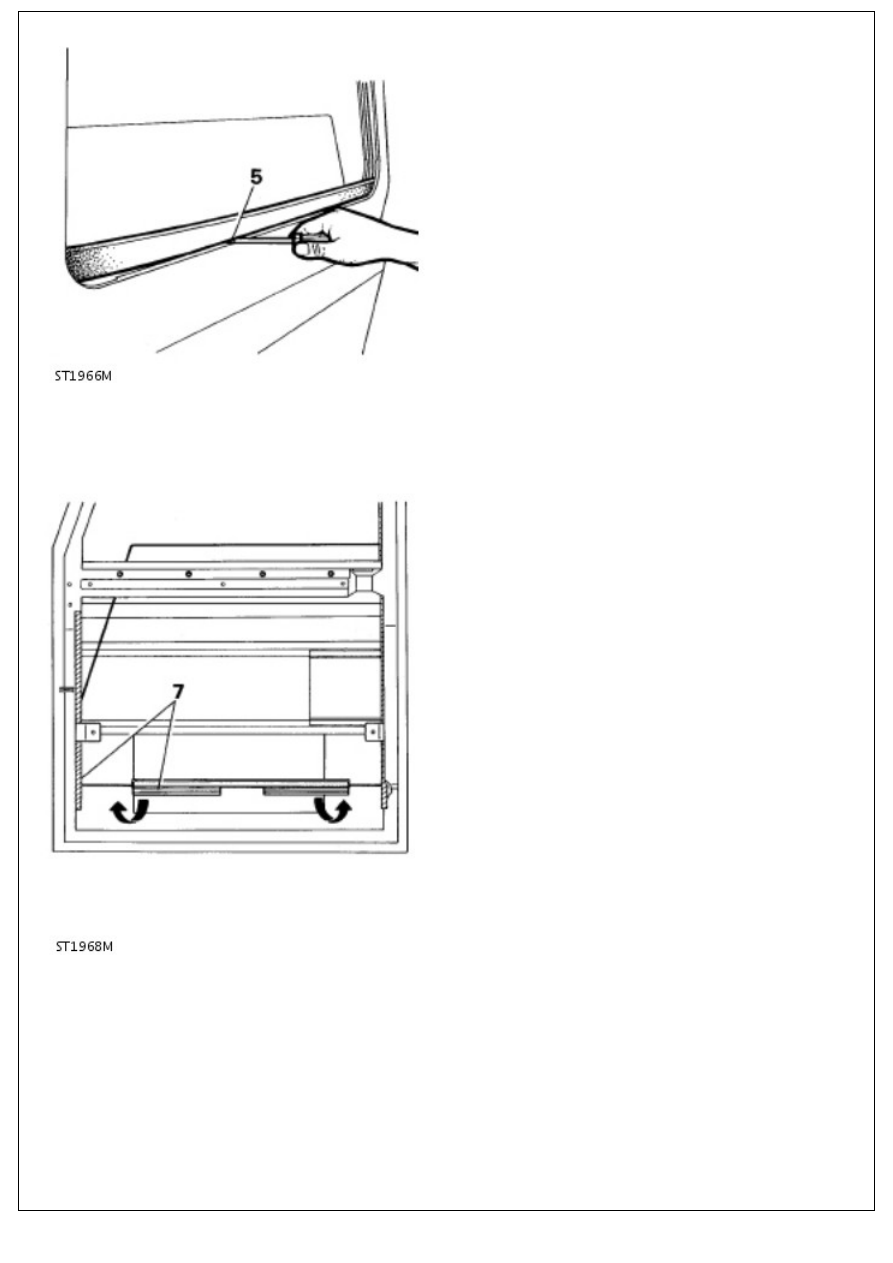

5. Taking care not to damage paint, prise exterior waist

5. Taking care not to damage paint, prise exterior waist

weather strip from door.

6. Remove timber support and lower glass to bottom of door.

7. Ease runner from glass at hinge side of door, lift glass over

bottom edge of door and withdraw.

Installation

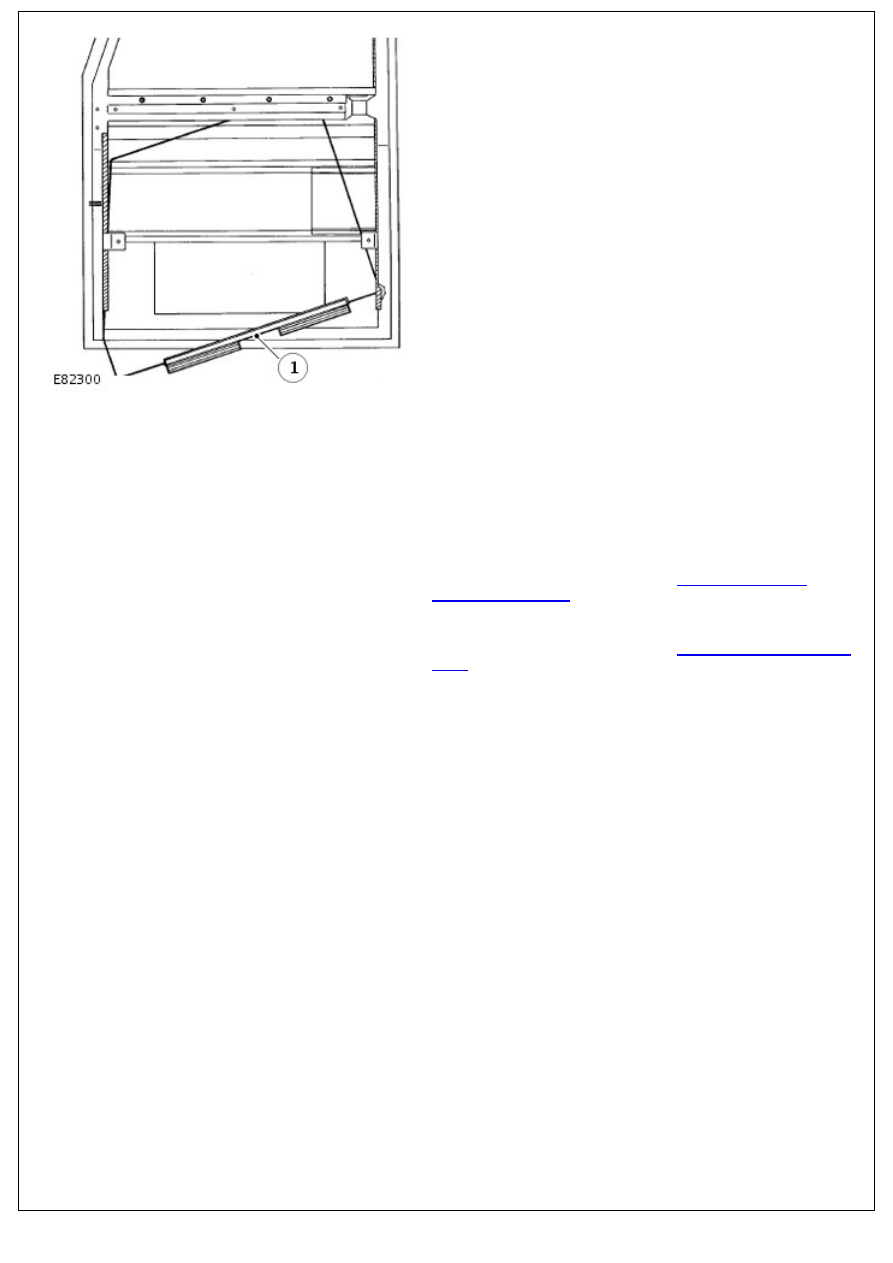

1. Insert glass into runners at an angle as illustrated.

1. Insert glass into runners at an angle as illustrated.

2. Whilst lifting glass, position it squarely in runners, raise to

top of travel and insert timber support.

3. Secure hinge side runner with single screw ensuring that

packing strip is in position.

4. Locate packing strip and secure opposite runner with 2

screws. Ensure that all 3 screw heads are well below bottom

of runners to prevent damage to glass.

5. Locate regulator in window lift channels.
6. Install window regulator.

For additional information, refer to:

Front Door Window

Regulator and Motor

 (501-11 Glass, Frames and Mechanisms,

Removal and Installation).

7. Install front door reinforcement panel.

For additional information, refer to:

Front Door Reinforcement

Panel

 (501-03 Body Closures, Removal and Installation).
