Defender. Manual - part 258





Seating - Third Row Seat Backrest Cover

Removal and Installation

Removal

1. Remove the third row seat backrest.

For additional information, refer to:

Third Row Seat Backrest

(501-10 Seating, Removal and Installation).

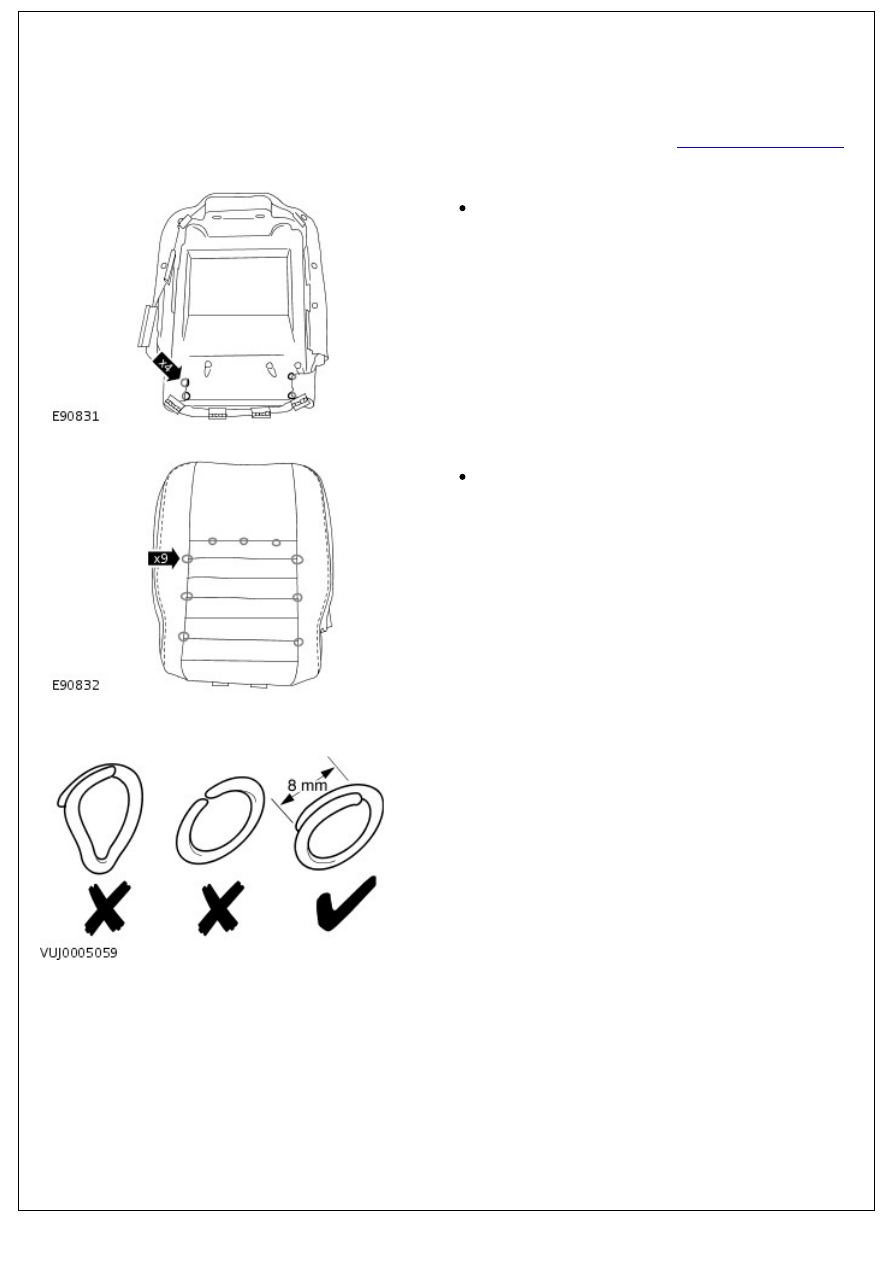

2. Release the third row seat backrest cover.

Remove and discard the 4 hog rings.

3. Remove the third row seat backrest cover.

Remove and discard the 9 hog rings.

Installation

1. NOTE: Use hog ring pliers to close the hog rings. Do not use

any other tool. The hog rings must be closed to overlap as

illustrated.

To install, reverse the removal procedure.

Seating - Third Row Seat Cushion

Removal and Installation

Removal

1. Remove the third row seat.

For additional information, refer to:

Third Row Seat

 (501-10

Seating, Removal and Installation).

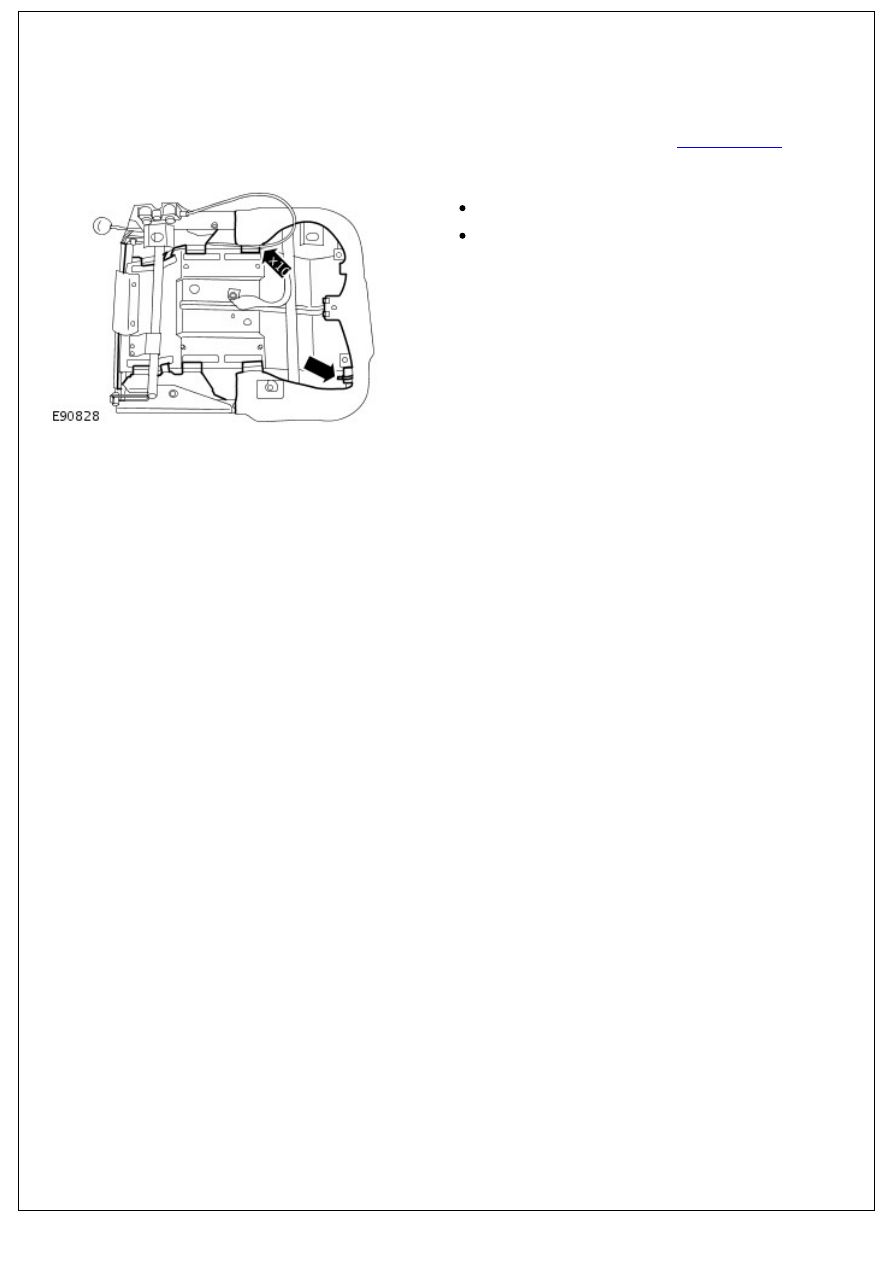

2. Remove the third row seat cushion.

Remove and discard the cable tie.

Release the 10 clips.

Installation

1. To install, reverse the removal procedure.

Seating - Third Row Seat Cushion Cover

Removal and Installation

Removal

1. Remove the third row seat cushion.

For additional information, refer to:

Third Row Seat Cushion

(501-10 Seating, Removal and Installation).

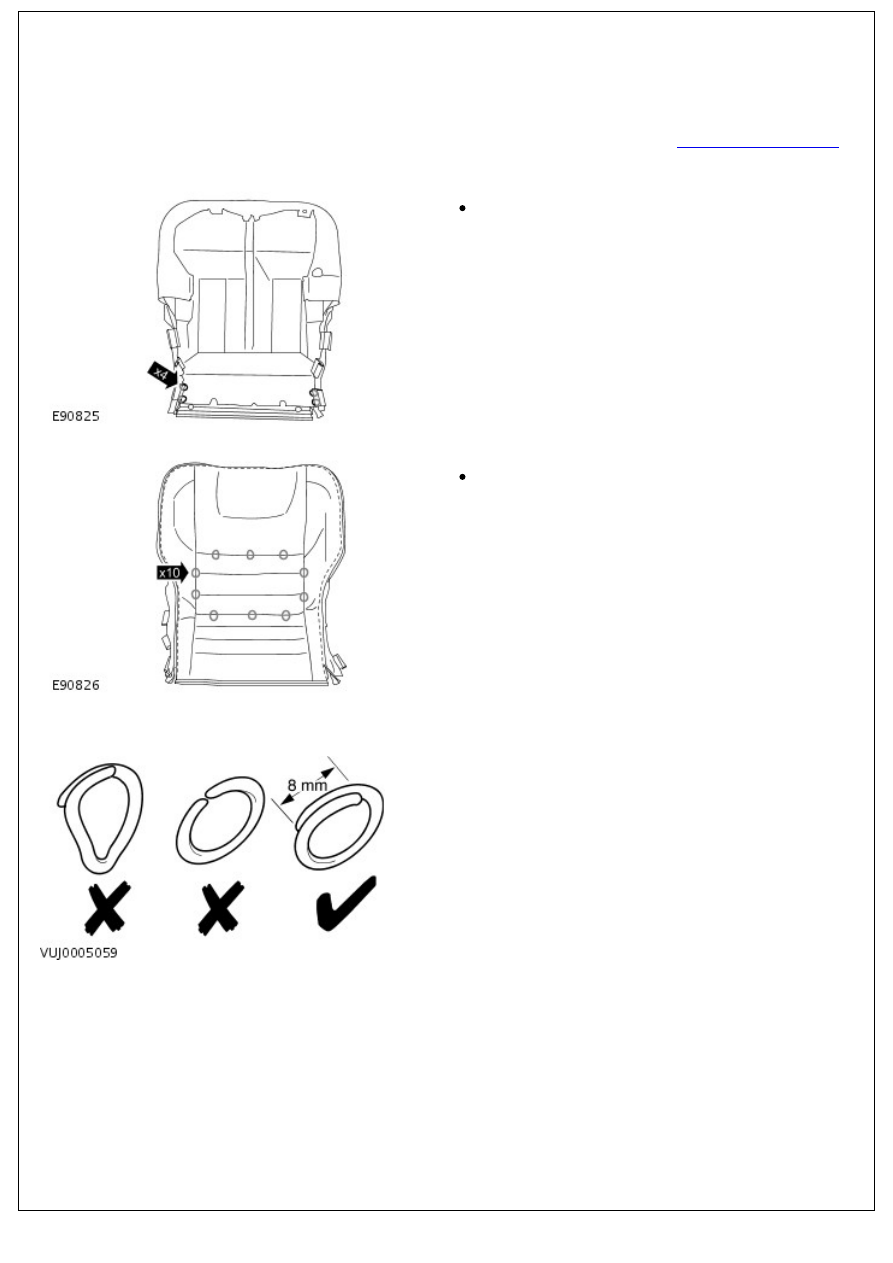

2. Release the third row seat cushion cover.

Remove and discard the 4 hog rings.

3. Remove the third row seat cushion cover.

Remove and discard the 10 hog rings.

Installation

1. NOTE: Use hog ring pliers to close the hog rings. Do not use

any other tool. The hog rings must be closed to overlap as

illustrated.

To install, reverse the removal procedure.

Glass, Frames and Mechanisms - Glass, Frames and Mechanisms

Description and Operation

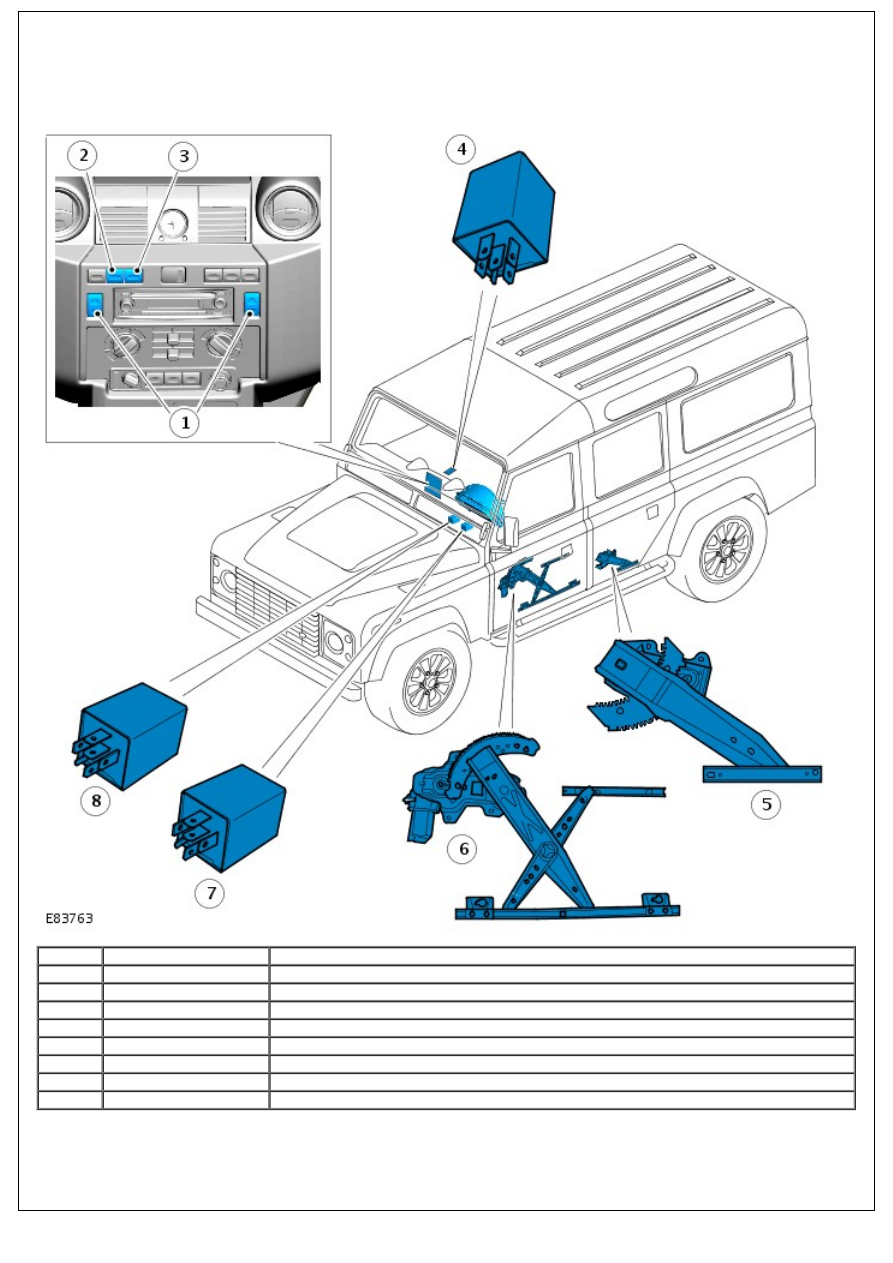

COMPONENT LOCATION

Item

Part Number

Description

1

-

Window lift switches

2

-

Heated windshield switch

3

-

Heated rear window switch

4

-

Heated windshield module

5

-

Rear door window regulator (if fitted)

6

-

Front door window regulator and motor assembly

7

-

Heated rear window relay

8

-

Window lift relay

OVERVIEW

Window Lift

The front window lift system comprises a motor in each front door and 2 rocker switches mounted in the center console.
