Defender. Manual - part 236

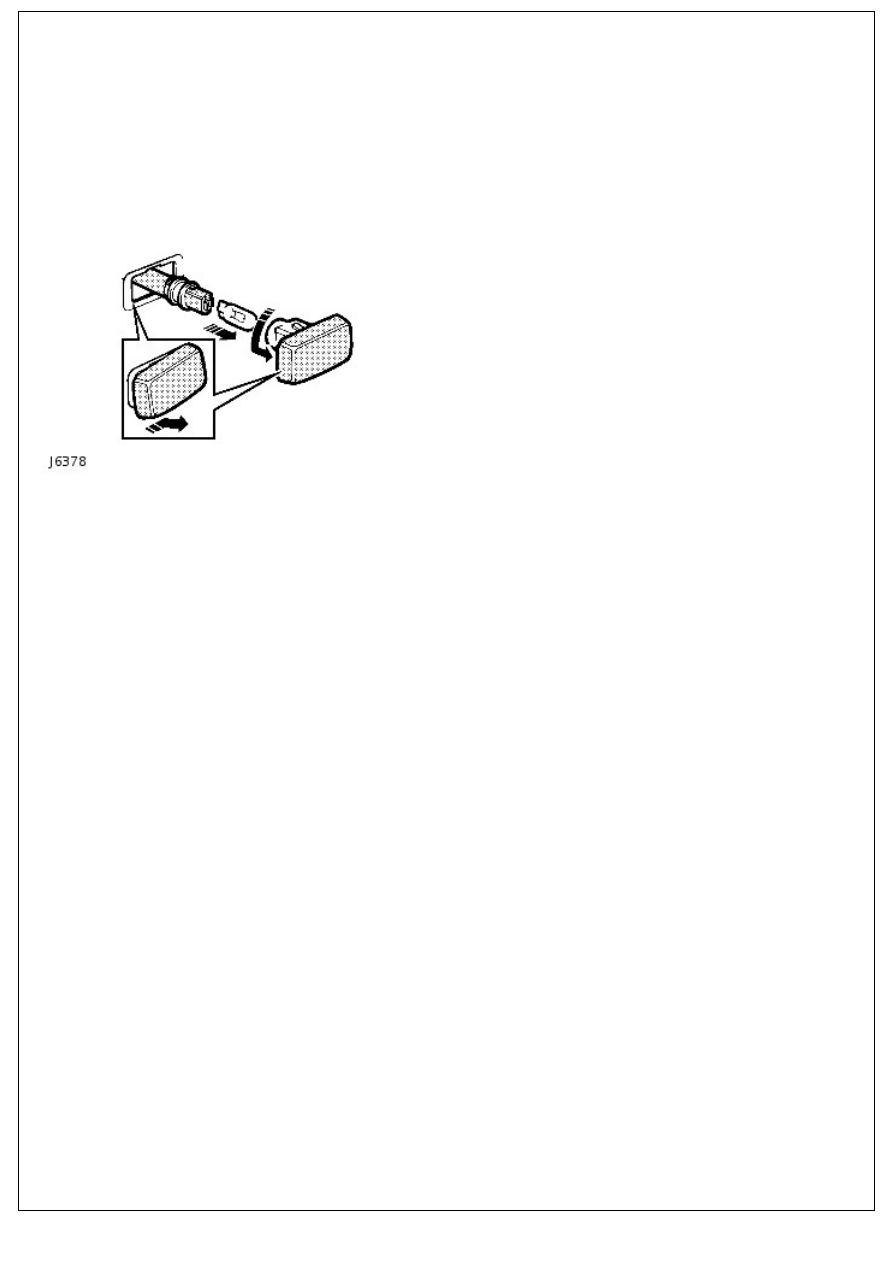

Exterior Lighting - Side Marker Lamp

Removal and Installation

Removal

• NOTE: This procedure covers removal and installation of the side repeater lamp.

1. Push lens firmly to the right.
2. Lift left edge and withdraw lamp unit from wing.
3. Twist bulb holder and release from lens.

4. Pull bulb from holder.

Installation

1. Fit new bulb, if necessary.
2. Fit bulb holder to lens.
3. Locate lamp unit in wing and push firmly to the left to

secure.

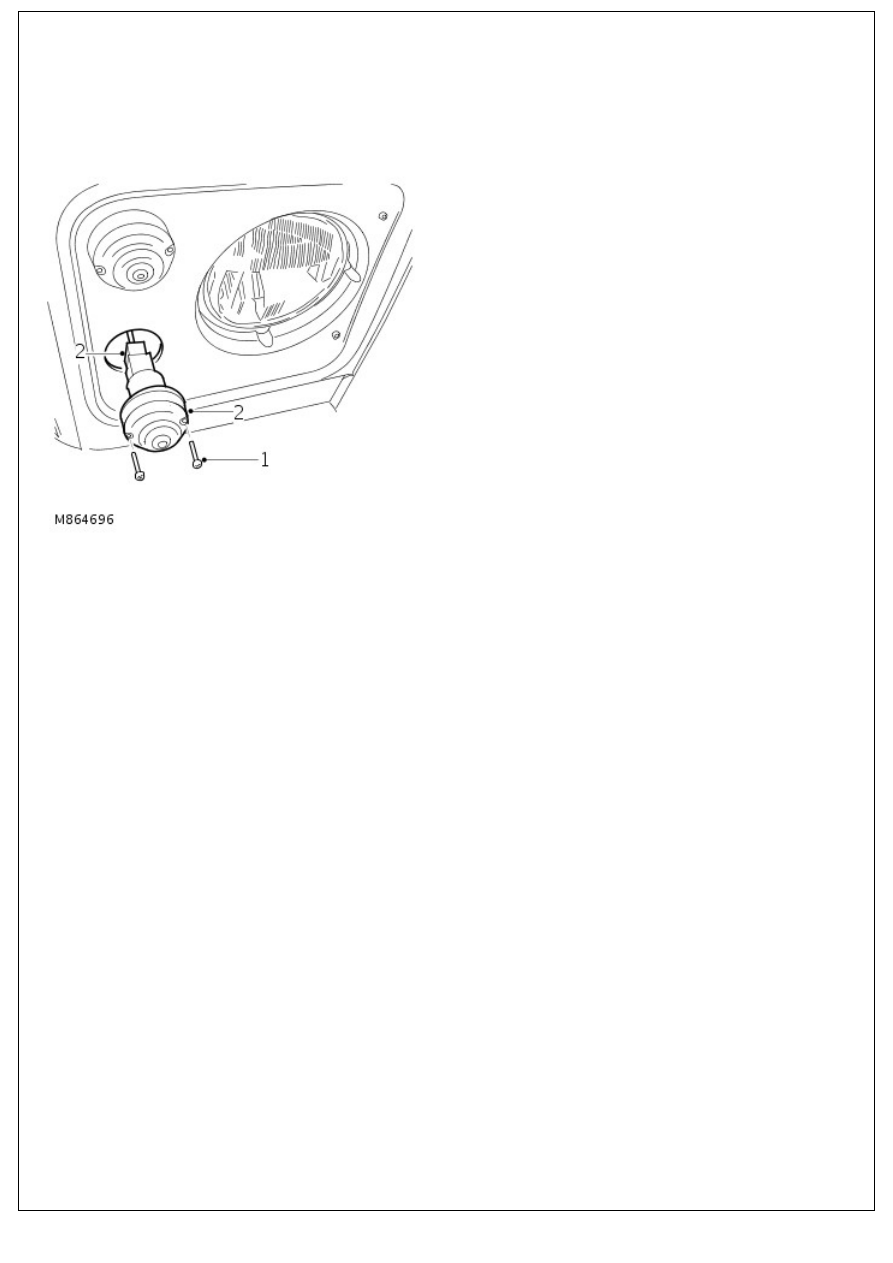

Exterior Lighting - Side Turn Signal Lamp

Removal and Installation

Removal

1. Remove 2 screws securing side turn signal lamp to front

fender.

2. Disconnect multiplug and remove lamp.

Installation

1. Position side turn signal lamp and connect multiplug.
2. Fit and tighten lamp securing screws.

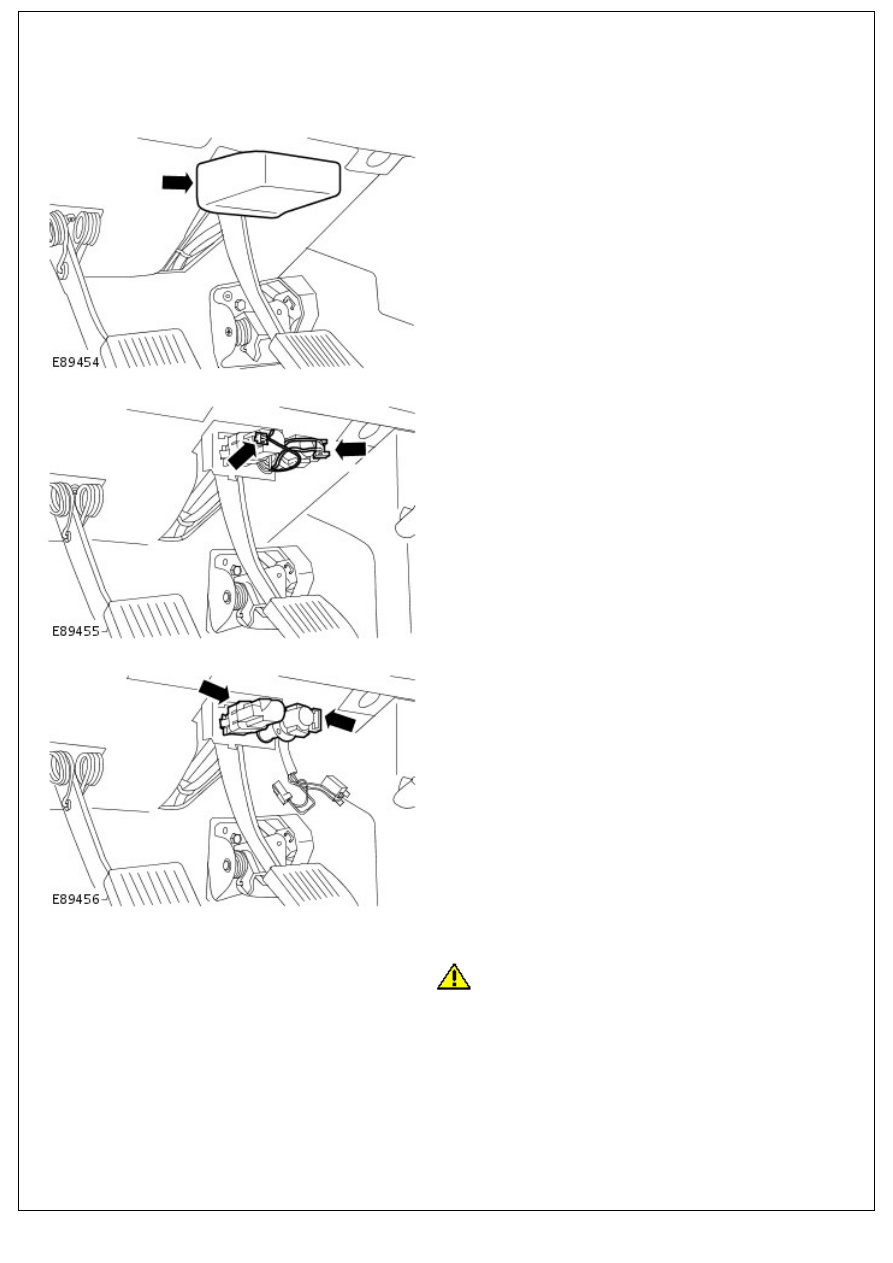

Exterior Lighting - Stoplamp Switch

Removal and Installation

Removal

1. Remove the stoplamp switch cover.

2. Disconnect the electrical connectors.

3. Remove the stoplamp switches.

Installation

1.

CAUTION: Make sure that the brake pedal is kept in the

rest position and is not pressed or moved during the instillation

of the stoplamp switch. Failure to follow this instruction may

result in damage to the vehicle.

To install, reverse the removal procedure.

Interior Lighting - Interior Lighting

Description and Operation

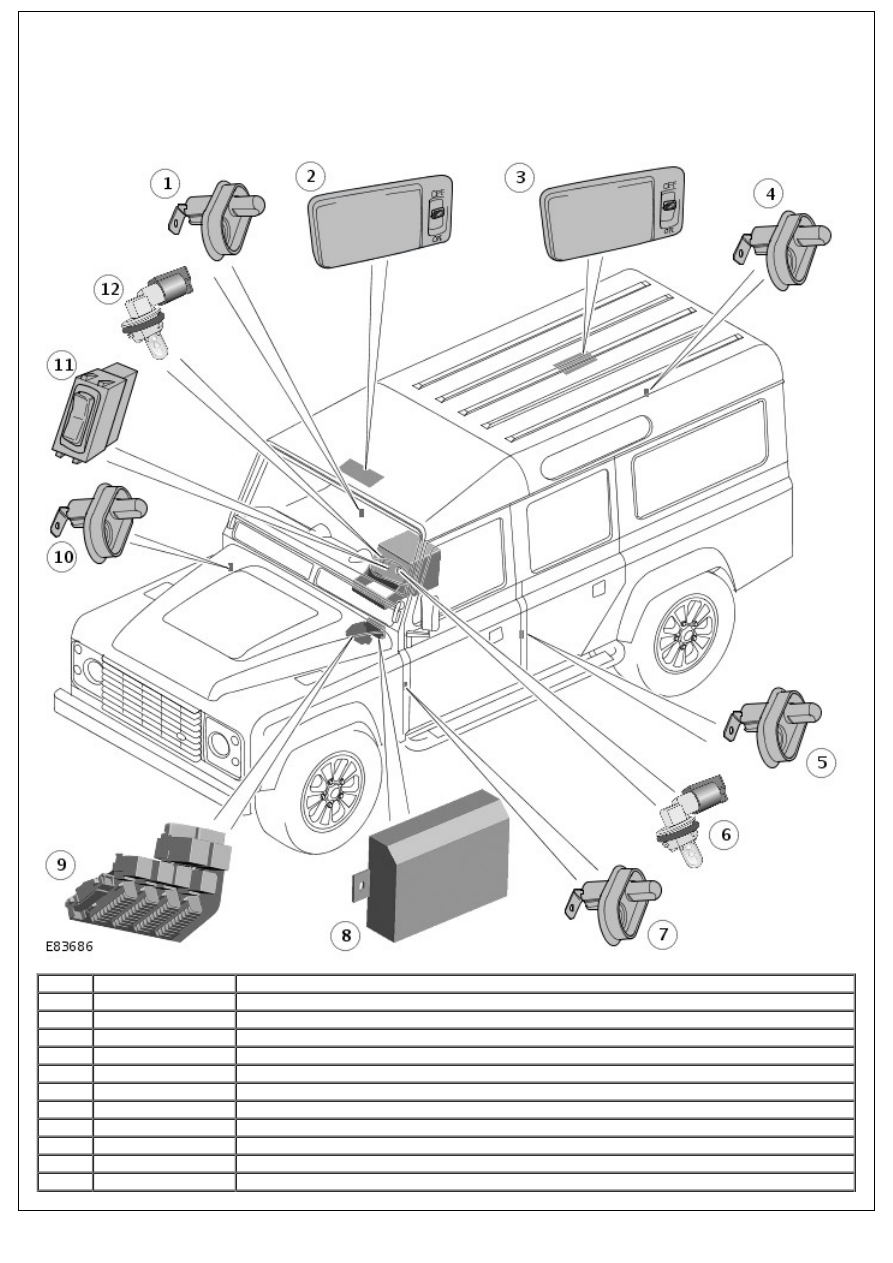

COMPONENT LOCATION

• NOTE: left-hand drive (LHD) vehicle shown, right-hand drive (RHD) similar.

Item

Part Number

Description

1

-

right-hand (RH) rear door switch (if fitted)

2

-

Front interior lamp

3

-

Rear interior lamp (Not 90 model)

4

-

Tail door switch (Not 90 model)

5

-

left-hand (LH) rear door switch (if fitted)

6

-

Map reading lamp (SVX (60th anniversary) model only)

7

-

Drivers door switch

8

-

Anti-theft system module

9

-

central junction box (CJB)

10

-

Passenger door switch

11

-

Map reading lamps switch (SVX (60 anniversary) model only)
