Defender. Manual - part 229





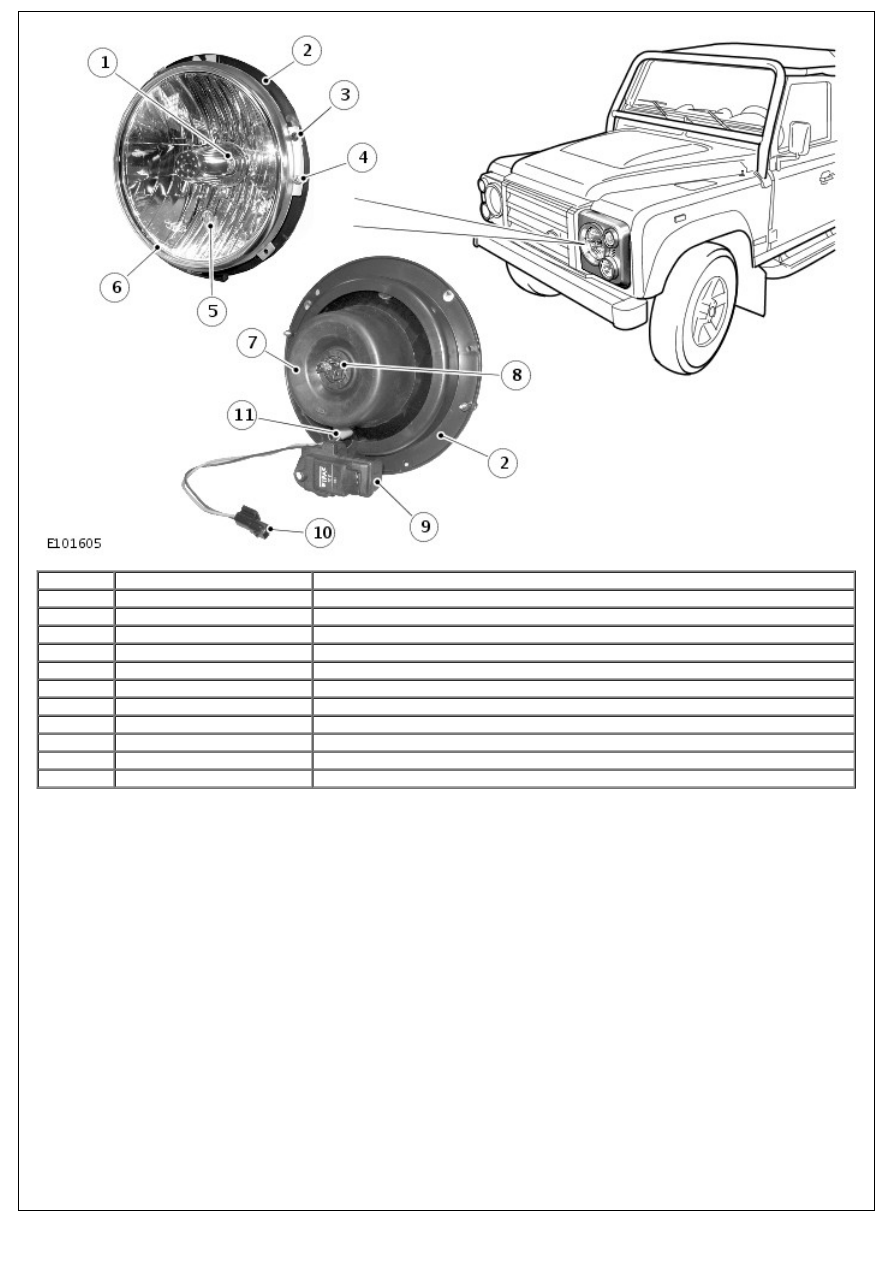

Item

Part Number

Description

1

-

Halogen bulb

2

-

Headlamp mounting

3

-

Headlamp securing screw

4

-

Headlamp beam alignment screw

5

-

Side lamp bulb

6

-

Headlamp assembly

7

-

Rubber cover

8

-

Headlamp bulb connections

9

-

Headlamp adjustment motor (if fitted)

10

-

Side lamp connector

11

-

Side lamp bulb holder

The headlamp is a unique unit to the SVX model. The headlamp is a Wipac unit with a reflector divided into parabolic

segments, with each segment having a different focal length. The headlamp uses a H4 60/55W halogen bulb which is

retained in the rear of the headlamp with a wire clip. The headlamp also houses the sidelamp which is located in a hole

in the headlamp lens. The side lamp uses a W5W bayonet fitting bulb which is located in a rubber holder. A harness

connector from the side lamp connects into the existing side lamp connector in the main wiring harness.

The RH headlamp unit is connected into the main wiring harness. The LH headlamp is connected to the main harness

via a link harness which also supplies power to the auxiliary driving lamps.

Where fitted, an electric motor mounted on the rear of the headlamp allows for the electrical adjustment of the

headlamp alignment.

The headlamp is secured to a metal mounting plate, which is attached to the fender, with 4 self-tapping screws.

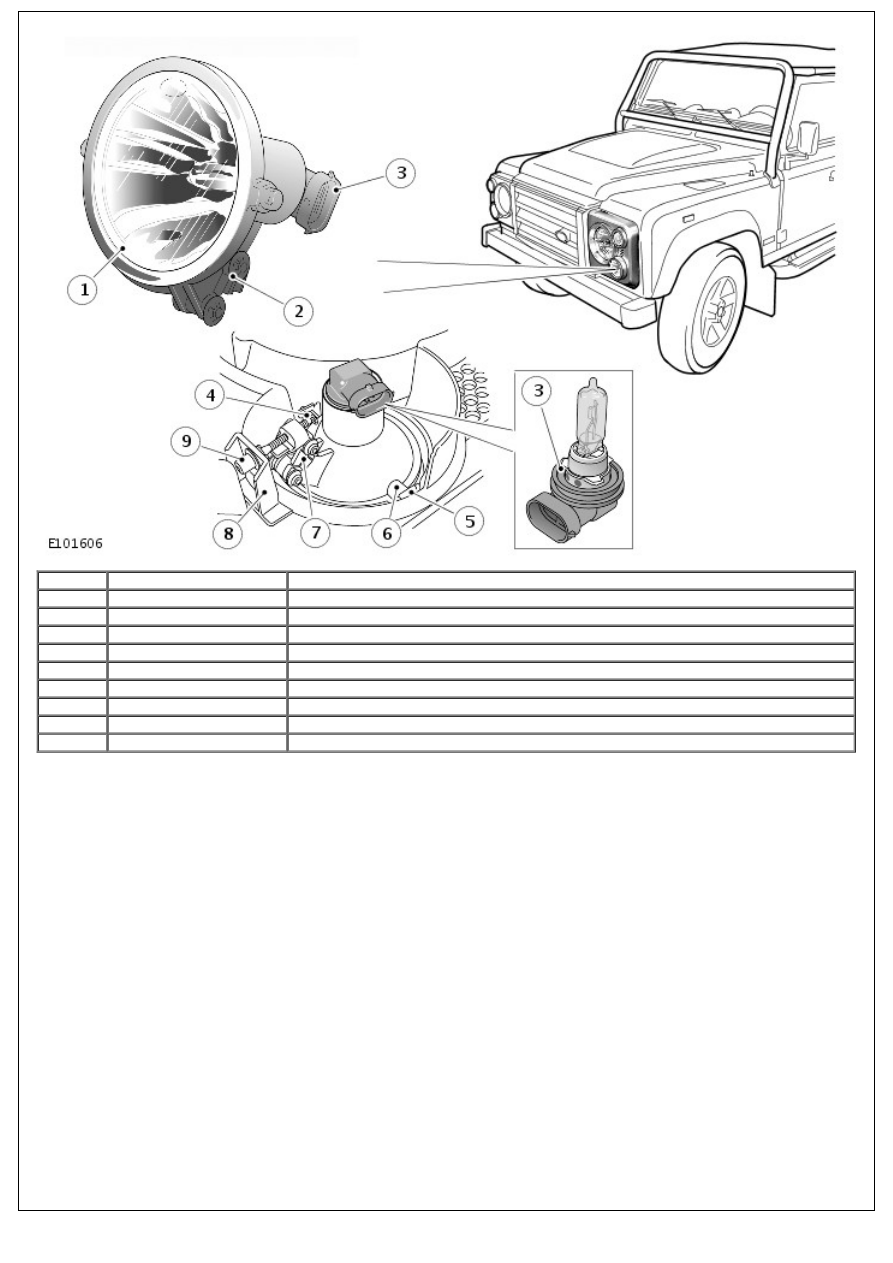

Auxiliary High Beam Lamp

Item

Part Number

Description

1

-

Auxiliary high beam lamp assembly

2

-

Adjustment lever

3

-

Electrical connector and halogen bulb holder

4

-

'R' clip

5

-

Pivot plate (2 off)

6

-

Pivot pin (2 off)

7

-

Pivot lever

8

-

Headlamp surround

9

-

Alignment adjustment screw

The auxiliary high beam lamp is unique to the SVX model. The lamp is located within the headlamp surround. Two metal

plates are a press fit into the surround and 2 pivot pins on the lamp locate in the plates which allow the lamp unit to

pivot up and down in a vertical direction. This allows the vertical aim of the lamp to be adjusted using a worm and

screw mechanism located on the lamp. The adjustment screw locates in a hole on a moulded boss on the headlamp

surround. A washer is fitted to the screw on each side of the boss and are secured with circlip. The two washers and the

circlip retain the screw in the boss, which allows the rotary motion of the screw to be transferred to linear movement of

the lamp allowing the alignment to be adjusted. The screw is accessible through a hole in the underside of the lamp

surround.

The auxiliary high beam lamp uses a H9 65W halogen bulb which is located in an integral holder. The holder is rotated

to lock or remove in the rear of the lamp unit. Access to the bulb requires removal of the headlamp surround.

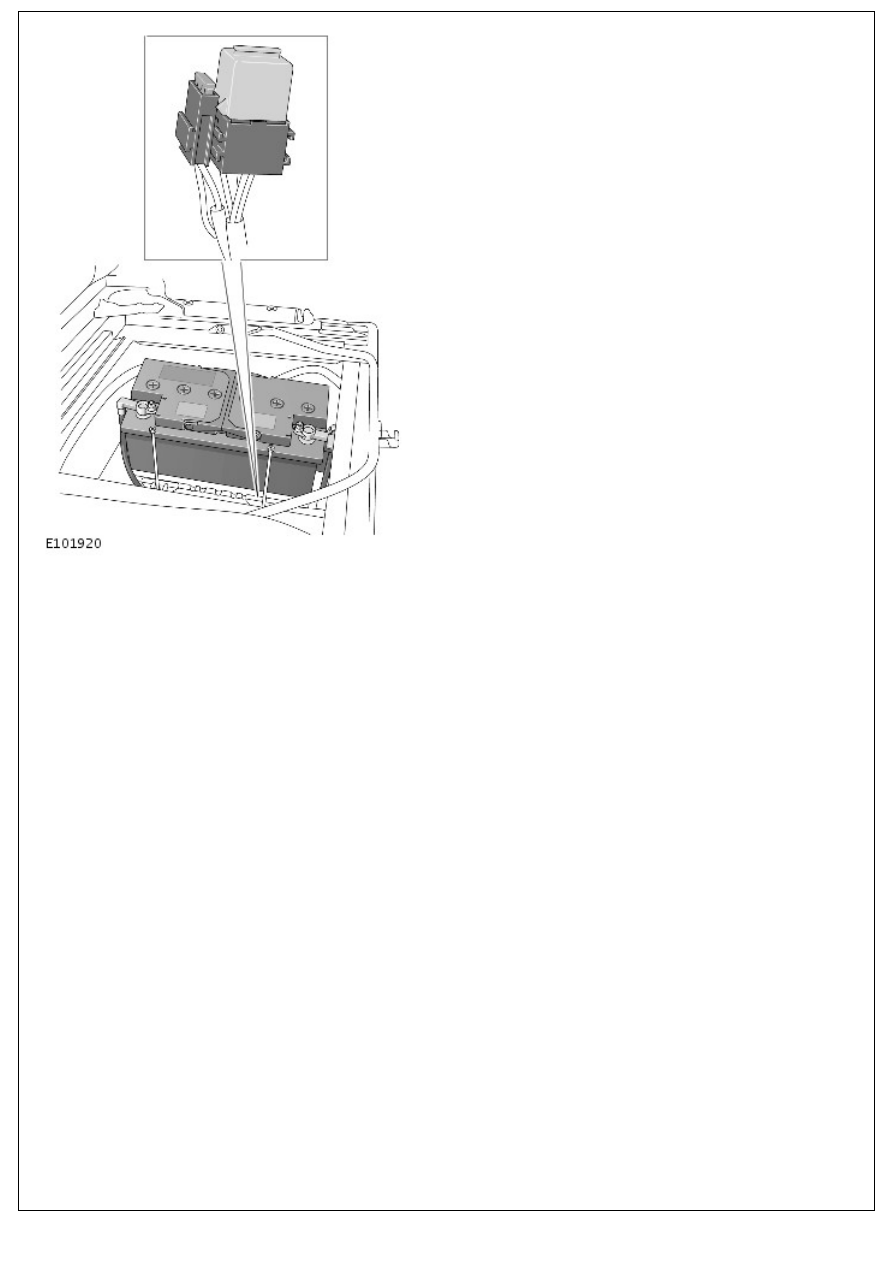

Auxiliary High Beam Lamp Relay and Fuse

The auxiliary lamps are connected via the headlamp link harness. A high beam feed from the LH headlamp is supplied

from the link harness and activates a dedicated auxiliary high beam lamp relay which is located in the battery junction

box (BJB), adjacent to the battery. The relay and auxiliary lamp circuit is protected by a 15 Amp fuse located on the

side of the relay. Activation of the relay allows a direct battery feed to power the auxiliary lamps.

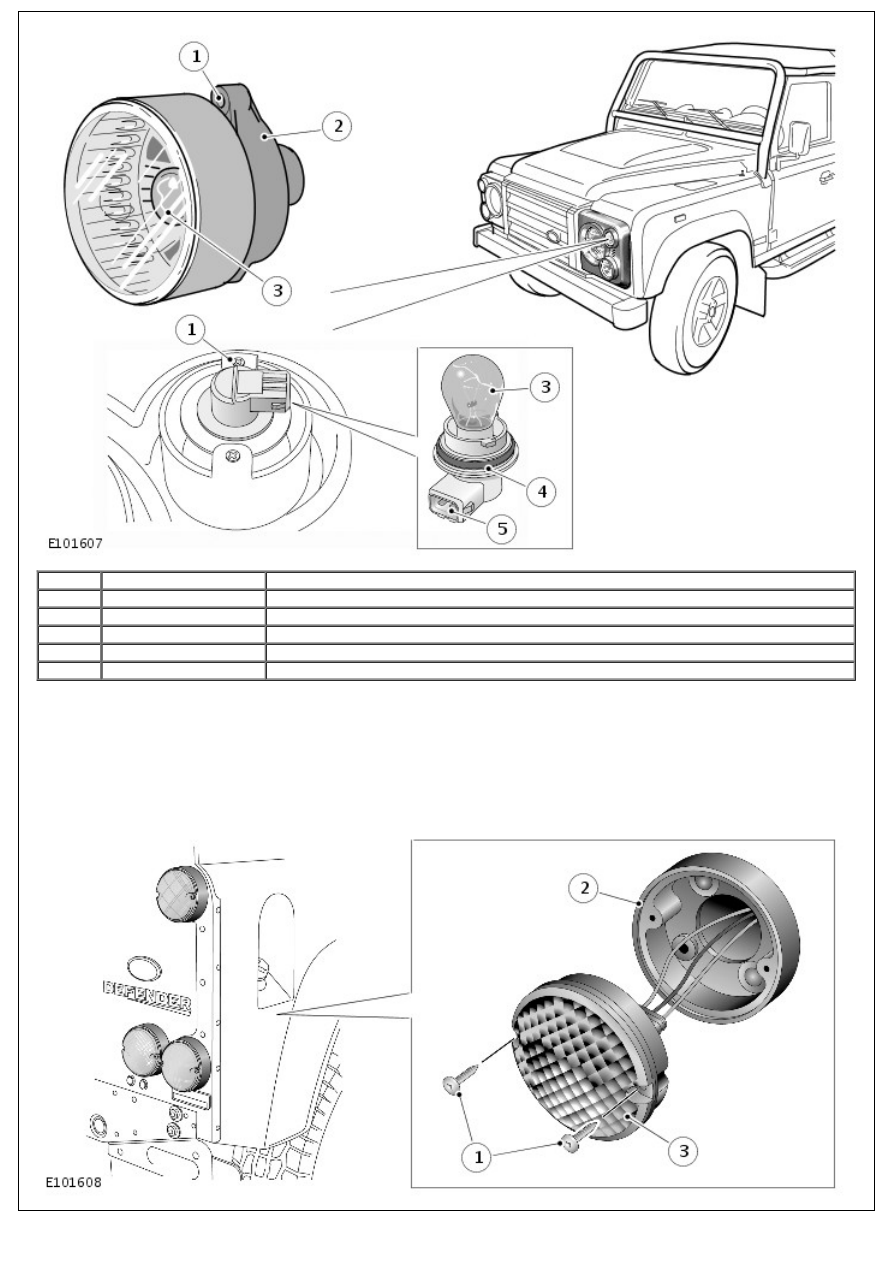

Front Turn Signal Indicator Lamp

Item

Part Number

Description

1

-

Turn signal indicator lamp attachment hole (2 off)

2

-

Turn signal indicator lamp assembly

3

-

Turn signal indicator bulb

4

-

Bulb holder

5

-

Electrical connector

The front turn signal indicator lamp is unique to the SVX model. The lamp is located within the headlamp surround and

is positioned on 2 lugs integral with the surround and secured with 2 self-tapping screws.

The lamp uses a PY21W Diadem bulb which is located in a holder in the rear of the lamp assembly. The holder has an

integral connector which allows for connection to the main wiring harness via a short link harness which converts the

main harness connector to the connector on the holder. The holder is rotated to lock or remove in the rear of the lamp

unit. Access to the bulb requires removal of the headlamp surround.

LED Rear Lamps
