22

-

Select station - radio mode or select track forwards - CD/USB mode or fast forward - CD/USB mode

23

-

Select station - radio mode or select track backwards - CD/USB mode or fast reverse - CD/USB mode

The head unit is located in a central position in the instrument panel, above the heater controls. The head unit locates in

an ISO standard radio cage which is specific to the Clarion® head unit. Two special tools are required to remove the

head unit from the cage once installed.

A link harness is used to connect the Clarion® head unit to the existing In-Car Entertainment (ICE) harness connectors.

The link harness plugs into the existing ICE connector on the main harness and has four phono plugs and one connector

to provide the connections to the Clarion® head unit. The phono plugs provide the speaker outputs and are colored red

and white. Two of the plug wires have a blue tracer for identification. Two phono plugs connect to the top 2 phono

sockets in the head unit and the two phono plugs with the blue tracer connect to the center 2 phono sockets on the

head unit. The phono sockets on the head unit are also colored red and white to ensure the correct connections are

made and the speaker polarity is correct. The connector also plugs into the rear of the head unit. The aerial plug is a

male plug which connects into a socket on the rear of the head unit.

If iPod connectivity is installed an additional iPod audio connectivity module and link harness is used. The audio

connectivity module is located on the cross car beam to the right of the head unit and is secured with a zip tie. This

harness plugs into the existing ICE connector and the head unit link harness connects to the iPod audio connectivity

module link harness. The audio connectivity module has a lead for the antenna connection. The lead from the antenna is

plugged into the module antenna connection and the antenna lead from the module then connects into the head unit

antenna connector.

The Clarion® DB568RUSB head unit features a detachable control panel which can be removed for security. The panel is

released by pressing the button at the top LH corner of the unit. The panel will be released and can be removed and

stored in the supplied case. The panel can be refitted by locating the RH end of the panel in the slots in the head unit

and gently pushing the LH end of the panel towards the unit until the catch engages.

A USB port is located in the RH hand end of the unit and can be accessed by opening a cover on the detachable control

panel. The port allows the use of a customer supplied USB memory device to allow access to a large range of music

files in both MP3 and WMA formats. The unit can read the files and folder structures and data from the memory device

and play the music directly via the USB port. It is not recommended to use this port for iPod connection.

Full operating instructions and unit features are detailed in the owner literature supplied with the vehicle.

An auxiliary input socket is located inside the cubby box. The socket allows for the additional connection of an MP3

player or other storage device via a single pin jack plug.

Specifications

Power supply voltage: 14.4 Volts (10.8 to 15.6 Volts allowable) - Negative earth

Current consumption: less than 15 Amperes

Speaker impedance: 4 Ohms (4 to 8 Ohms allowable)

Audio maximum power output: 200 Watts (50 Watts X 4 channels)

Audio power output: 4 X 25 Watts

USB 1.1 and 2.0 compatible with transfer rate of 12 Mbps maximum

MP3 and WMA compatible

FM frequency range: 87.5 to 108 MHz

MW frequency range: 531 to 1602 kHz

AM frequency range: 153 to 279 kHz

The speakers installed in the SVX vehicle are upgraded from the standard fitment and are also supplied by Clarion®.

These speakers are connected to the existing speaker harnesses by link leads which allow for the different connector

specifications required for the Clarion® speakers.

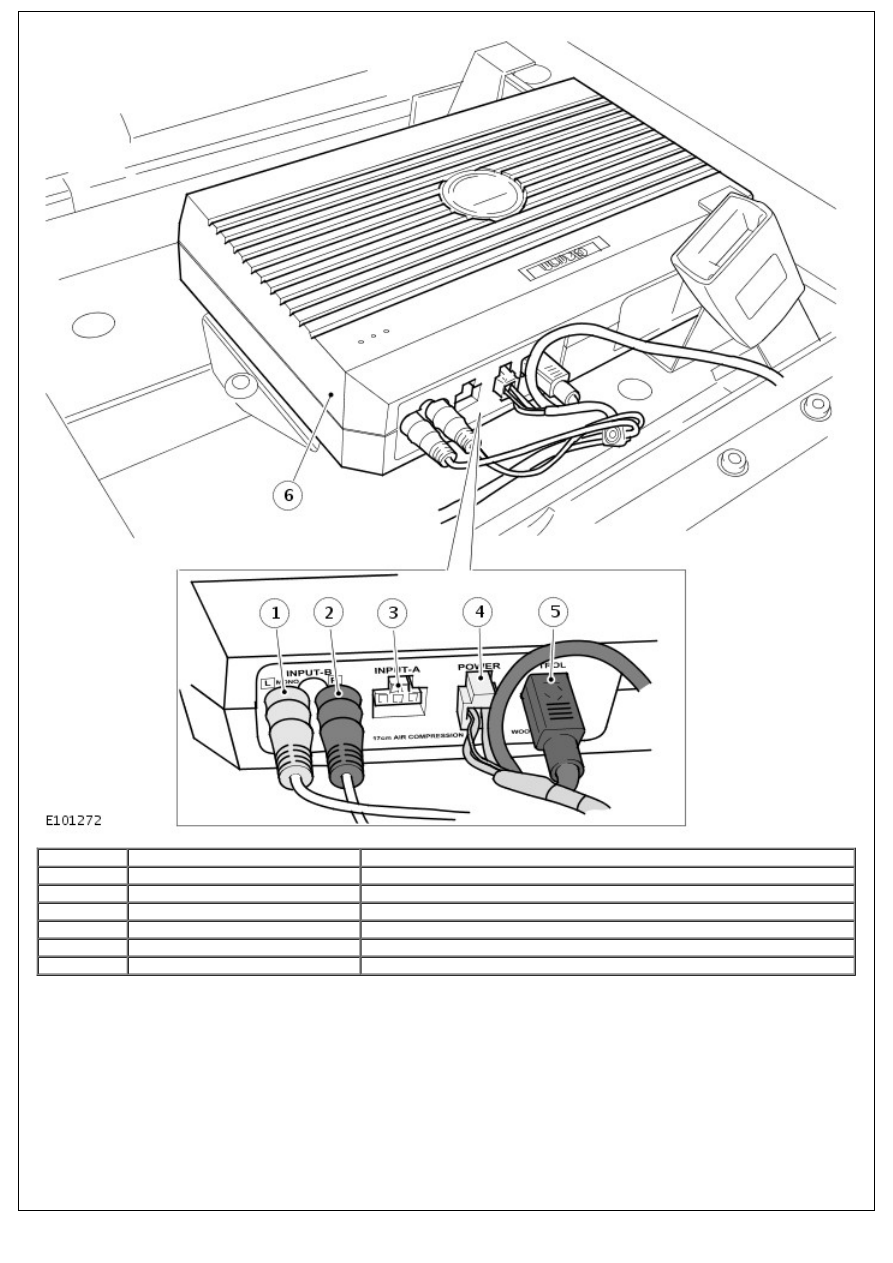

Clarion Sub-Woofer SRV313

Item

Part Number

Description

1

-

LH phono plug speaker input

2

-

RH phono plug speaker input

3

-

Not used

4

-

Power and ground connector

5

-

Remote control connector

6

-

Sub-woofer unit

The Clarion® SRV313 sub-woofer is located on the cabin floor below the center cubby box and is secured to the floor

with two self-tapping screws.

The sub-woofer is connected to the head unit via a link cable from the head unit. Two phono plugs provide speaker

inputs for LH and RH inputs and are colored white and red respectively for identification and connect into the 'Input B'

sockets (the 'Input A' socket is not used). A power supply socket provides power and ground for unit power. A 'Remote

Control' socket allows for the connection of the remote control unit.

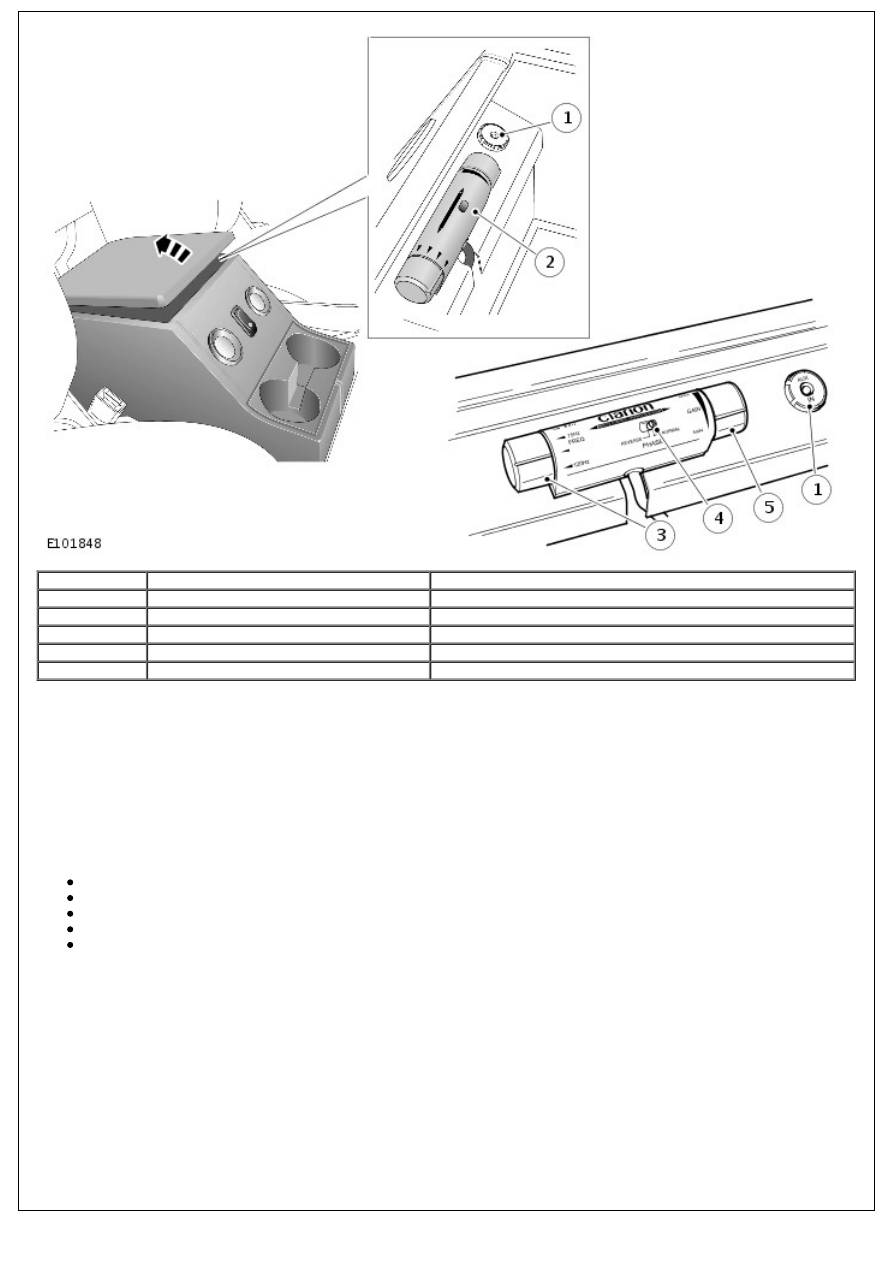

Remote Control and Auxiliary Socket

Item

Part Number

Description

1

-

Auxiliary socket

2

-

Remote control

3

-

Frequency control

4

-

Phase switch

5

-

Gain volume control

The remote control unit is located in the front of the cubby box and is accessible by lifting the cubby box lid. The remote

control has a rotary control on the LH end which allows for adjustment of the sub-woofer bass output by adjusting the

cut-off frequency of the low-pass filter. Four selections are available; 50/75/100 and 120 Hz. The sub-woofer will only

output frequencies below the selected Hz level. The rotary control on the RH end of the remote control provides for

adjustment of the speaker 'gain' and can be used to adjust the sub-woofer volume output, independent of the head unit

volume control. A switch on the remote control allows for the sub-woofer phase to be switched between normal and

reverse. Clarion recommend for this application the setting is the 'normal' phase.

An auxiliary input socket is located adjacent to the remote control. The socket allows for the connection of an additional

auxiliary audio input, an MP3 player for example.

Sub-Woofer Specifications

120 Watt high power amplifier with low pass filter

17 cm counter drive woofer with dualneodymium magnet

Air compression structure with die-cast aluminum enclosure

Wired remote control for gain control/low pass filter (selectable 50/75/100/120 Hz) /phase filter

Dual 4 Ohm voice coils.

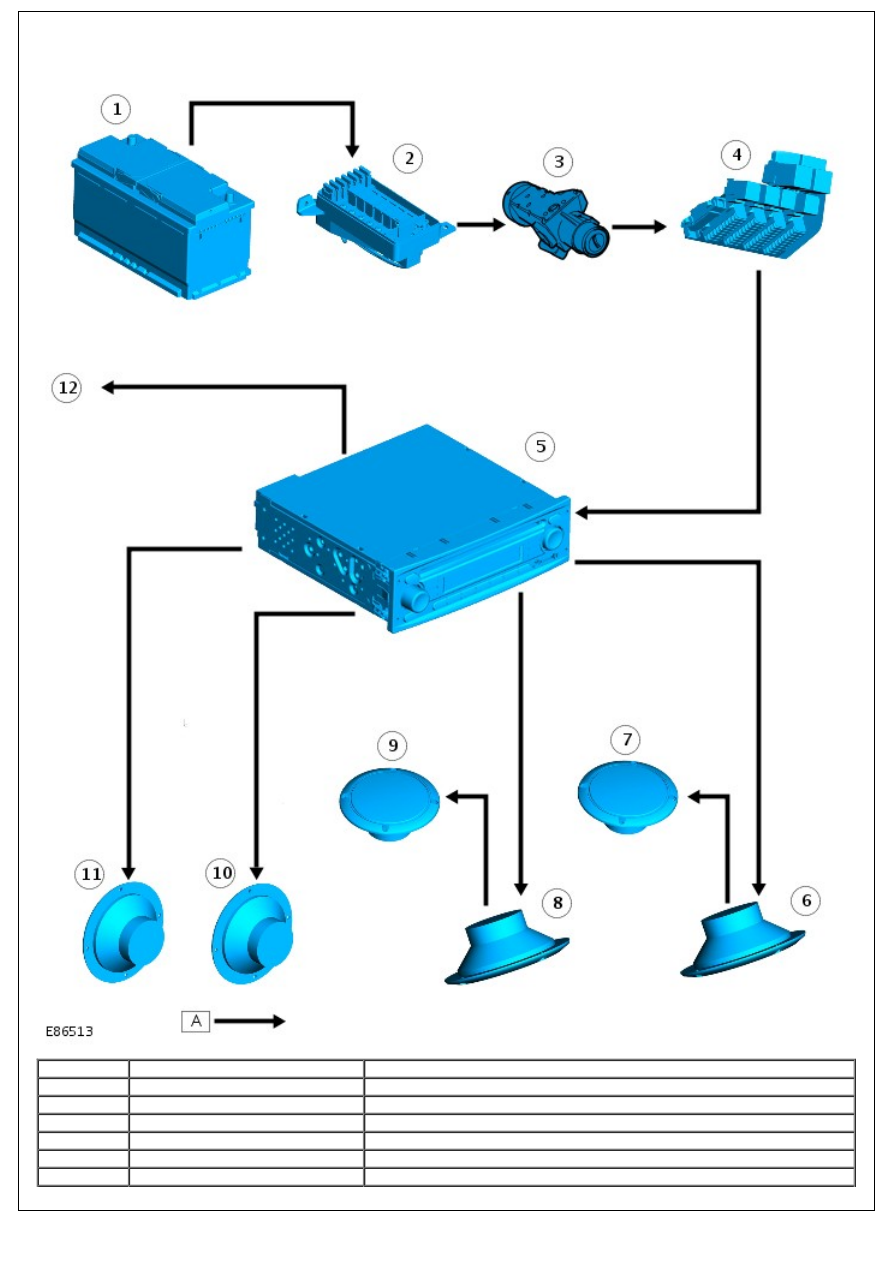

CONTROL DIAGRAM - MODELS FROM 2007MY (NOT SVX (60TH ANNIVERSARY) MODEL)

Item

Part Number

Description

1

-

Battery

2

-

battery junction box (BJB)

3

-

Ignition switch

4

-

central junction box (CJB)

5

-

Audio head unit

6

-

Front RH mid range speaker
