Clock - Clock

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the audio unit.

For additional information, refer to:

Audio Unit

 (415-01A

Audio Unit, Removal and Installation).

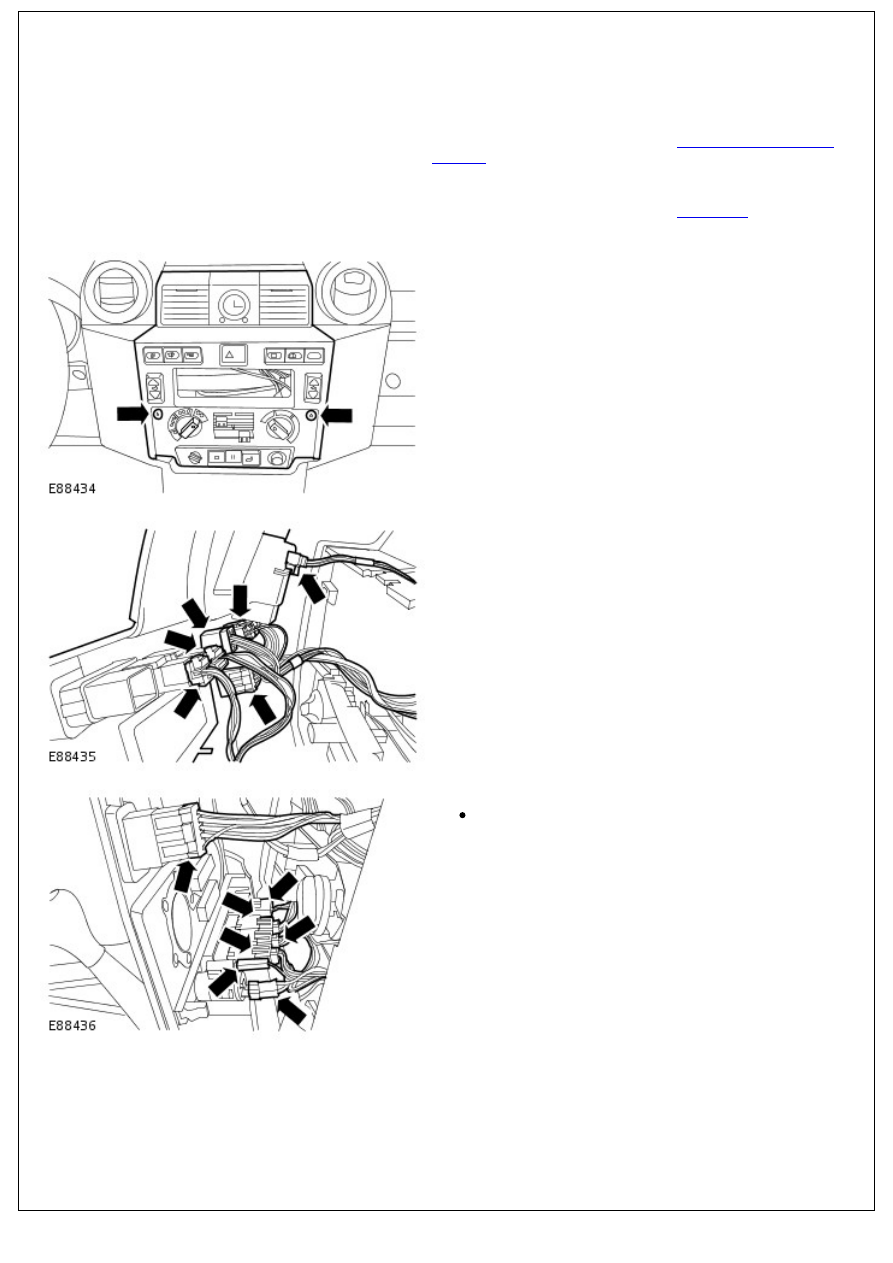

3. Release the instrument panel console.

4. Disconnect the 6 electrical connectors.

5. Remove the instrument panel console.

Disconnect the 7 electrical connectors.

6. Remove the clock support bracket.

6. Remove the clock support bracket.

Remove the 4 screws.

7. Remove the clock.

Installation

1. To install, reverse the removal procedure.
2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Charging System - General Information - Charging System

Diagnosis and Testing

Generator testing

Charging system check

Check battery is in good condition, with an open circuit voltage of at least 12.6 V. Recharge or substitute battery

to carry out test.

1. Check drive belt condition.

2. Check battery connections are clean and tight.

3. Check generator connections are clean and tight.

4. Ensure there is no drain on battery from, for example, interior or exterior lamps.

Generator test

Following instructions refer to use of suitable test equipment using a carbon pile rheostat.

Connect test equipment referring to manufacturer's instructions.

Start engine and run at 3000 rev/min without accessory load.

Rotate carbon pile load control to achieve greatest output (amps) without allowing voltage to fall below 12.0 V. A

reading in amps, of generator output should be obtained.

Run engine at 3000 rev/min, switch selector to regulator test, read voltmeter. A reading of 13.6 to 14.4 V should

be obtained.

Switch selector to diode/stator test, switch on headlamps to load generator. Raise engine speed to 3000 rev/min,

read voltmeter, needle must be within 'OK' range.

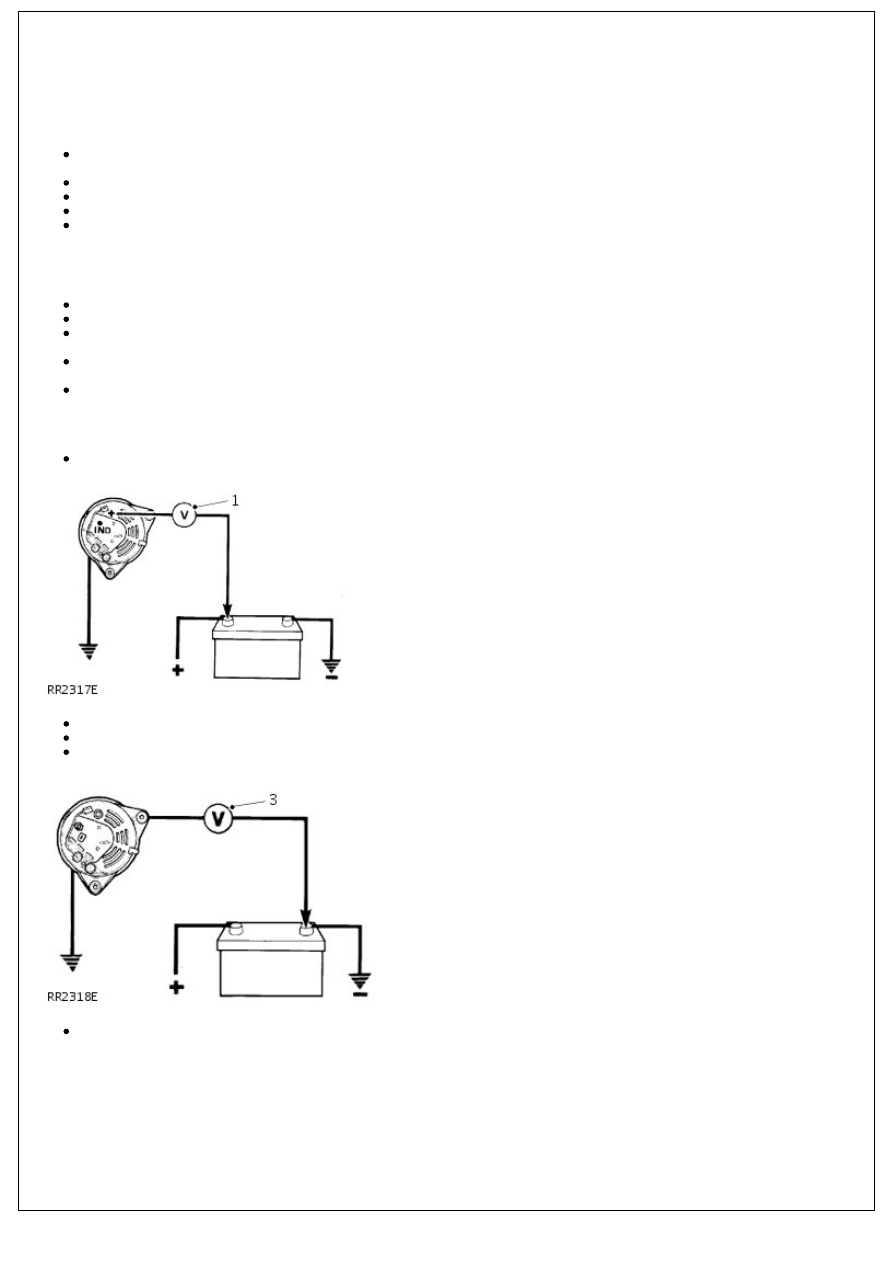

Charging circuit resistance test

Connect a low range voltmeter between generator terminal marked B+ and positive terminal of battery.

1. Connect a low range voltmeter between generator terminal marked B+ and positive terminal of the battery.

2. Switch on headlamps, start engine. Run engine at approximately 3000 rev/min. Note voltmeter reading.

3. Transfer voltmeter connections to frame of generator and negative terminal of battery, and again note

voltmeter reading.

4. If reading exceeds 0.5 volt on positive side or 0.25 volt on negative side, there is a high resistance in charging

circuit which must be traced and remedied.

Battery, Mounting and Cables -

Torque specifications

Description

Nm

lb-ft

Battery terminal nuts

5

4

Battery clamp nuts

9

7

Battery ground cable to transmission stud

30

22
