Air Conditioning - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Receiver Drier

Removal and Installation

Removal

1. Recover the air conditioning (A/C) refrigerant.

For additional information, refer to:

Air Conditioning (A/C)

System Recovery, Evacuation and Charging

 (412-00 Climate

Control System - General Information, General Procedures).

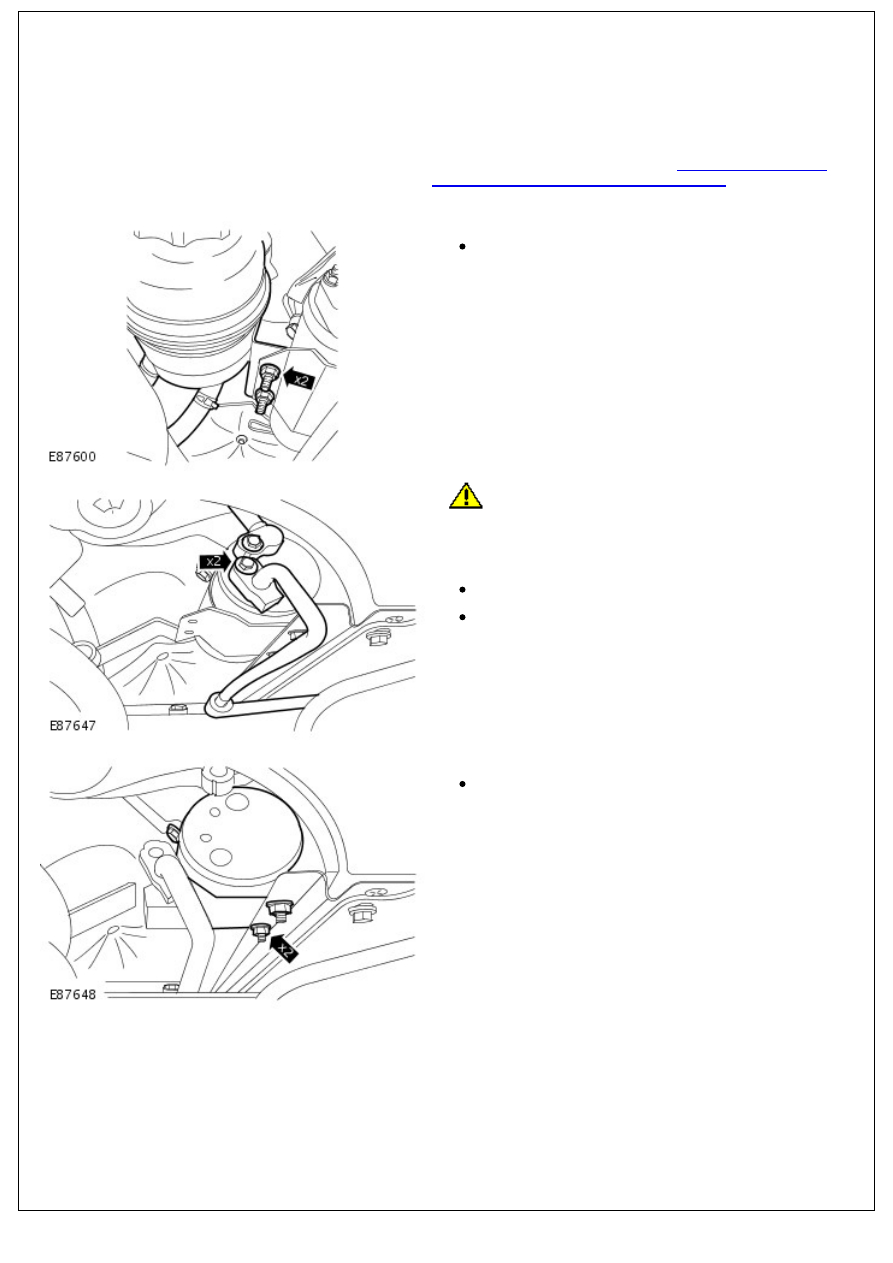

2. Release the power steering fluid reservoir.

Remove the 2 nuts.

3.

CAUTION: Make sure that all openings are sealed. Use

new blanking caps.

Disconnect the A/C receiver drier low-pressure and high-

pressure refrigerant lines.

Remove the 2 bolts.

Remove and discard the O-ring seals.

4. Remove the A/C receiver drier.

Remove the 2 nuts.

Installation

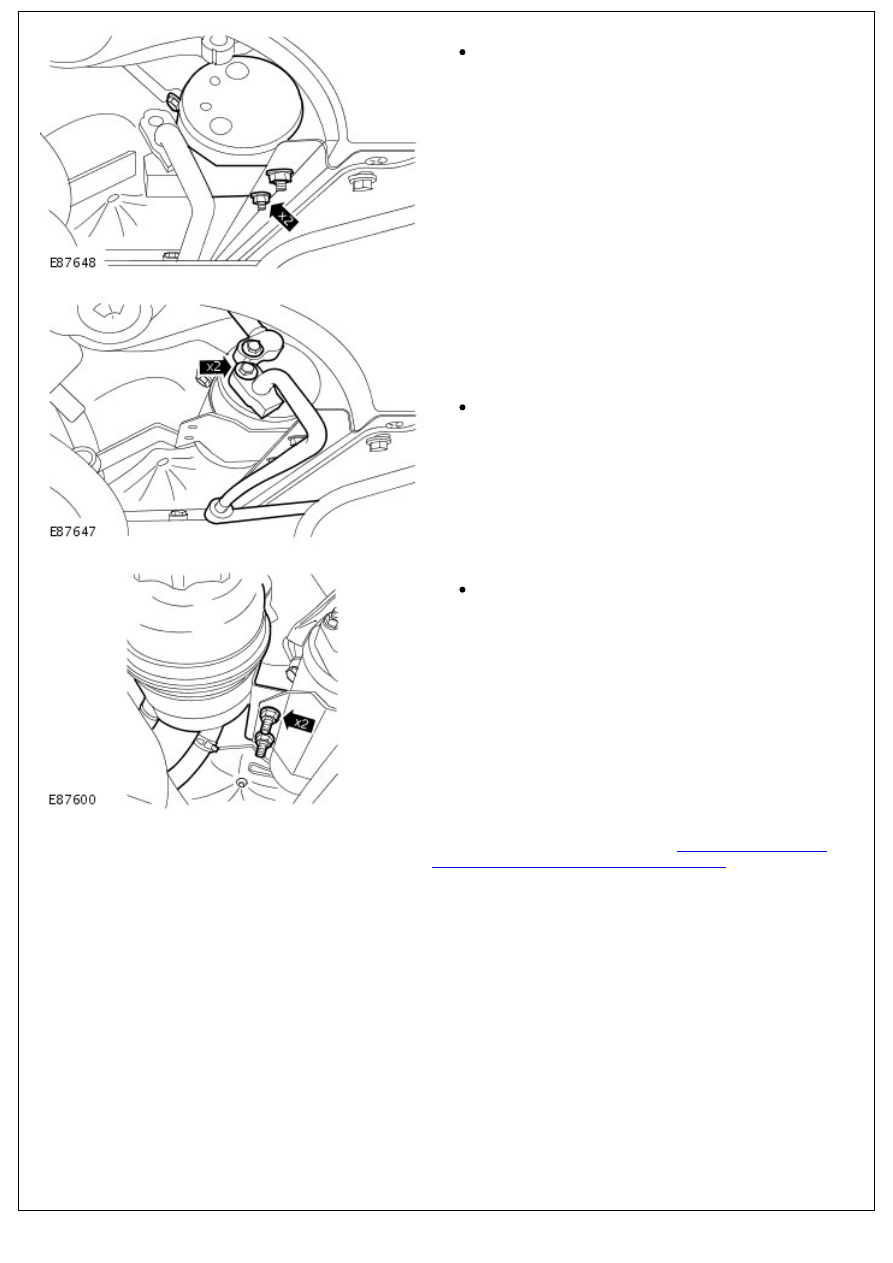

1. Install the A/C receiver drier.

1. Install the A/C receiver drier.

Tighten to 8 Nm (6 lb.ft).

2. NOTE: Coat the receiver drier O-ring seals in clean

refrigerant oil prior to installation.

• NOTE: Remove and discard the blanking caps.

Connect the A/C receiver drier low-pressure and high-

pressure refrigerant lines.

Tighten to 8 Nm (6 lb.ft).

3. Secure the power steering fluid reservoir.

Tighten to 4 Nm (3 lb.ft).

4. Refill the air conditioning (A/C) refrigerant.

For additional information, refer to:

Air Conditioning (A/C)

System Recovery, Evacuation and Charging

 (412-00 Climate

Control System - General Information, General Procedures).

Control Components - Climate Control Assembly

Removal and Installation

Removal

1. Remove the instrument panel console.

For additional information, refer to:

Instrument Panel Console

(501-12 Instrument Panel and Console, Removal and

Installation).

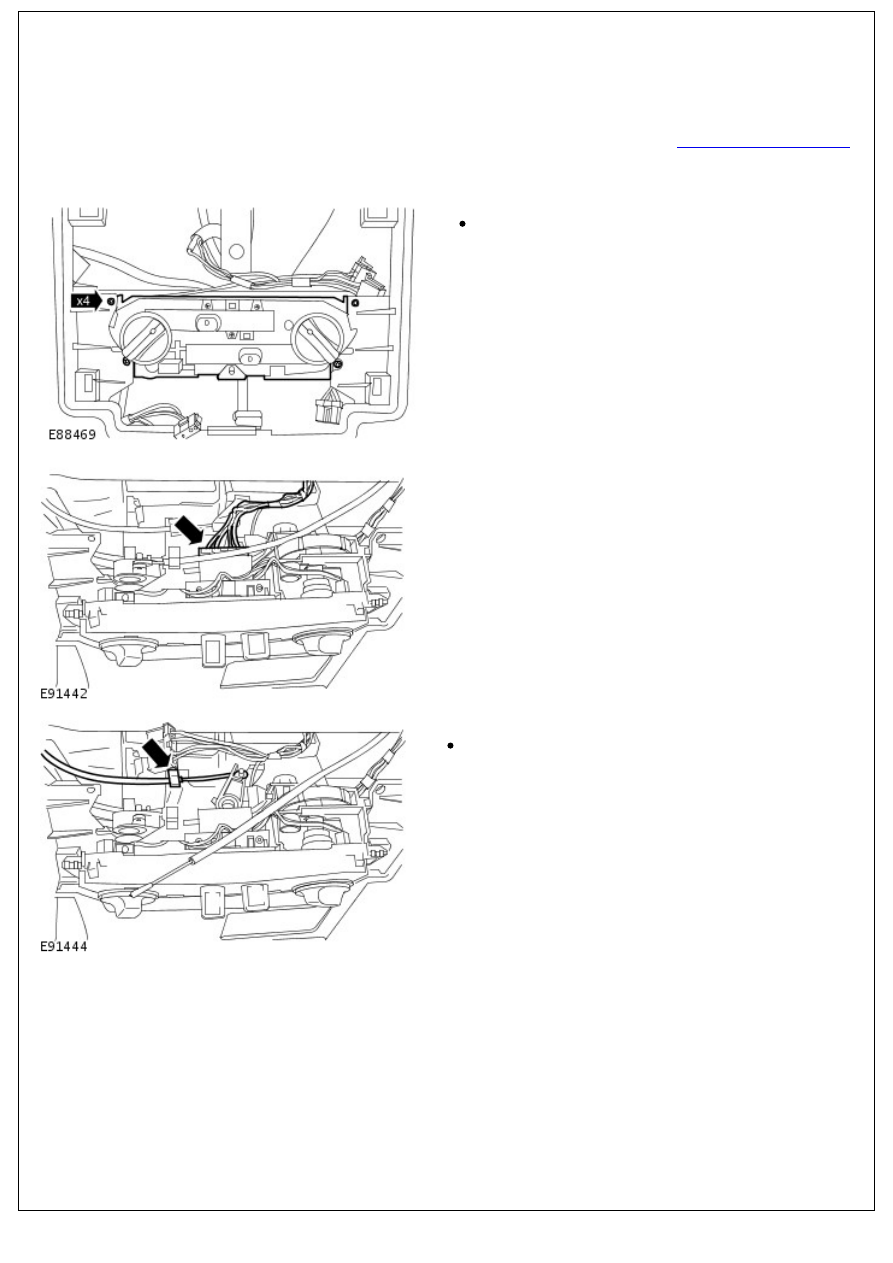

2. Release the climate control assembly.

Remove the 4 screws.

3. Disconnect the blower motor speed control switch electrical

connector.

4. Disconnect the recirculation blend door control cable.

Release the clip.

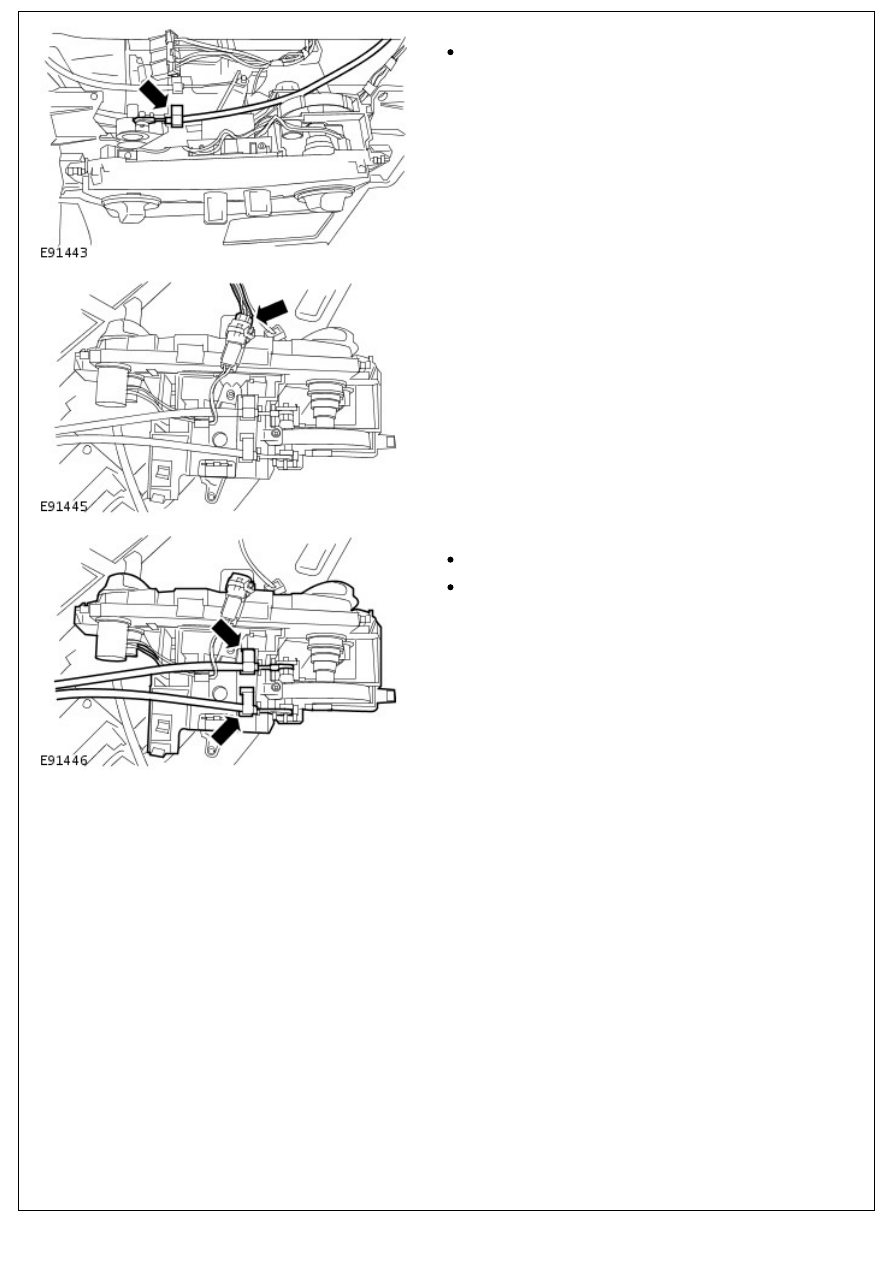

5. Disconnect the heater control valve control cable.

5. Disconnect the heater control valve control cable.

Release the clip.

6. Disconnect the climate control assembly illumination

electrical connector.

7. Remove the climate control assembly.

Release the clips.

Disconnect the 2 blend door control cables.

Installation

1. To install, reverse the removal procedure.
