Defender. Manual - part 212





2. Tighten to 2 Nm (1 lb.ft).

3. Tighten to 15 Nm (11 lb.ft).

4. Tighten to 8 Nm (6 lb.ft).

5. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Air Conditioning - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Condenser Fan

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the radiator grille.

For additional information, refer to:

Radiator Grille

 (501-08

Exterior Trim and Ornamentation, Removal and Installation).

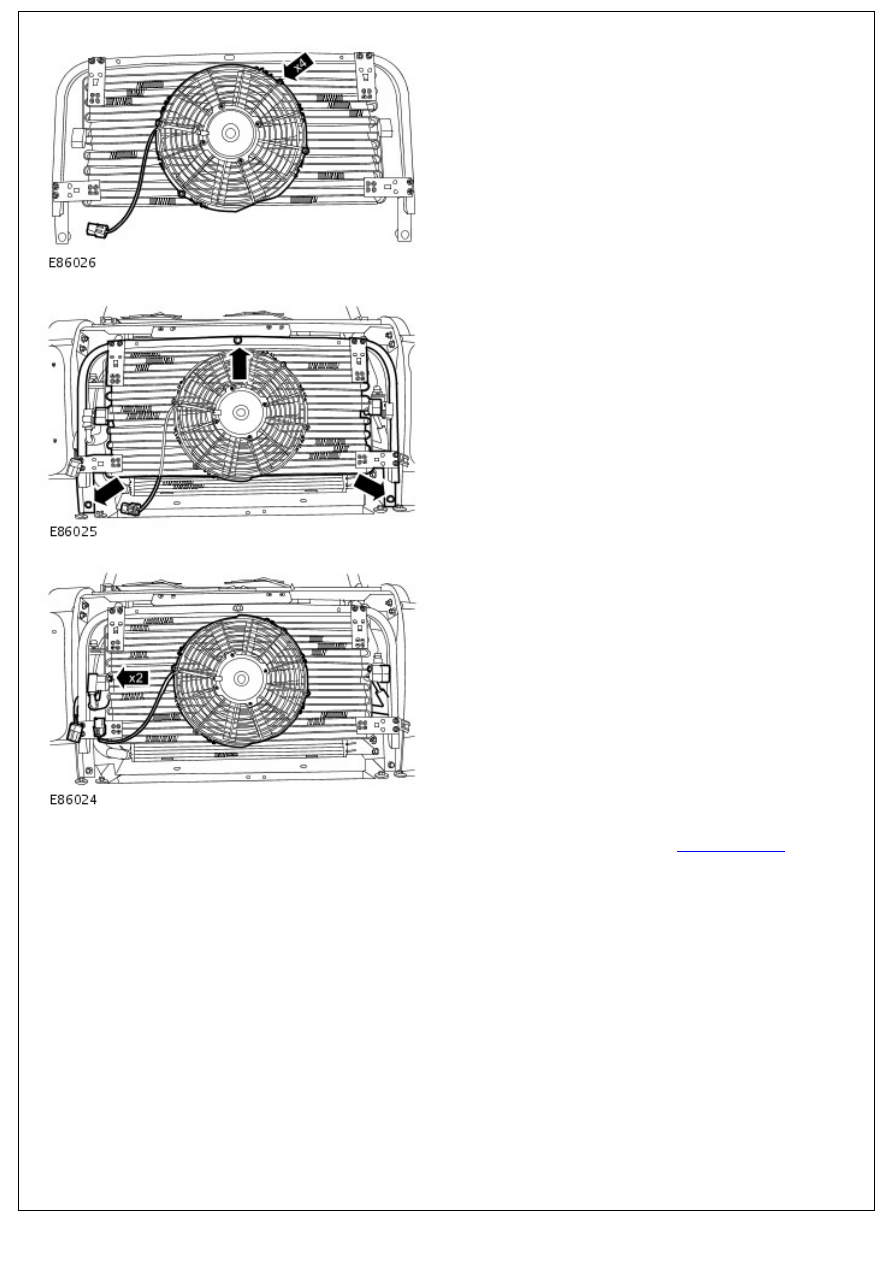

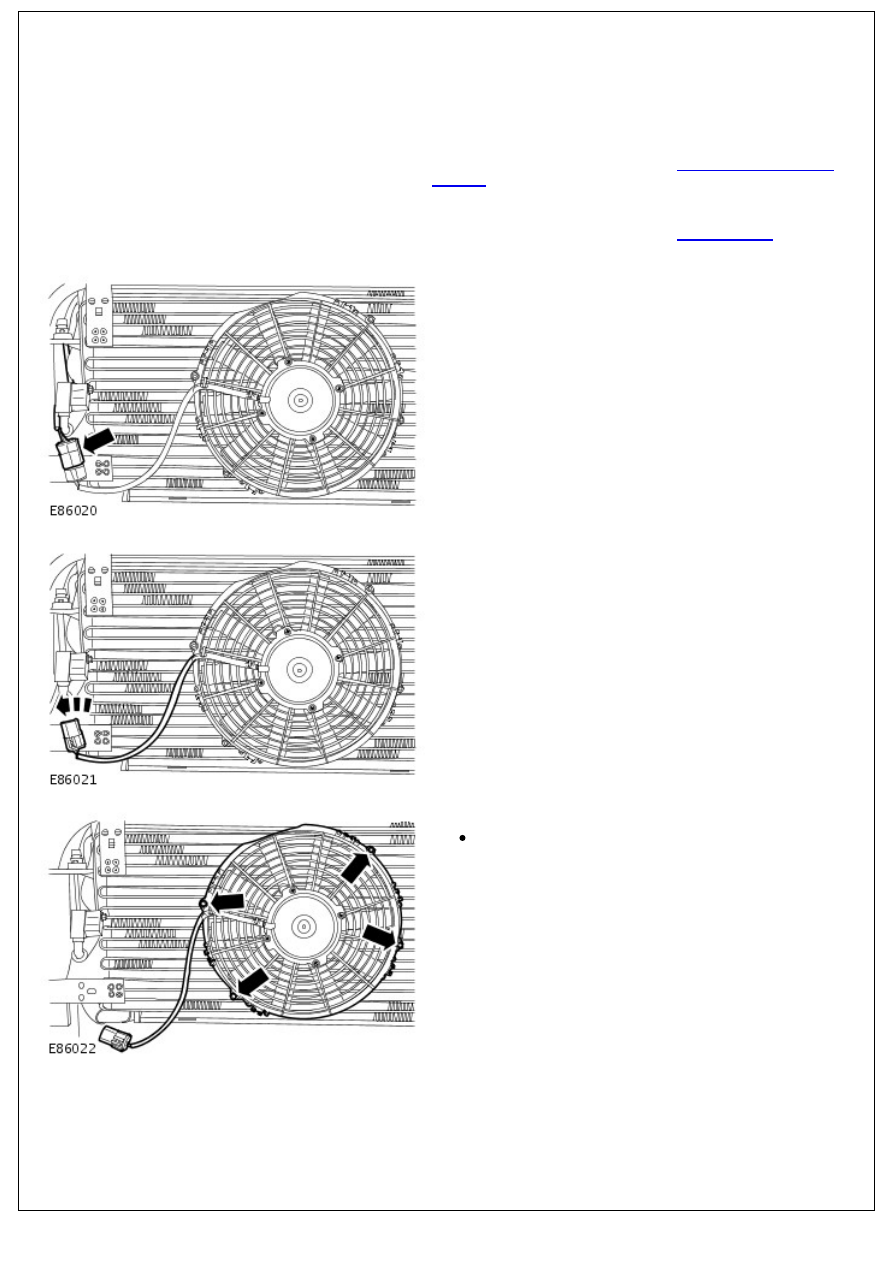

3. Disconnect the condenser fan electrical connector.

4. Release the condenser fan electrical connector.

5. Remove the condenser fan.

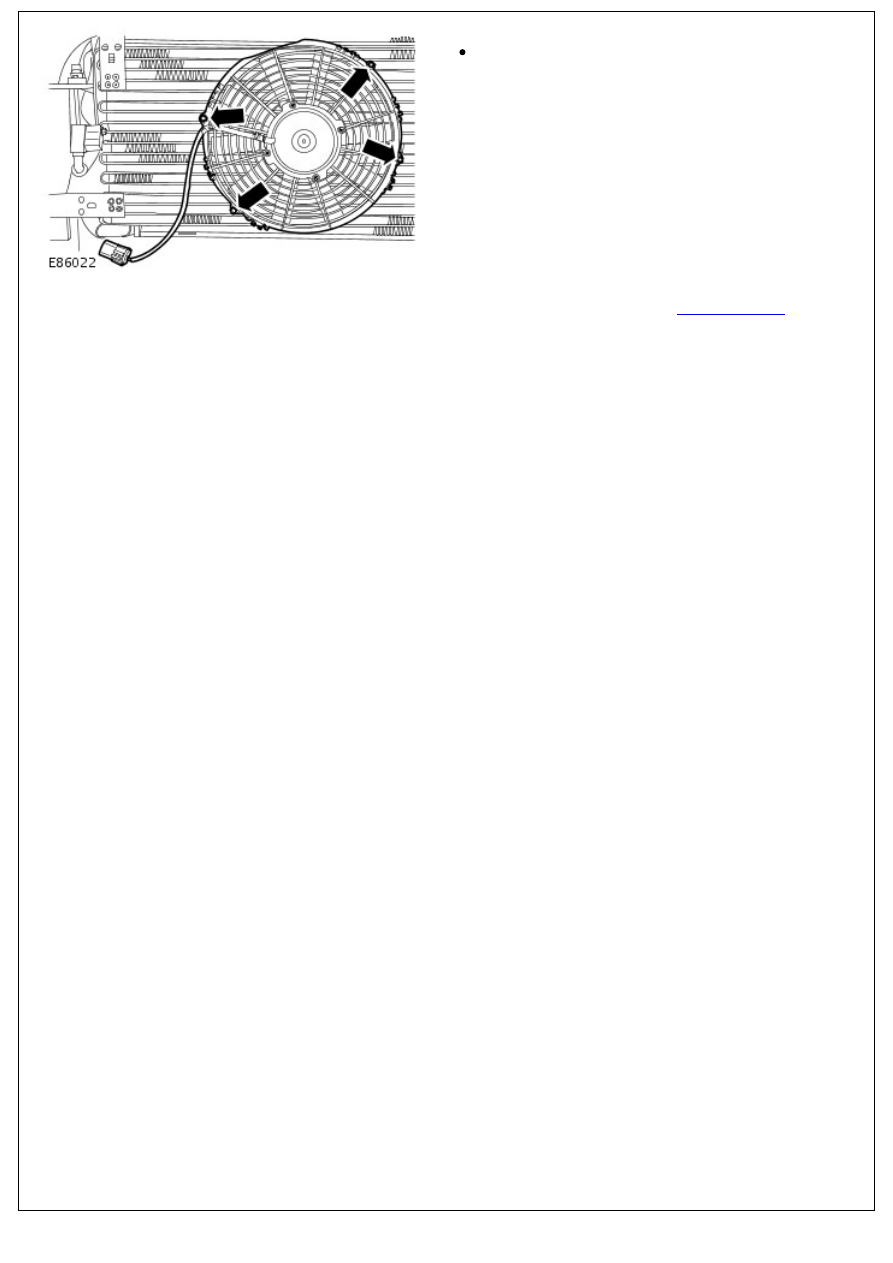

Remove the 4 bolts.

Installation

1. To install, reverse the removal procedure.

1. To install, reverse the removal procedure.

Tighten to 2 Nm (1 lb.ft).

2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Air Conditioning - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma - De-

Icing Switch

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the evaporator core.

For additional information, refer to:

Evaporator Core

 (412-03

Air Conditioning - 2.4L Duratorq-TDCi HPCR (103kW/140PS) -

Puma, Removal and Installation).

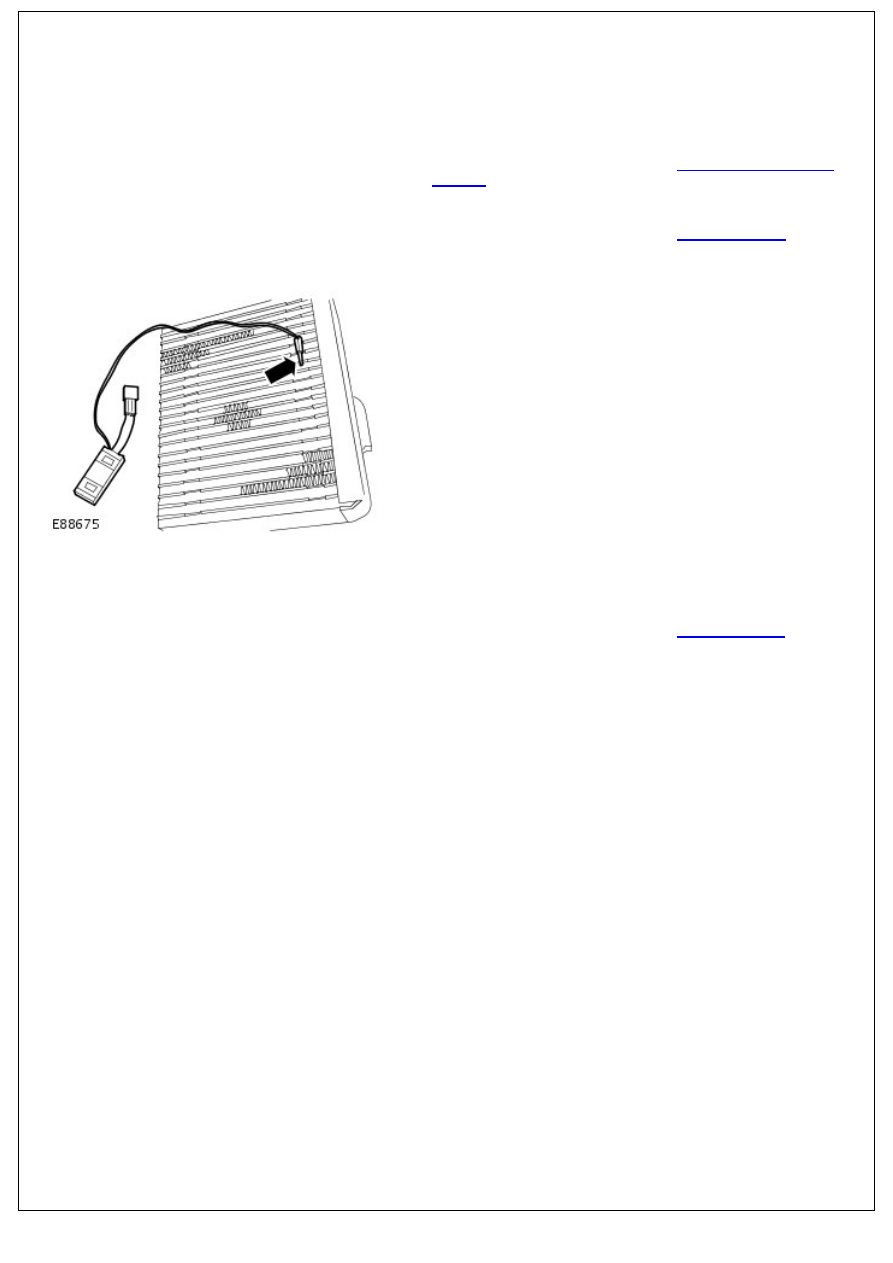

3. Remove the de-icing switch from the evaporator core.

Installation

1. To install, reverse the removal procedure.
2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
