Defender. Manual - part 178





Manual Transmission/Transaxle External Controls - 2.4L Duratorq-TDCi

HPCR (103kW/140PS) - Puma - Gearshift Lever

Removal and Installation

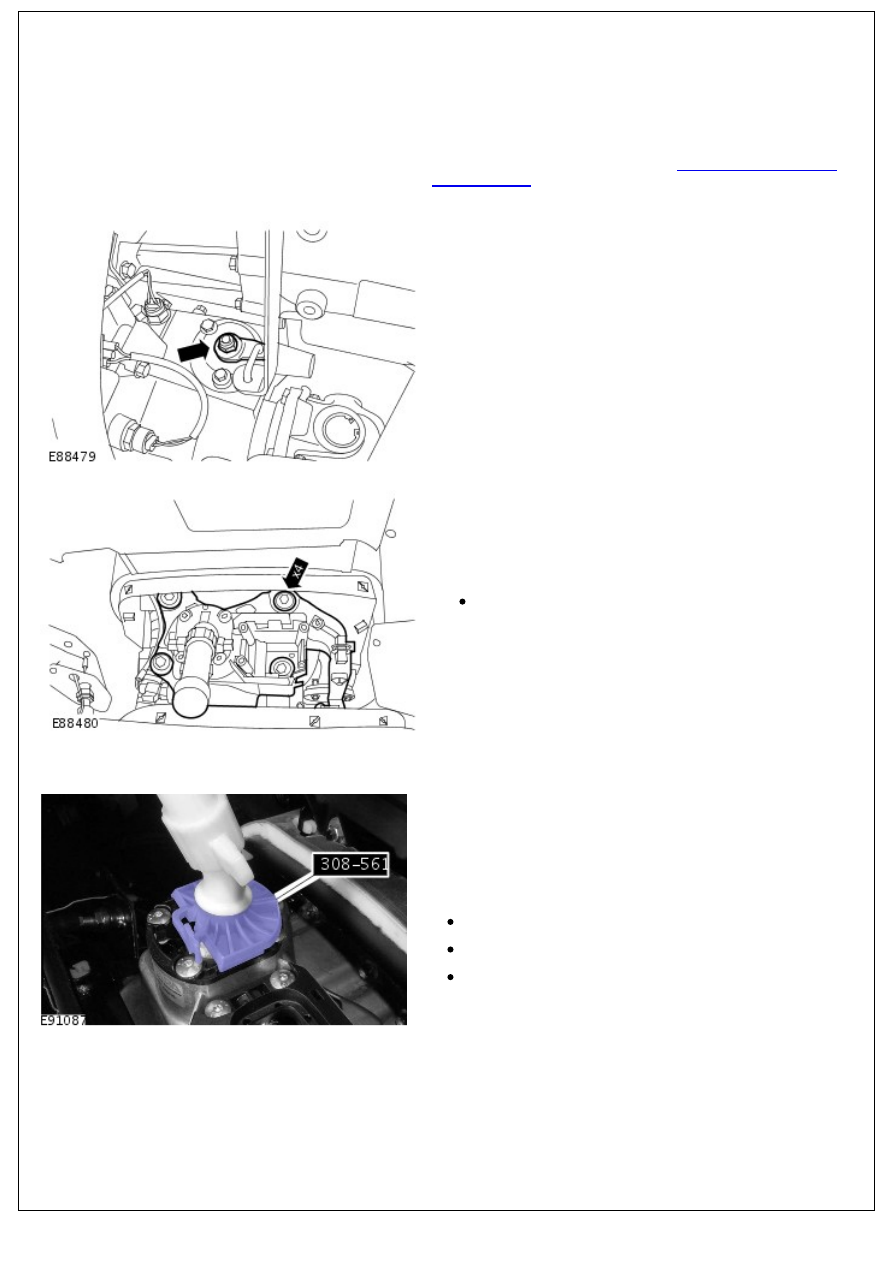

Removal

1. Remove the transfer case high/low range linkage.

For additional information, refer to:

Transfer Case High/Low

Range Linkage

 (308-07A Transfer Case - 2.4L Duratorq-TDCi

HPCR (103kW/140PS) - Puma, In-vehicle Repair).

2. Remove and discard the differential lock pivot nut.

3. NOTE: Do not remove the 4 gearshift lever ball joint

securing screws.

• NOTE: Make sure the rubber seal is not damaged on

removal.

Remove the gearshift lever.

Remove the 4 bolts.

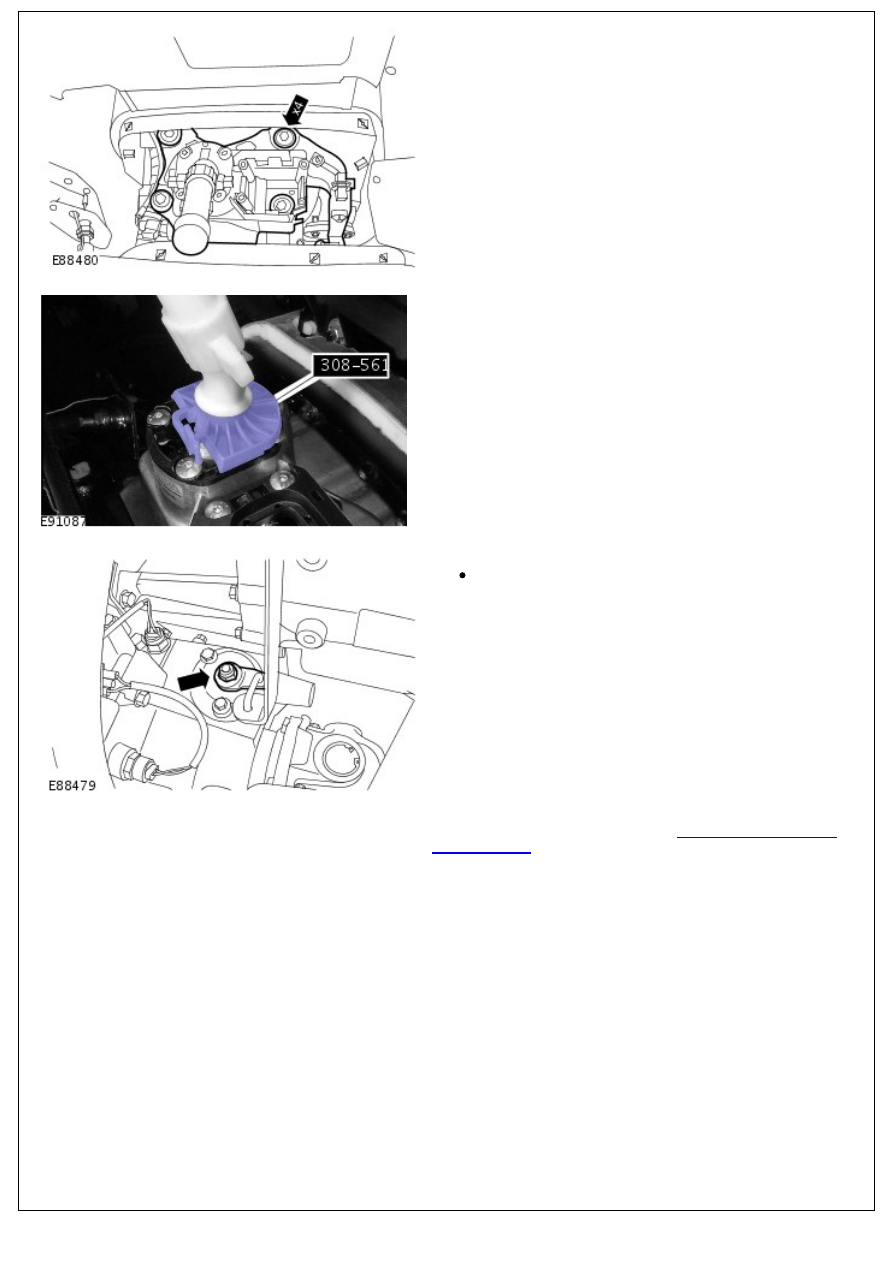

Installation

1. NOTE: Make sure the gearshift selector lever ball joint bush

and the selector yoke are centralised before installing the

special tool.

• NOTE: Make sure the rubber gasket is fitted to the gearshift

lever housing before installation.

Install the gearshift lever.

Make sure 3rd gear is engaged on the transmission.

Install the gearshift lever.

Install the special tool onto the gearshift lever.

2. Tighten the bolts to 25 Nm (18 lb.ft).

2. Tighten the bolts to 25 Nm (18 lb.ft).

3. Remove the special tool.

4. Install a new differential lock pivot nut.

Tighten the nut to 25 Nm (18 lb.ft).

5. Install the transfer case high/low range linkage.

For additional information, refer to:

Transfer Case High/Low

Range Linkage

 (308-07A Transfer Case - 2.4L Duratorq-TDCi

HPCR (103kW/140PS) - Puma, In-vehicle Repair).

Transfer Case - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Lubricants

Item

Specification

Recommended oil

API GL4 or GL5, MIL-L-2105 or MIL-L-2105B

Capacity

2.3 litres, (4.0 pints)

CAUTION: Do not use any lubricant other than that specified

General Specification - LT230Q

Item

Specification

Transfer case

type

LT230QRS

Specification

Two speed reduction on main gearbox output, front and rear drive permanently engaged via a lockable

differential

Ratios:
High

1.211:1

Low

3.269:1

Transfer case data

Item

Metric

Imperial

High/low selector finger width

15.90 to 15.95 mm

0.625 to 0.627 in

High/low selector fork finger width

7.37 to 7.47 mm

0.290 to 0.294 in

High/low selector shaft groove width

16.0 to 16.1 mm

0.63 to 0.64 in

High/low selector hub groove width

7.5 to 7.6 mm

0.295 to 0.30 in

Differential lock selector finger width

15.90 to 15.95 mm

0.625 to 0.627 in

Differential lock selector shaft groove width

16.0 to 16.1 mm

0.63 to 0.64 in

Differential lock selector fork finger width

7.92 to 7.9 mm

0.311 to 0.313 in

Differential lock selector spring free length

84.58 mm

3.33 in

Dog clutch selector fork groove width

8.05 to 8.20 mm

0.32 to 0.33 in

Differential front and rear half carrier gears load to turn:
Used gears

0.45 kg

1.0 lb

New gears

1.72 kg

3.8 lb

Thrust washer thicknesses available

1.05 to 1.45 mm

0.04 to 0.06 in

In increments of:

0.10 mm

0.004 in

Total load to turn - both sun gears fitted:
Used gears

0.90 kg

2.0 lb

New gears

3.44 kg

7.6 lb

Low range gear to high range hub clearance

0.05 to 0.15 mm

0.002 to 0.006 in

High range gear to high/low hub clearance

0.05 to 0.10 mm

0.002 to 0.004 in

Mainshaft input gear bearing pre-load

0.05 mm

0.002 in

Mainshaft input gear bearing shim thicknesses

3.15 to 4.00 mm

0.12 to 0.16 in

In increments of:

0.05 mm

0.002 in

Differential bearing pre-load

0.05 mm

0.002 in

Differential shim thicknesses available
In increments of

0.05 mm

0.002 in

Transfer case gear train torque to turn

3.4 Nm max

30 lbf.in max

Torque Specifications

Description

Nm

lb-ft

Drain plug

30

22

Transfer case breather banjo

15

11

Differential carrier bolts

60

44

Differential bearing nut

72

53

Differential lock selector lever nut

25

18

* Front output housing bolts

25

18

* Rear output housing bolts

45

33

*** Output flange nuts

162 120

* Differential lock selector housing bolts

25

18

High/low selector housing bolts

25

18

* Intermediate shaft retaining plate bolt

25

18

*** Intermediate shaft stake nut - Selective length non-collapsible spacer

88

65

* Bottom cover bolts

25

18

* Bearing housing cover plate bolts and stud nut

25

18

Transmission brake backplate bolts

72

54

Interlock solenoid cover bolts - if fitted

10

8

** Neutral warning lamp switch

25

18

Transfer case front drive flange to drive shaft

47

33

Transfer case rear drive flange to drive shaft

50

37

Transfer case to gearbox extension case

47

33

* Apply Loctite 290 to threads

** Apply Hylomar PL32 to threads

*** New nut must be fitted

Item

Nm

lbf-ft

METRIC
M5

6

5

M6

9

7

M8

25

18

M10

45

33

M12

90

65

M14

105

75

M16

180

130

UNF/UNC
1/4

9

7

5/16

25

18

3/8

40

30

7/16

80

60

!

90

65

5/8

135

100

The table above provided torque values for screws and bolts not previously specified.
