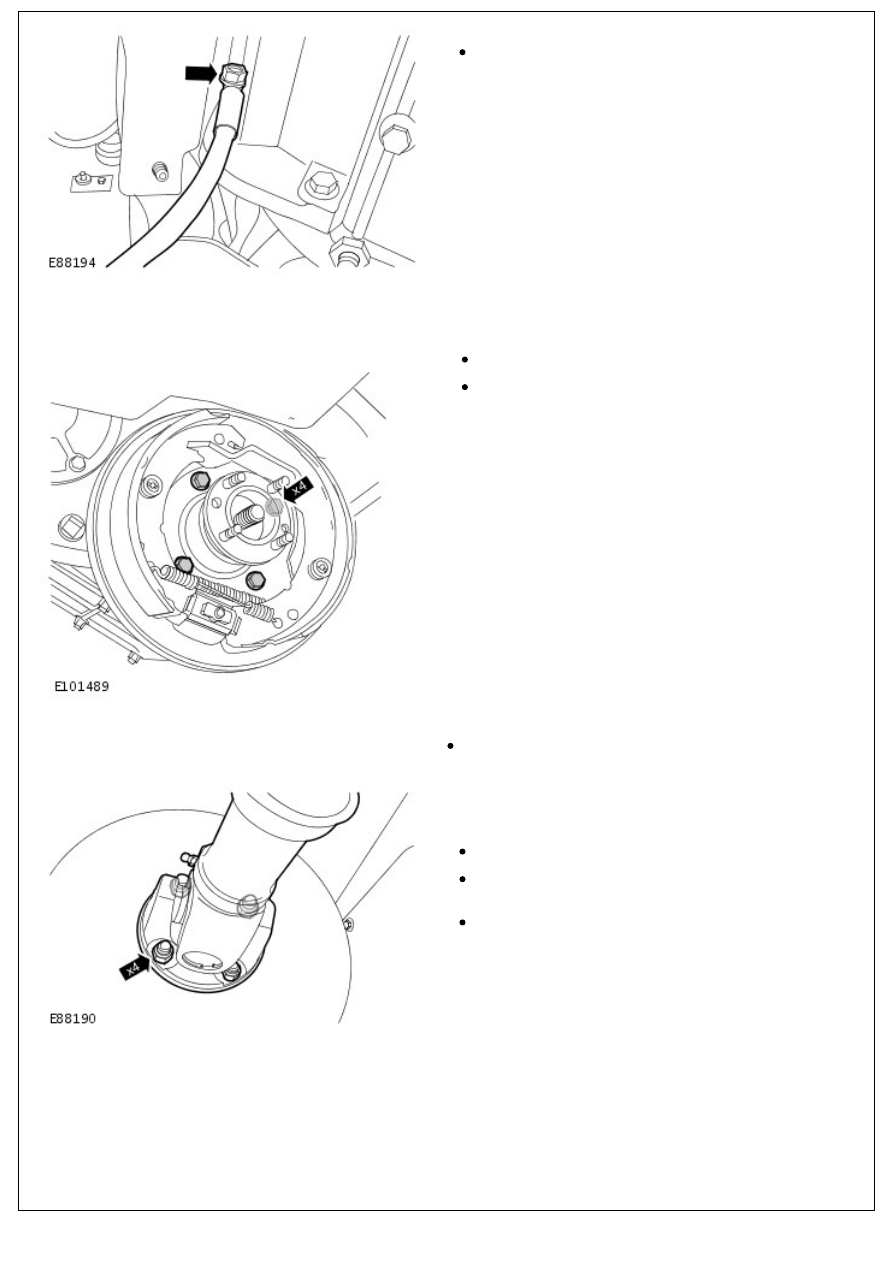

25. Install the LH transfer gearbox earth cable securing nut.

Tighten to 45 Nm

26. Connect the electronic speedometer electrical connector to

the transfer gearbox.

27. Install the parking brake assembly.

Install the 4 securing bolts.

Tighten to 73 Nm.

28. Install the parking brake drum.

Install the securing screw.

29. NOTE: Align to the position noted on removal.

Reposition and secure the rear driveshaft to the transfer

gearbox.

Release the driveshaft from the chassis.

Install the rear driveshaft to transfer gearbox securing

bolts.

Tighten to 47 Nm

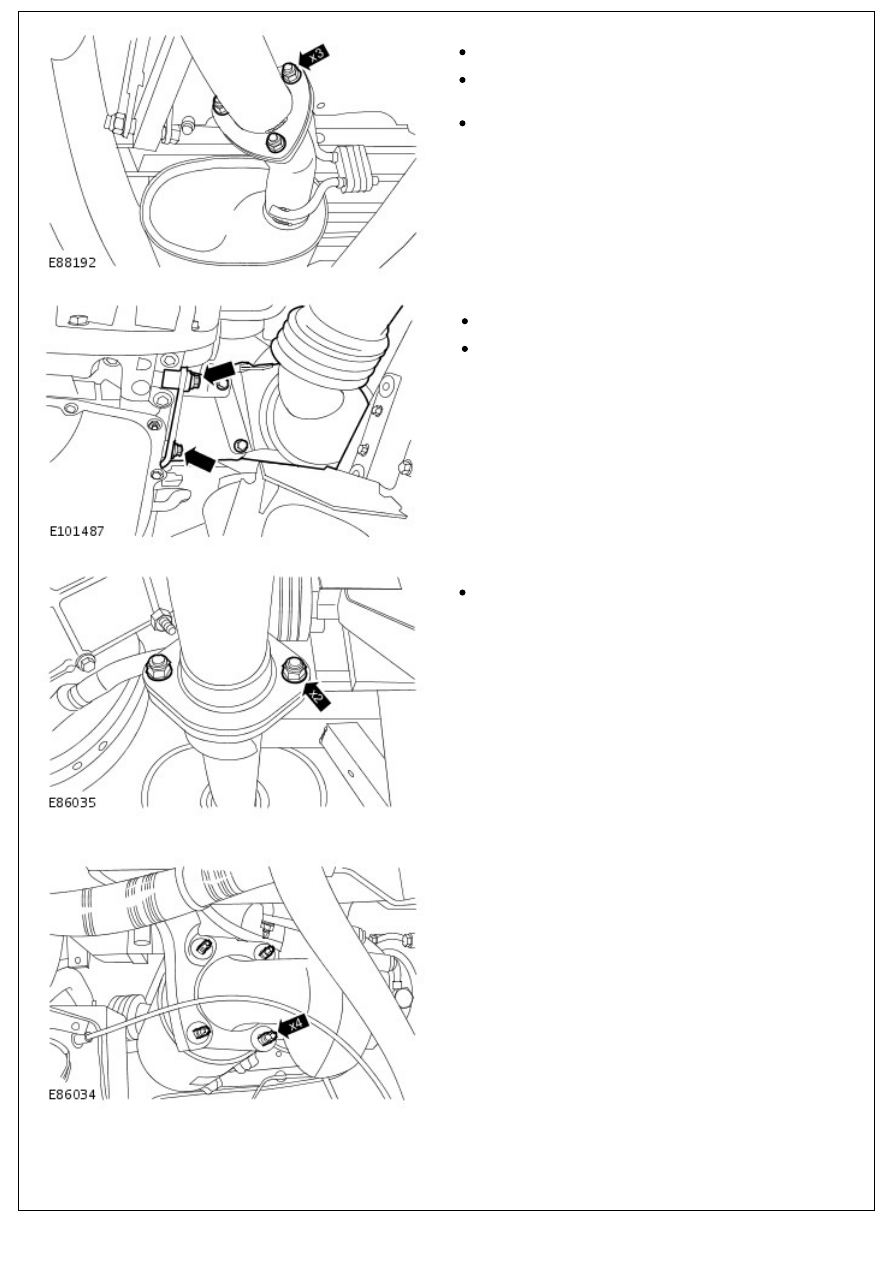

30. Install and secure the intermediate pipe and muffler.

30. Install and secure the intermediate pipe and muffler.

Install a new gasket.

Install the tailpipe and muffler, to intermediate pipe

securing nuts.

Tighten to 25 Nm

31. Install the catalytic converter.

Clean the catalytic converter mating faces.

Loosely install the 2 catalytic converter mounting

bracket securing bolts.

32. Secure the catalytic converter.

Loosely install the catalytic converter to intermediate

pipe securing nuts.

33. Lower the vehicle.

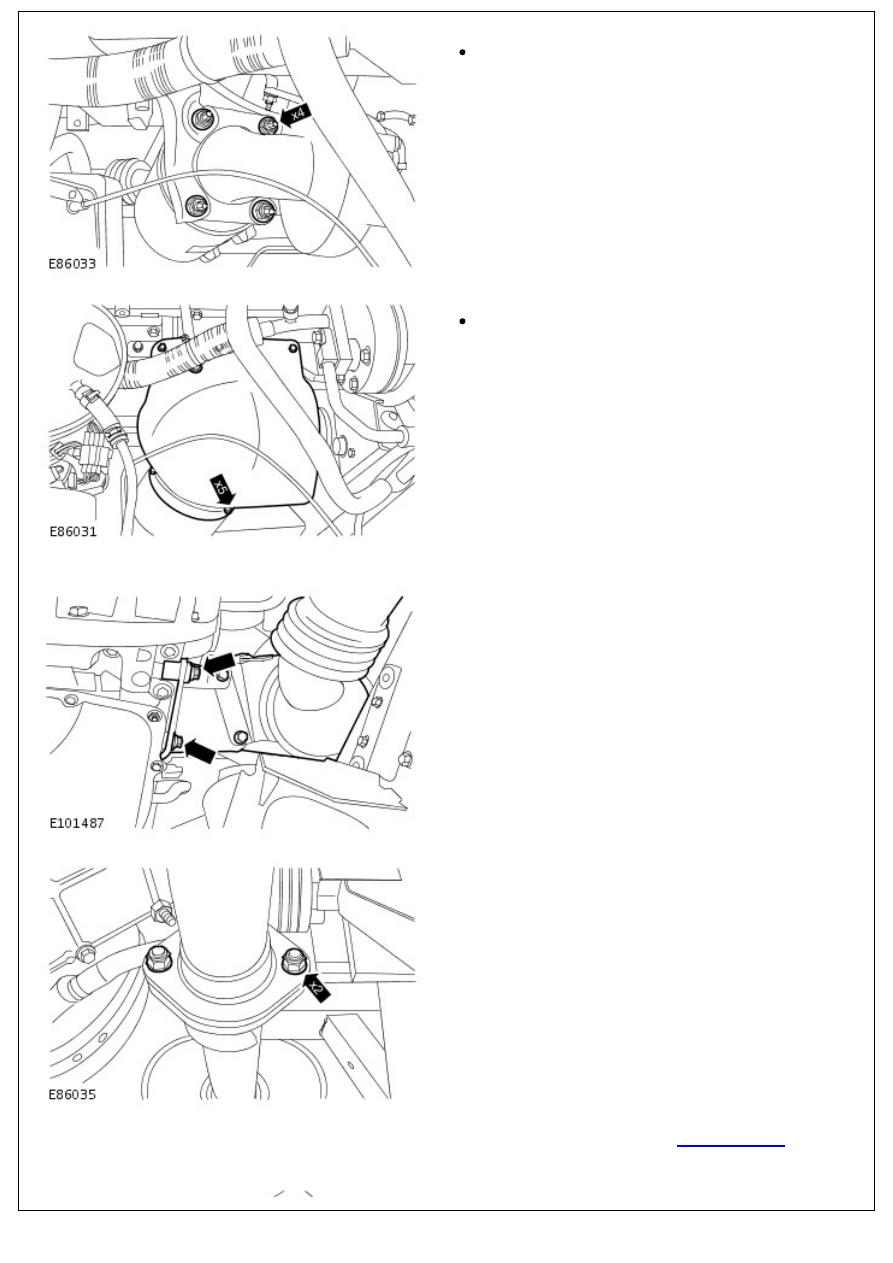

34. Install 4 new catalytic converter securing studs.

35. Install 4 new securing nuts.

35. Install 4 new securing nuts.

Tighten to 45 Nm

36. Install the turbocharger heat shield.

Tighten to 10 Nm.

37. Close the bonnet.

38. Tighten to 30 Nm (22 lb.ft).

39. Tighten to 30 Nm (22 lb.ft).

40. Install the front driveshaft.

For additional information, refer to:

Front Driveshaft

 (205-01

Driveshaft, Removal and Installation).

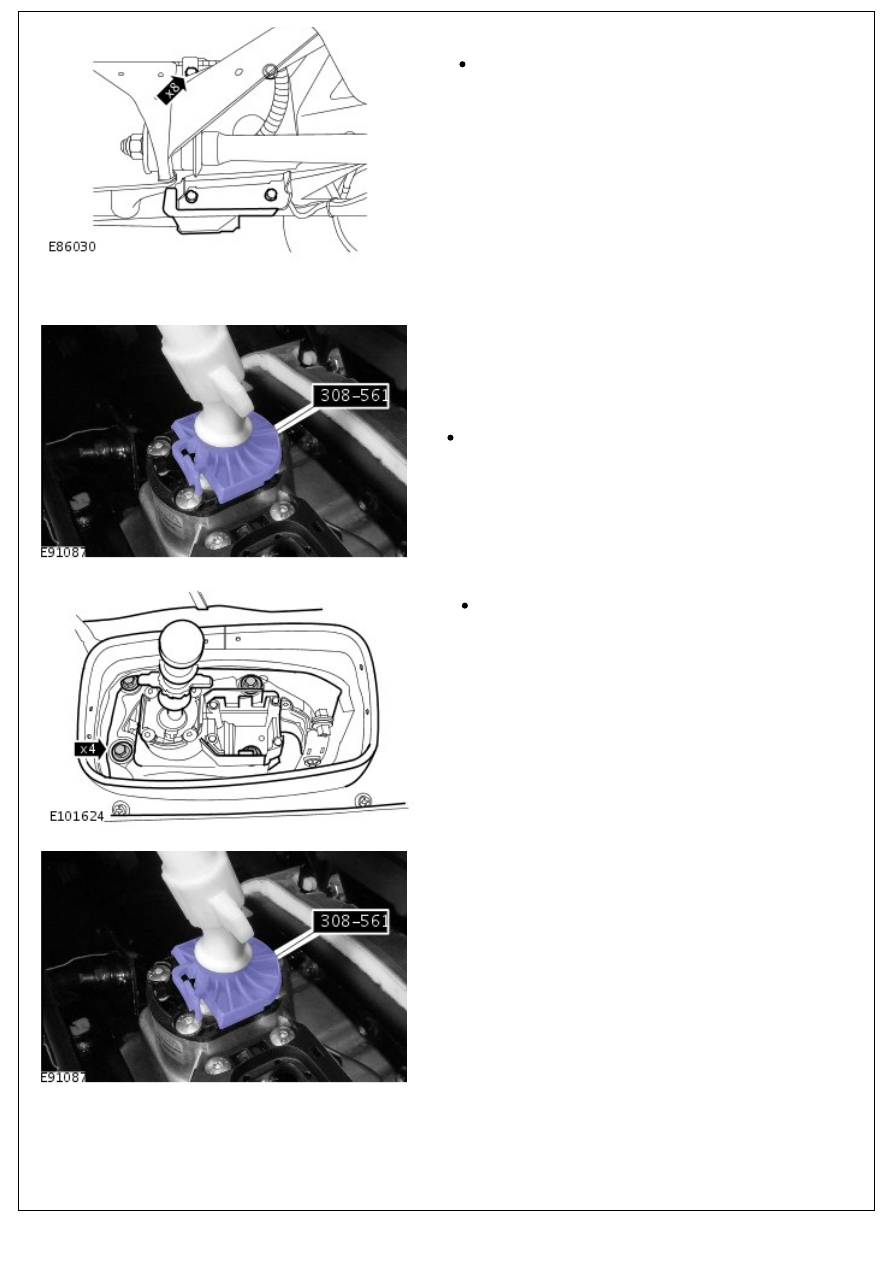

41. NOTE: Left-hand side shown, right-hand side similar.

Install the chassis cross member.

Tighten to 85 Nm

42. Open the front door.
43. Connect the reverse light switch electrical connector.

44. NOTE: Make sure that the transmission is in third gear.

• NOTE: Make sure the gearshift selector lever ball joint bush

and the selector yoke are centralised before installing the

special tool.

Install the gearshift lever.

Install the special tool 308-561 onto the gear selector

lever.

45. Tighten the 4 gear selector housing securing bolts.

Tighten to 25 Nm

46. Remove the special tool 308-561 from the gear selector

lever.

47. Install a new differential lock pivot nut.
