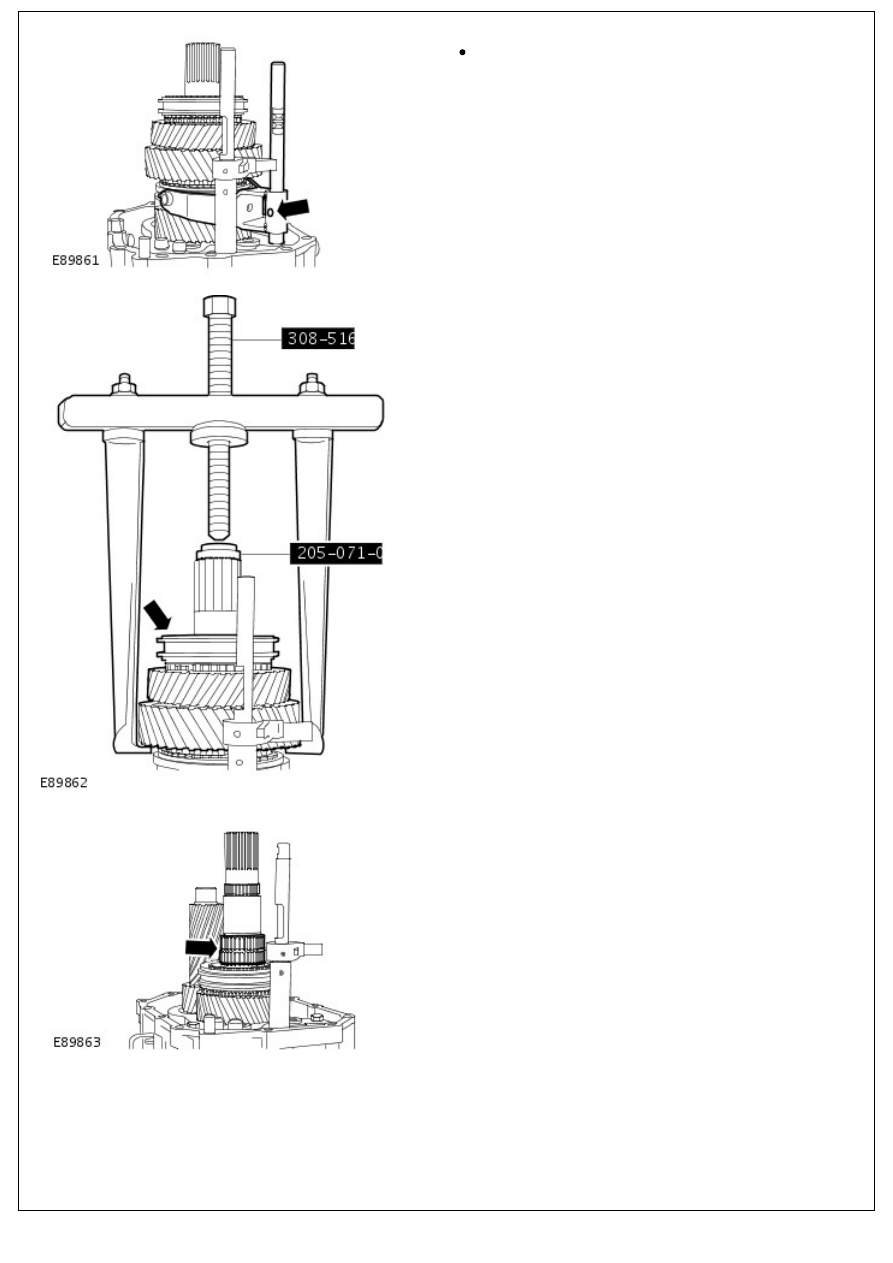

24. Remove the 1st/2nd gear selector.

Remove and discard the pin.

25. Using the special tools, remove the 1st and reverse gear

assemblies from the output shaft.

26. Remove the 1st gear bearing.

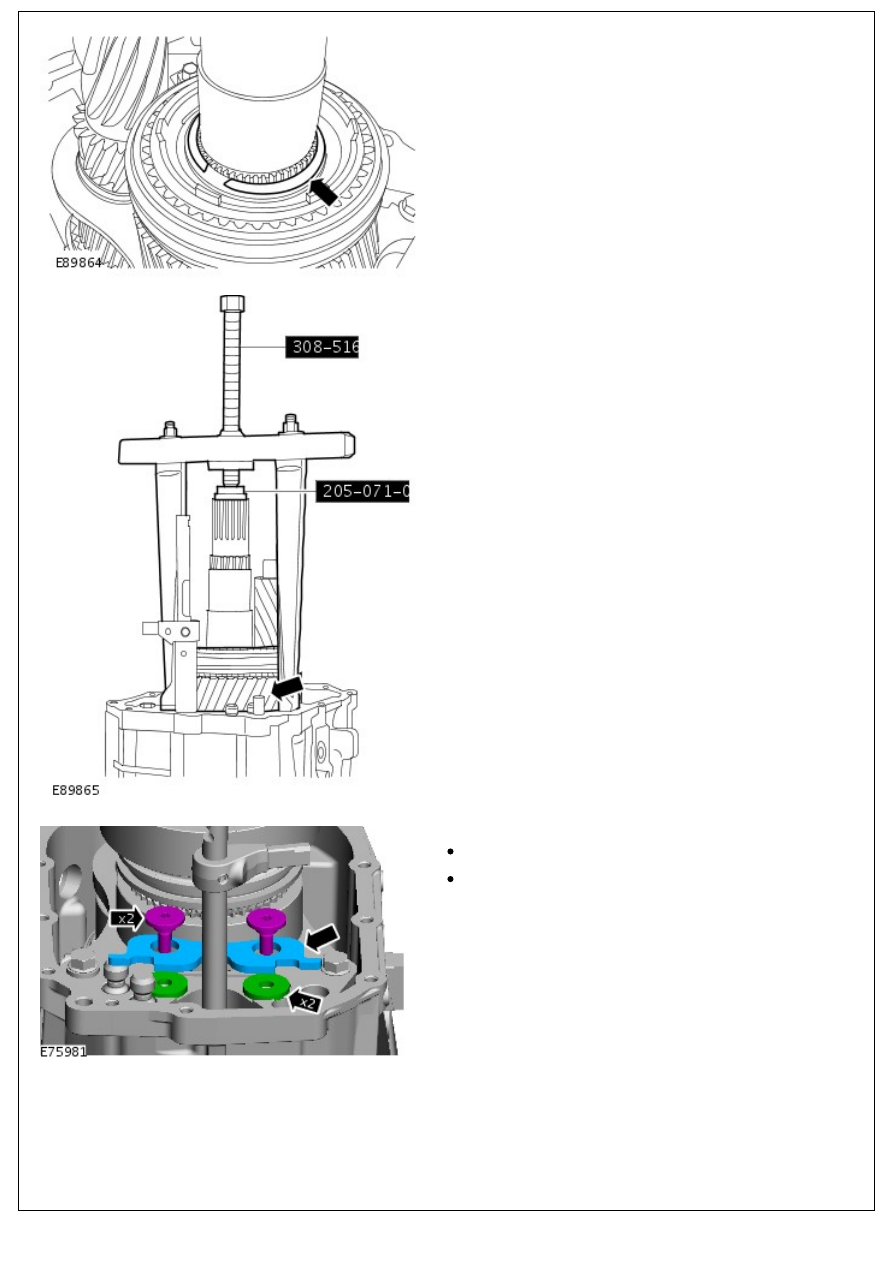

27. Remove the 1st/2nd gear synchronizer snap ring.

27. Remove the 1st/2nd gear synchronizer snap ring.

28. Using the special tools, remove the 2nd gear and 1st/2nd

gear synchronizer assemblies from the output shaft.

29. Remove the selector shaft locking plate.

Remove the 2 bolts.

Remove the 2 spacers.

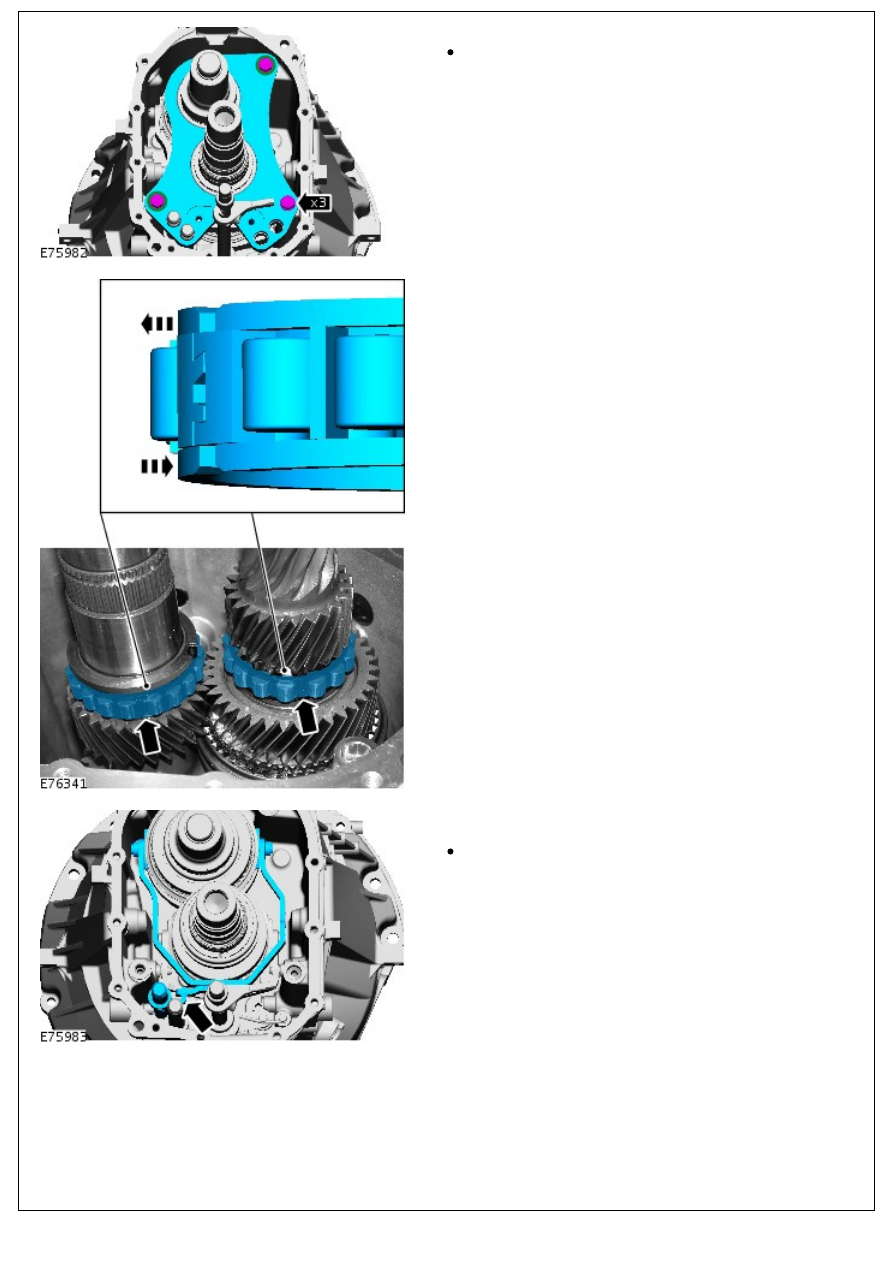

30. Remove the centre bearing mounting plate.

30. Remove the centre bearing mounting plate.

Remove the 3 bolts.

31. Remove the centre bearings.

32. Remove the 3rd/4th gear selector from the transmission

housing.

Release the selector fork from the selector shaft.

33. NOTE: Take care not to lose the 4 main selector shaft

33. NOTE: Take care not to lose the 4 main selector shaft

bearings.

Remove the selectors.

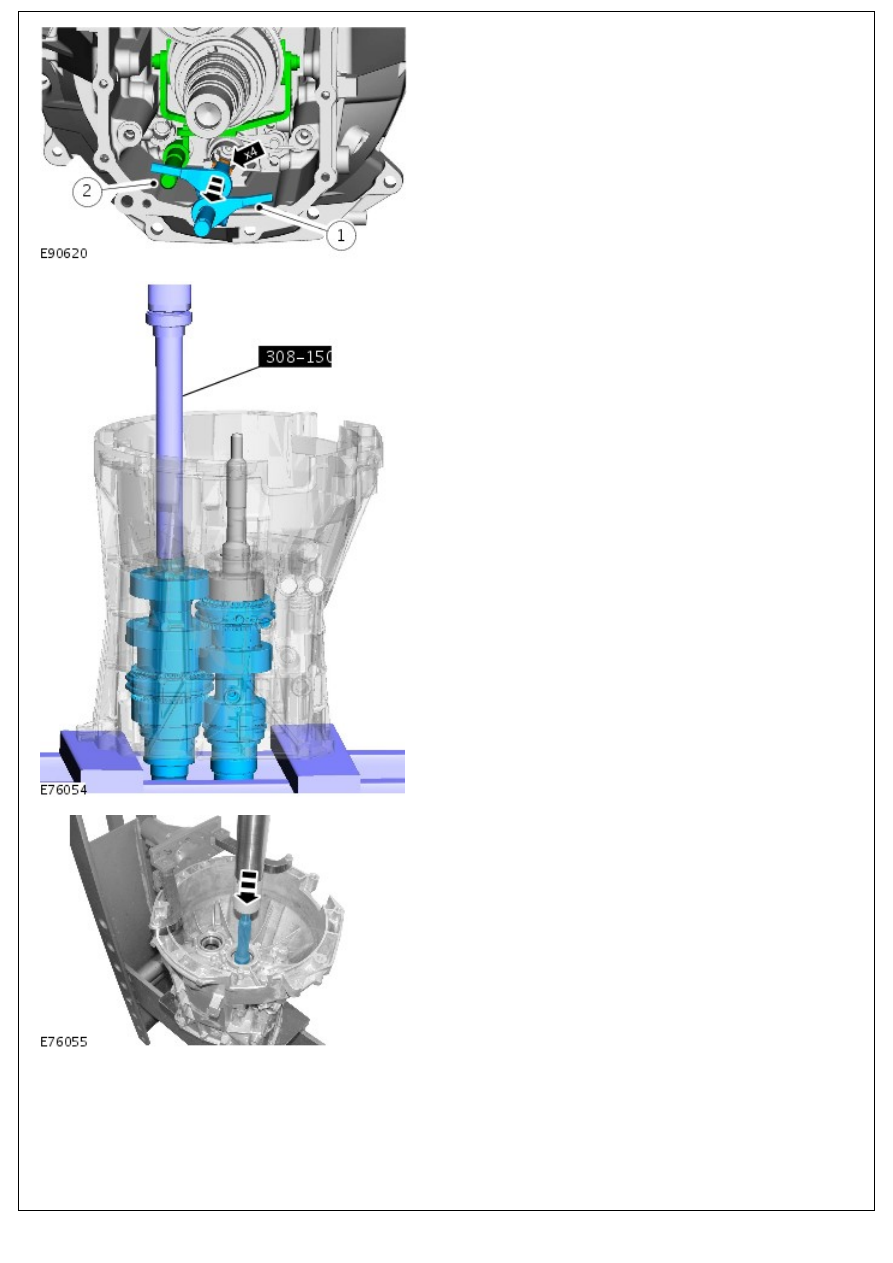

1. Remove the main selector.

2. Remove the 5th/6th selector.

34. With an assistant, remove the shaft assemblies.

35. Remove the input shaft.

36. Remove the 2 bearing retaining plates.
