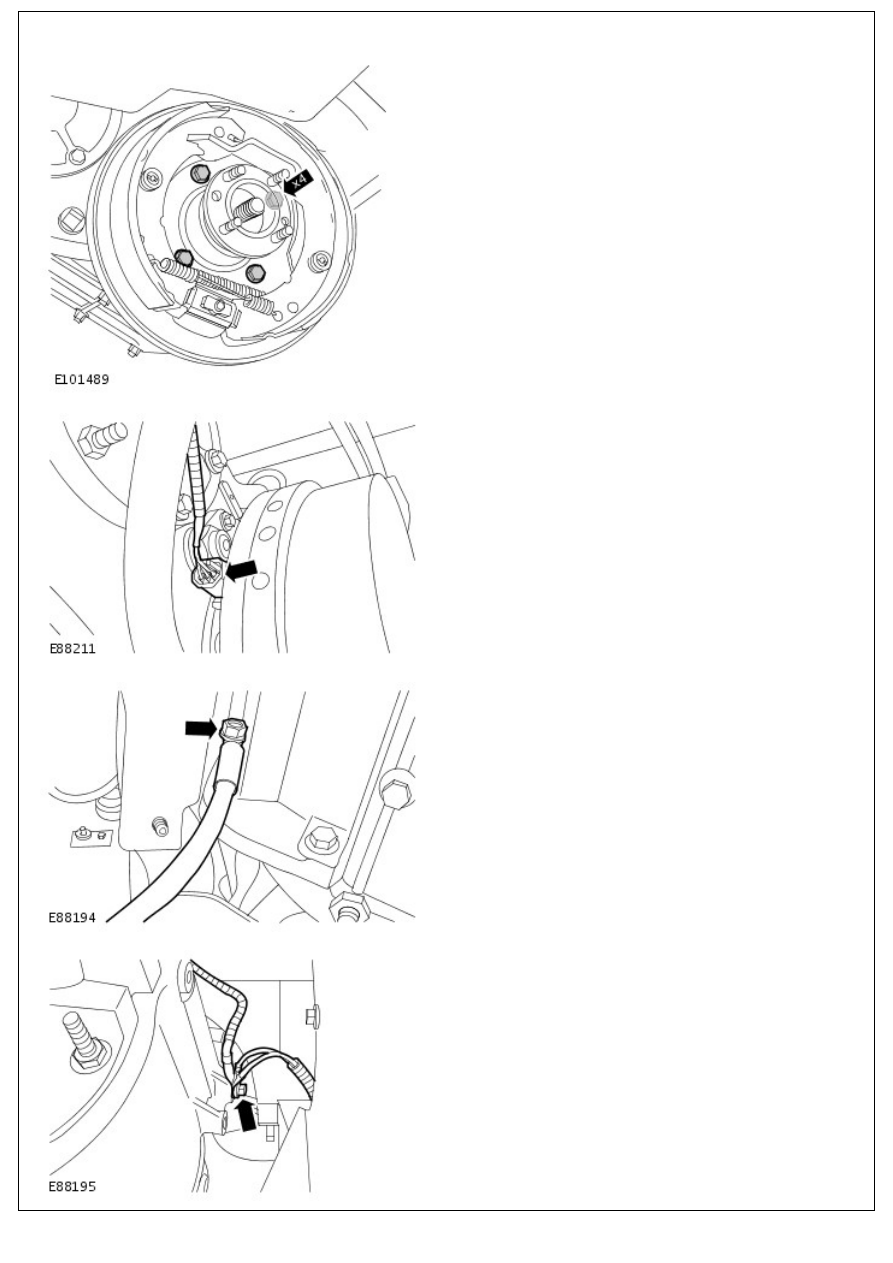

32. Remove the parking brake assembly and tie aside.

33. Disconnect the electronic speedometer drive electrical

connector from the transfer gearbox.

34. Remove the nut and disconnect the LH earth cable from

the transfer gearbox.

35. Remove the bolt securing the RH earth cables from the

transfer gearbox.

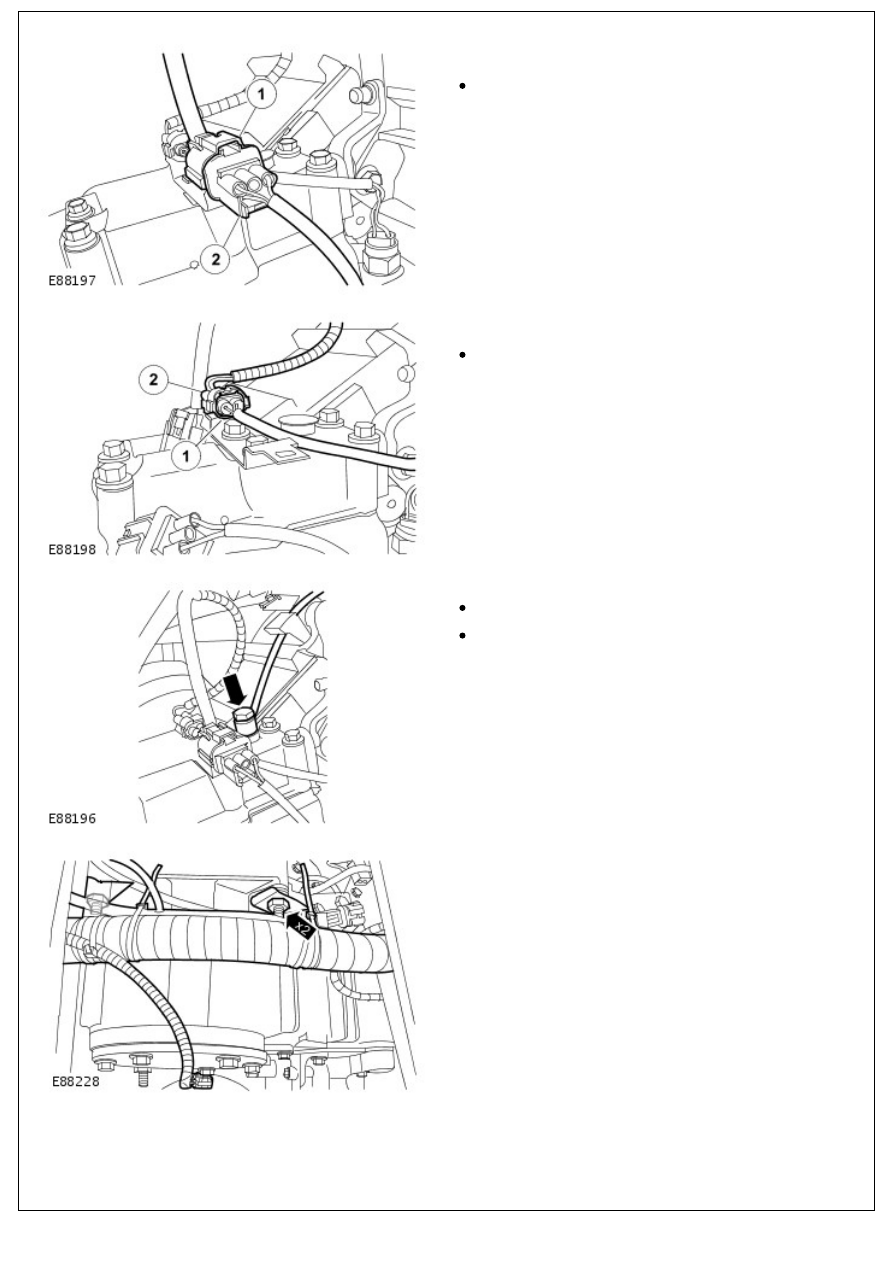

36. Displace and reposition the high-low detection switch

electrical connector away from the transfer gearbox.

Disconnect the high-low detection switch electrical

connector.

37. Disconnect the differential lock detection switch electrical

connector.

Release the electrical connector from the bracket.

38. Release the breather pipe from transfer gearbox.

Remove the securing bolt.

Remove and discard the 2 sealing washers.

39. Remove the transmission harness retaining bracket

securing nut and bolt and reposition the harness.

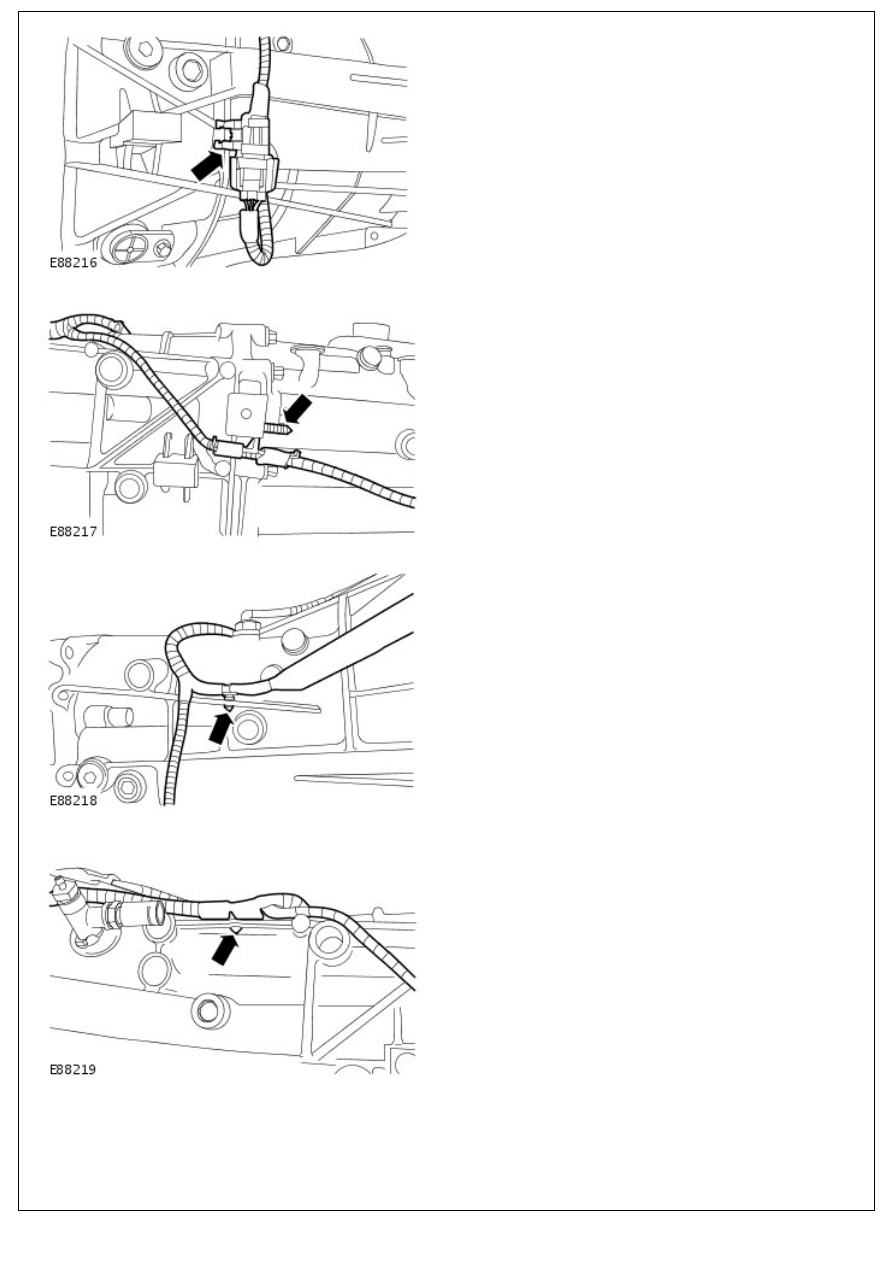

40. Release the transmission wiring harness connector and

40. Release the transmission wiring harness connector and

bracket from the RH side of the transmission.

41. Release the transmission wiring harness securing clip

from the LH side of the transmission.

42. Release the transmission wiring harness securing clip

from the RH side of the transmission.

43. Release the transmission wiring harness securing clip

from the top of the transmission.

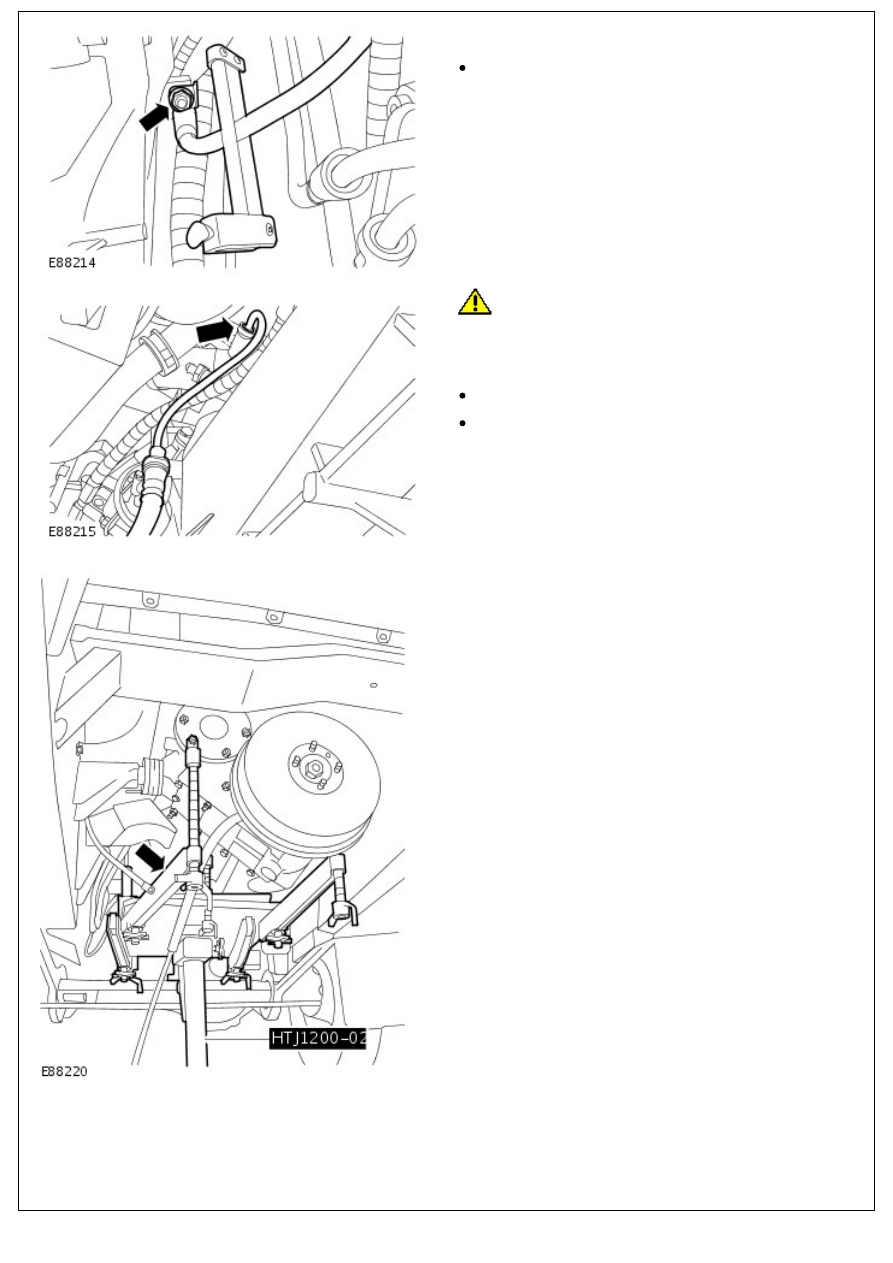

44. Remove the clutch slave cylinder fluid hose mounting

44. Remove the clutch slave cylinder fluid hose mounting

bracket securing nut and bolt.

Install a suitable pipe clamp to the clutch slave

cylinder fluid hose.

45.

CAUTION: Make sure that all openings are sealed.

Use new blanking caps.

Disconnect the clutch slave cylinder fluid hose from the

clutch slave cylinder.

Remove the clutch slave cylinder line clip.

Remove and discard the O-ring seal.

46. Install the special tool HTJ1200-02 to the transmission and

transfer gearbox.

47. Remove the LH transmission mount and mounting
