Defender. Manual - part 162





3.

CAUTION: Make sure area surrounding component is

clean.

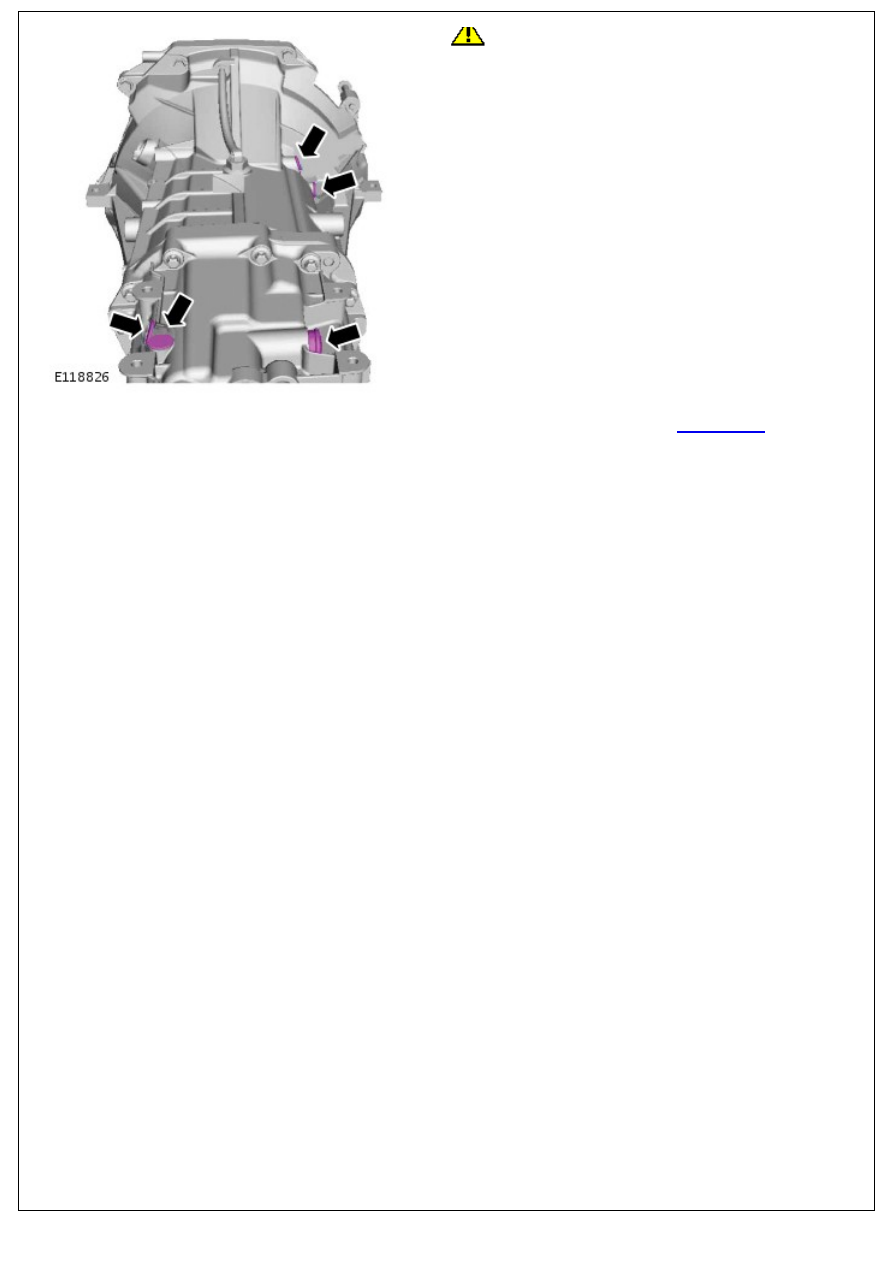

Using the special tools, remove the selector rod detents.

Installation

1. NOTE: If transmission is stuck in gear, carefully manipulate

selector mechanism using a suitable flat bladed screwdriver.

Make sure all gear selector rods are aligned as shown and

the gear selector linkage is free to move.

CAUTION: Make sure area surrounding component is

2.

CAUTION: Make sure area surrounding component is

clean.

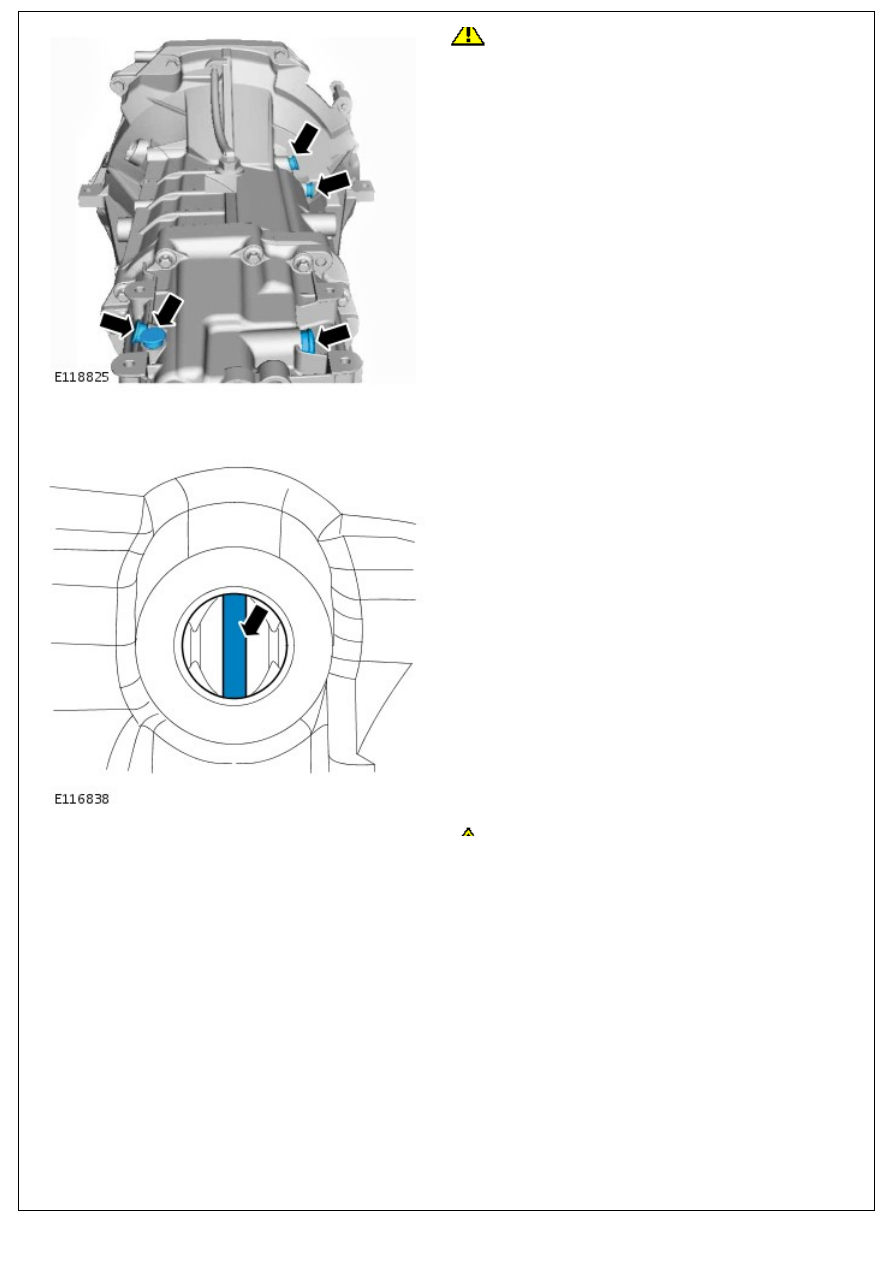

• NOTE: New selector rod detents must be seated flush with

transmission casing as necessary.

Using a suitable hammer and soft drift, install the selector

rod detents.

3. Install the transmission.

For additional information, refer to:

Transmission

 (308-03

Manual Transmission/Transaxle, Installation).

Manual Transmission/Transaxle - Transmission

Removal

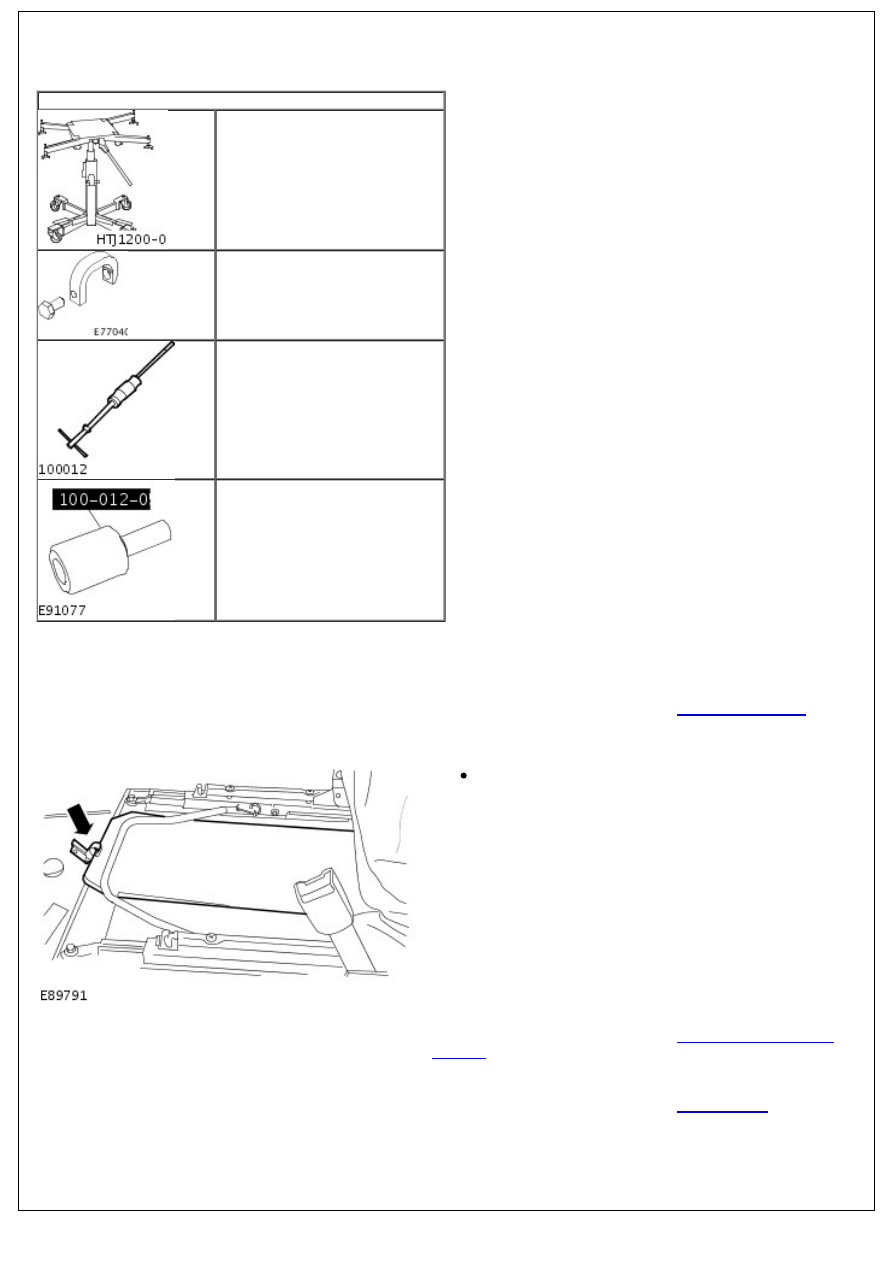

Special Tool(s)

Powertrain Assembly Jack

HTJ1200-02

Remover, Slider

308-652

Slide Hammer

100-012

Adapter Slide Hammer

100-012-05

Removal

1. Open the front door.
2. Remove the front seat cushion assembly.

For additional information, refer to:

Front Seat Cushion

 (501-

10 Seating, Removal and Installation).

3. Remove the battery cover.

Release the clip.

4. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

5. Remove centre floor console.

For additional information, refer to:

Floor Console

 (501-12

Instrument Panel and Console, Removal and Installation).

6. Remove the transmission cover panel carpet.

6. Remove the transmission cover panel carpet.

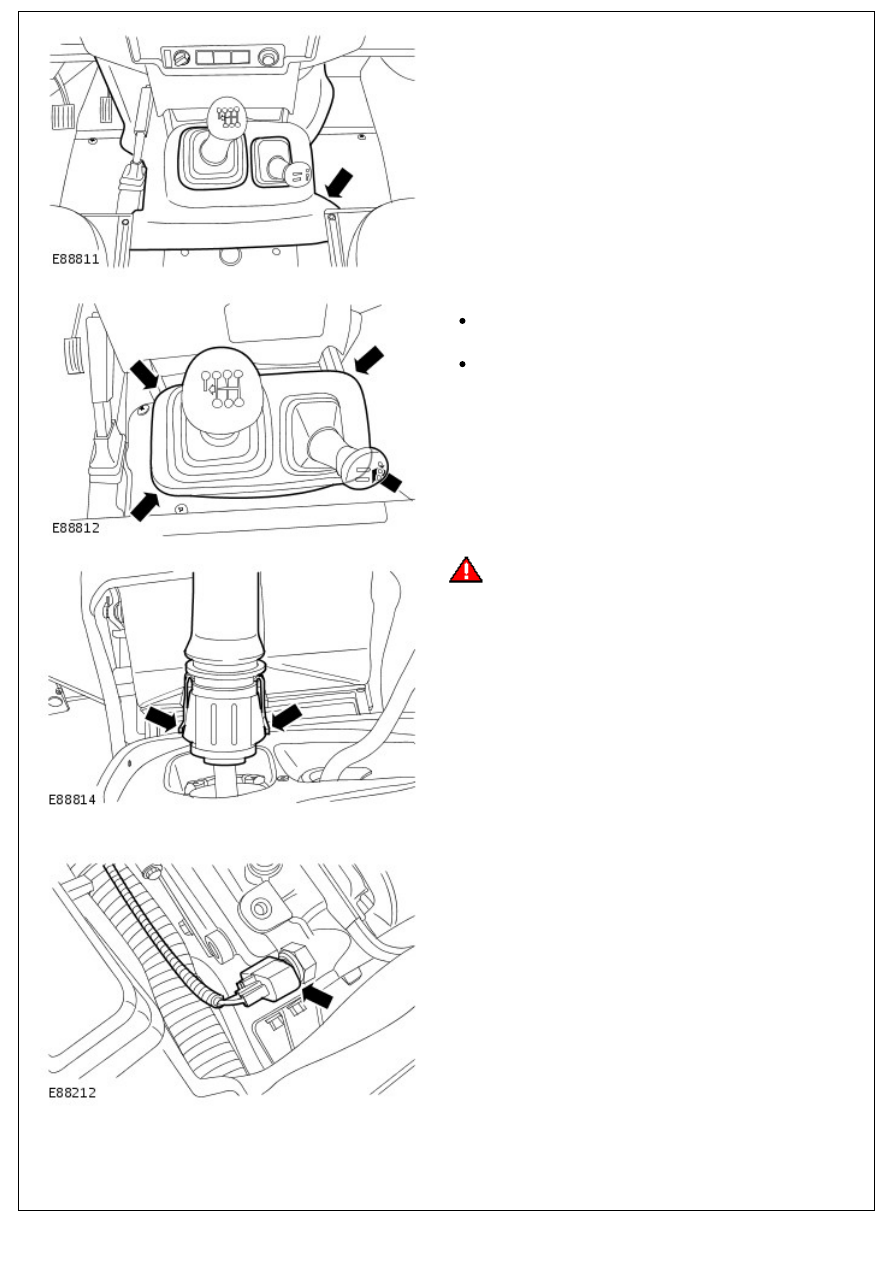

7. Release the gear selector lever gaiter.

Release the gear selector lever gaitor from the

transmission tunnel.

Release the gear selector lever gaiter from the high-

low selector lever.

8.

WARNING: The gearshift lever knob will be released

suddenly, keep face clear during removal. Failure to follow

this instruction may result in personal injury.

Remove the upper gear change lever.

9. Remove the gear selector lever gaiter.

10. Disconnect the reversing lamp switch electrical connector.

11. Open bonnet for access.

12. Remove the turbocharger heat shield.
