Defender. Manual - part 135





Glow Plug System - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Item

Nm

lb-ft

Glow plug wiring harness nuts

2

1

Glow plugs

13

10

Glow Plug System - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Glow Plug System

Description and Operation

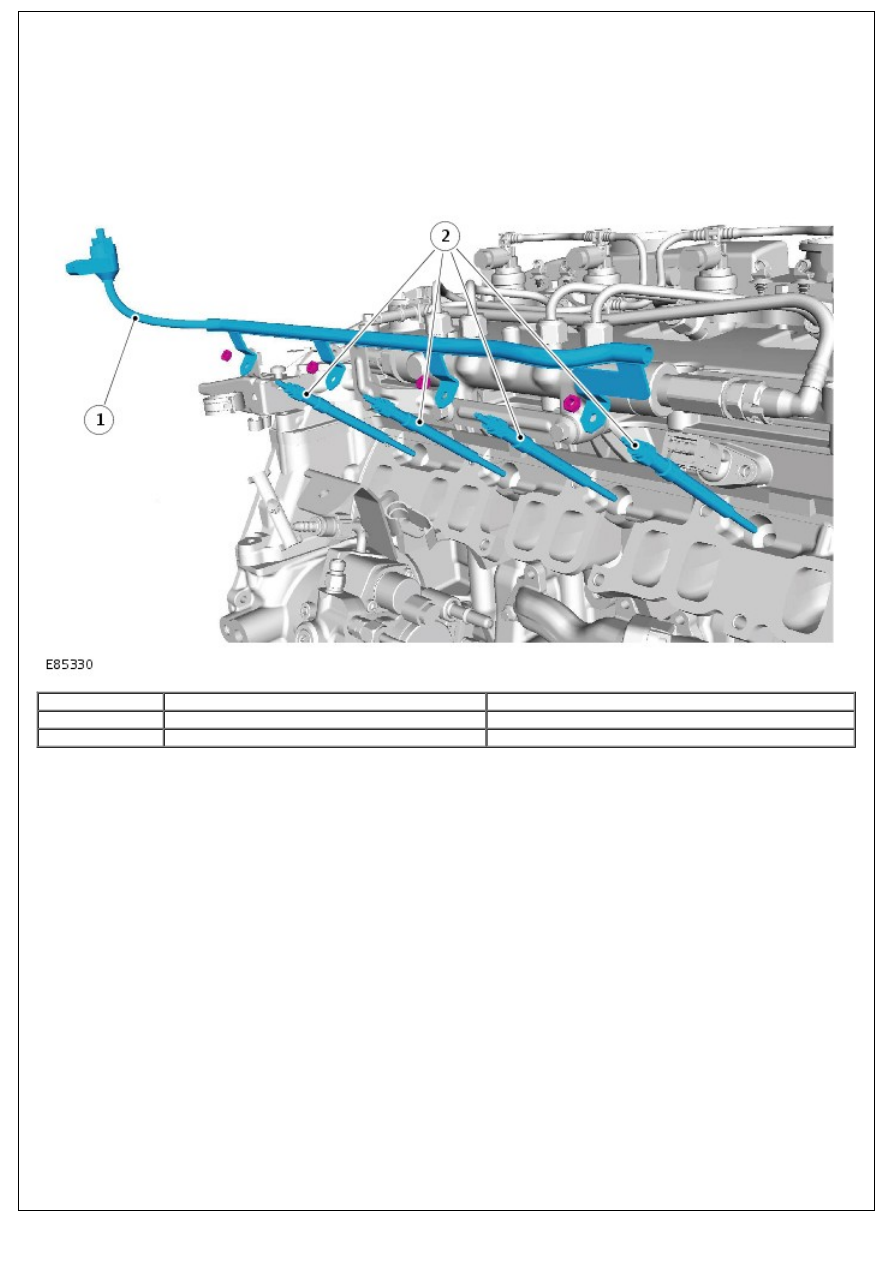

COMPONENT LOCATION

Item

Part Number

Description

1

-

Glow plug wire

2

-

Glow plug(s)

OVERVIEW

The glow plugs are located in the side of the cylinder head and aid engine starting and efficiency. The glow plugs and

the glow plug indicator lamp are controlled by the Engine Control Module (ECM).

The glow plugs preheat the combustion chambers, which aids cold starting. During the preheat stage, the ECM receives

an engine temperature signal from the cylinder head temperature (CHT) sensor and this determines the preheat time.

The lower the temperature, the longer the preheat time. There is a maximum preheat time of 8 seconds at -20°C or

lower. At temperatures above 80°C there is no preheat phase.

Once the engine has started, the glow plugs enter an after-glow phase. The after-glow phase helps to improve idling

and reduce hydrocarbon emissions through more efficient combustion just after starting. The after-glow phase only

operates at engine speeds below 2500 RPM, above that, the after-glow phase is interrupted to increase the durability of

the glow plugs. There is a maximum after-glow time of 30 seconds at -20°C or lower. At temperatures above 50°C

there is no after-glow phase.

Glow Plug System - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Glow Plug System

Diagnosis and Testing

Overview

For information on description and operation:

REFER to:

Glow Plug System

 (303-07 Glow Plug System - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma,

Description and Operation).

Inspection and Verification

1.  1. Verify the customer concern.

2.  2. Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection Chart

Electrical

Glow plug lamp

Fuses

- Link 1, fuse box under seat

Glow plug relay

Engine management relay

Wiring harness/connectors

Glow plugs

Engine control module (ECM)

3.  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

4.  4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before

moving onto the symptom chart or DTC index.

Make sure that all DTCs are cleared following rectification.

Symptom Chart

Symptom

Possible cause

Action

Poor

starting

(extreme

weather

conditions)

Glow plugs

inoperative/inefficient

Fuel temperature too

low

- The fuel system

recycles fuel until

operating

temperature is

reached to reduce

this possibility

Check the glow plug harnesses at the glow plugs and at the connections to the

main harness. Refer to the electrical guides. Check for DTCs indicating a glow

plug fault. Rectify as necessary. Clear the DTCs and check for normal operation.

High cold-

engine

emissions

After-glow phase

inoperative

Check the glow plug harnesses at the glow plugs and at the connections to the

main harness. Refer to the electrical guides. Check for DTCs indicating a glow

plug fault. Rectify as necessary. Clear the DTCs and check for normal operation.

After-glow is designed to function at engine temperatures below 50°C (122°F),

below 2,500 rpm and for a maximum of 30 seconds after engine starting.

High cold-

engine

noise,

vibration

or

harshness

After-glow phase

inoperative

Check the glow plug harnesses at the glow plugs and at the connections to the

main harness. Refer to the electrical guides. Check for DTCs indicating a glow

plug fault. Rectify as necessary. Clear the DTCs and check for normal operation.

After-glow is designed to function at engine temperatures below 50°C (122°F),

below 2,500 rpm and for a maximum of 30 seconds after engine starting.

DTC Index

• NOTE: If a control module or component is suspect and the vehicle remains under manufacturer warranty, refer to the

Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval program is in operation,

before the replacement of a component.

• NOTE: Generic scan tools may not read the codes listed, or may read only 5-digit codes. Match the 5 digits from the

scan tool to the first 5 digits of the 7-digit code listed to identify the fault (the last 2 digits give extra information read

by the manufacturer-approved diagnostic system).

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal

places, and with an up-to-date calibration certificate. When testing resistance always take the resistance of the DMM

leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern

may be the cause. Always check for loose connections and corroded terminals.

• NOTE: For a full list of engine control module (ECM) DTCs:

REFER to:

Electronic Engine Controls

 (303-14 Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR (103kW/140PS) -

Puma, Diagnosis and Testing).

DTC

Description

Possible cause

Action

P037D29 Glow plug relay

sensor circuit - signal

invalid

Glow plug

short circuit to

ground

Relay circuit to

relay

Relay circuit

from relay

Glow plug

relay fault

Check the relay and circuits. Refer to the electrical guides.

Activate the relay and check for an audible "click". Rectify as

necessary. Clear the DTCs and test for normal operation.

P038011 Glow plug/heater

circuit A - circuit

short to ground

Glow plug

relay control

circuit: short

circuit to

ground

Glow plug

relay fault

Check the relay and circuits. Refer to the electrical guides.

Activate the relay and check for an audible "click". Rectify as

necessary. Clear the DTCs and test for normal operation.

P038015 Glow plug/heater

circuit A - circuit

short to battery or

open

Glow plug

relay control

circuit: short

circuit to

power

Glow plug

relay control

circuit: open

circuit

Glow plug

relay fault
