Starter motor

fitment/casing

flywheel/drive plate ring gear teeth for damage, foreign objects, etc.

DTC Index

• NOTE: If a control module or component is suspect and the vehicle remains under manufacturer warranty, refer to the

Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval program is in operation,

before the replacement of a component.

• NOTE: Generic scan tools may not read the codes listed, or may read only 5-digit codes. Match the 5 digits from the

scan tool to the first 5 digits of the 7-digit code listed to identify the fault (the last 2 digits give extra information read

by the manufacturer-approved diagnostic system).

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal

places, and with an up-to-date calibration certificate. When testing resistance always take the resistance of the DMM

leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern

may be the cause. Always check for loose connections and corroded terminals.

• NOTE: For a full list of engine control module (ECM) DTCs:

REFER to:

Electronic Engine Controls

 (303-14 Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR (103kW/140PS) -

Puma, Diagnosis and Testing).

DTC

Description

Possible causes

Action

P061512 Starter relay

circuit - circuit

short to battery

Starter relay

circuit: short

circuit to

power

Check the starter relay circuits. Refer to the electrical guides. Rectify

as necessary. Clear the DTCs and test for normal operation.

P061514 Starter relay

circuit - circuit

short to ground or

open

Starter relay

circuit: short

circuit to

ground

Starter relay

circuit: open

circuit

P160231 Immobilizer/engine

control module

(ECM)

communication

error – no signal

Alarm

(immobilizer)

- instrument

cluster

circuit: short

circuit to

ground

Alarm

(immobilizer)

- instrument

cluster

circuit: short

circuit to

power

Alarm

(immobilizer)

- instrument

cluster

circuit: open

circuit

Engine

control

module

(ECM) fault

Instrument

cluster fault

Check for related DTCs. Rectify as necessary. Clear the DTCs and test

for normal operation. Check the alarm (immobilizer) circuits. Refer to

the electrical guides. Rectify as necessary. Clear the DTCs and test for

normal operation. Refer to the warranty policy and procedures manual

if a module is suspect.

Starting System - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Starter Motor

Removal and Installation

Removal

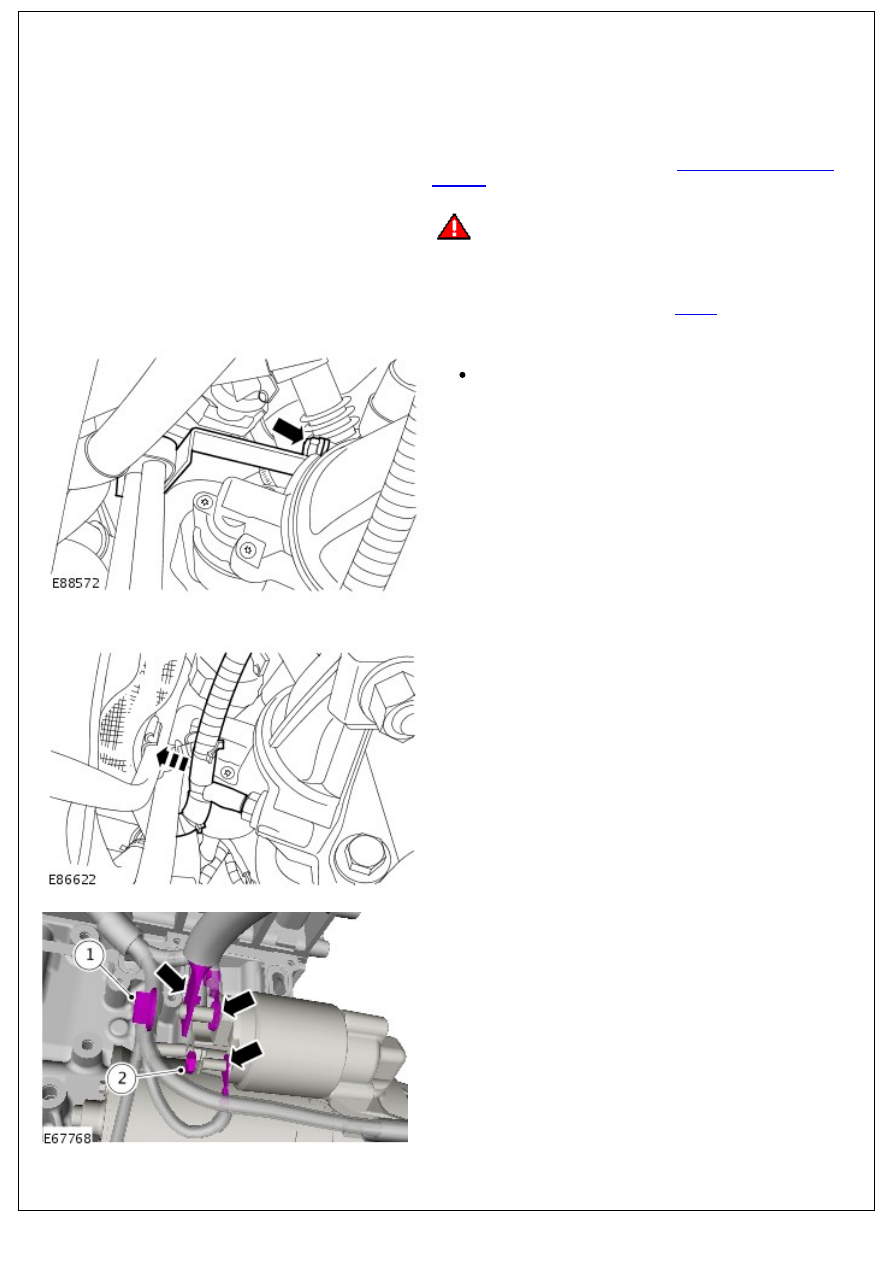

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2.

WARNING: Do not work on or under a vehicle

supported only by a jack. Always support the vehicle on safety

stands.

Raise and support the vehicle.

For additional information, refer to:

Lifting

 (100-02 Jacking

and Lifting, Description and Operation).

3. Remove the fuel line support bracket.

Remove the nut.

4. Release the starter motor wiring harness clip.

5. Release the 2 battery positive cables and the switch lead

from the starter motor solenoid.

1. Remove the battery positive cable nut.

2. Release the starter motor switch lead nut.

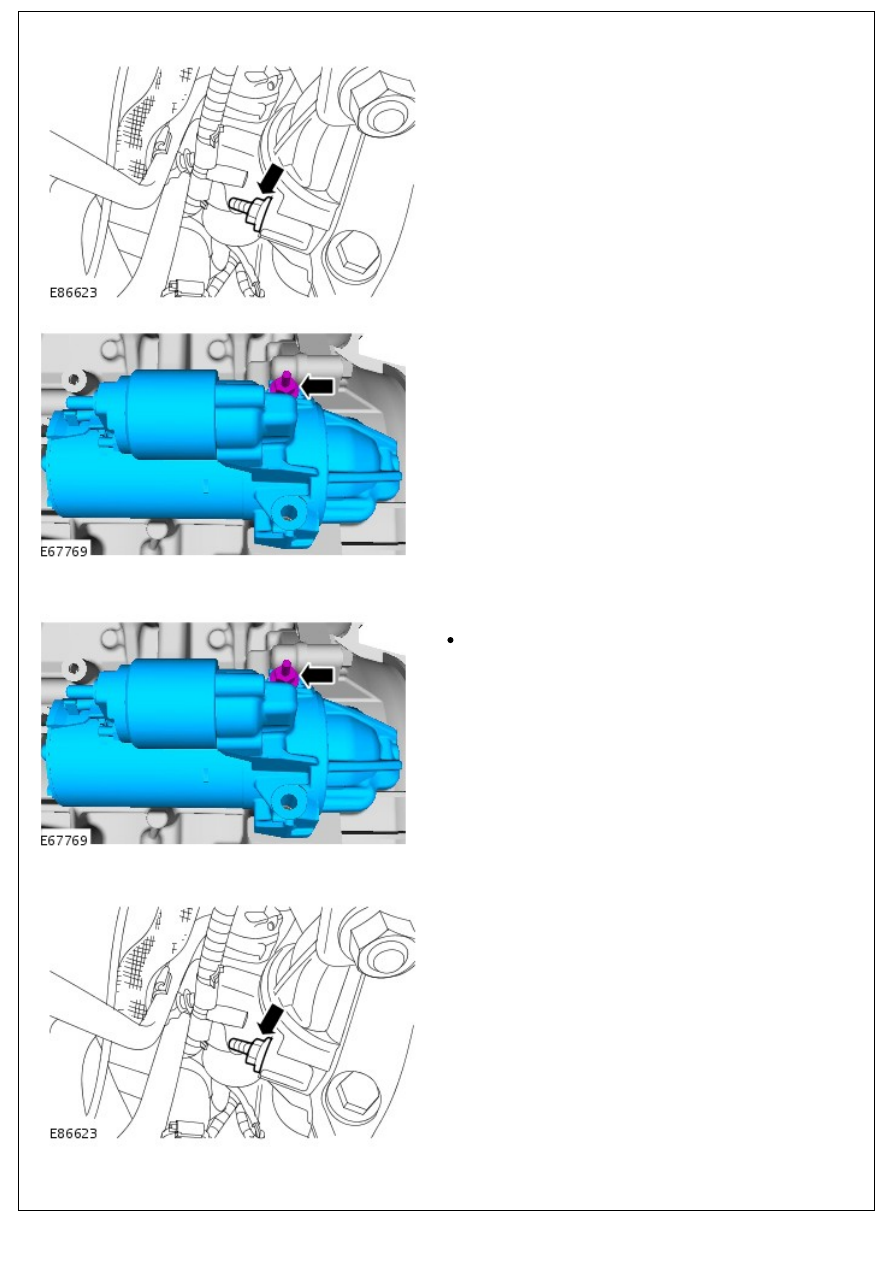

6. Remove the starter motor lower bolt.

6. Remove the starter motor lower bolt.

7. Remove the starter motor.

Installation

1. Install the starter motor.

Tighten to 35 Nm (26 lb.ft).

2. Tighten to 35 Nm (26 lb.ft).

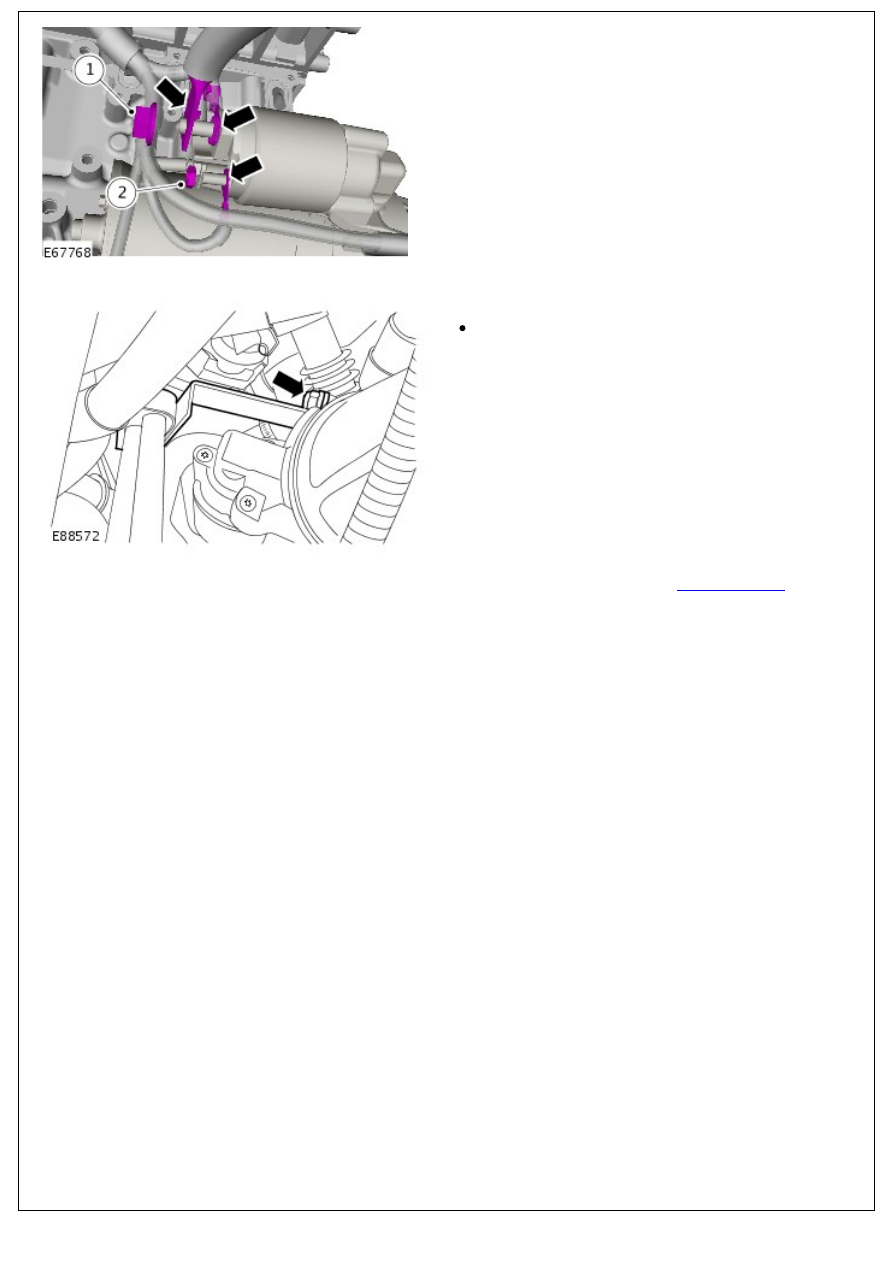

3. Secure the 2 battery positive cables and the switch lead to

3. Secure the 2 battery positive cables and the switch lead to

the starter motor solenoid.

1. Tighten to 12 Nm (9 lb.ft).

2. Tighten to 8 Nm (6 lb.ft).

4. Secure the starter motor wiring harness clip.

5. Install the fuel line support bracket.

Tighten to 8 Nm (6 lb.ft).

6. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
