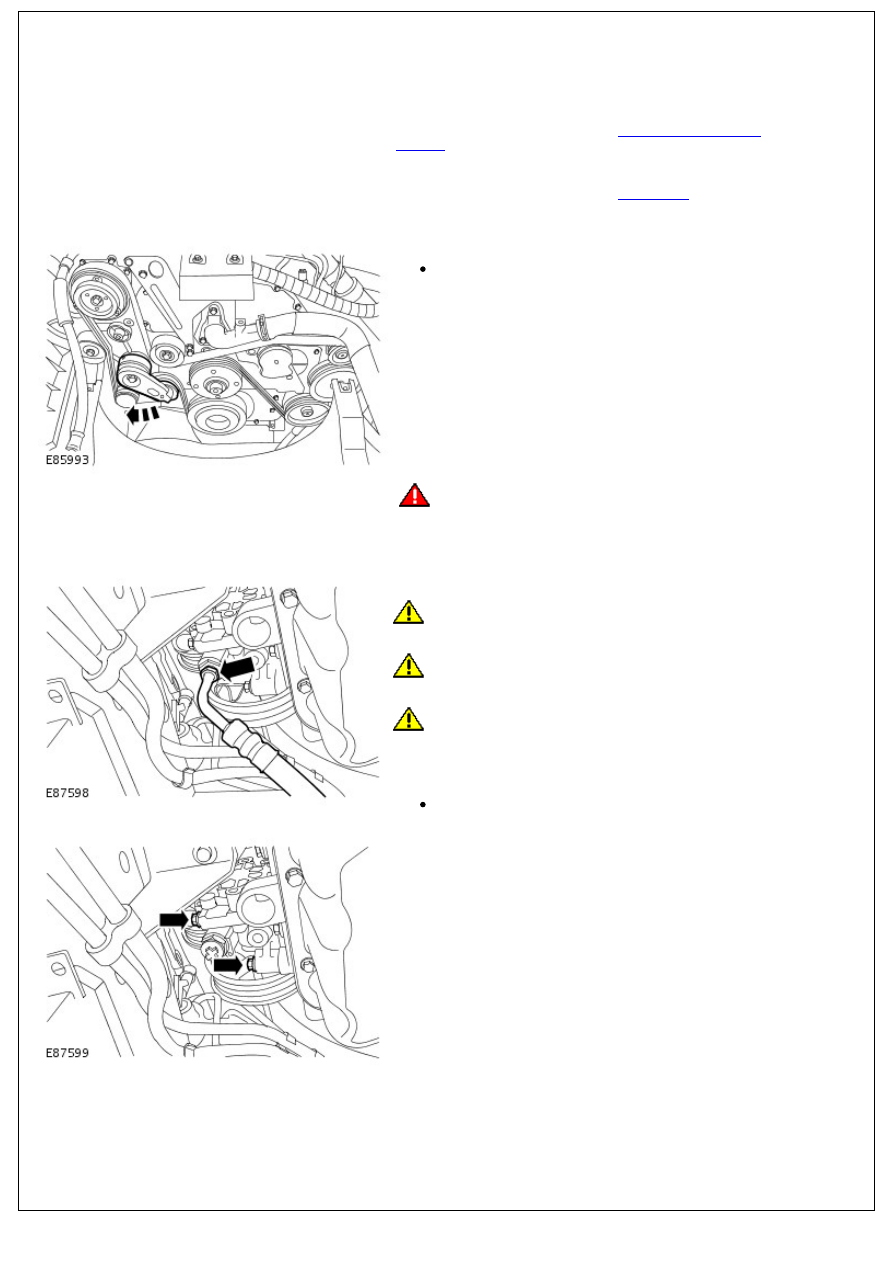

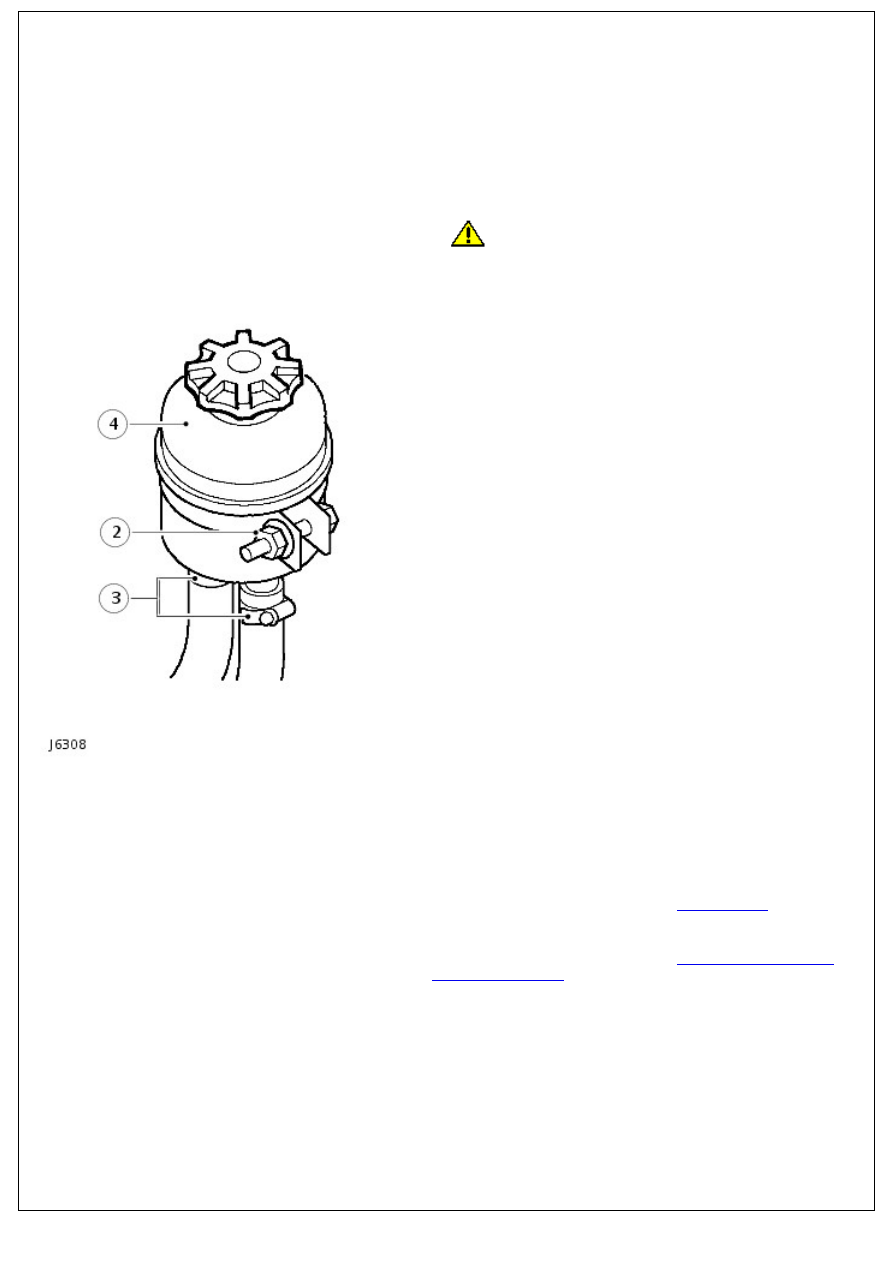

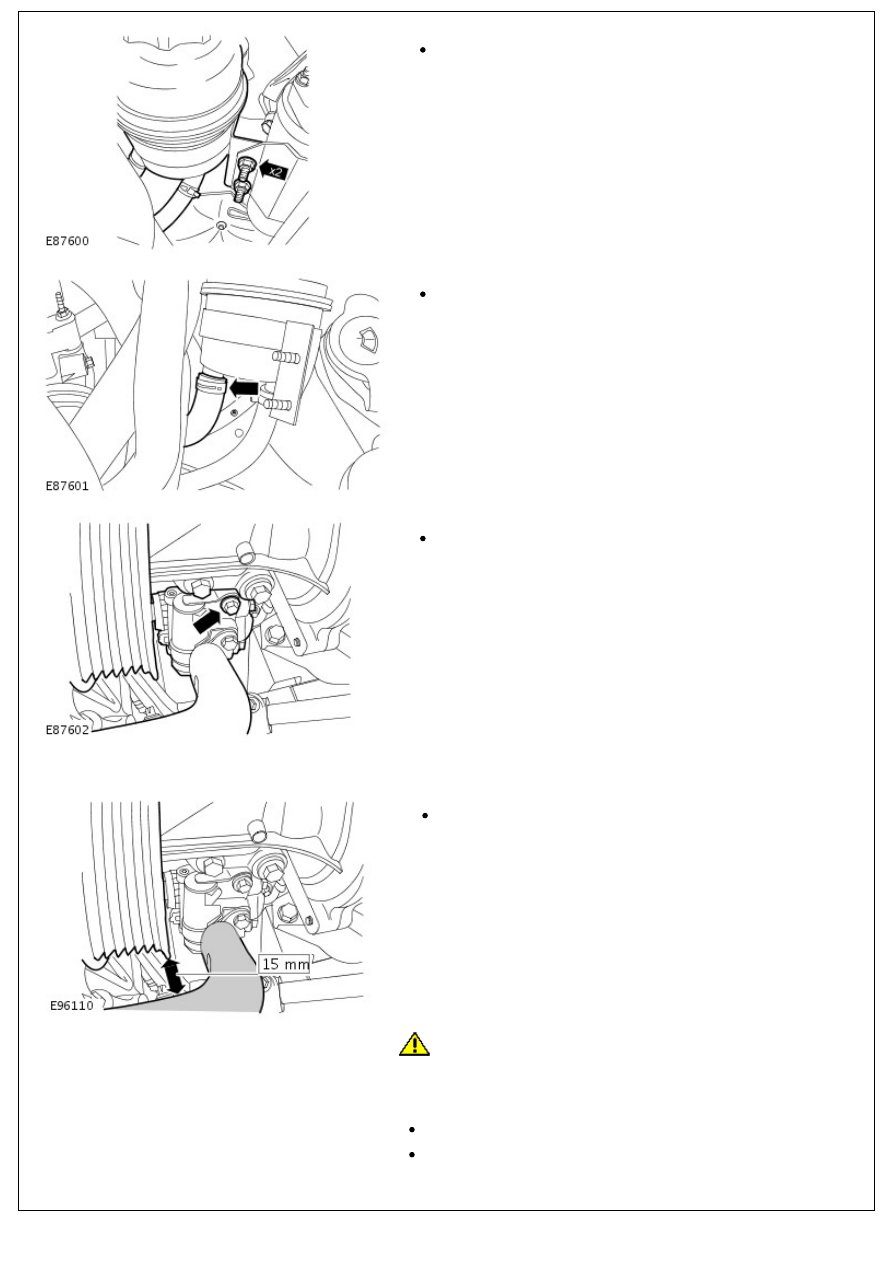

6. Secure the drop arm nut using the lock washer. 8. NOTE: Install new bolts and tab washers. With assistance, install the steering gear. Install the tab washers. Install the steering gear bolts and tighten to 65 Nm (48 lb.ft). 9. Secure the steering gear bolts using the tab washers. Loosely install the nuts and bolts. 11. Tighten the tie bar to panhard rod mount bracket nut to 83 Nm (61 lb.ft). 12. Tighten the tie bar to steering gear nuts and bolts to 85 Nm (63 lb.ft). 13. Secure the drag link to the drop arm. Install the nut and tighten to 40 Nm (30 lb.ft). Install the split pin. 14. NOTE: Install new nuts. Install the panhard rod. Tighten the nuts and bolts to 230 Nm (178 lb.ft). 15. CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be immediately washed down with cold water. • NOTE: Inspect the O-ring seal, if there is any indication of damage install a new seal. Connect the PAS feed pipe to the steering gear. Tighten to 20 Nm (15 lb.ft). 16. CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be immediately washed down with cold water. • NOTE: Inspect the O-ring seal, if there is any indication of damage install a new seal. Connect the PAS return hose to the steering gear. Tighten to 15 Nm (11 lb.ft). 17. Check the alignment and install the steering column lower shaft to the steering gear. Install the steering column lower shaft lower bolt and tighten to 22 Nm (16 lb.ft). 18. Tighten the steering column lower shaft upper bolt to 22 Nm (16 lb.ft). 19. Remove the centralizing bolt from the steering gear. For additional information, refer to: Power Steering System Filling and Bleeding (211-00 Steering System - General Information, General Procedures). |
