Defender. Manual - part 46





with short

circuit to

Ubatt

94 Inlet valve

right hand

rear - power

amp with

short circuit

to Ubatt

Right hand

rear inlet valve

short circuit to

power

Refer to the electrical guides and check C0506-11 rear right inlet modulator

valve circuit for short circuit to power.

95 Outlet valve

right hand

rear - power

amp with

short circuit

to Ubatt

Right hand

rear outlet

valve short

circuit to

power

Refer to the electrical guides and check C0506-10 rear right outlet modulator

valve circuit for short circuit to power.

96 Inlet valve

left hand

rear - power

amp with

short circuit

to Ubatt

Left hand rear

inlet valve

short circuit to

power

Refer to the electrical guides and check C0506-8 rear left inlet modulator valve

circuit for short circuit to power.

97 Outlet valve

left hand

rear - power

amp with

short circuit

to Ubatt

Left hand rear

outlet valve

short circuit to

power

Refer to the electrical guides and check C0506-7 rear left outlet modulator

valve circuit for short circuit to power.

100 Pump relay

- power

amp with

short circuit

to Ubatt

ABS pump

relay coil

circuit, short

circuit to

power

Refer to the electrical guides and check C0506-15 ABS pump relay coil circuit

for short circuit to power.

104 Sensor right

hand front -

no sensor

output at all

Front right

hand wheel

speed sensor

extremely

large air gap

Tone ring

broken/missing

Check front right hand wheel speed sensor for correct air gap. Check tone ring

is not damaged or missing.

105 Sensor left

hand rear -

no sensor

output at all

Rear left hand

wheel speed

sensor

extremely

large air gap

Tone ring

broken/missing

Check rear left hand wheel speed sensor for correct air gap. Check tone ring is

not damaged or missing.

106 Sensor left

hand front -

no sensor

output at all

Front left hand

wheel speed

sensor

extremely

large air gap

Tone ring

broken/missing

Check front left hand wheel speed sensor for correct air gap. Check tone ring is

not damaged or missing.

107 Sensor right

hand rear -

no sensor

output at all

Rear right

hand wheel

speed sensor

extremely

large air gap

Tone ring

broken/missing

Check rear right hand wheel speed sensor for correct air gap. Check tone ring

is not damaged or missing.

Anti-Lock Control - Traction Control - Anti-Lock Brake System (ABS)

Module

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the RH front seat cushion.

For additional information, refer to:

Front Seat Cushion

 (501-

10 Seating, Removal and Installation).

3. Remove the anti-lock brake system (ABS) module cover.

Release the clip.

4. Disconnect the 3 electrical connectors from the ABS module.

5. Remove the ABS module.

Remove the 3 bolts.

Installation

1. Install the ABS module.

Tighten the bolts to 10 Nm (7 lb.ft).

2. Connect the ABS module electrical connectors.
3. Install the ABS module cover.

Secure with the clip.

4. Install the RH front seat cushion.

For additional information, refer to:

Front Seat Cushion

 (501-

10 Seating, Removal and Installation).

5. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

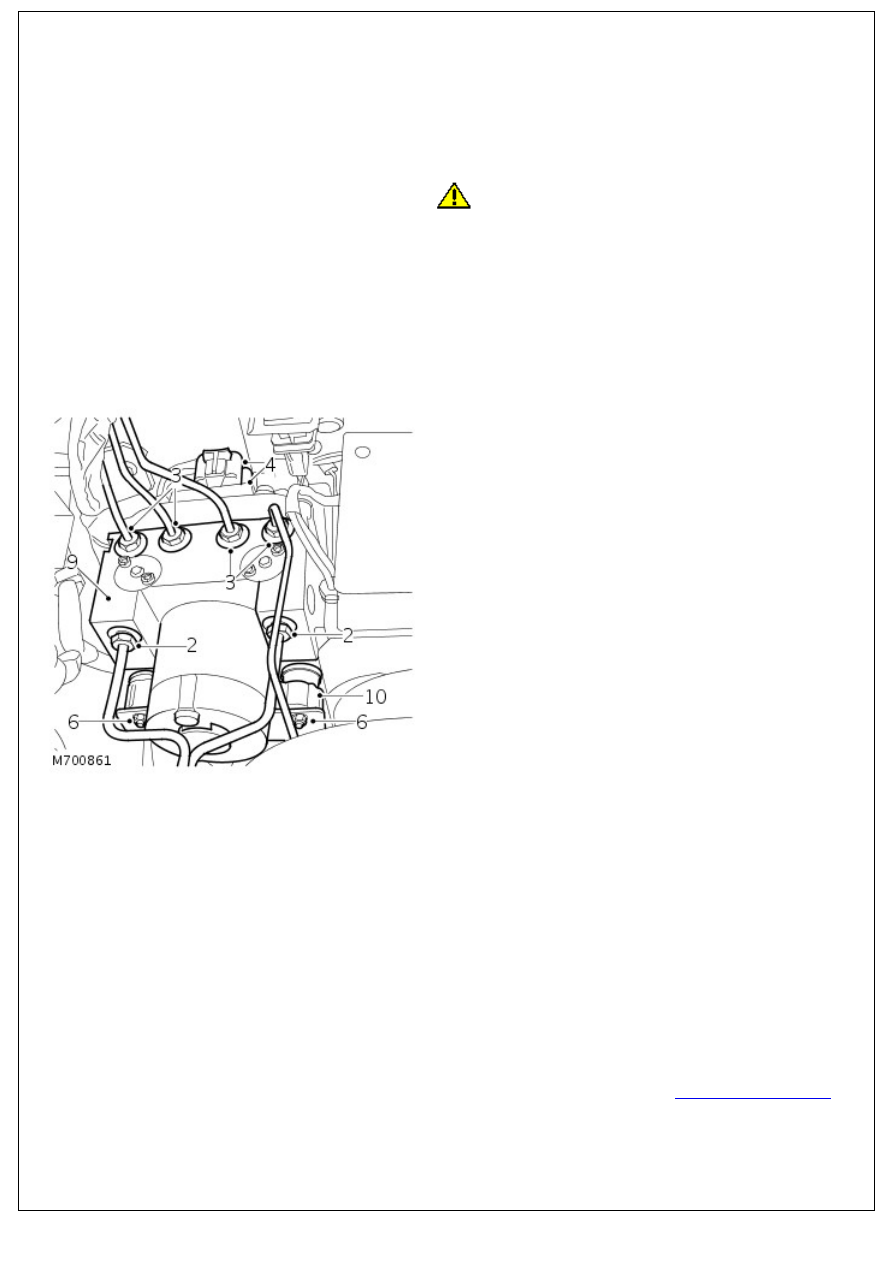

Anti-Lock Control - Traction Control - Hydraulic Control Unit (HCU)

Removal and Installation

Removal

1. Position cloth under modulator to absorb any fluid spillage.
2. Disconnect 2 inlet brake pipe unions from pump side of

modulator.

3.

CAUTION: Plug the connections.

Disconnect 4 outlet brake pipe unions from top of modulator.

4. Disconnect 2 multiplugs from rear of modulator.
5. Loosen nut securing rear of modulator to mounting bracket.
6. Remove 2 nuts securing front of modulator to mounting

bracket.

7. Release modulator from mounting bracket.
8. Disconnect multiplug from base of modulator.
9. Remove modulator.

10. Remove 3 mounting rubbers from old modulator and fit

to new.

Installation

1. Position modulator to mounting bracket and connect

multiplug.

2. Instal modulator to mounting bracket and tighten nuts to 9

Nm (7 lbf.ft) .

3. Connect 2 multiplugs to rear of modulator.
4. Remove plugs from brake pipes and modulator.
5. Clean brake pipe unions.
6. Connect brake pipe unions to modulator ensuring pipes are

connected to their correct ports.

7. Tighten all unions to 14 Nm (10 lbf.ft).

8. NOTE: To ensure correct operation, the ABS system MUST be

tested using TestBook.

Bleed brake system.

For additional information, refer to:

Brake System Bleeding

(206-00 Brake System - General Information, General

Procedures).
