Defender. Manual - part 35





Item

Part Number

Description

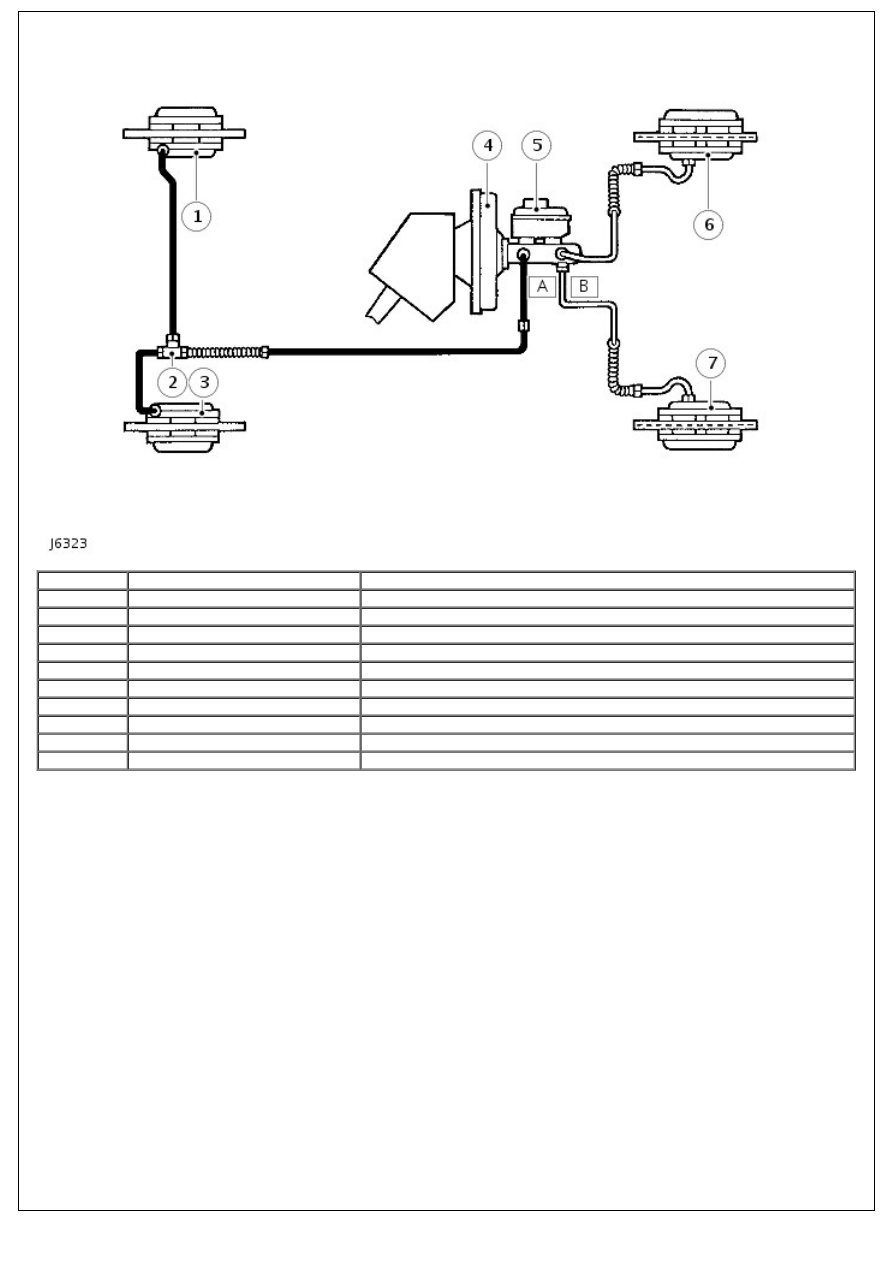

A

-

Primary circuit

B

-

Secondary circuit

C

-

Pressure reducing valve

1

-

LH rear brake caliper

2

-

T Connector

3

-

RH rear brake caliper

4

-

Brake servo

5

-

Master cylinder and reservoir

6

-

LH front brake caliper

7

-

RH front brake caliper

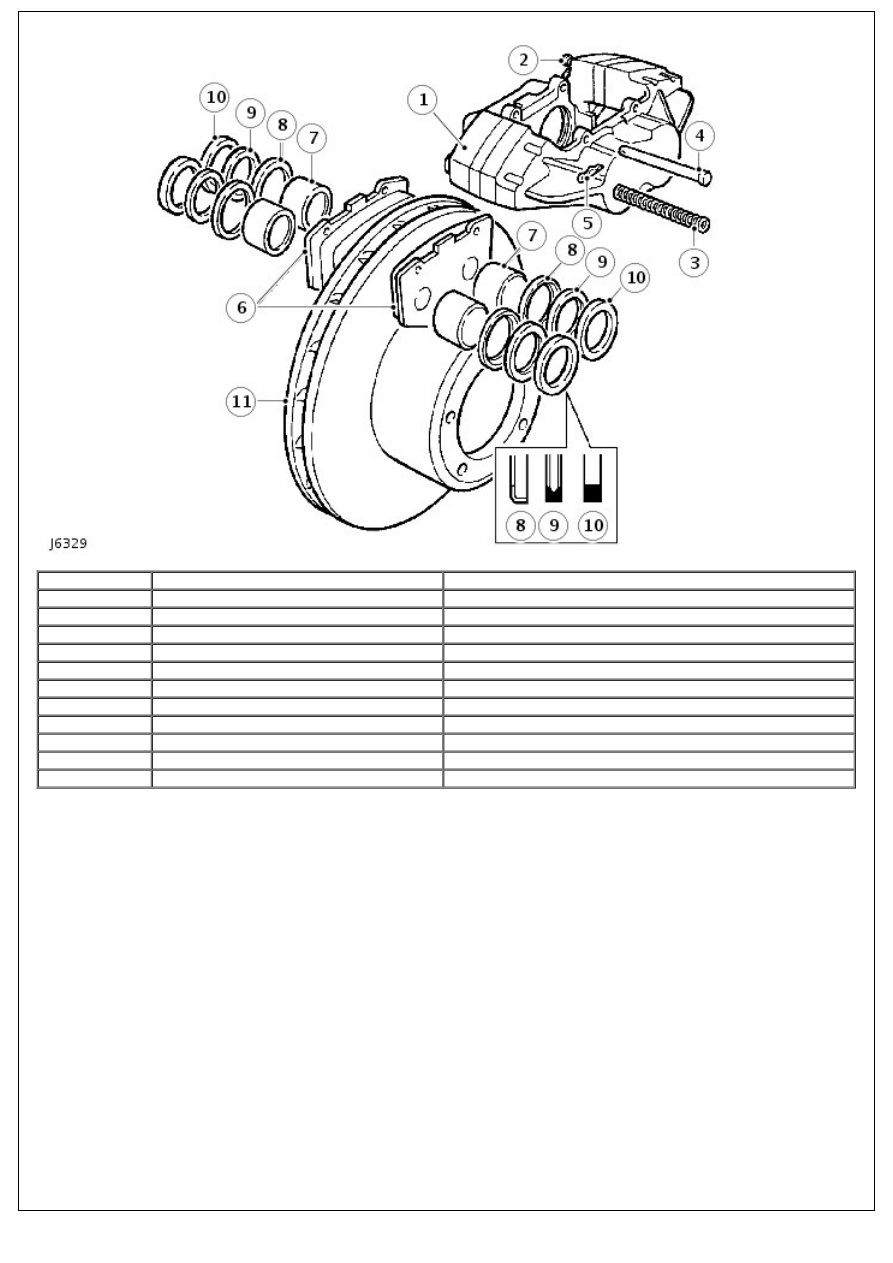

Front brake caliper assembly

Front brake caliper components

Item

Part Number

Description

1

-

Caliper

2

-

Bleed screw

3

-

Anti-rattle springs

4

-

Pad retaining pins

5

-

Split pin

6

-

Friction pads

7

-

Piston

8

-

Wiper seal retainer

9

-

Wiper seal

10

-

Fluid seal

11

-

Brake disc

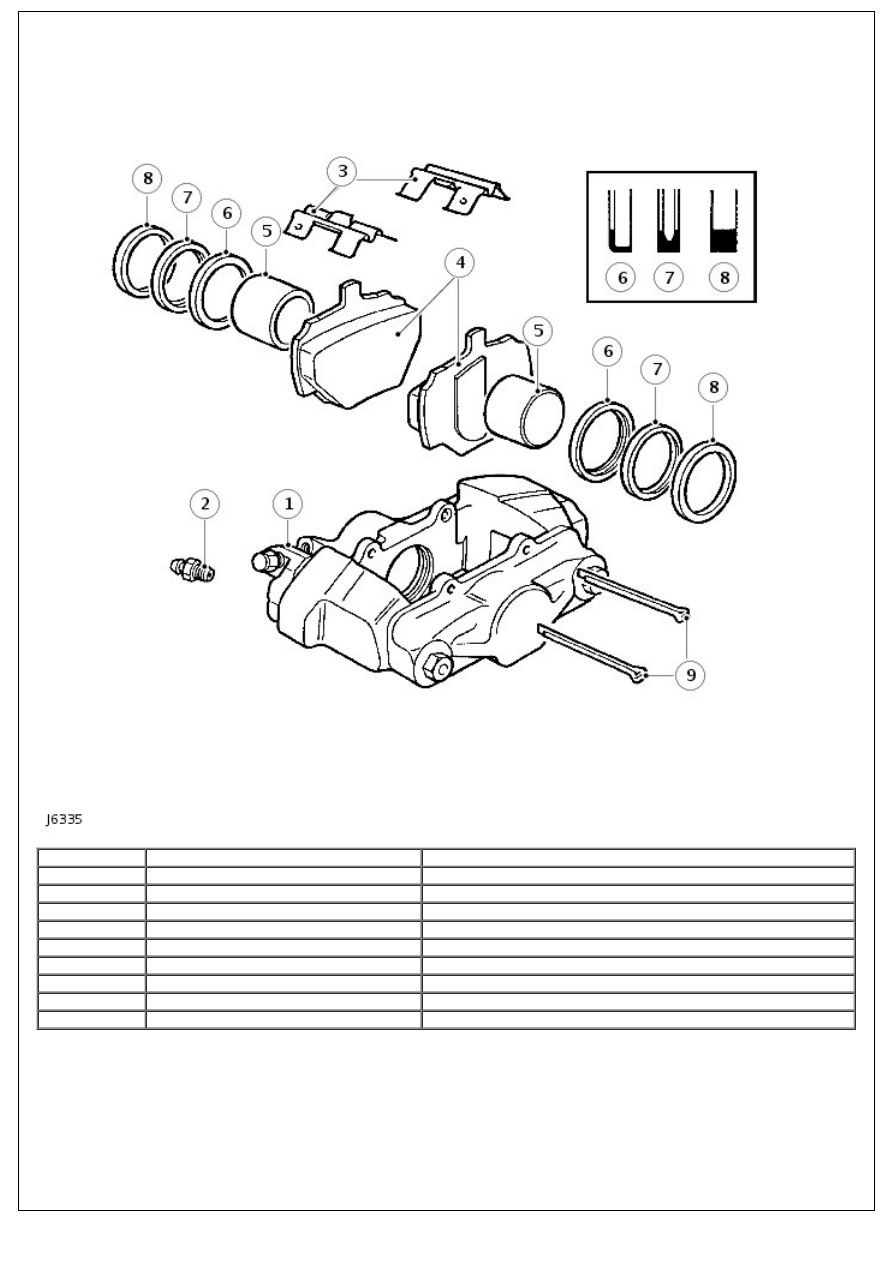

Rear brake caliper assembly

Rear brake caliper components

Item

Part Number

Description

1

-

Caliper

2

-

Bleed screw

3

-

Pad retaining springs

4

-

Brake pads

5

-

Piston

6

-

Wiper seal retainer

7

-

Wiper seal

8

-

Fluid seal

9

-

Retraining pins

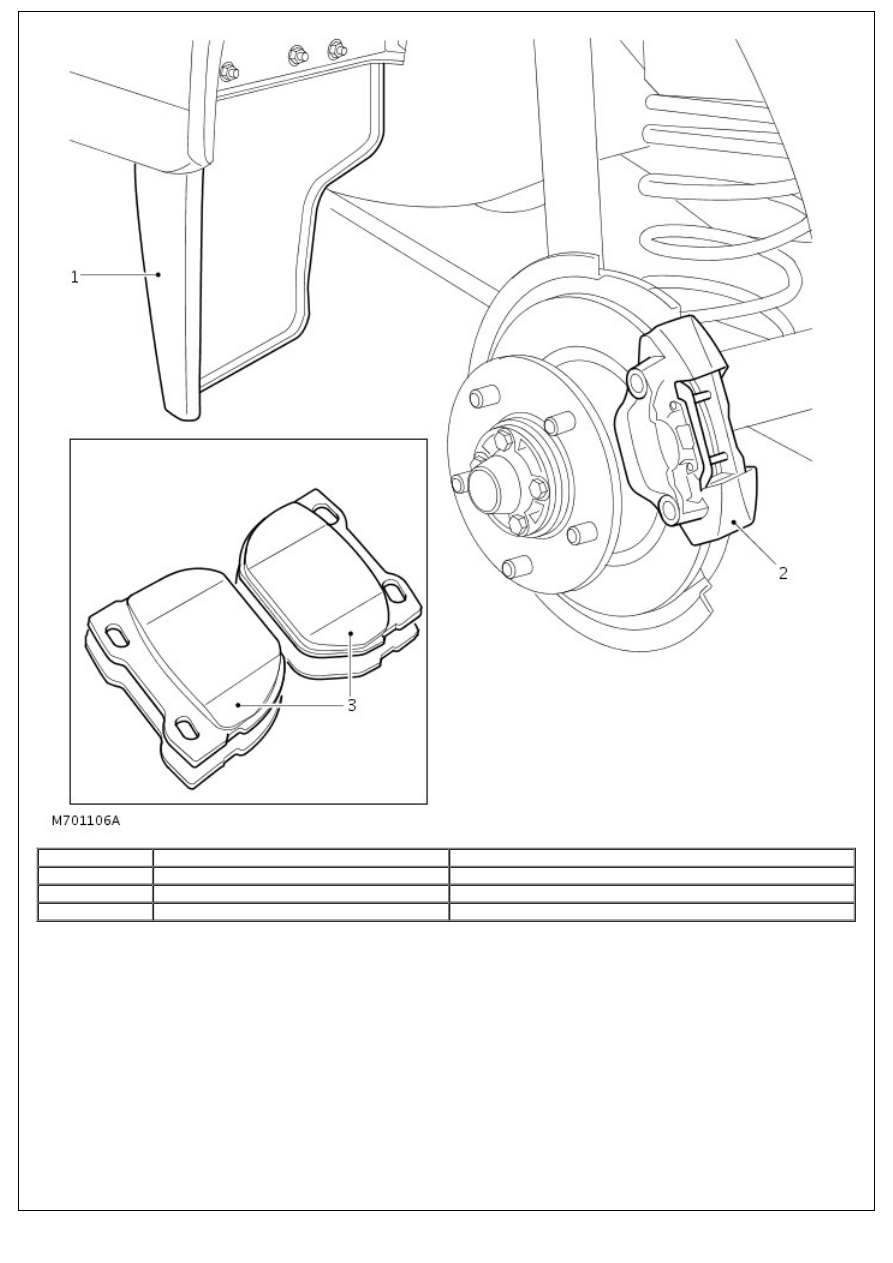

Rear brake caliper installation - From 02MY

Item

Part Number

Description

1

-

Deflector

2

-

Rear brake caliper

3

-

rear brake pads

Modifications to the rear brakes have been introduced on 110 and 130 models. This is to increase the service life of the

rear brake pads in harsh environments.

New rear brake calipers are introduced which allow the fitment of brake pads with a thicker friction material. The brake

pads have increased leading and trailing edge chamfers which improve efficiency

Aerodynamic deflectors are located forward of the rear wheels to protect the rear calipers from the ingress of dirt, which

can cause excessive pad wear. The deflectors are fitted to 90, 10 and 130 models in markets where environmental

conditions can cause excessive brake pad wear.

Parking brake

Parking brake components
