Jeep XJ. Manual - part 799





(16) Press 1-2 synchro onto output shaft using

suitable size pipe tool and shop press (Fig. 61).

CAUTION: Align the synchro ring and sleeve as hub
the is being pressed onto the shaft. The synchro
ring can crack if not aligned.

(17) Install interm ring.
(18) Install new 1-2 synchro hub snap ring (Fig.

62) and verfiy the snap ring is seated.

NOTE: Snap rings are available in thicknesses from
1.80 mm to 2.00 mm (0.070 to 0.078 in.). Install
thickest snap ring that will fit in shaft groove.

(19) Install second gear synchro ring in 1-2 syn-

chro hub and sleeve (Fig. 63). Verify synchro ring is
properly seated.

(20) Install synchro friction cone and synchro cone

in synchro ring.

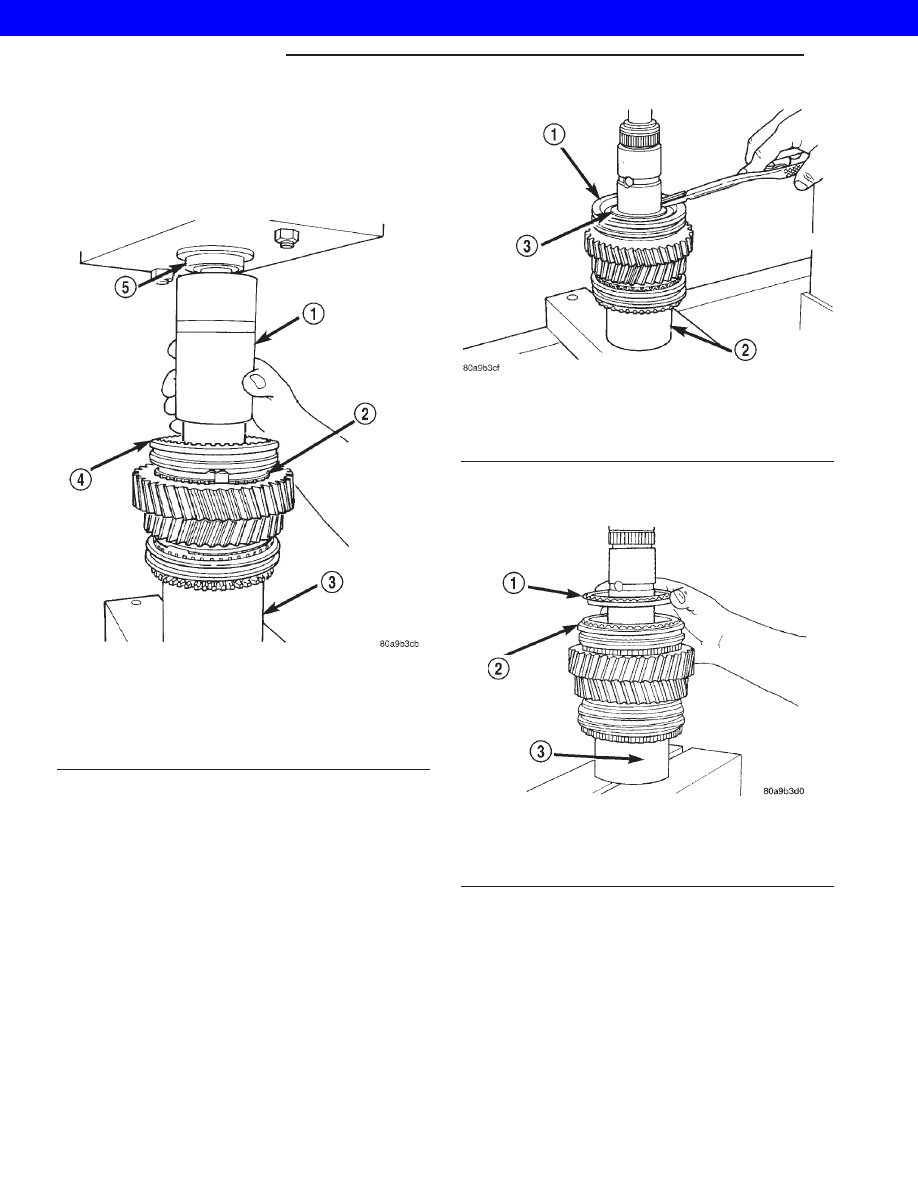

Fig. 61 PRESS 1-2 SYNCHRO

1 - SUITABLE SIZE PIPE
2 - SYNCHRO RING
3 - SPECIAL TOOL
4 - 1-2 SYNCHRO ASSEMBLY
5 - PRESS RAM

Fig. 62 1-2 SYNCHRO HUB SNAP RING

1 - 1-2 SYNCHRO
2 - CUP
3 - SYNCHRO SNAP RING

Fig. 63 SECOND GEAR SYNCHRO RING

1 - SECOND GEAR SYNCHRO RING
2 - 1–2 SYNCHRO
3 - SPECIAL TOOL 6310–1

21s - 18

MANUAL NV 3550

XJ

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

(21) Install second gear needle bearing on shaft

(Fig. 64).

(22) Install second gear onto shaft and bearing

(Fig. 65). Verify second gear is fully seated on syn-
chro components.

(23) Install two-piece thrust washer (Fig. 66).

Ensure washer halves are seated in shaft groove and
that washer lugs are seated in shaft lug bores. Verify
i.d. grooves and markings noted during removal are
facing the correct direction.

(24) Start retaining ring around two-piece thrust

washer (Fig. 67). Ensure locating dimple is between
the thrust washer halves.

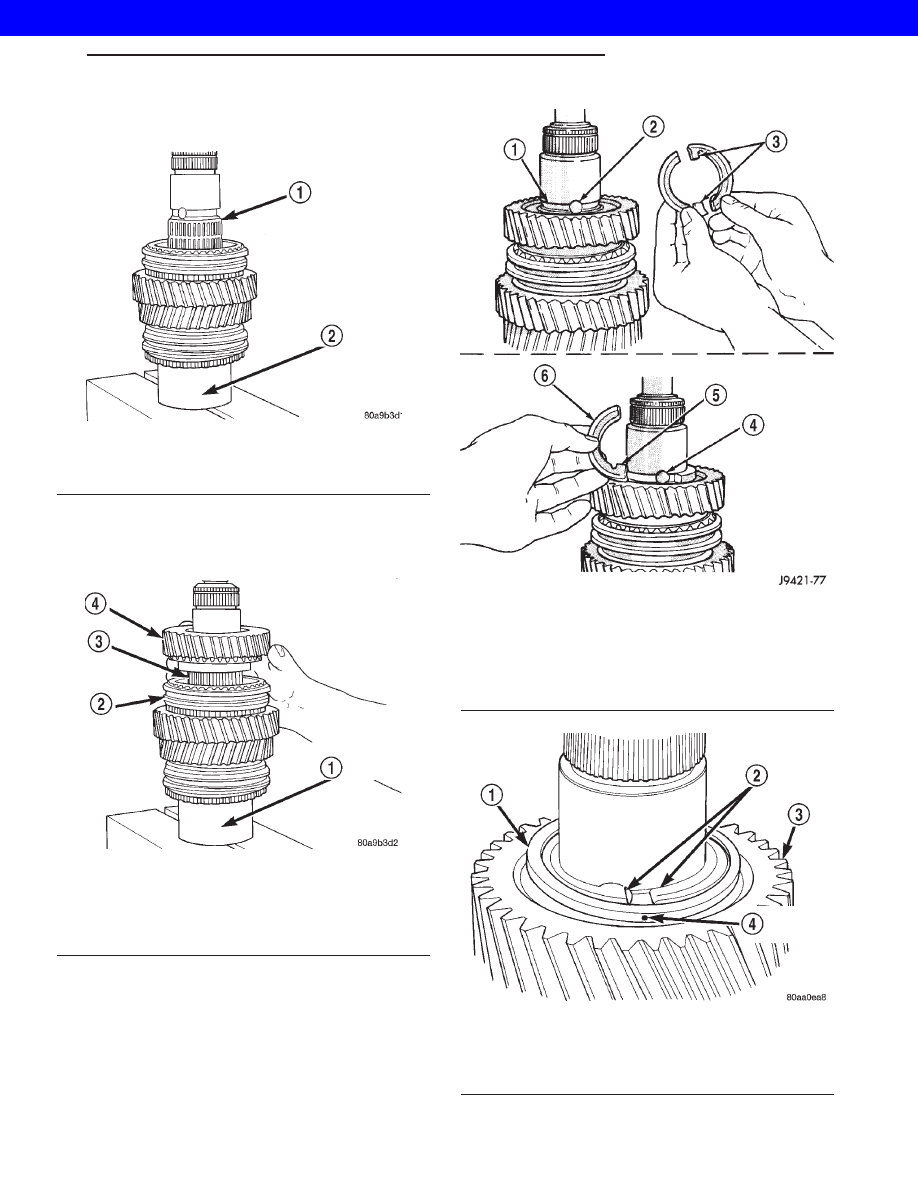

Fig. 64 SECOND GEAR BEARING

1 - SECOND GEAR BEARING
2 - SPECIAL TOOL

Fig. 65 SECOND GEAR

1 - SPECIAL TOOL 6310–1
2 - 1–2 SYNCHRO ASSEMBLY
3 - BEARING
4 - SECOND GEAR

Fig. 66 TWO-PIECE THRUST WASH

1 - WASHER GROOVE IN SHAFT
2 - LUG BORE
3 - THRUST WASHER LUGS
4 - LUG BORE
5 - LUG
6 - WASHER HALF

Fig. 67 RETAINING RING

1 - THRUST WASHER RETAINING RING
2 - THRUST WASHER HALVES
3 - SECOND GEAR
4 - LOCATING DIMPLE

XJ

MANUAL NV 3550

21s - 19

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

(25) Seat thrust washer retaining ring with plastic

mallet (Fig. 68).

(26) Install third gear needle bearing on shaft (Fig.

69).

(27) Install third gear on shaft and bearing (Fig.

70).

(28) Install third speed synchro ring on third gear

(Fig. 71).

(29) Assemble 3-4 synchro hub, sleeve, springs,

struts and detent balls.

(30) Start 3-4 synchro hub on output shaft splines

by hand (Fig. 72).

CAUTION: The 3-4 synchro hub and sleeve can be
installed backwards. One side of the sleeve has
grooves in it. This side of sleeve faces the front of
the shaft.

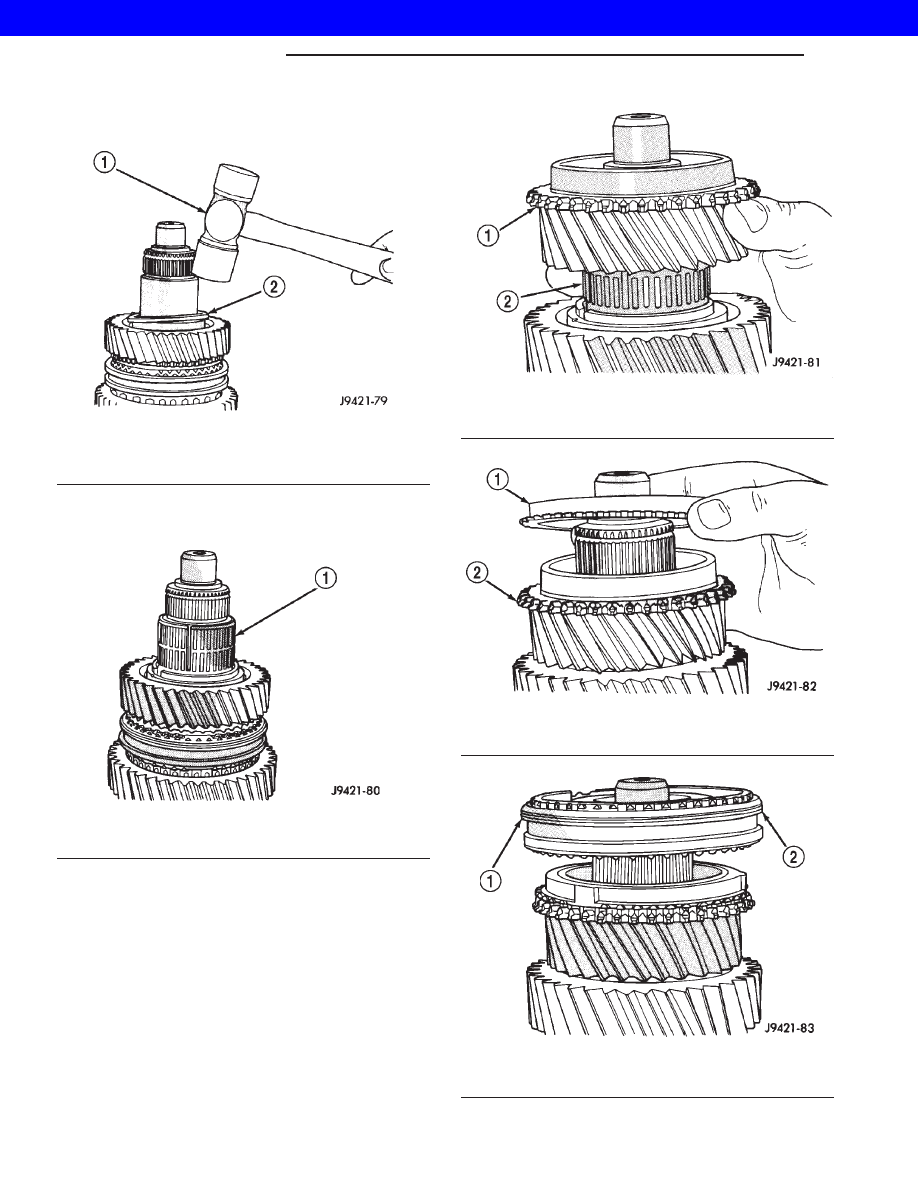

Fig. 68 THRUST WASHER

1 - PLASTIC MALLET
2 - THRUST WASHER RETAINING RING

Fig. 69 THIRD GEAR BEARING

1 - THIRD GEAR BEARING

Fig. 70 THIRD GEAR

1 - THIRD GEAR
2 - BEARING

Fig. 71 THIRD SPEED SYNCHRO RING

1 - THIRD SPEED SYNCHRO RING
2 - THIRD GEAR

Fig. 72 3-4 SYNCHRO HUB ON OUTPUT SHAFT

1 - GROOVED SIDE OF SLEEVE
2 - 3-4 SYNCHRO ASSEMBLY

21s - 20

MANUAL NV 3550

XJ

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

(31) Press 3-4 synchro assembly onto output shaft

with shop press and suitable size pipe tool (Fig. 73).

NOTE: Place the pipe on hub as close to output
shaft as possible without contacting the shaft
splines.

(32) Install 3-4 synchro hub snap ring (Fig. 74)and

verify snap ring is seated.

NOTE: Snap rings are available in thicknesses from
2.00 mm to 2.30 mm (0.078 to 0.090 in.). Install
thickest snap ring that will fit in shaft groove.

(33) Install output shaft bearing.
(34) Install output shaft bearing snap ring, spread-

ing it just enough to install it (Fig. 75). Verify snap
ring is seated in shaft groove.

(35) Verify position of synchro sleeves before pro-

ceeding with assembly operations (Fig. 76). Grooved
side of 3-4 sleeve should be facing forward. First gear
side of 1-2 sleeve should be facing first gear. Tapered
side of fifth-reverse sleeve should be facing forward.

REVERSE IDLER ASSEMBLY

(1) Lubricate idler components with gear lube.
(2) Slide idler gear bearing on shaft (Fig. 77).

Bearing fits either way on shaft.

(3) Slide gear onto shaft. Side of gear with recess

goes to rear (Fig. 77).

(4) Place first lock ball in dimple at rear end of

idler shaft (Fig. 77). Hold ball in place with petro-
leum jelly.

(5) Slide thrust rear thrust washer onto shaft and

over lock ball (Fig. 78).

(6) Install snap ring in groove at rear of shaft (Fig.

78).

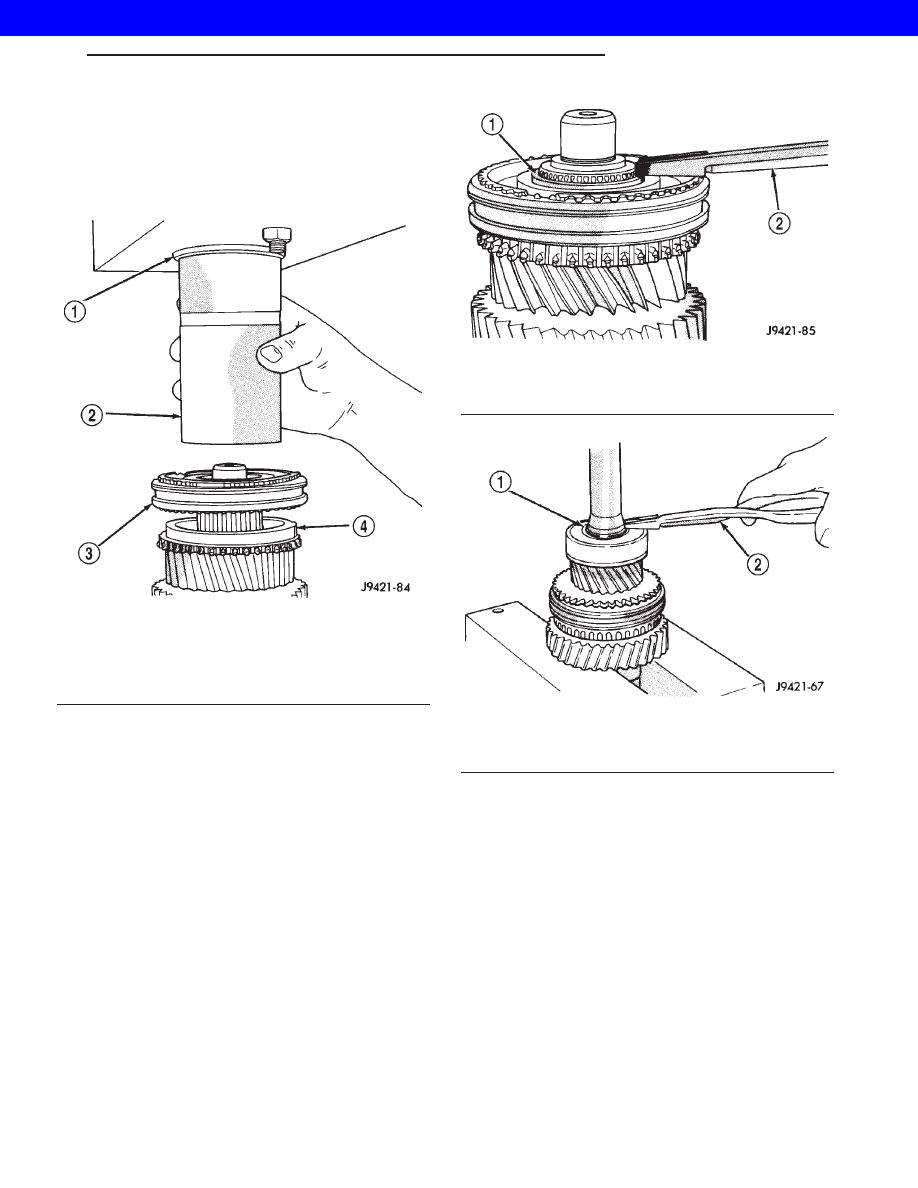

Fig. 73 PRESS 3-4 SYNCHRO ON OUTPUT SHAF

1 - PRESS RAM
2 - PIPE TOOL
3 - 3-4 SYNCHRO
4 - THIRD SPEED SYNCHRO RING

Fig. 74 3-4 SYNCHRO HUB SNAP RING

1 - 3–4 SYNCHRO HUB SNAP RING
2 - HEAVY DUTY SNAP RING PLIERS

Fig. 75 OUTPUT SHAFT BEARING

1 - BEARING SNAP RING
2 - SNAP RING PLIERS

XJ

MANUAL NV 3550

21s - 21

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE
