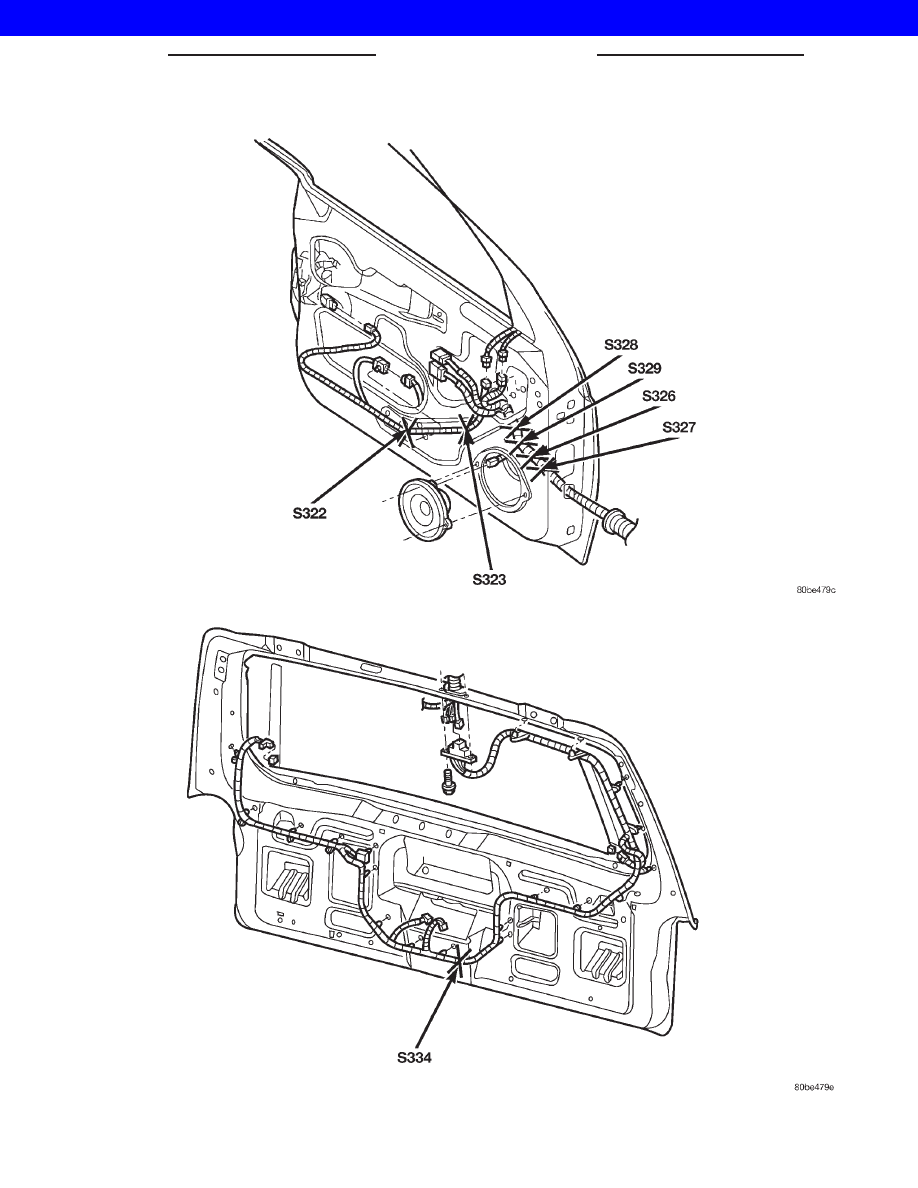

Fig. 21 LEFT FRONT DOOR SPLICES

Fig. 22 LIFTGATE SPLICES

8Wa - 95 - 24

8Wa-95 SPLICE LOCATIONS

XJ

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

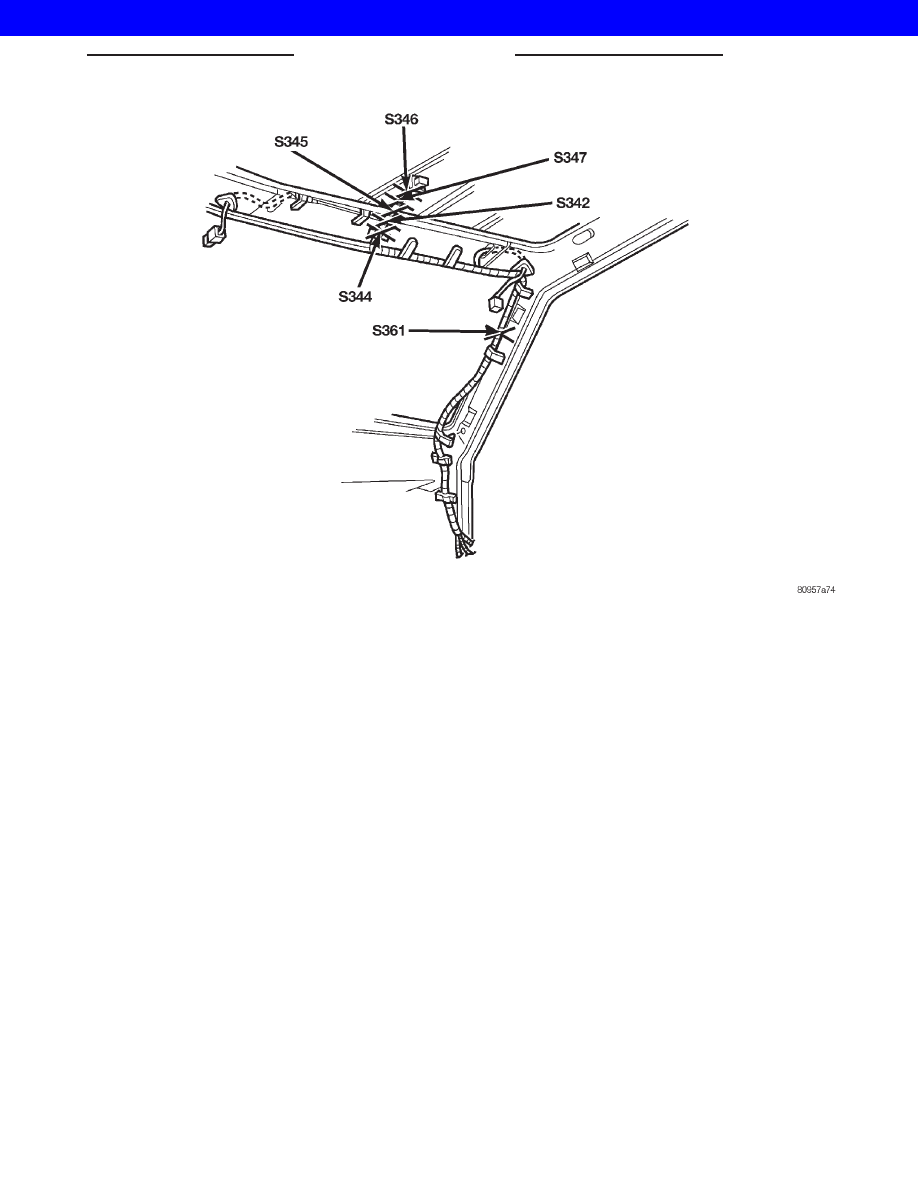

Fig. 23 HEADLINER SPLICES

XJ

8Wa-95 SPLICE LOCATIONS

8Wa - 95 - 25

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

2001 JEEP CHEROKEE

TRANSMISSION/TRANSAXLE

TABLE OF CONTENTS

page

page

TRANSMISSION/TRANSAXLE

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

MANUAL NV 3550

. . . . . . . . . . . . . . . . . . . . . . . . . 1

AUTOMATIC - AW4

. . . . . . . . . . . . . . . . . . . . . . . 38

TRANSFER CASE NV-231

. . . . . . . . . . . . . . . . . . 42

TRANSMISSION/TRANSAXLE

DESCRIPTION

This Service Manual Supplement includes

ONLY the information that is new or updated
for 2001 Model Year. All other Service Manual

information is in the 2000 Model Year Service
Manual.

When you are using this information you may

be referred to another section of the Service
Manual. The refer to is written differently than
in prior years.

MANUAL NV 3550

TABLE OF CONTENTS

page

page

MANUAL NV 3550

DISASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

EXTENSION HOUSING BUSHING

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 35

EXTENSION HOUSING SEAL 2WD

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 36

VEHICLE SPEED SENSOR

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 37

MANUAL NV 3550

DISASSEMBLY

FRONT HOUSING

(1) Shift transmission into Neutral.
(2) Remove drain plug and drain lubricant.
(3) Inspect drain plug magnet for debris.
(4) Remove backup light switch. Switch is located

on passenger side of rear housing (Fig. 1).

(5) Remove shift tower bolts and remove tower and

lever assembly (Fig. 2).

(6) Remove shift shaft lock bolt (Fig. 3) located on

top of the housing just forward of shift tower.

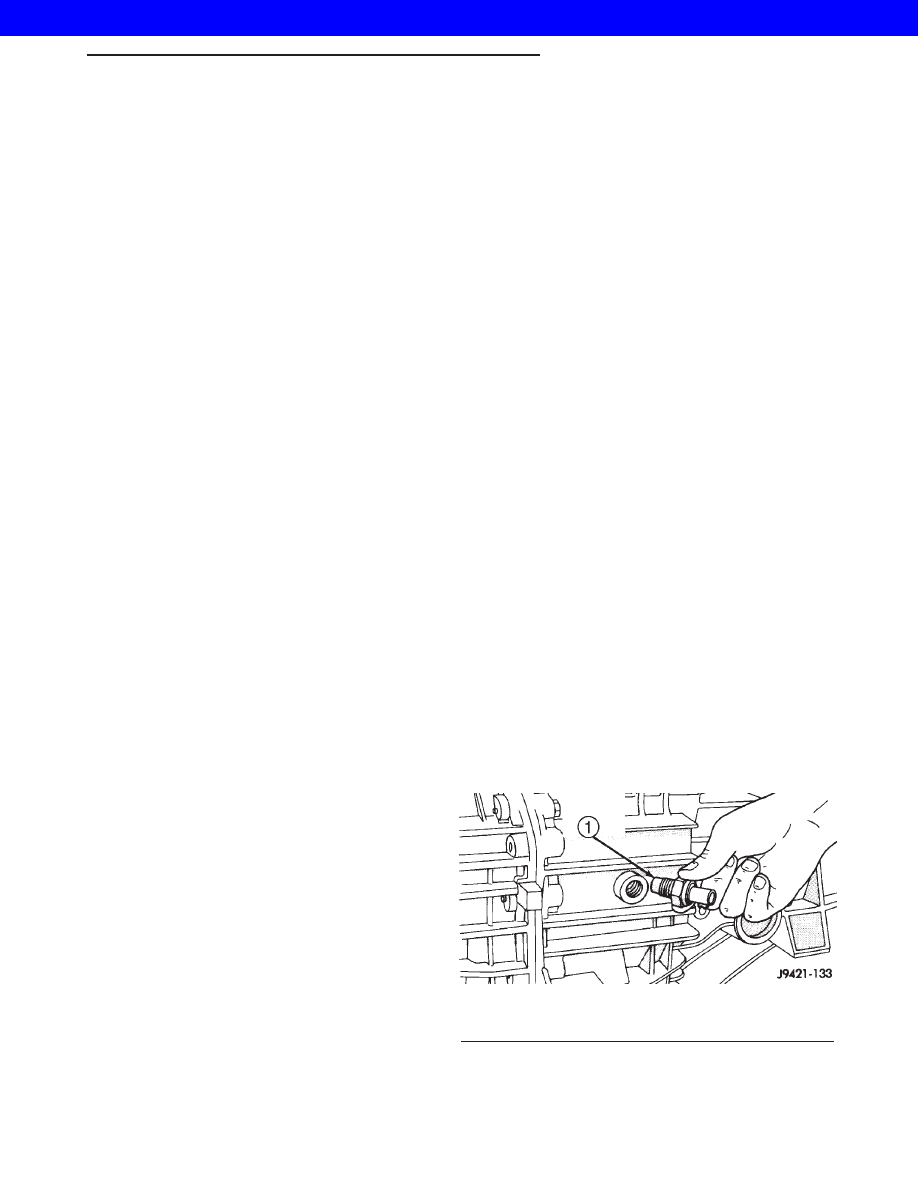

Fig. 1 BACKUP LIGHT SWITCH

1 - BACKUP LIGHT SWITCH

XJ

TRANSMISSION/TRANSAXLE

21s - 1

2001 JEEP CHEROKEE
