Jeep XJ. Manual - part 479





HOOD HINGE

REMOVAL

(1) Raise and support hood.
(2) Using a grease pencil or equivalent, mark posi-

tion of hood.

(3) Remove seal from hinge base (Fig. 4).
(4) Remove hinge retaining nuts from studs.

INSTALLATION

(1) Position hinge over studs and align with refer-

ence marks.

(2) Install nuts.

NOTE: If

a

replacement

hinge

seal

is

being

installed, position it around hinge arm, force it
against hinge base.

(3) Position hinge seal around hinge arm and on

hinge base.

(4) Adjust hood as necessary.

HOOD LATCH

REMOVAL

(1) Remove the screw that attaches the latch to

the hood inner panel (Fig. 5).

(2) Disconnect the latch connecting rod.
(3) Remove the latch from the hood.

INSTALLATION

(1) Connect the latch to the latch connecting rod

and

(2) Position the latch on the hood inner panel.
(3) Install the screw that attaches the latch to the

hood inner panel.

HOOD LATCH STRIKER

REMOVAL

(1) Remove headlamp bezel.
(2) Remove parklamp.
(3) Release the spring attaching the headlamp

mounting bucket to the grille opening panel (GOP).

(4) Remove the headlamp with mounting bucket

attached from the adjusting screws.

(5) Remove the upper bolt attaching the striker to

the top of the (GOP).

(6) Remove the lower bolt attaching the striker to

the (GOP).

(7) Remove the striker and shims.

INSTALLATION

(1) Position the shims and striker on the (GOP)

and install the bolts.

(2) Install the headlamp and mounting bucket.
(3) Install parklamp.
(4) Install the headlamp bezel.
(5) Test the striker/hood alignment by opening and

closing the hood several times. Adjust the striker, if
necessary.

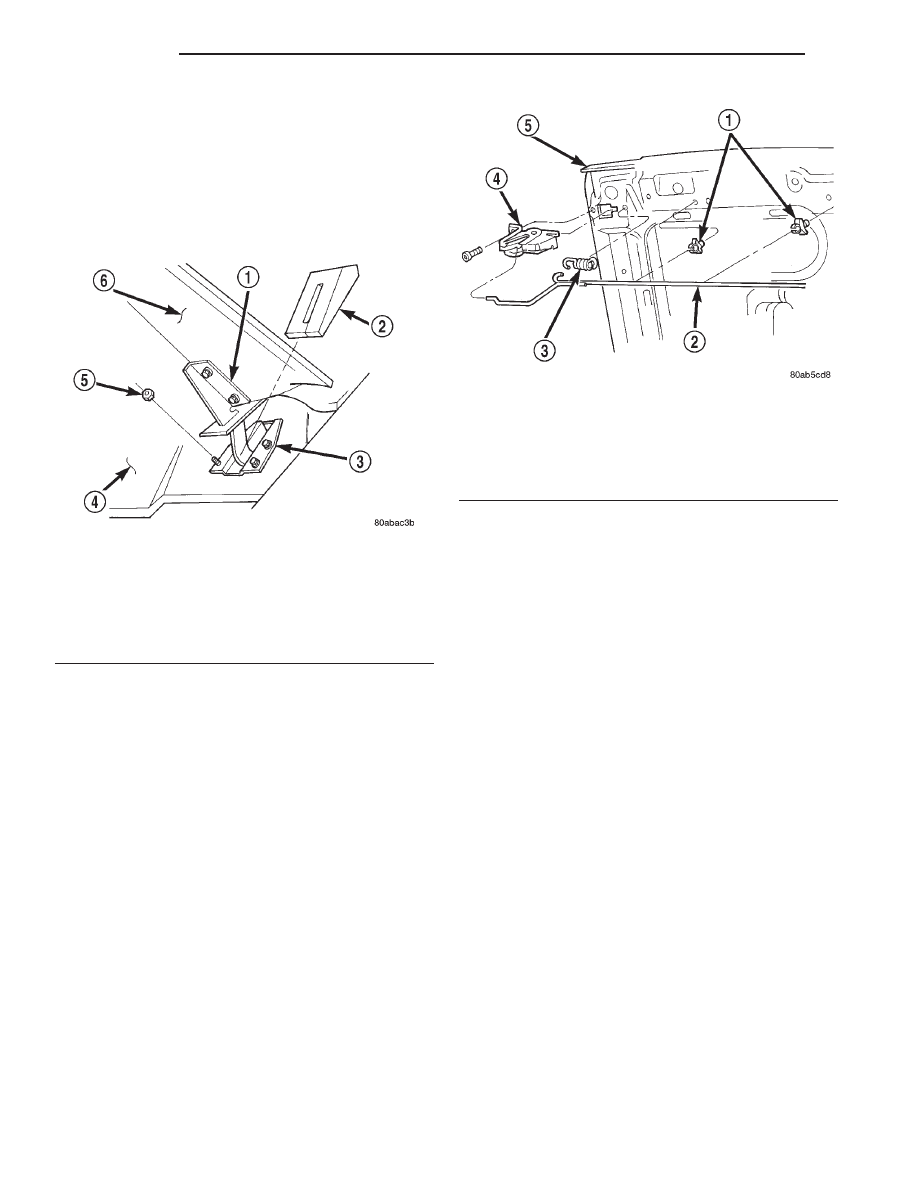

Fig. 4 Hood Hinge and Seal

1 – HINGE
2 – SEAL
3 – HINGE BASE
4 – DASH PANEL
5 – NUT
6 – HOOD

Fig. 5 Hood Latch

1 – RETAINER CLIP
2 – LATCH CONNECTING ROD
3 – ROD SPRING
4 – HOOD LATCH
5 – HOOD

23 - 26

BODY

XJ

REMOVAL AND INSTALLATION (Continued)

HOOD RELEASE CABLE

REMOVAL

(1) Drill out bellcrank to hood rivet heads and

remove rivets (Fig. 6).

(2) Disconnect bellcrank from latch rod and hood

release cable. Remove bellcrank from hood.

(3) Disconnect hood release cable from clips on

hood.

(4) Remove left cowl side trim panel.
(5) Remove cable bracket screws from cowl side

panel.

(6) Route cable through dash panel and remove it

from under instrument panel.

INSTALLATION

(1) Insert replacement cable end through hole in

dash panel into engine compartment.

(2) Route cable forward and seat grommet in dash

panel.

(3) Position cable bracket on cowl side panel and

install screws.

(4) Install left cowl side trim panel.
(5) Connect cable and latch rod to bellcrank.
(6) Position bellcrank on hood and install rivets.
(7) Attach cable to clips.
(8) Test release cable for proper operation.

HOOD SAFETY LATCH

REMOVAL

(1) Open and support hood.

(2) Remove the nuts attaching the safety latch to

the inner hood panel (Fig. 7).

(3) Separate the safety latch from the hood.

INSTALLATION

(1) Position the safety latch on the hood.
(2) Install the nuts attaching the safety latch to

the inner hood panel.

(3) Close hood.

SAFETY LATCH STRIKER

REMOVAL

(1) Remove striker screws from radiator support

crossmember (Fig. 8).

(2) Remove striker from crossmember.

INSTALLATION

(1) Position striker on radiator support crossmem-

ber and install screws.

(2) Test safety latch operation.

HOOD SILENCER PAD

REMOVAL

(1) Open and support hood.
(2) Remove the hood latch release bellcrank.
(3) Remove the clips attaching the latch connect-

ing rod to the hood inner panel.

(4) Remove

the

retainers

attaching

the

hood

silencer pad to the inner hood panel (Fig. 9).

(5) Separate the hood silencer pad from the hood.

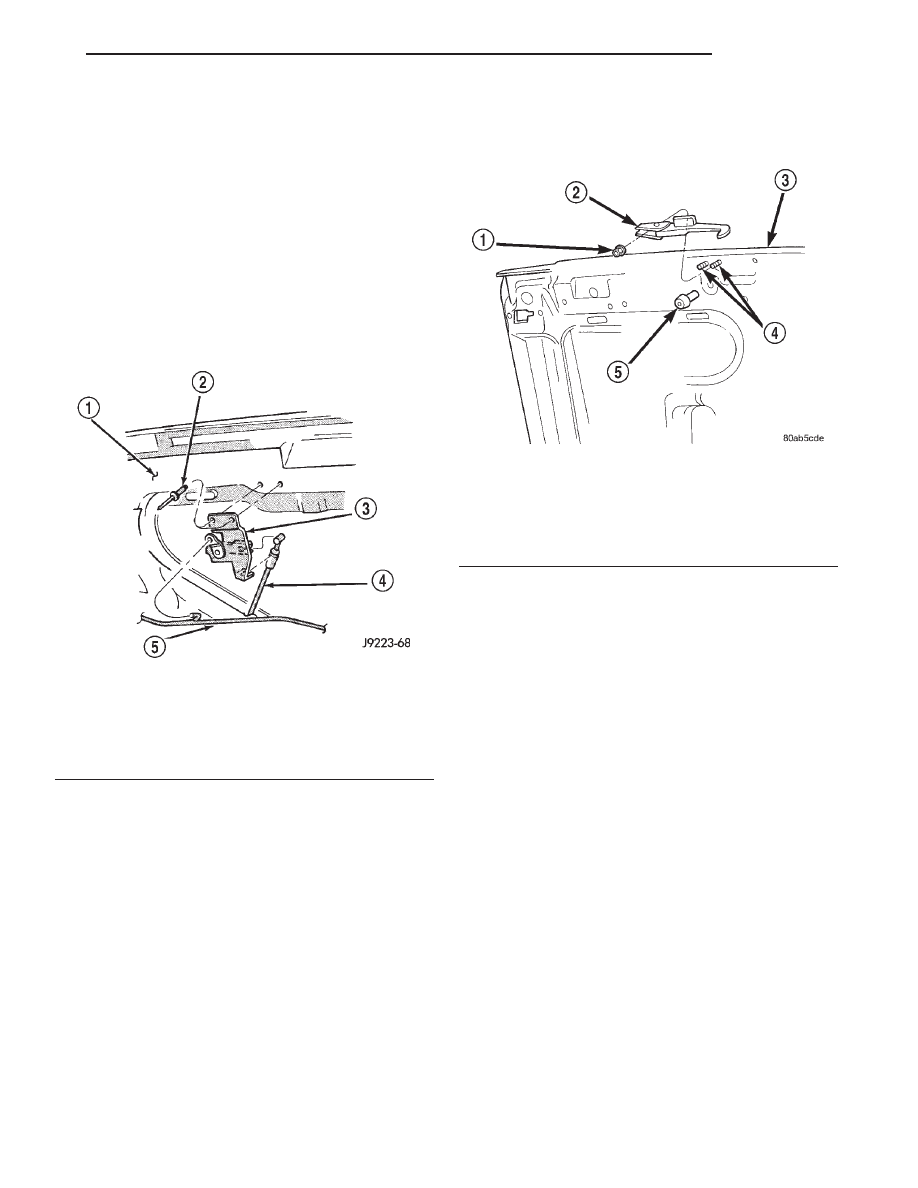

Fig. 6 Hood Release Cable Bellcrank

1 – HOOD INNER PANEL
2 – RIVET
3 – BELLCRANK
4 – LATCH RELEASE CABLE
5 – LATCH CONNECTING ROD

Fig. 7 Hood Safety Latch

1 – NUT
2 – HOOD SAFETY LATCH
3 – HOOD
4 – STUD
5 – HOOD BUMPER

XJ

BODY

23 - 27

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Position the hood silencer pad on the hood

inner panel.

(2) Install

the

retainers

attaching

the

hood

silencer pad to the inner hood panel.

(3) Install the clips attaching the latch connecting

rod to the hood inner panel.

(4) Install the hood latch release bellcrank.
(5) Close hood.

COWL WEATHERSTRIP

REMOVAL

The cowl weatherstrip is attached to the cowl with

adhesive tape.

(1) Peel weatherstrip from cowl (Fig. 10).

INSTALLATION

(1) Clean contact surface with Mopar Super Kleen

or equivalent.

(2) Position weatherstrip on cowl.
(3) Press weatherstrip into place.

COWL GRILLE

REMOVAL

(1) Remove the windshield wiper arms from the

pivots.

(2) Remove the screws that attach the grille to the

cowl.

(3) Remove the windshield washer tubes from the

nozzles.

(4) Remove the cowl grille and screen from the

cowl (Fig. 11).

INSTALLATION

CAUTION: The washer fluid tubes must be routed
and installed so that they are not pinched.

(1) Position the cowl grille and screen on the cowl.
(2) Install the windshield washer tubes on the noz-

zles.

(3) Install the cowl screen and grille screws with

new sealer. Tighten in sequence (Fig. 12).

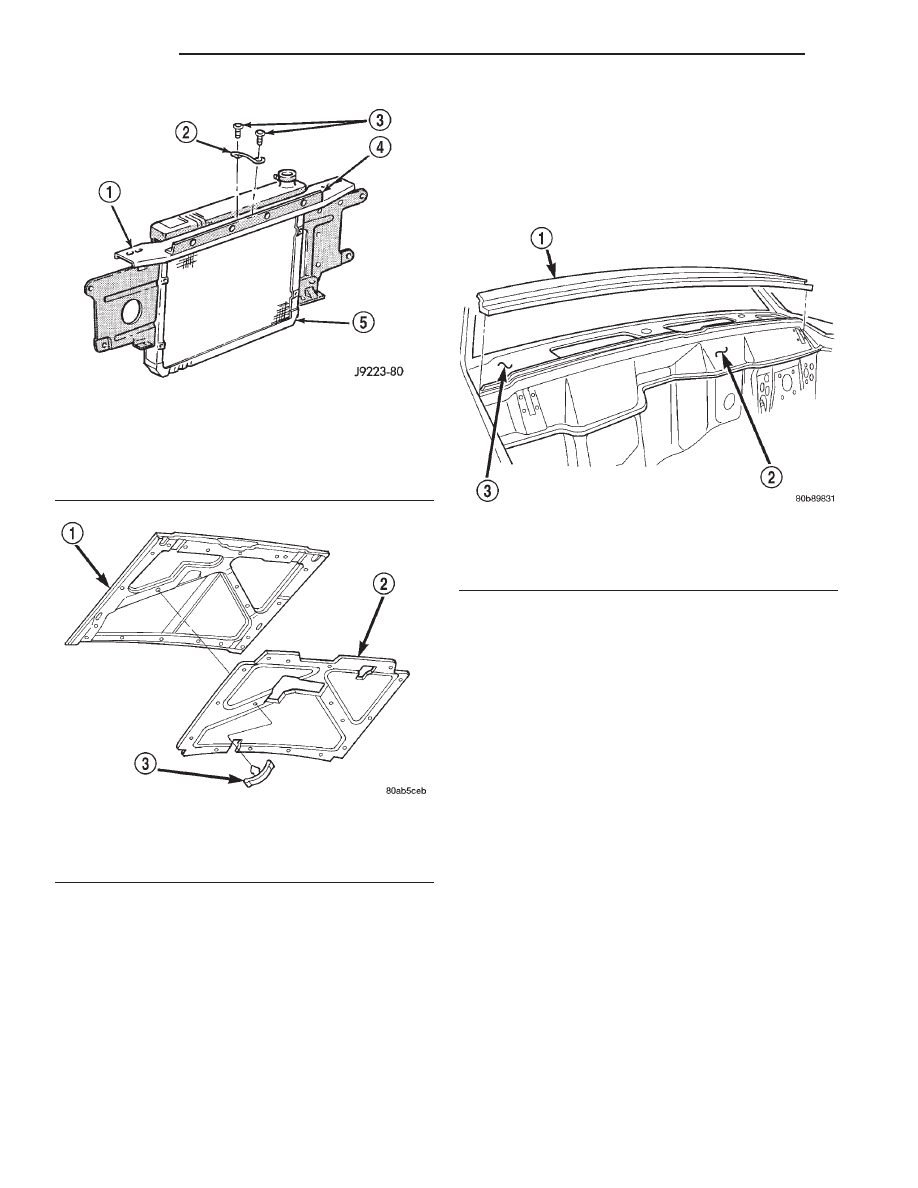

Fig. 8 Hood Safety Latch Striker

1 – RADIATOR SUPPORT CROSSMEMBER
2 – HOOD SAFETY LATCH STRIKER
3 – SCREW
4 – GOP BRACKET
5 – RADIATOR

Fig. 9 Hood Silencer Pad

1 – HOOD
2 – SILENCER PAD
3 – RETAINER

Fig. 10 Cowl Weatherstrip

1 – WEATHERSTRIP
2 – DASH PANEL
3 – COWL

23 - 28

BODY

XJ

REMOVAL AND INSTALLATION (Continued)

NOTE: Force the cowl grille rearward while tighten-
ing the screws.

(4) Install the windshield wiper arms on the piv-

ots.

BODY DECALS

Small nicks, scratches and other surface marks in

a decal can be touched-up with paint.

To eliminate blisters and air bubbles in a decal,

pierce them with a needle or pin.

A heat gun can also be used to remove small wrin-

kles in a decal.

Decal replacement requires that the metal repair

and paint refinish be completed first.

The work area temperature should be between

21°C (70°F) and 32°C (90°F). A decal should not be
replaced if the work area temperature is less
than 21°C (70°F).

The following equipment and material are neces-

sary for removal and installation:

• Liquid dish detergent (for the wetting solution).

• Mixture of wetting solution.

• Commercial wax and silicone removal solution.

• Isopropyl (rubbing) alcohol.

• Small squeegee (plastic or hard rubber).

• Water bucket and sponge.

• Clean wiping rags or paper towels.

• Heat gun (or infra-red heat bulb).

• Wax pencil.

• Sharp knife, single edge razor blade or X-acto

knife.

• Pair of scissors.

• Needle or pin.

WARNING: USE DECAL REMOVAL SOLUTION IN A
WELL-VENTILATED AREA ONLY.

A decal removal solution can be used for removal

at areas where a heat gun is ineffective. Follow the
manufacturers instructions whenever this type of
product is used.

REMOVAL

(1) Clean the repaired surface as necessary.
(2) Start at one end of the decal and apply heat

with a heat gun. Slowly peel the decal from the panel
by pulling it back. Do not pull the decal outward
from panel.

INSTALLATION

(1) The area that will be covered by the decal must

be cleaned with cleaning solution.

(2) Freshly painted surfaces must be thoroughly

dry.

(3) Clean the painted surface with a commercial

wax and silicone removal solution. Wipe the surface
with a clean cloth and allow it to dry.

(4) Prepare a wetting solution by mixing two or

three teaspoons of dish detergent with 1 gallon of
water. Do not use soap.

NOTE: Too much detergent will reduce the effec-
tiveness of the mixture.

(5) Use a clean sponge and apply the wetting solu-

tion to the adhesive side of the decal and to the
painted panel surface. The wetting solution will per-
mit ease of decal movement when positioning it.

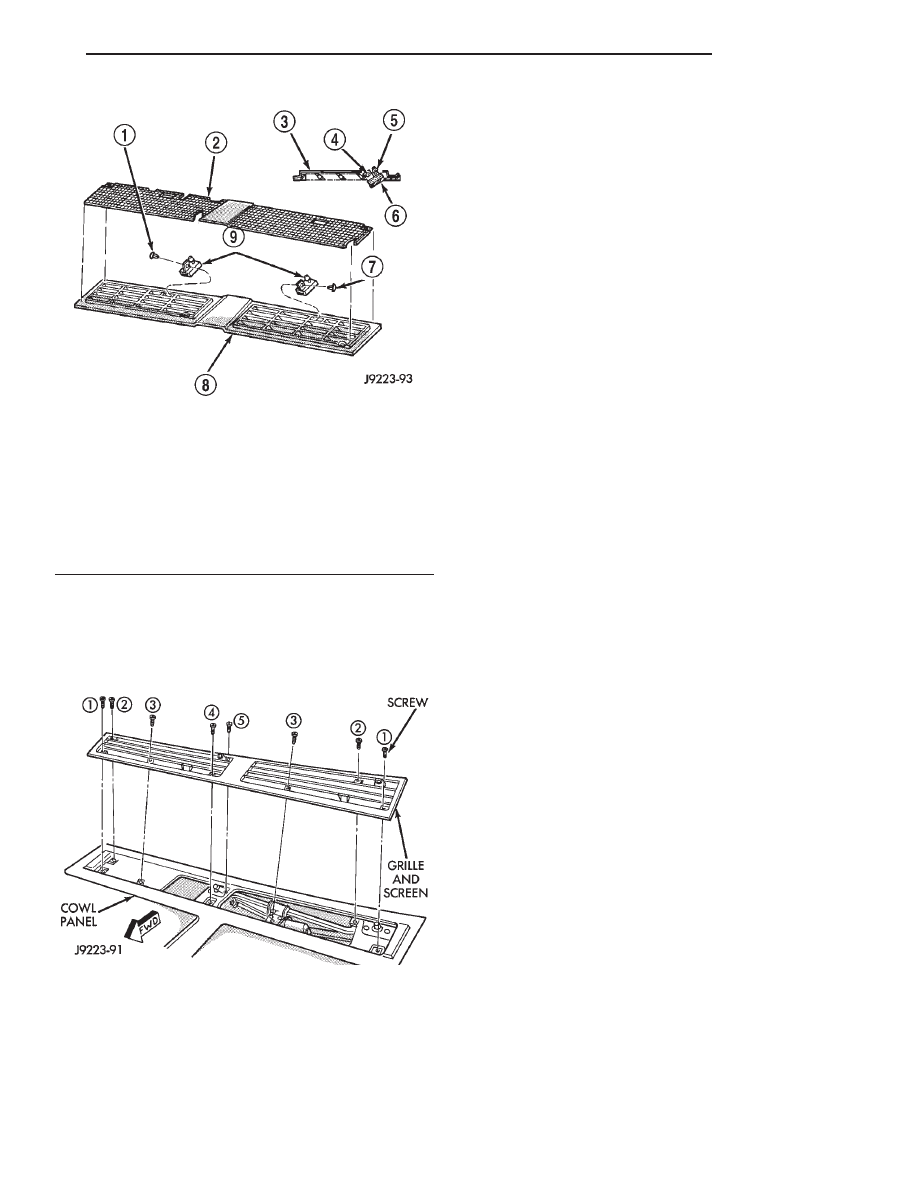

Fig. 11 Cowl Grille, Screen & Washer Nozzles

1 – PLASTIC PUSH-RIVET
2 – SCREEN
3 – SCREEN
4 – RIVET
5 – NOZZLE
6 – GRILLE
7 – PLASTIC PUSH-RIVET
8 – GRILLE
9 – NOZZLE

Fig. 12 Cowl Grille Screw Tightening Sequence

XJ

BODY

23 - 29

REMOVAL AND INSTALLATION (Continued)
