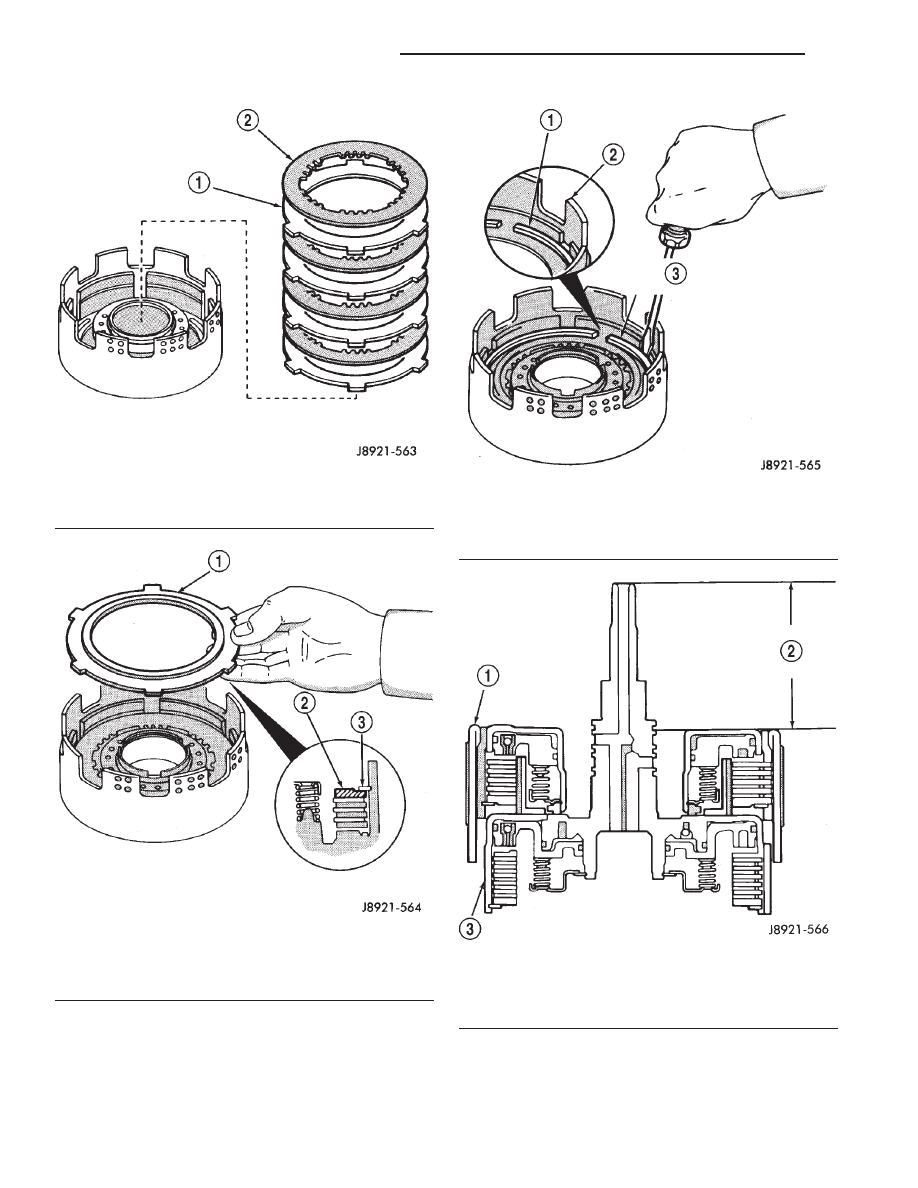

Fig. 248 Installing Direct Clutch Discs And Plates

1 – CLUTCH PLATES
2 – CLUTCH DISCS

Fig. 249 Install Clutch Pack Retainer

1 – CLUTCH PACK RETAINER
2 – RETAINER
3 – SNAP RING

Fig. 250 Adjusting Clutch Pack Snap Ring Position

1 – CLUTCH PACK SNAP RING
2 – DRUM NOTCH
3 – SHIFT SNAP RING END GAP AWAY FROM DRUM NOTCHES

Fig. 251 Checking Direct Clutch Assembled Height

1 – DIRECT CLUTCH
2 – HEIGHT SHOULD BE 70.3-71.5 mm (2.767-2.815 in.)
3 – FORWARD CLUTCH

21 - 316

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

FORWARD CLUTCH

DISASSEMBLY

(1) Check clutch piston stroke as outlined in fol-

lowing steps.

(2) Position overdrive support on wood blocks and

mount forward clutch drum on support (Fig. 253).

(3) Remove bearing and race from forward clutch

drum (Fig. 253).

(4) Install a suitable threaded bolt/rod into the

side of the overdrive support.

(5) Mount Miller Tool C-3339 dial indicator compo-

nents onto the threaded rod as necessary.

(6) Position dial indicator plunger squarely against

clutch piston.

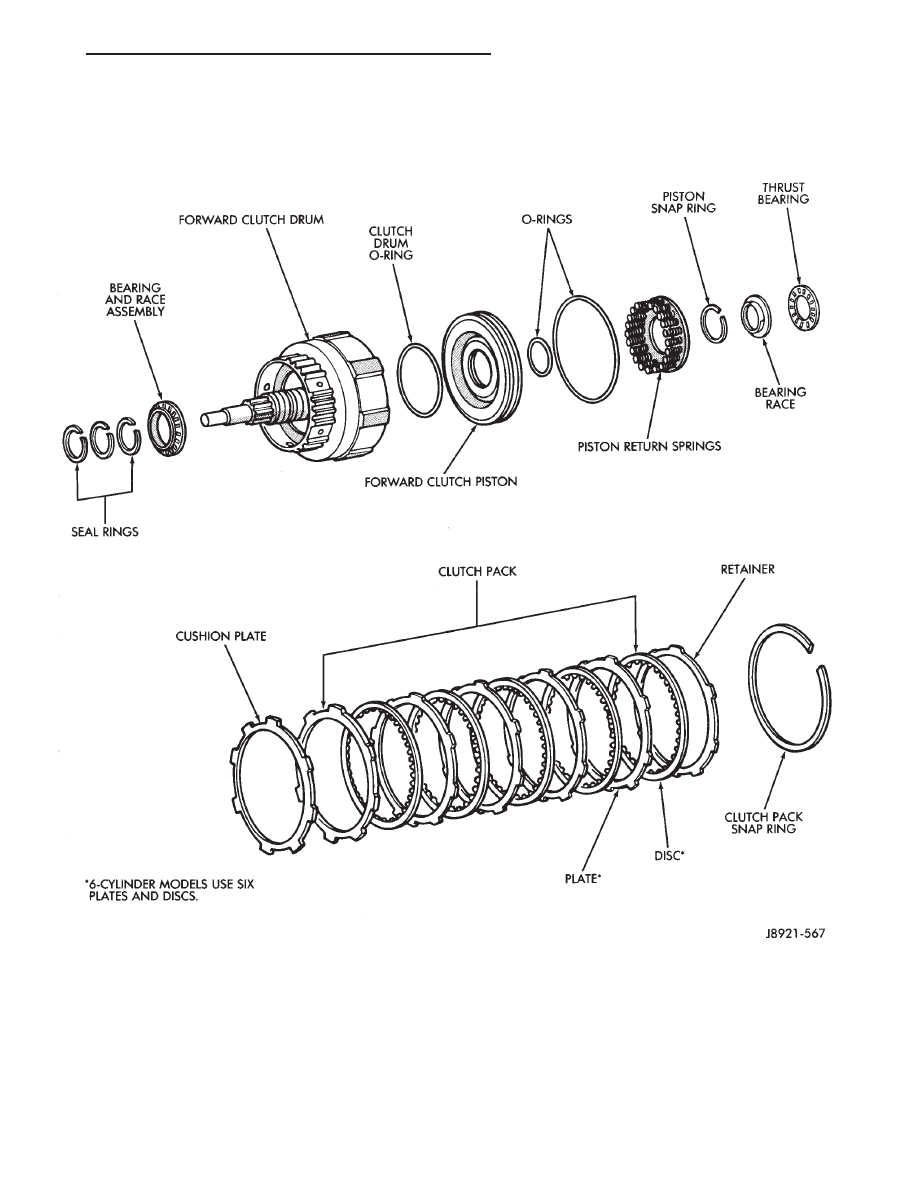

Fig. 252 Forward Clutch Components

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 317

DISASSEMBLY AND ASSEMBLY (Continued)

(7) Apply compressed air through right side feed

hole in support and note piston stroke length on dial
indicator.

(8) Stroke length should be 3.55 – 3.73 mm (0.1348

– 0.1469 in.).

(9) Replace clutch discs if stroke length is incor-

rect.

(10) Remove clutch pack snap ring and remove

retainer and clutch pack (Fig. 254).

(11) Remove clutch pack cushion plate (Fig. 255).
(12) Compress clutch springs with Tool 7538 and

remove piston snap ring.

(13) Remove spring compressor tool and piston

return springs.

(14) Remount forward clutch drum on overdrive

support (Fig. 256).

(15) Apply compressed air through feed hole in

support to remove piston (Fig. 256). Use only enough
air pressure to ease piston out of drum.

(16) Remove and discard clutch piston O–rings

(Fig. 257).

(17) Remove clutch drum O–ring from rear hub of

drum.

(18) Remove three seal rings from clutch drum

shaft (Fig. 258).

(19) Remove thrust bearing and race assembly

from clutch drum (Fig. 259).

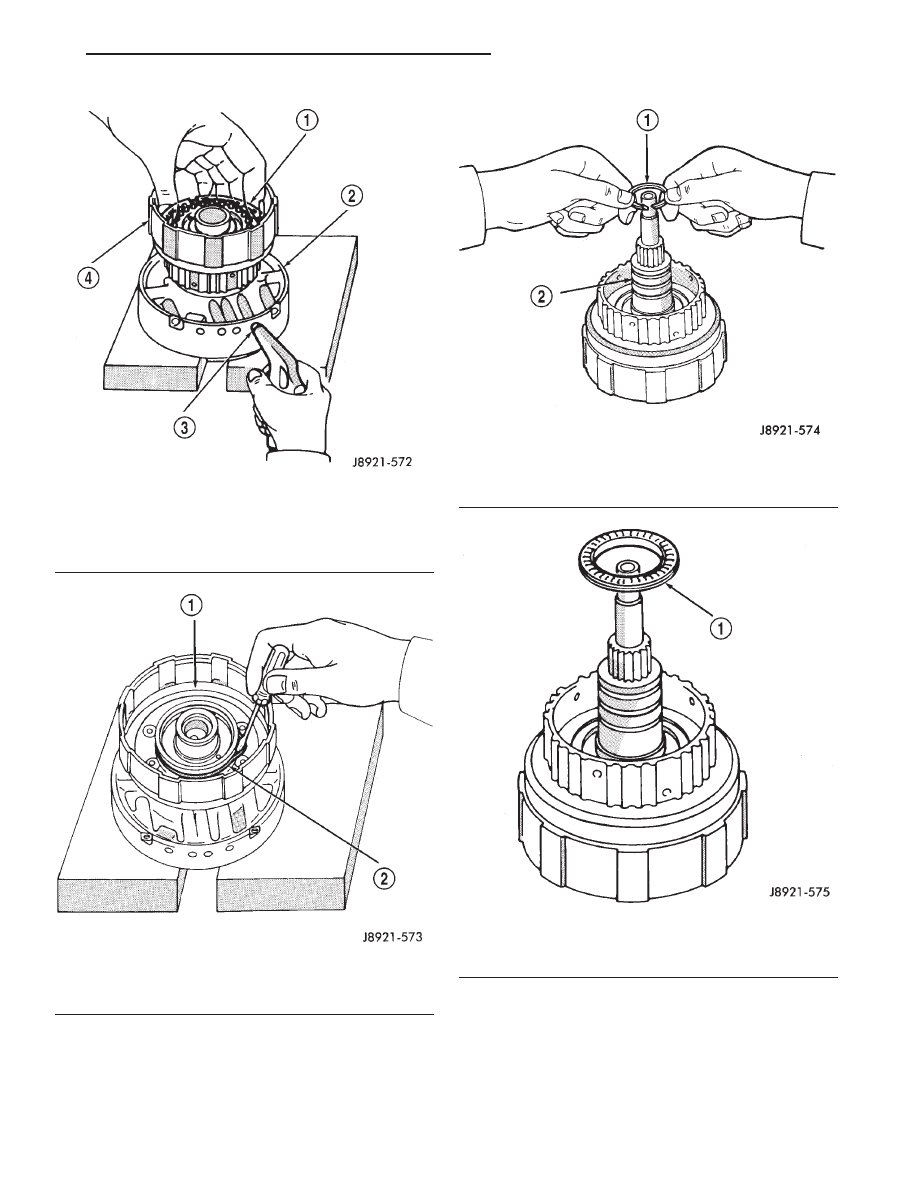

Fig. 253 Positioning Drum And Support On Wood

Blocks

1 – THRUST BEARING
2 – BEARING RACE
3 – FORWARD CLUTCH DRUM
4 – OVERDRIVE SUPPORT
5 – WOOD BLOCKS

Fig. 254 Removing Retainer And Clutch Pack

1 – RETAINER AND CLUTCH PACK
2 – SNAP RING

Fig. 255 Removing Cushion Plate

1 – CUSHION PLATE
2 – RETURN SPRINGS
3 – CUSHION PLATE

21 - 318

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

Fig. 256 Removing Forward Clutch Piston

1 – CLUTCH PISTON
2 – OVERDRIVE SUPPORT
3 – FEED HOLE
4 – CLUTCH DRUM

Fig. 257 Removing/Installing Clutch Drum O–Ring

1 – CLUTCH DRUM HUB
2 – O-RING

Fig. 258 Removing Clutch Drum Seal Rings

1 – SEAL RINGS
2 – CLUTCH DRUM SHAFT

Fig. 259 Removing Clutch Drum Thrust Bearing

Assembly

1 – THRUST BEARING AND RACE ASSEMBLY

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 319

DISASSEMBLY AND ASSEMBLY (Continued)
