(61) Remove No. 2 first–reverse brake piston with

compressed air. Apply air through same transmission
feed hole used for checking piston operation.

(62) Remove reaction sleeve with Sleeve Remover

Tool 7542 (Fig. 136). Insert tool flanges under sleeve
and lift tool and sleeve out of case.

(63) Remove No. 1 first/reverse brake piston with

Piston Puller 7543 (Fig. 137). Slip tool under piston
and lift tool and piston out of case.

ASSEMBLY

(1) During assembly, lubricate components with

transmission fluid or petroleum jelly as indicated.

(2) Verify thrust bearing and race installation dur-

ing assembly. Refer to the Thrust Bearing Chart (Fig.

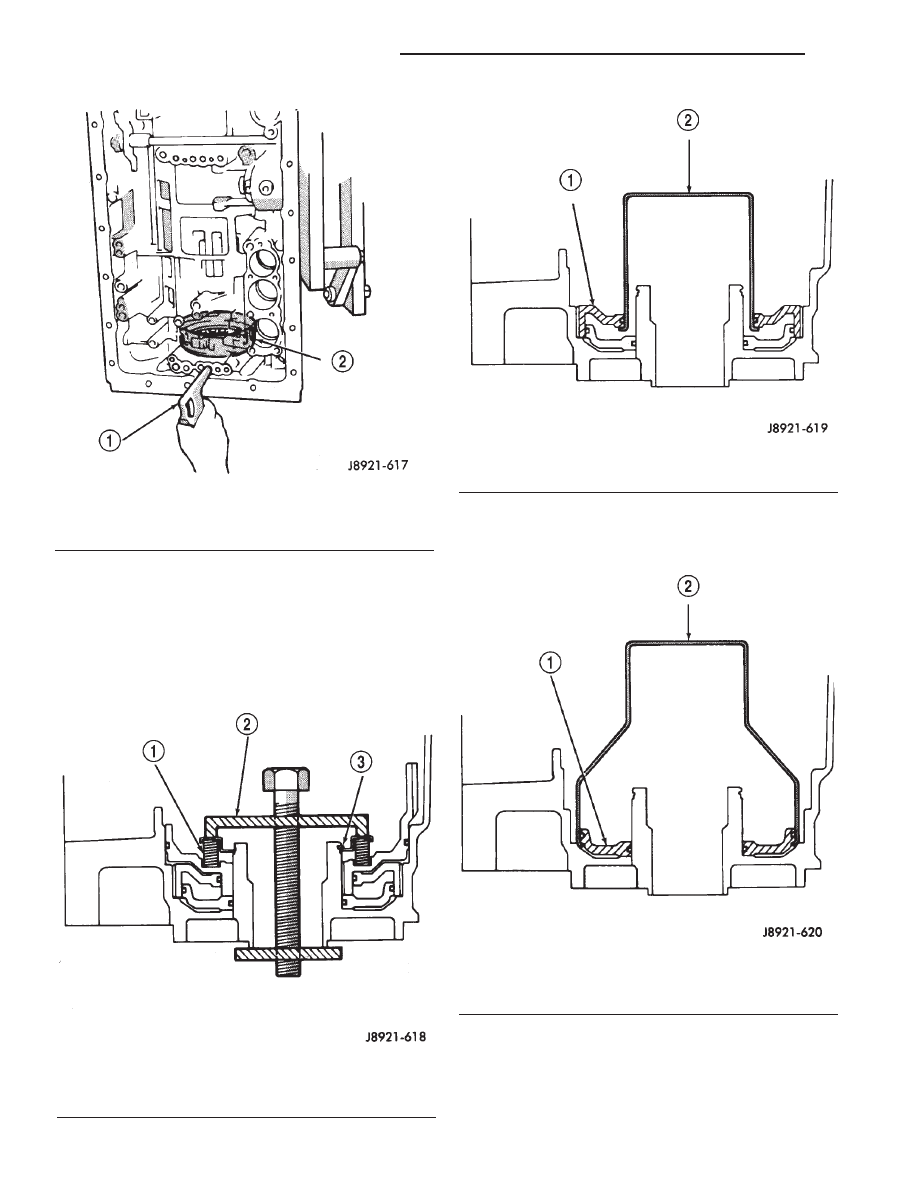

Fig. 135 Removing/Installing Piston Snap Ring

1 – RETURN SPRINGS
2 – COMPRESSOR TOOL
3 – PISTON SNAP RING

Fig. 134 Checking First–Reverse Brake Piston

Operation

1 – LOW-PRESSURE AIR
2 – FIRST-REVERSE BRAKE (IN CASE)

Fig. 136 Removing/Installing Reaction Sleeve

1 – REACTION SLEEVE
2 – TOOL

Fig. 137 Removing/Installing First–Reverse Brake

No.1 Piston

1 – NO. 1 PISTON
2 – TOOL

21 - 280

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

138) for bearing and race location and correct posi-
tioning.

(3) Install new seals onto the No.1 first-reverse

brake piston. Lubricate seals with transmission fluid.

(4) Install the No.1 first-reverse brake piston into

the transmission case.

(5) Install new seal onto the first-reverse brake

piston reaction sleeve. Lubricate seals with transmis-
sion fluid.

(6) Install the first-reverse brake piston reaction

sleeve into the transmission case.

(7) Install new seal onto the No.2 first-reverse

brake piston. Lubricate seals with transmission fluid.

(8) Install the No.2 first-reverse brake piston into

the transmission case.

(9) Install the spring plate into the No.2 first-re-

verse brake piston.

(10) Install Spring Compressor 7539 onto the first-

reverse brake piston.

(11) Compress the first-reverse brake piston spring

and install the first-reverse brake piston snap-ring.

(12) Remove Spring Compressor 7539.
(13) Install rear planetary gear, second brake

drum and output shaft as outlined in following steps:

(14) Verify No. 10 thrust bearing and race (Fig.

138). Bearing and race outer diameter is 57.7 mm
(2.272 in.) and inside diameter is 39.2 mm (1.543 in.).

(15) Coat thrust bearing and race assembly with

petroleum jelly and install in case (Fig. 139). Race
faces down. Bearing rollers face up.

(16) Align teeth of second brake drum and clutch

pack (Fig. 140).

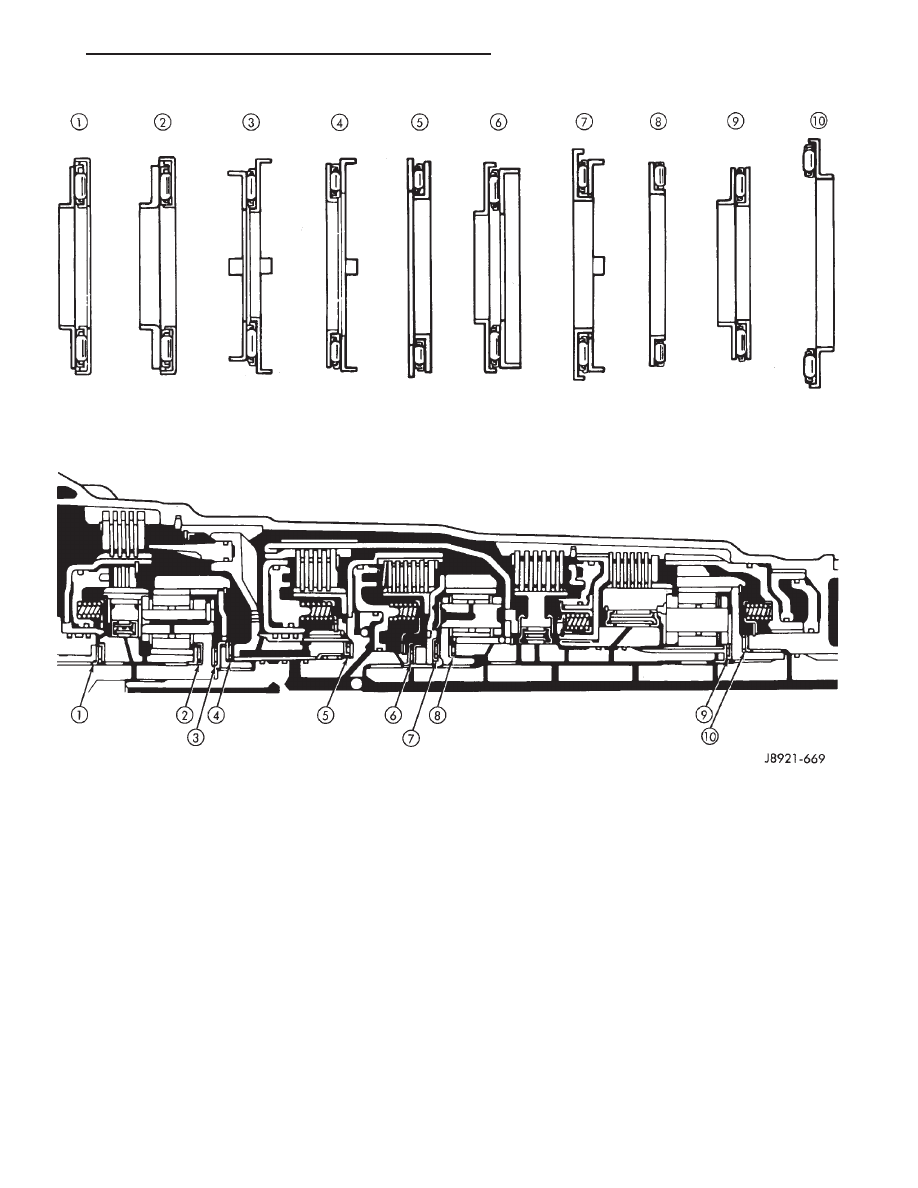

Fig. 138 Thrust Bearing Chart

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 281

DISASSEMBLY AND ASSEMBLY (Continued)

(17) Align rear planetary-output shaft assembly

teeth with case slots and install assembly in case
(Fig. 141).

(18) Install rear planetary snap ring with snap

ring pliers. Chamfered side of snap ring faces up and
toward case front (Fig. 142).

(19) Check first–reverse brake pack clearance with

feeler gauge (Fig. 143). Clearance should be 0.70 –
1.20 mm (0.028 – 0.047 in.). If clearance is incorrect,
planetary assembly, thrust bearing or snap ring is
not properly seated in case. Remove and reinstall
components if necessary.

(20) Install second brake piston sleeve (Fig. 144).

Sleeve lip faces up and toward case front as shown.

(21) Install second brake drum gasket.

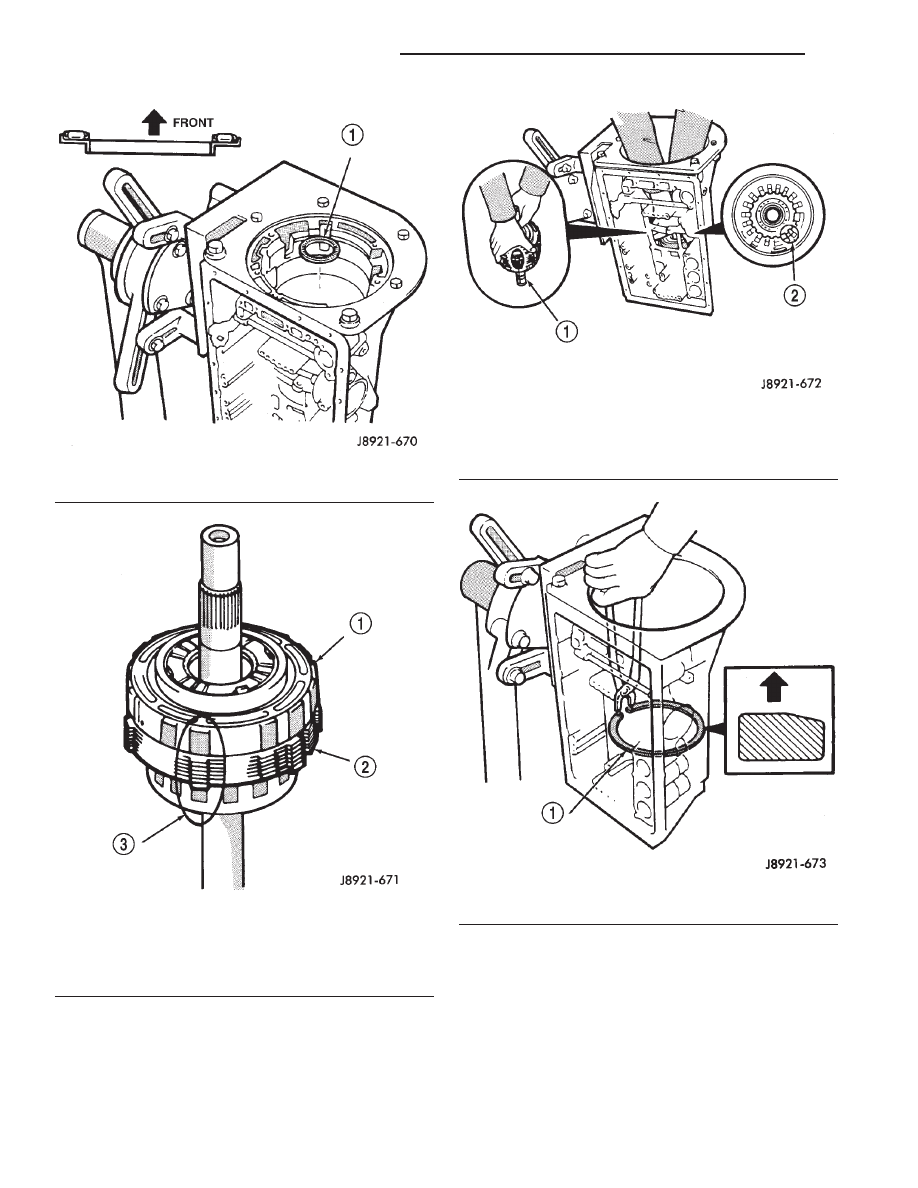

Fig. 139 Installing Thrust Bearing And No. 10 Race

1 – THRUST BEARING AND RACE

Fig. 140 Aligning Second Brake Drum And Clutch

Pack Teeth

1 – SECOND BRAKE DRUM
2 – CLUTCH PACK
3 – ALIGN DRUM AND CLUTCH PACK TEETH

Fig. 141 Output Shaft/Rear Planetary Assembly

Installation

1 – ALIGN CLUTCH/DRUM TEETH WITH CASE SLOTS
2 – CASE SLOTS

Fig. 142 Planetary Snap Ring Installation

1 – REAR PLANETARY SNAP RING

21 - 282

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(22) Install park lock pawl, spring and pin (Fig.

145).

(23) Install the manual valve shift assembly.
(24) Connect park lock rod to manual valve shift

sector (Fig. 146).

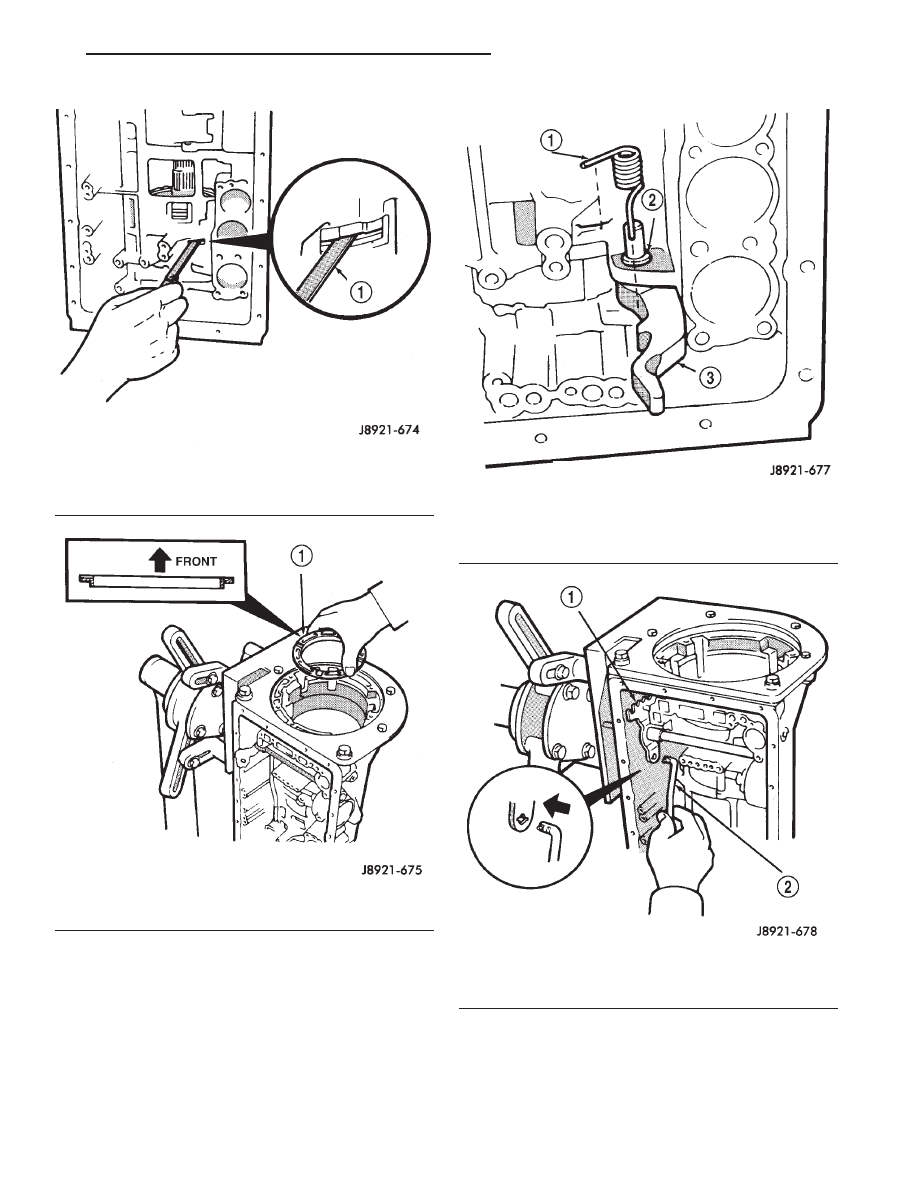

Fig. 143 Checking First–Reverse Brake Pack

Clearance

1 – FEELER GAUGE

Fig. 144 Second Brake Piston Sleeve Installation

1 – PISTON SLEEVE

Fig. 145 Park Lock Pin, Spring And Pawl Installation

1 – SPRING
2 – PIN
3 – PAWL

Fig. 146 Park Lock Rod Installation

1 – SHIFT SECTOR
2 – PARK LOCK ROD

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 283

DISASSEMBLY AND ASSEMBLY (Continued)
