REMOVAL AND INSTALLATION

STEERING GEAR

REMOVAL

(1) Place the front wheels in the straight ahead

position with the steering wheel centered.

(2) Disconnect and cap the fluid hoses from steer-

ing gear.

(3) Remove the column coupler shaft from the

gear.

(4) Remove pitman arm from gear.
(5) Remove the steering gear retaining bolts and

remove the gear (Fig. 1).

INSTALLATION

(1) Install steering gear (and bracket) on the frame

rail and tighten bolts to 95 N·m (70 ft. lbs.).

(2) Align the column coupler shaft to steering gear.

Install a new pinch bolt and tighten to 49 N·m (36
ft. lbs.).

(3) Align and install the pitman arm and tighten

nut to 251 N·m (185 ft. lbs.).

(4) Connect fluid hoses to steering gear and

tighten to 28 N·m (21 ft. lbs.).

(5) Fill power steering system to proper level.

DISASSEMBLY AND ASSEMBLY

HOUSING END PLUG

DISASSEMBLY

(1) Unseat and remove retaining ring from groove

with a punch through the hole in the end of the
housing (Fig. 2).

(2) Slowly rotate stub shaft with 12 point socket

COUNTER-CLOCKWISE to force the end plug out
from housing.

CAUTION: Do not turn stub shaft any further than
necessary. The rack piston balls will drop out of the
rack piston circuit if the stub shaft is turned too far.

(3) Remove O-ring from the housing (Fig. 3).

ASSEMBLY

(1) Lubricate O-ring with power steering fluid and

install into the housing.

(2) Install end plug by tapping the plug lightly

with a plastic mallet into the housing.

(3) Install retaining ring so one end of the ring

covers the housing access hole (Fig. 4).

PITMAN SHAFT/SEALS/BEARING

DISASSEMBLY

(1) Clean exposed end of pitman shaft and housing

with a wire brush.

(2) Remove preload adjuster nut (Fig. 5).

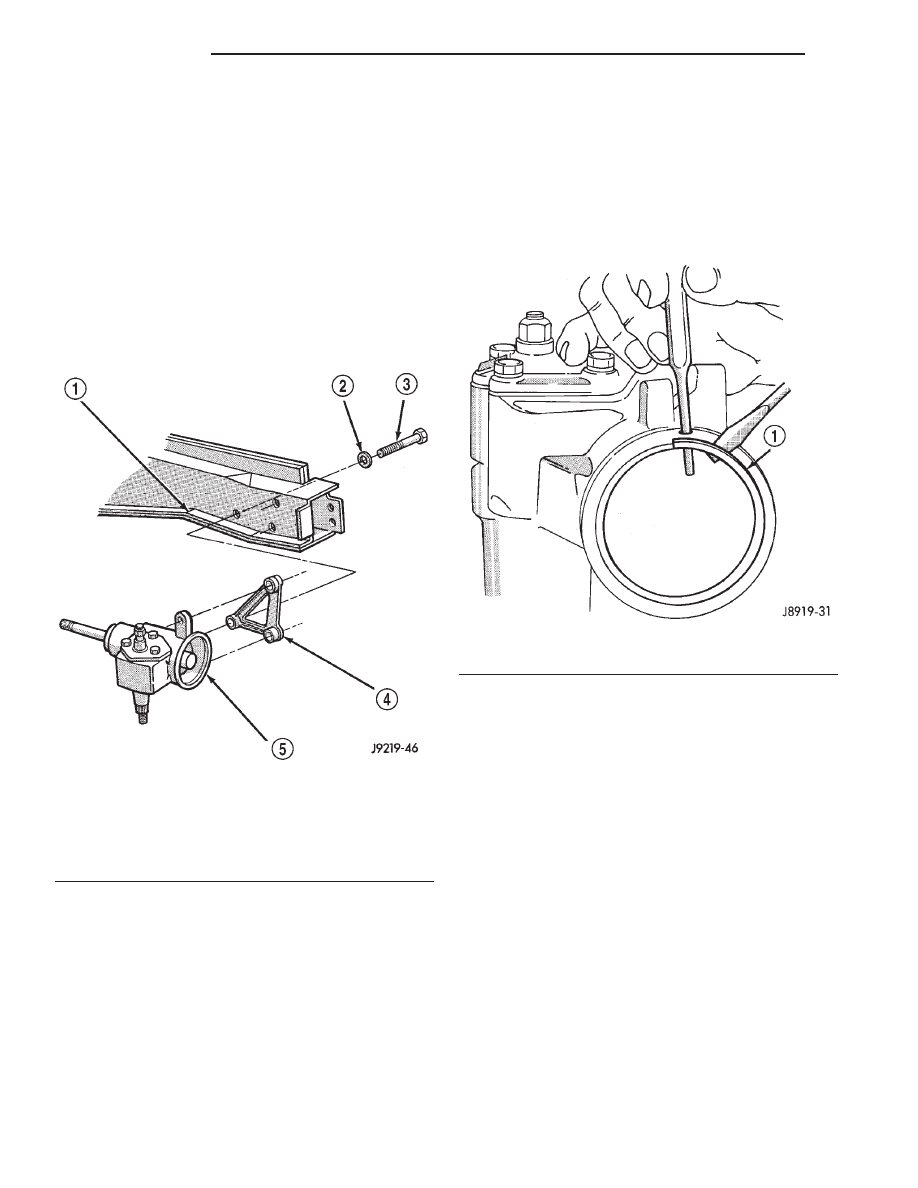

Fig. 1 Steering Gear Mounting (LHD)

1 – FRAME
2 – WASHER
3 – SCREW
4 – ADAPTER
5 – GEAR

Fig. 2 End Plug Retaining Ring

1 – RETAINING RING

19 - 12

STEERING

XJ

(3) Rotate the stub shaft with a 12 point socket

from stop to stop and count the number of turns.

(4) Center the stub shaft by rotating it from the

stop 1/2 of the total amount of turns.

(5) Remove side cover bolts and remove side cover,

gasket and pitman shaft as an assembly (Fig. 5).

NOTE: The pitman shaft will not clear the housing
if it is not centered.

(6) Remove pitman shaft from the side cover.
(7) Remove dust seal from the housing with a seal

pick (Fig. 6).

CAUTION: Use care not to score the housing bore
when prying out seals and washer.

(8) Remove retaining ring with snap ring pliers.
(9) Remove washer from the housing.
(10) Remove oil seal from the housing with a seal

pick.

(11) Remove pitman shaft bearing from housing

with a bearing driver and handle (Fig. 7).

ASSEMBLY

(1) Install pitman shaft bearing into housing with

a bearing driver and handle.

(2) Coat the oil seal and washer with special

grease supplied with the new seal.

(3) Install the oil seal with a driver and handle.
(4) Install backup washer.

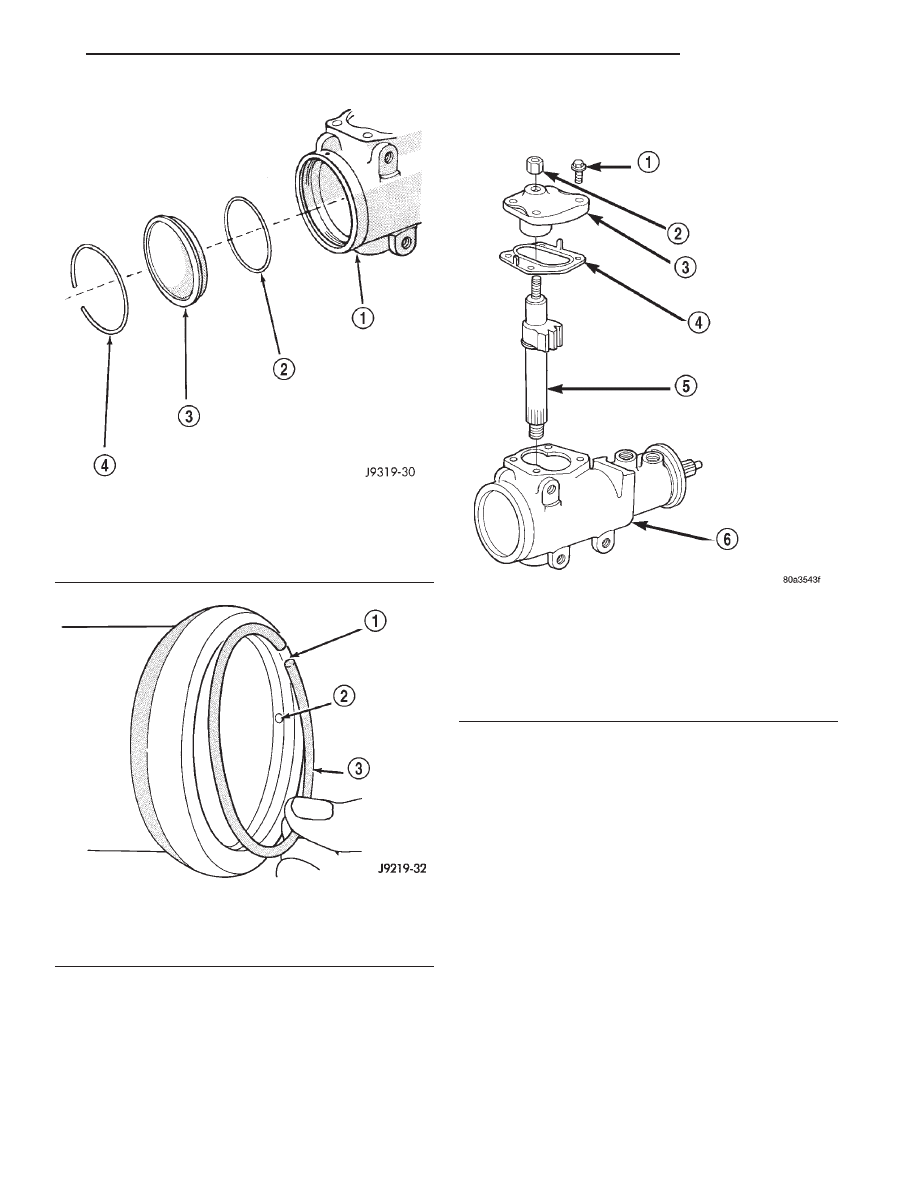

Fig. 3 End Plug Components

1 – HOUSING ASSEMBLY
2 – HOUSING END PLUG O-RING SEAL
3 – HOUSING END PLUG
4 – RETAINING RING

Fig. 4 Installing The Retaining Ring

1 – RING CAP
2 – PUNCH ACCESS HOLE
3 – RETAINER RING

Fig. 5 Side Cover and Pitman Shaft

1 – SIDE COVER BOLTS
2 – PRELOAD ADJUSTER NUT
3 – SIDE COVER
4 – GASKET SEAL
5 – PITMAN SHAFT GEAR
6 – HOUSING ASSEMBLY

XJ

STEERING

19 - 13

DISASSEMBLY AND ASSEMBLY (Continued)

(5) Install the retainer ring with snap ring pliers.
(6) Coat the dust seal with special grease sup-

plied with the new seal.

(7) Install dust seal with a driver and handle.
(8) Install pitman shaft to side cover by screwing

shaft in until it fully seats to side cover.

(9) Install preload adjuster nut. Do not tighten

nut until after Over-Center Rotation Torque
adjustment has been made.

(10) Install gasket to side cover and bend tabs

around edges of side cover (Fig. 5).

(11) Install pitman shaft assembly and side cover

to housing.

(12) Install side cover bolts and tighten to 60 N·m

(44 ft. lbs.).

(13) Perform over-center rotation torque adjust-

ment.

SPOOL VALVE

DISASSEMBLY

(1) Remove lock nut (Fig. 8).
(2) Remove adjuster nut with Spanner Wrench

C-4381.

(3) Remove thrust support assembly out of the

housing (Fig. 9).

(4) Pull stub shaft and valve assembly from the

housing (Fig. 10).

(5) Remove stub shaft from valve assembly by

lightly tapping shaft on a block of wood to loosen
shaft. Then disengage stub shaft pin from hole in
spool valve and separate the valve assembly from
stub shaft (Fig. 11).

(6) Remove spool valve from valve body by pulling

and rotating the spool valve from the valve body (Fig.
12).

(7) Remove spool valve O-ring and valve body

teflon rings and O-rings underneath the teflon rings
(Fig. 13).

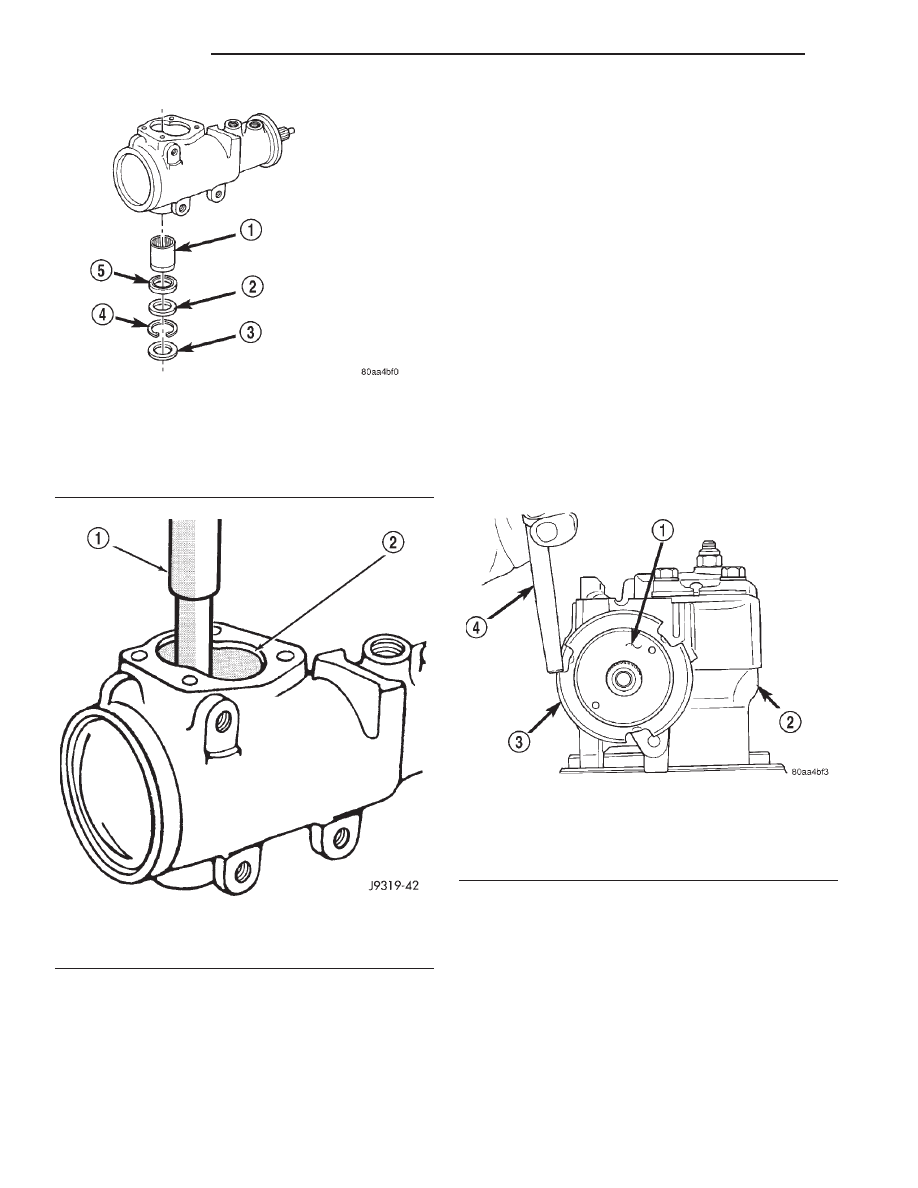

Fig. 6 Pitman Shaft Seals & Bearing

1 – BEARING
2 – WASHER
3 – DUST SEAL
4 – RETAINER
5 – OIL SEAL

Fig. 7 Needle Bearing Removal

1 – REMOVER
2 – SIDE COVER AREA

Fig. 8 Lock Nut and Adjuster Nut

1 – ADJUSTER NUT
2 – STEERING GEAR
3 – LOCK NUT
4 – PUNCH

19 - 14

STEERING

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(8) Remove the O-ring between the worm shaft

and the stub shaft.

ASSEMBLY

NOTE: Clean and dry all components, then lubri-
cate with power steering fluid.

(1) Install spool valve spool O-ring.
(2) Install spool valve in valve body by pushing

and rotating. Hole in spool valve for stub shaft pin
must be accessible from opposite end of valve body.

(3) Install stub shaft in valve spool and engage

locating pin on stub shaft into spool valve hole (Fig.
14).

NOTE: Notch in stub shaft cap must fully engage
valve body pin and seat against valve body shoul-
der.

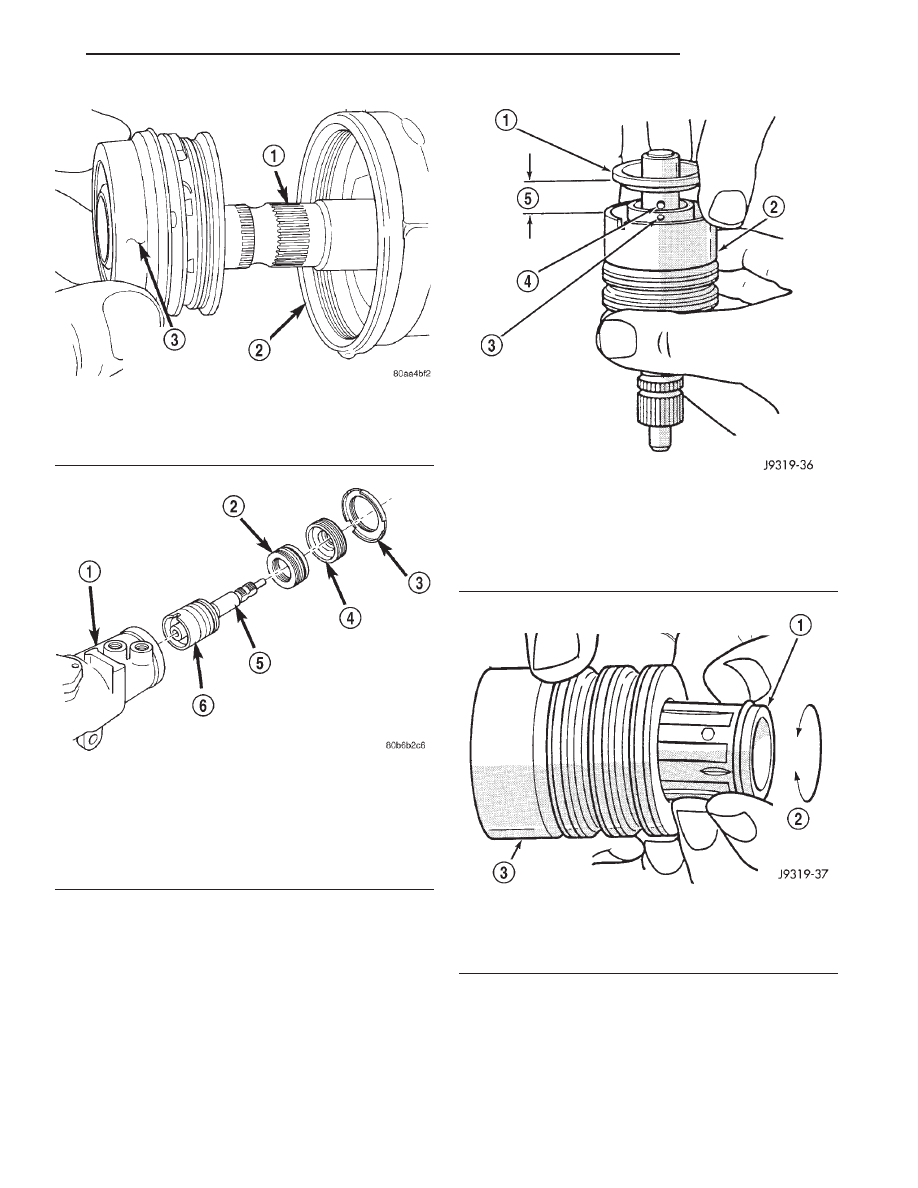

Fig. 9 Thrust Support Assembly

1 – STUB SHAFT
2 – HOUSING
3 – THRUST SUPPORT ASSEMBLY

Fig. 10 Valve Assembly With Stub Shaft

1 – GEAR
2 – THRUST SUPPORT
3 – LOCK NUT
4 – ADJUSTER NUT
5 – STUB SHAFT
6 – VALVE ASSEMBLY

Fig. 11 Stub Shaft

1 – STUB SHAFT
2 – VALVE BODY
3 – HOLE IN SPOOL
4 – SHAFT PIN
5 – 6mm (1/4”)

Fig. 12 Spool Valve

1 – SPOOL VALVE
2 – ROTATE VALVE TO REMOVE
3 – VALVE BODY

XJ

STEERING

19 - 15

DISASSEMBLY AND ASSEMBLY (Continued)
