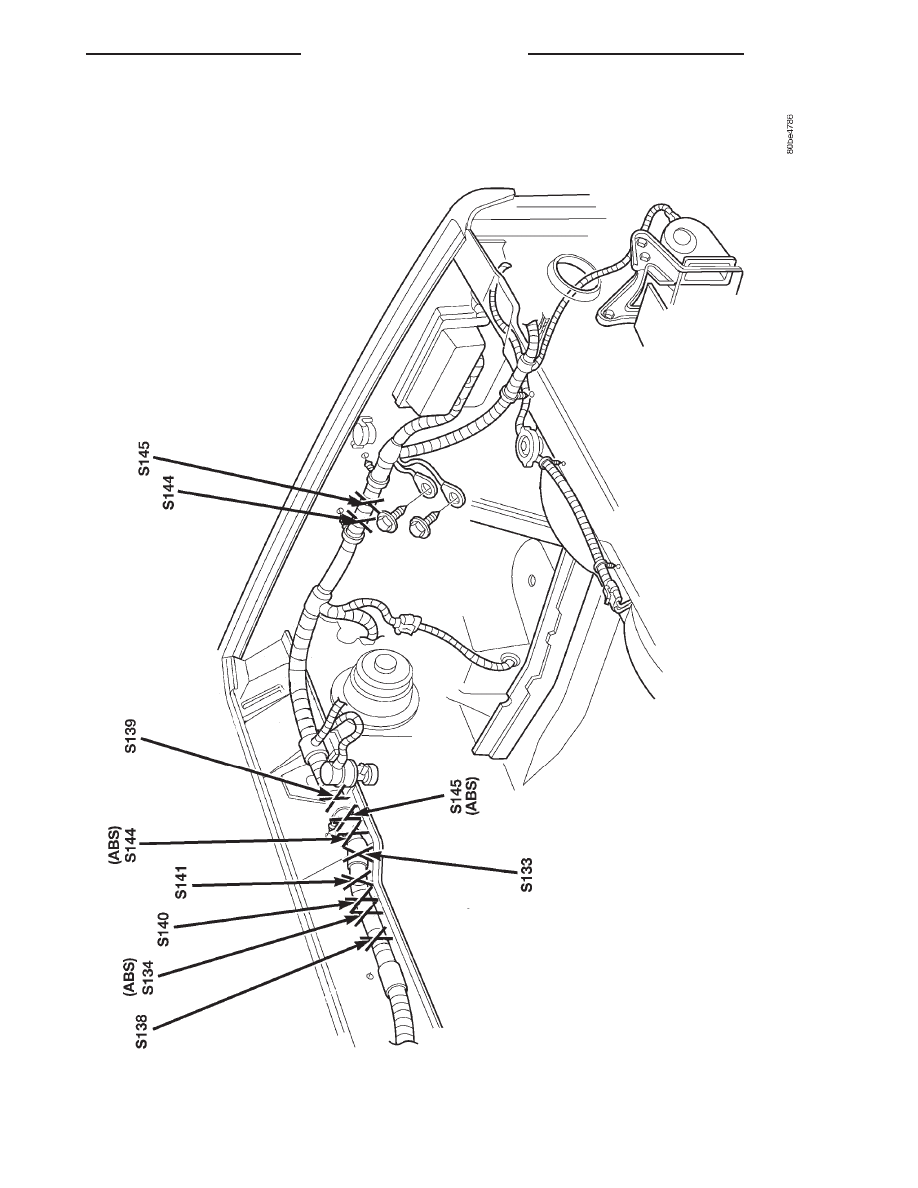

Fig.

1

Left

Engine

Compartment

Splices

4.0L

Engine

LHD

8W - 95 - 6

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

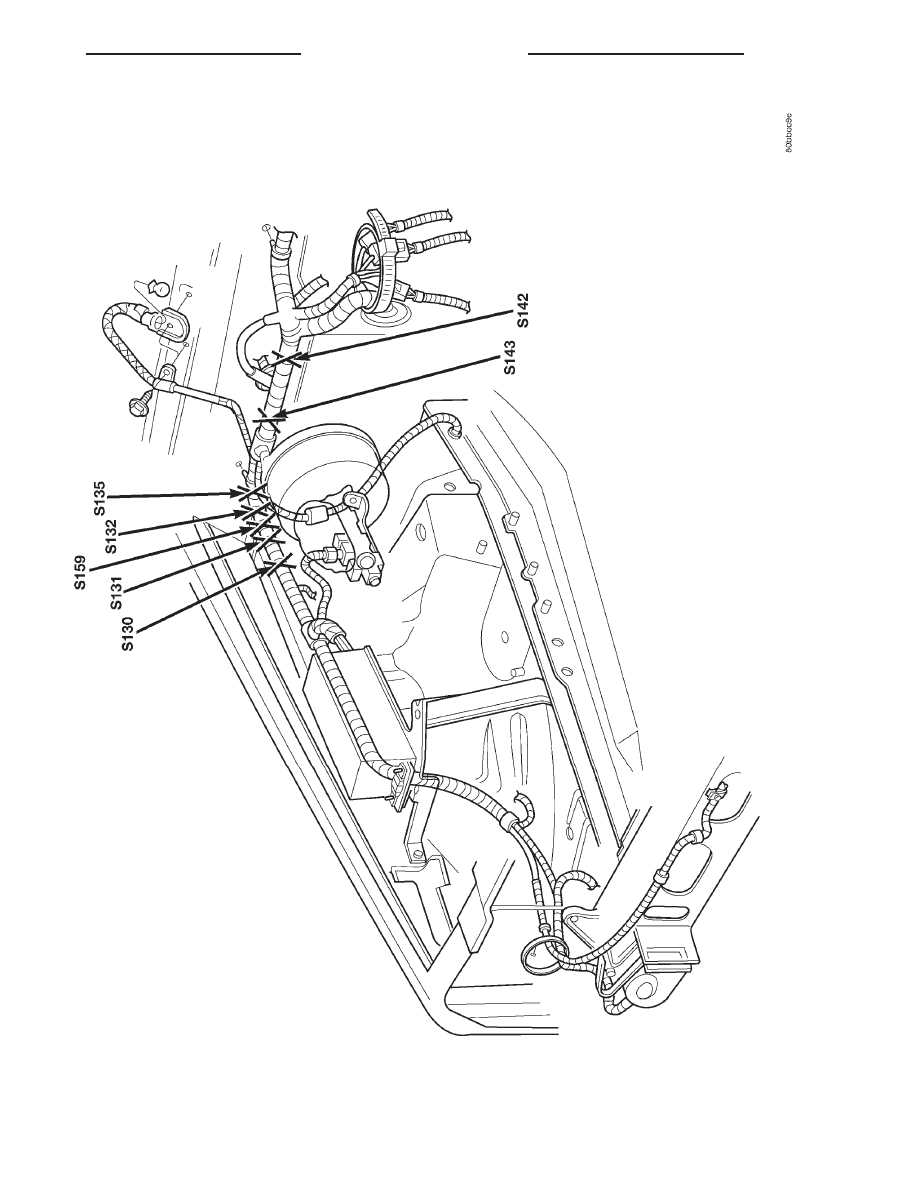

Fig.

2

Left

Engine

Compartment

Splices

4.0L

Engine

RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 7

DESCRIPTION AND OPERATION (Continued)

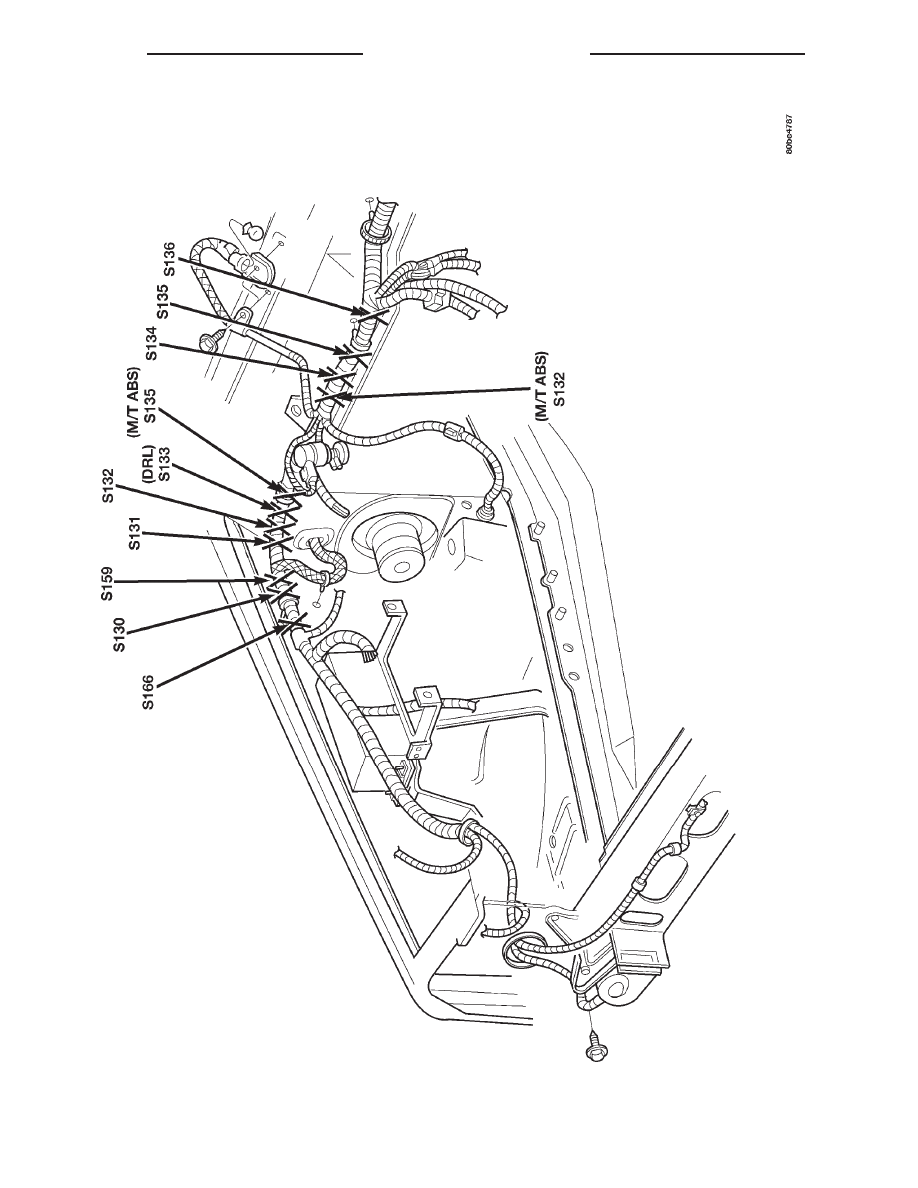

Fig.

3

Right

Engine

Compartment

Splices

4.0L

Engine

LHD

8W - 95 - 8

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

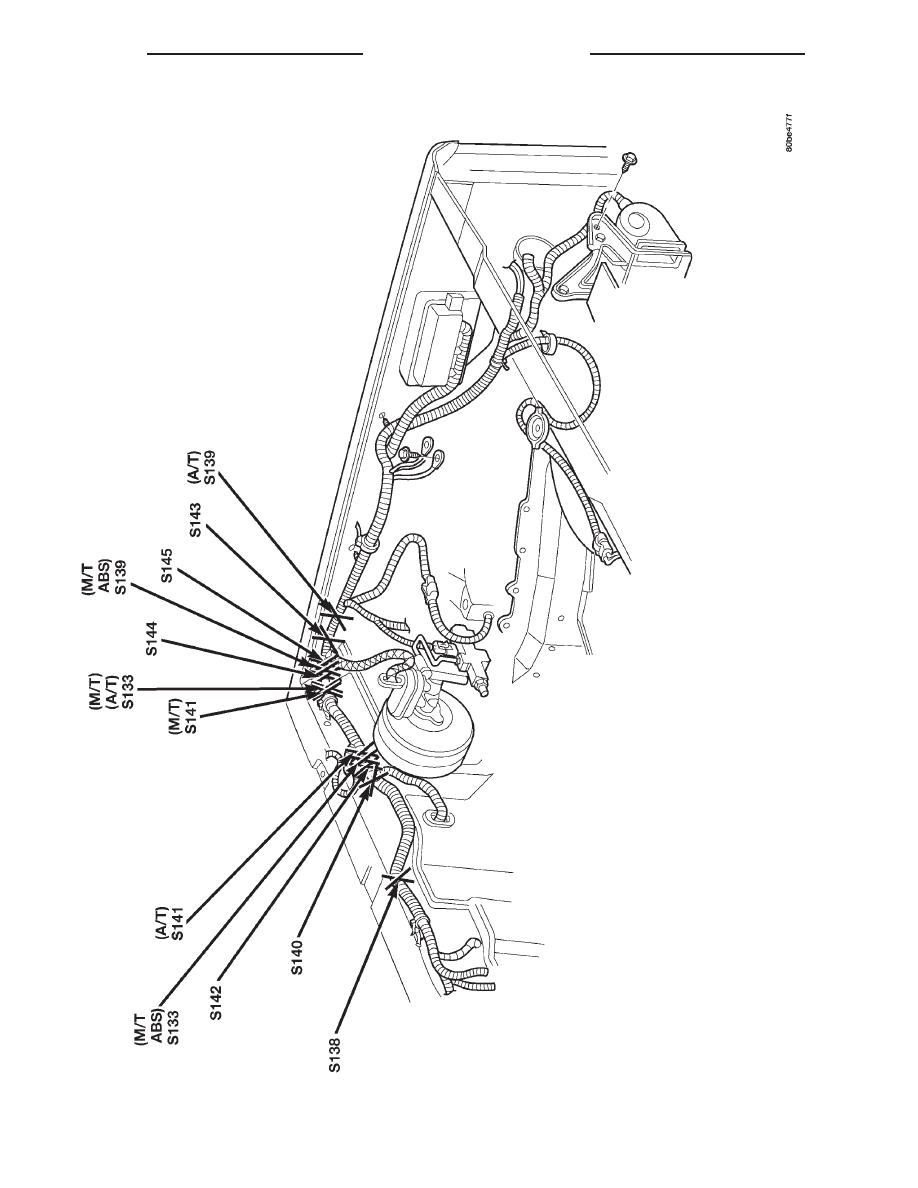

Fig.

4

Right

Engine

Compartment

Splices

4.0L

Engine

RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 9

DESCRIPTION AND OPERATION (Continued)
