Jeep XJ. Manual - part 248

2

T141 20YL

1

T141 20YL

IGNITION SWITCH OUTPUT (START)

SWITCH

CLUTCH INTERLOCK

F45 20YL/RD

2

FUSED B(+) ENGINE STARTER MOTOR RELAY

F45 20YL/RD

1

FUNCTION

CIRCUIT

CAV

SWITCH JUMPER

CLUTCH INTERLOCK

F45 18YL

2

F45 18YL

1

FUNCTION

CIRCUIT

CAV

GROUND

BLACK

2

5

4

3

1

COMBINATION

FLASHER

CAV

CIRCUIT

FUNCTION

1

L5 20BK

FUSED IGNITION SWITCH OUTPUT (RUN)

2

L9 20BK/PK

FUSED B (+)

3

L12 20VT/TN

HAZARD FLASHER SELECT SIGNAL

4

L6 20RD/WT

FLASHER OUTPUT

5

Z1 18BK

GROUND

GREEN

2 1

2

1

BLACK

IGNITION SWITCH OUTPUT (START)

FUSED B(+) ENGINE STARTER MOTOR RELAY

FUSED B(+) ENGINE STARTER MOTOR RELAY

FUSED B(+) ENGINE STARTER MOTOR RELAY

RHD BUILT-UP-EXPORT

LHD DIESEL

EXCEPT LHD DIESEL

Z1 20BK

8W - 80 - 34

8W-80 CONNECTOR PIN-OUTS

XJ

J008W-7

XJI08034

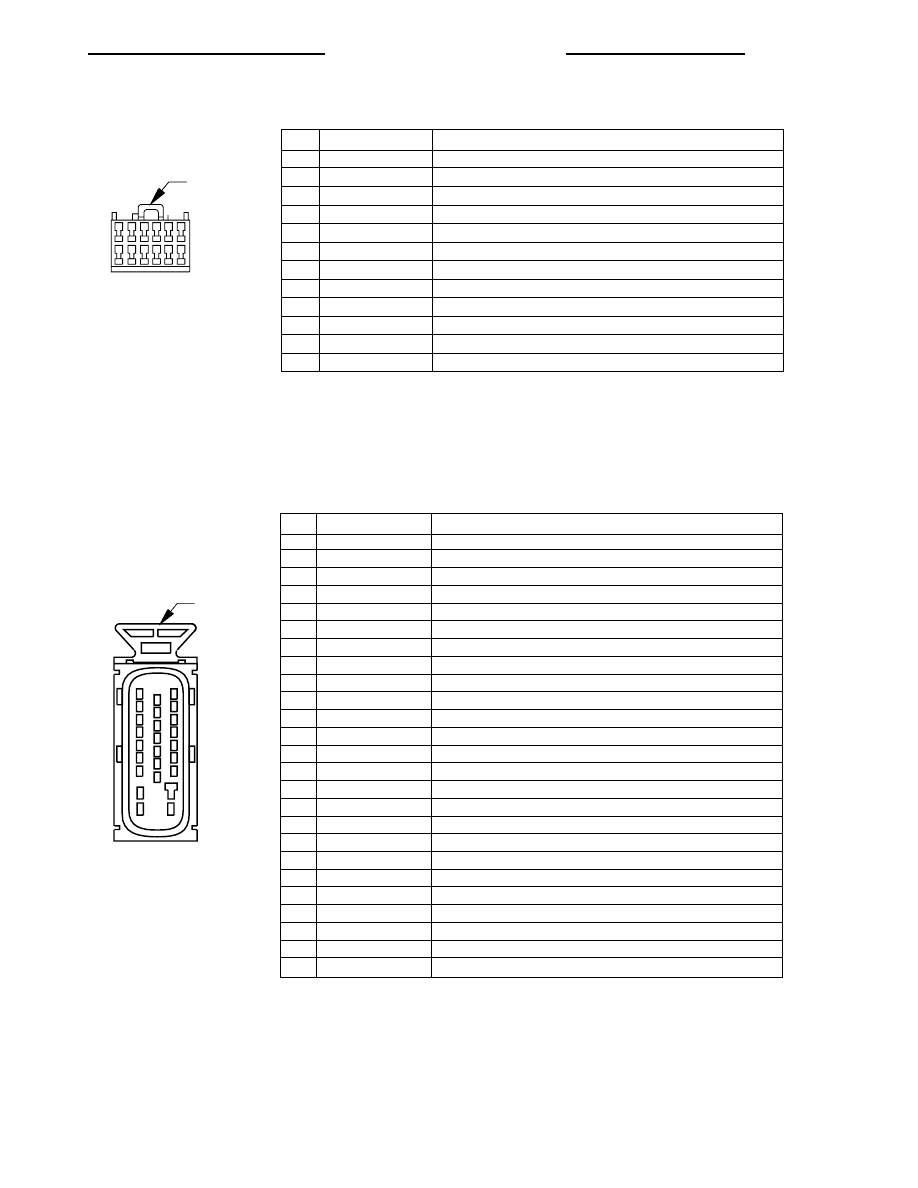

COMPASS

-

-

-

-

G31 20VT/LG

AMBIENT TEMPERATURE SENSOR SIGNAL

BLACK

7

12

1

6

GROUND

Z2 20BK/LG

12

11

10

CCD BUS (-)

D2 20WT/BK

9

SENSOR GROUND

G32 20BK/LB

8

COURTESY LAMPS DRIVER

M2 20YL

7

FUSED IGNITION SWITCH OUTPUT (ST-RUN)

F87 20WT/BK

6

CCD BUS (+)

D1 20VT/BR

5

-

-

4

3

M1 20PK

2

GROUND

Z1 20BK

1

FUNCTION

CIRCUIT

CAV

BRAKE

ANTI-LOCK

CONTROLLER

BLACK

25

9

17

1

16

10

FUSED B(+)

A10 12RD/DG

25

GROUND

Z1 12BK

24

FUSED IGNITION SWITCH OUTPUT (RUN)

F15 18DB/WT

23

-

-

22

-

-

21

SCI TRANSMIT/ ISO 9141K

D21 18PK

20

-

-

19

RIGHT REAR WHEEL SPEED SENSOR (-)

B6 18WT/DB

18

RIGHT REAR WHEEL SPEED SENSOR (+)

B2 18YL

17

ABS RELAY CONTROL

G83 18GY/BK

16

-

-

15

-

-

14

G SWITCH TEST SIGNAL

B43 18PK/OR

13

BRAKE LAMP SWITCH OUTPUT

L50 18WT/TN

12

LEFT FRONT WHEEL SPEED SENSOR (-)

B8 18RD/DB

11

LEFT REAR WHEEL SPEED SENSOR (+)

B4 18LG

10

FUSED B(+)

A20 12RD/DB

9

GROUND

Z1 12BK

8

G SWITCH NO. 2 SENSE

B42 18TN/WT

7

G SWITCH NO. 1 SENSE

B41 18YL/VT

6

-

-

5

LEFT FRONT WHEEL SPEED SENSOR (+)

B9 18RD

4

RIGHT FRONT WHEEL SPEED SENSOR (+)

B7 18WT

3

LEFT REAR WHEEL SPEED SENSOR (-)

B3 18LG/DB

2

RIGHT REAR WHEEL SPEED SENSOR (-)

B1 18YL/DB

1

FUNCTION

CIRCUIT

CAV

FUSED B(+)

XJ

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 35

XJI08035

J008W-7

5V SUPPLY

K7 20OR

3

SENSOR GROUND

K167 20BR/YL

2

CRANKSHAFT POSITION SENSOR SIGNAL

K24 18GY/BK

1

FUNCTION

CIRCUIT

CAV

CONNECTOR

DATA LINK

-

-

-

-

-

-

-

-

-

-

-

-

-

-

BLACK

1

8

9

16

FUSED B(+)

F34 18TN/BK

16

15

14

13

12

CCD BUS (-)

D2 18WT/BK

11

10

9

8

SCI TRANSMIT/ ISO 9141K

D21 20PK

7

SCI RECEIVE

D20 20LG/BK

6

GROUND

Z12 18BK/TN

5

GROUND

Z1 18BK

4

CCD BUS (+)

D1 18VT/BR

3

-

-

2

-

-

1

FUNCTION

CIRCUIT

CAV

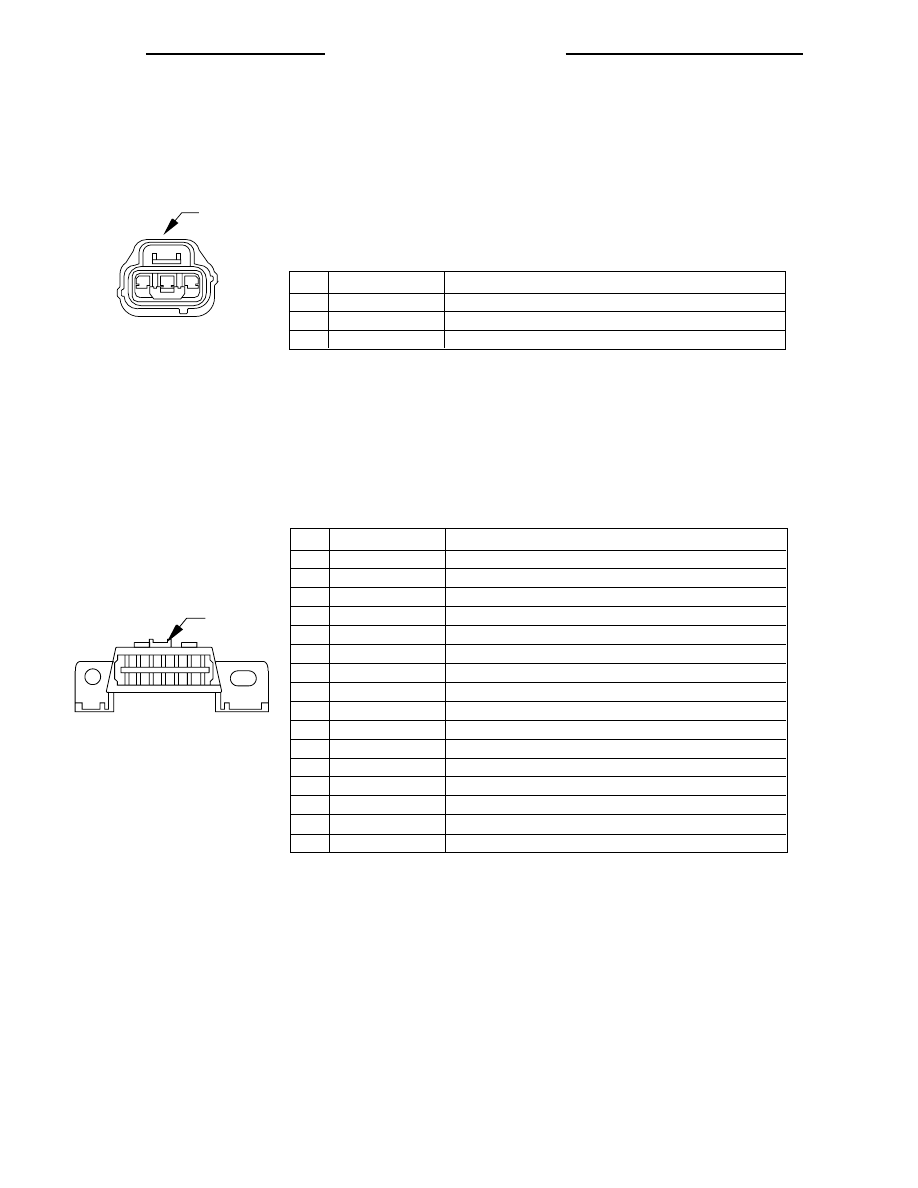

CRANKSHAFT

POSITION

SENSOR

(GAS)

3

1

BLACK

8W - 80 - 36

8W-80 CONNECTOR PIN-OUTS

XJ

J008W-7

XJI08036

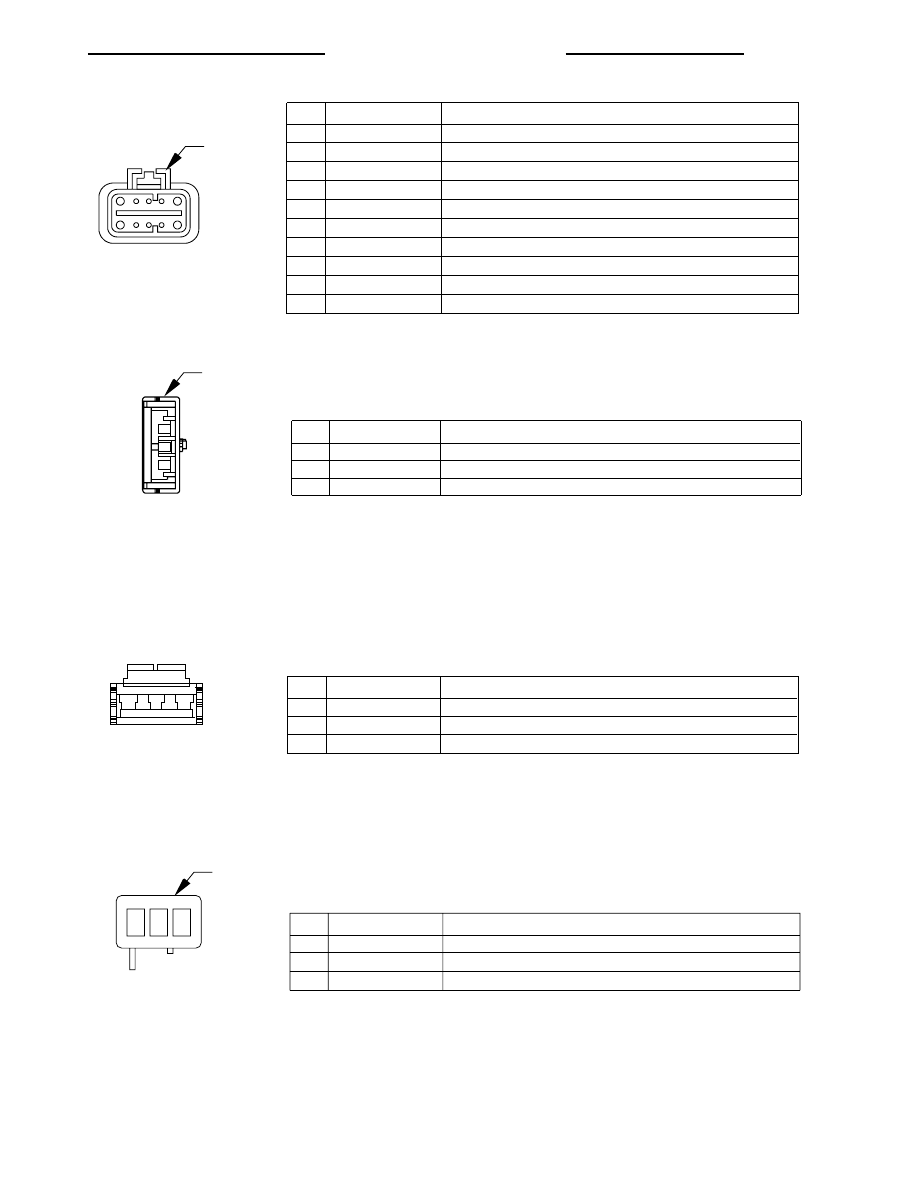

LAMP MODULE

DAYTIME RUNNING

10

5

6

1

BLACK

FUSED RIGHT LOW BEAM OUTPUT

L44 18VT/RD

10

-

-

9

GROUND

Z12 16BK/TN

8

SIGNAL

SENSOR

SPEED

VEHICLE

G7 20WT/OR

7

FUSED B(+)

A3 14RD/WT

6

FUSED IGNITION SWITCH OUTPUT (ST-RUN)

F20 18WT

5

HIGH BEAM INDICATOR DRIVER

G34 16RD/GY

4

-

-

3

-

-

2

DIMMER SWITCH HIGH BEAM OUTPUT

L3 16RD

1

FUNCTION

CIRCUIT

CAV

HEADLAMP RELAY OUTPUT

FOG LAMP SWITCH OUTPUT

3

L39 18LB

L2 16LG

1

2

FUNCTION

CIRCUIT

CAV

DIODE MODULE

(BUILT-UP-EXPORT)

L25 18BR

REAR FOG LAMP FEED

3

1

BLACK

(BASE/POLICE)

1

3

SWITCH

DOME LAMPS

C

A

BLACK

GROUND

Z1 20BK

C

COURTESY LAMPS DRIVER

M2 20YL

B

A

FUNCTION

CIRCUIT

CAV

(MIDLINE)

M1 20PK

FUSED B(+)

CAV

CIRCUIT

FUNCTION

1

-

2

M1 20PK

COURTESY LAMPS DRIVER

3

M2 20YL

FUSED B(+)

DOME LAMP

-

(EXCEPT BUILT-

UP-EXPORT)

XJ

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 37

XJI08037

J008W-7
