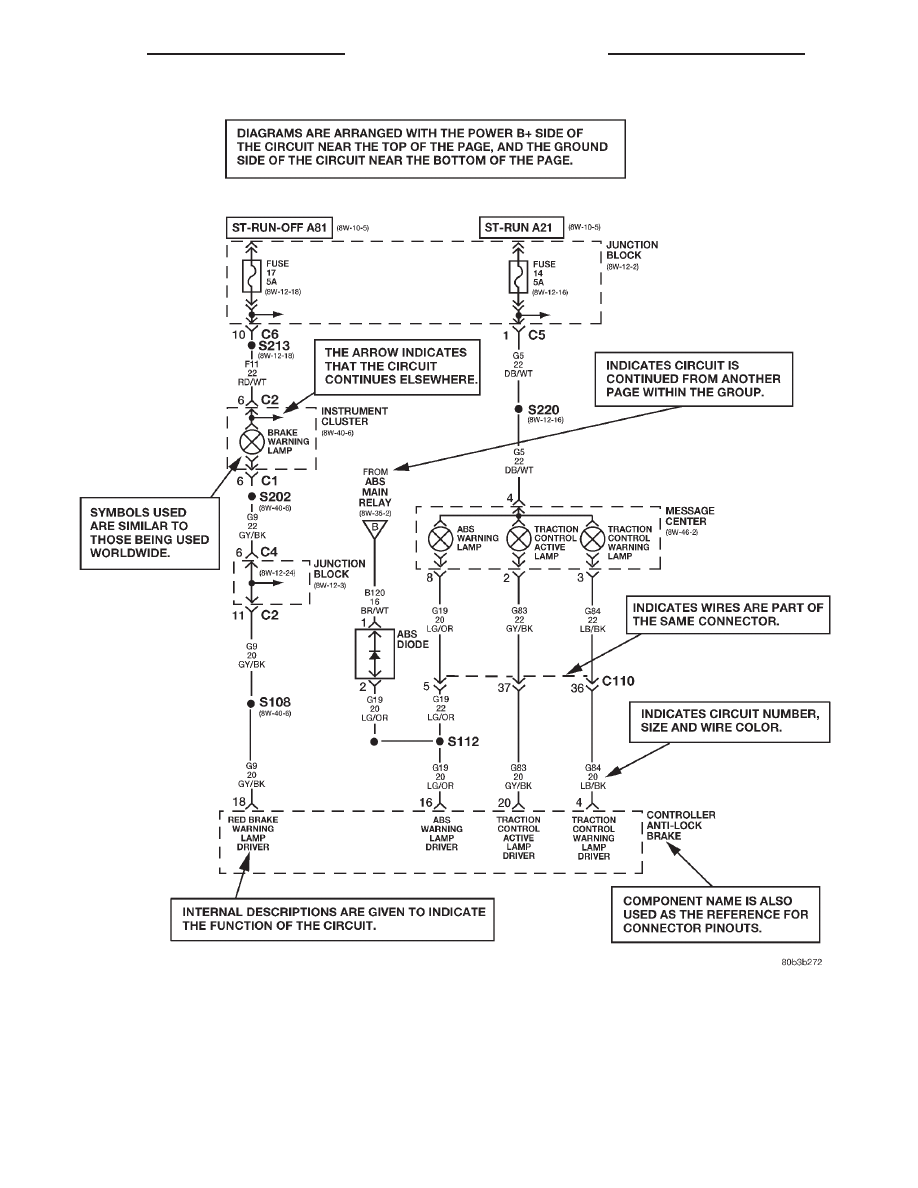

The System shown here is an EXAMPLE ONLY. It does not represent the actual circuit shown in the WIRING

DIAGRAM SECTION.

8W - 01 - 2

8W - 01 GENERAL INFORMATION

XJ

DESCRIPTION AND OPERATION (Continued)

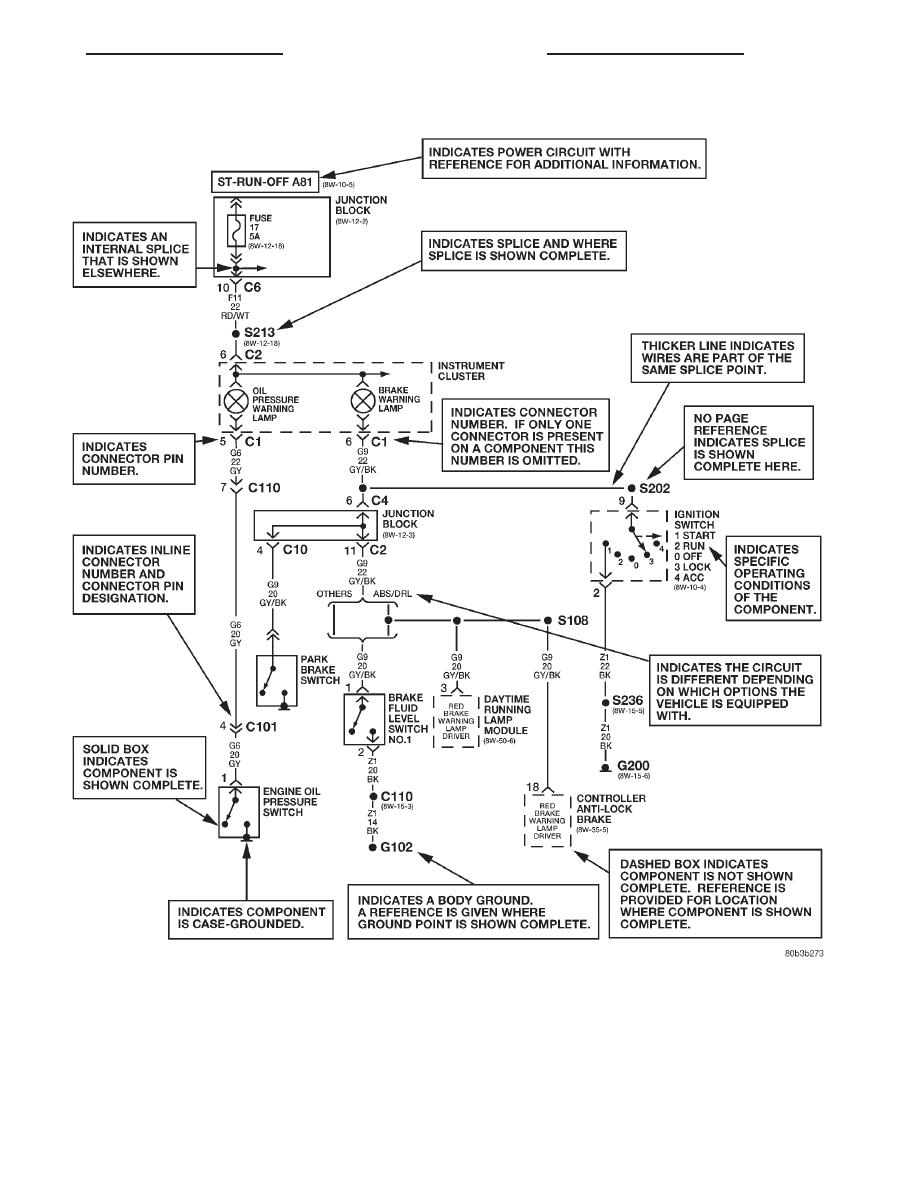

The System shown here is an EXAMPLE ONLY. It does not represent the actual circuit shown in the WIRING

DIAGRAM SECTION.

XJ

8W - 01 GENERAL INFORMATION

8W - 01 - 3

DESCRIPTION AND OPERATION (Continued)

CIRCUIT INFORMATION

Each wire shown in the diagrams contains a code

which identifies the main circuit, part of the main
circuit, gage of wire, and color (Fig. 1).

CIRCUIT FUNCTIONS

All circuits in the diagrams use an alpha/numeric

code to identify the wire and its function. To identify
which circuit code applies to a system, refer to the
Circuit Identification Code Chart. This chart shows
the main circuits only and does not show the second-
ary codes that may apply to some models.

Fig. 1 Wire Code Identification

1 – COLOR OF WIRE (LIGHT BLUE WITH YELLOW TRACER)
2 – GAUGE OF WIRE (18 GAUGE)
3 – PART OF MAIN CIRCUIT (VARIES DEPENDING ON

EQUIPMENT)

4 – MAIN CIRCUIT IDENTIFICATION

WIRE COLOR CODE CHART

COLOR CODE

COLOR

STANDARD
TRACER
COLOR

BL

BLUE

WT

BK

BLACK

WT

BR

BROWN

WT

DB

DARK BLUE

WT

DG

DARK GREEN

WT

GY

GRAY

BK

LB

LIGHT BLUE

BK

LG

LIGHT GREEN

BK

OR

ORANGE

BK

PK

PINK

BK or WT

RD

RED

WT

TN

TAN

WT

VT

VIOLET

WT

WT

WHITE

BK

YL

YELLOW

BK

*

WITH TRACER

CIRCUIT IDENTIFICATION CODE CHART

CIRCUIT

FUNCTION

A

BATTERY FEED

B

BRAKE CONTROLS

C

CLIMATE CONTROLS

D

DIAGNOSTIC CIRCUITS

E

DIMMING ILLUMINATION CIRCUITS

F

FUSED CIRCUITS

G

MONITORING CIRCUITS (GAUGES)

H

OPEN

I

NOT USED

J

OPEN

K

POWERTRAIN CONTROL MODULE

L

EXTERIOR LIGHTING

M

INTERIOR LIGHTING

N

NOT USED

O

NOT USED

P

POWER OPTION (BATTERY FEED)

Q

POWER OPTIONS (IGNITION FEED)

R

PASSIVE RESTRAINT

S

SUSPENSION/STEERING

T

TRANSMISSION/TRANSAXLE/
TRANSFER CASE

U

OPEN

V

SPEED CONTROL, WIPER/WASHER

W

OPEN

X

AUDIO SYSTEMS

Y

OPEN

Z

GROUNDS

8W - 01 - 4

8W - 01 GENERAL INFORMATION

XJ

DESCRIPTION AND OPERATION (Continued)

SECTION IDENTIFICATION

The wiring diagrams are grouped into individual

sections. If a component is most likely found in a par-
ticular group, it will be shown complete (all wires,
connectors, and pins) within that group. For exam-
ple, the Auto Shutdown Relay is most likely to be
found in Group 30, so it is shown there complete. It
can, however, be shown partially in another group if
it contains some associated wiring.

SYMBOLS

International symbols are used throughout the wir-

ing diagrams. These symbols are consistent with
those being used around the world

GROUP

TOPIC

8W-01 thru
8W-09

General Information and Diagram
Overview

8W-10 thru
8W-19

Main Sources of Power and Vehicle
Grounding

8W-20 thru
8W-29

Starting and Charging

8W-30 thru
8W-39

Powertrain/Drivetrain Systems

8W-40 thru
8W-49

Body Electrical items and A/C

8W-50 thru
8W-59

Exterior Lighting, Wipers, and Trailer
Tow

8W-60 thru
8W-69

Power Accessories

8W-70

Splice Information

8W-80

Connector Pin Outs

8W-90

Connector Locations (including
grounds)

8W-95

Splice Locations
