NOTE: If the “CAL” message remains in the dis-
play, either there is excessive magnetism near the
compass, or the unit is faulty. Repeat the demagne-
tizing and calibration procedures at least one more
time.

NOTE: If the wrong direction is still indicated in the
compass display, the area selected for calibration
may be too close to a strong magnetic field. Repeat
the calibration procedure in another location.

COMPASS DEMAGNETIZING

A degaussing tool (Special Tool 6029) is used to

demagnetize, or degauss, the overhead console for-
ward mounting screw(s) and the roof panel. Equiva-
lent units must be rated as continuous duty for 110/
115 volts and 60 Hz. They must also have a field
strength of over 350 gauss at 7 millimeters (0.25
inch) beyond the tip of the probe.

To demagnetize the roof panel and the overhead

console forward mounting screw(s), proceed as fol-
lows:

(1) Be certain that the ignition switch is in the Off

position, before you begin the demagnetizing proce-
dure.

(2) Plug in the degaussing tool, while keeping the

tool at least 61 centimeters (2 feet) away from the
compass unit.

(3) Slowly approach the head of the overhead con-

sole forward mounting screw with the degaussing
tool plugged in.

(4) Contact the head of each screw with the plastic

coated tip of the degaussing tool for about two sec-
onds.

(5) With the degaussing tool still energized, slowly

back it away from the screw. When the tip of the tool
is at least 61 centimeters (2 feet) from the screw
head, unplug the tool.

(6) Place a piece of paper approximately 22 by 28

centimeters (8.5 by 11 inches), oriented on the vehicle
lengthwise from front to rear, on the center line of
the roof at the windshield header (Fig. 2). The pur-
pose of the paper is to protect the roof panel from
scratches, and to define the area to be demagnetized.

(7) Plug in the degaussing tool, while keeping the

tool at least 61 centimeters (2 feet) away from the
compass unit.

(8) Slowly approach the center line of the roof

panel at the windshield header, with the degaussing
tool plugged in.

(9) Contact the roof panel with the plastic coated

tip of the degaussing tool. Be sure that the template
is in place to avoid scratching the roof panel. Using a
slow, back-and-forth sweeping motion, and allowing
13 millimeters (0.50 inch) between passes, move the

tool at least 11 centimeters (4 inches) to each side of
the roof center line, and 28 centimeters (11 inches)
back from the windshield header.

(10) With the degaussing tool still energized,

slowly back it away from the roof panel. When the
tip of the tool is at least 61 centimeters (2 feet) from
the roof panel, unplug the tool.

(11) Calibrate the compass and adjust the compass

variance as described in the Service Procedures sec-
tion of this group.

REMOVAL AND INSTALLATION

OVERHEAD CONSOLE

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the two screws located forward of the

display module that secure the overhead console to
the upper windshield opening reinforcement (Fig. 3).

(3) To release the overhead console from the rear

mounting bracket, use your fingertips to gently pull
the sides of the overhead console housing outward
near the rear mounting bracket.

(4) Move the overhead console forward to disen-

gage the rear mounting tab from the headliner.

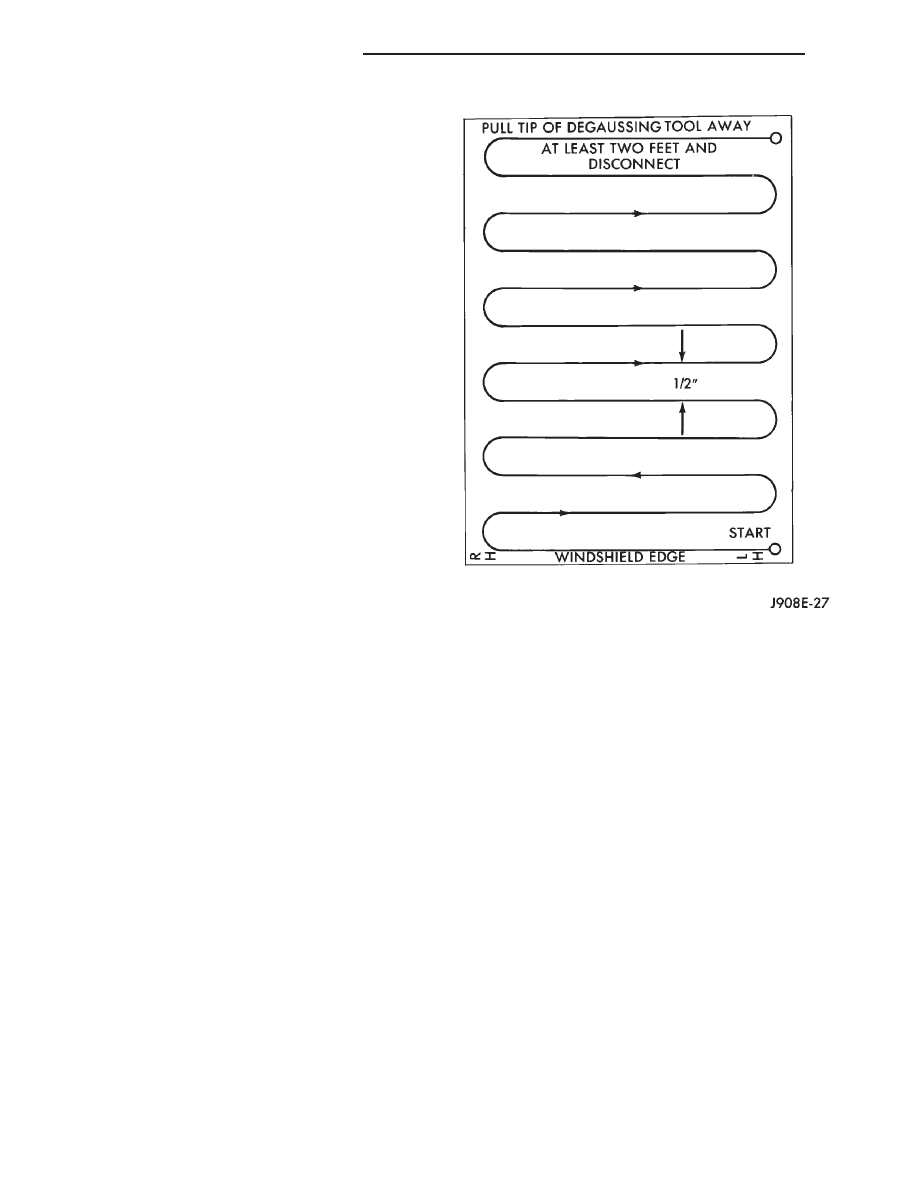

Fig. 2 Roof Demagnetizing Pattern

8V - 6

OVERHEAD CONSOLE SYSTEMS

XJ

SERVICE PROCEDURES (Continued)

(5) Lower the overhead console far enough to

access the two wire harness connectors.

(6) Unplug one wire harness connector near the

push button module towards the front of the over-
head console.

(7) Unplug one wire harness connector from the

Remote Keyless Entry (RKE) receiver near the center
of the overhead console, if the vehicle is so equipped.

(8) Remove the overhead console from the head-

liner.

(9) Reverse the removal procedures to install.

Tighten the overhead console mounting screws to 2.7
N·m (24 in. lbs.).

TRIP COMPUTER, COMPASS, AND
THERMOMETER DISPLAY MODULE

(1) Remove the overhead console from the vehicle.

See Overhead Console in this group for the proce-
dures.

(2) Remove the two screws that secure the forward

end of the trip computer, compass, and thermometer
display module to the overhead console housing (Fig.
4).

(3) Gently flex the sides of the overhead console

housing as required to release the trip computer,
compass, and thermometer display module mounting
pins.

(4) Pull the trip computer, compass, and thermom-

eter display module away from the overhead console

housing far enough to access the two wire harness
connectors.

(5) Unplug the overhead console and push button

module wire harness connectors from the trip com-
puter, compass, and thermometer display module.

(6) Remove the trip computer, compass, and ther-

mometer display module from the overhead console
housing.

(7) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

PUSH BUTTON MODULE

(1) Remove the overhead console from the vehicle.

See Overhead Console in this group for the proce-
dures.

(2) Unplug the push button module wire harness

connector from the trip computer, compass, and ther-
mometer display module.

(3) Remove the four screws that secure the push

button module to the overhead console housing (Fig.
5).

(4) Remove the push button module from the over-

head console.

(5) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

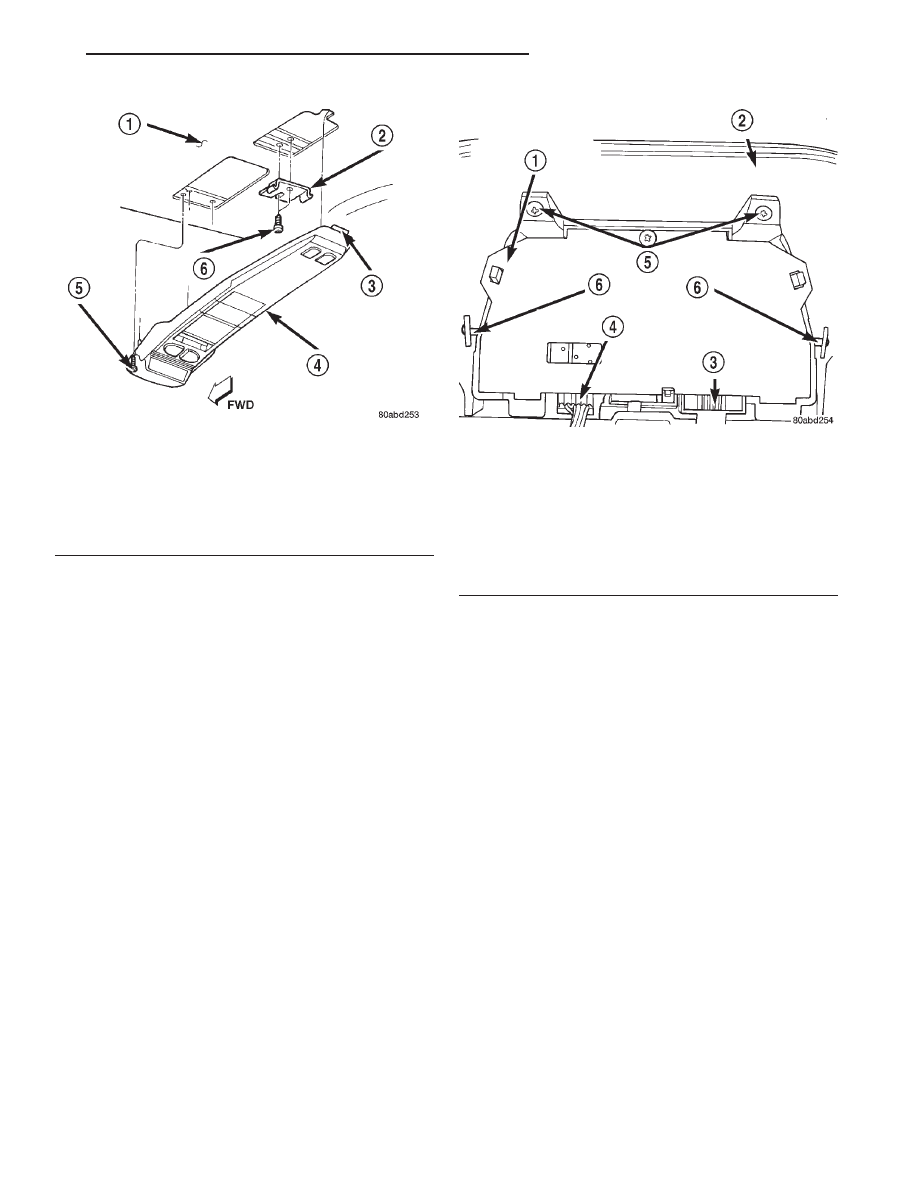

Fig. 3 Overhead Console Remove/Install

1 – HEADLINER
2 – REAR BRACKET
3 – REAR MOUNTING TAB
4 – OVERHEAD CONSOLE
5 – SCREW
6 – SCREW

Fig. 4 Trip Computer, Compass, and Thermometer

Display Module Remove/Install

1 – TRIP COMPUTER, COMPASS AND THERMOMETER

DISPLAY MODULE

2 – OVERHEAD CONSOLE HOUSING
3 – PUSH BUTTON MODULE CONNECTOR
4 – OVERHEAD CONSOLE WIRE HARNESS CONNECTOR
5 – MOUNTING SCREWS
6 – MOUNTING PINS

XJ

OVERHEAD CONSOLE SYSTEMS

8V - 7

REMOVAL AND INSTALLATION (Continued)

READING AND COURTESY LAMP BULB

(1) Disconnect and isolate the battery negative

cable.

(2) Insert a long, narrow, flat-bladed tool in the

notch on the edge of the reading and courtesy lamp
lens.

(3) Gently pry the lens downward from the over-

head console housing and pivot the lens down. It may
be necessary to move the tool along the edge of the
lens to free the lens from the console housing.

(4) Unsnap the bulb from the bulb holders by pull-

ing the bulb gently downwards.

(5) Install a new bulb by aligning its base with the

bulb holders and pushing the bulb firmly into place.

(6) Pivot the lens back up into position and press

upward firmly until it snaps into place.

(7) Connect the battery negative cable.
(8) Test the lamp by depressing the lens to check

for proper lamp switching and lighting.

GARAGE DOOR OPENER STORAGE BIN DOOR

(1) Open the garage door opener storage bin door.
(2) Using a trim stick or another suitable wide

flat-bladed tool, gently pry between the door pivot
pin and the pivot hole on one side of the overhead
console housing until the pivot pin clears the pivot
hole.

(3) Use a gentle twisting action to remove the

garage door opener storage bin door from the over-
head console housing.

(4) To install, insert the pivot pin on one side of

the door into the pivot hole in the overhead console
housing. Gently depress the pivot pin on the other
side of the door until it clears the side of the garage
door opener storage bin opening of the overhead con-
sole housing, and push the door into the opening.
Guide the door into the opening so that the second
pivot pin snaps into its pivot hole.

SUNGLASSES STORAGE BIN

The sunglasses storage bin door and bin, housing,

damper, spring and latch are serviced only as a unit.
Remove the sunglasses storage bin module from the
overhead console as follows:

(1) Remove the overhead console from the vehicle.

See Overhead Console in this group for the proce-
dures.

(2) Disengage the overhead console courtesy lamp

wire harness from the retainers molded into the sun-
glasses storage bin housing.

(3) Remove the six screws that secure the sun-

glasses storage bin module to the overhead console
housing (Fig. 6).

(4) Remove the sunglasses storage bin module

from the overhead console.

(5) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

AMBIENT TEMPERATURE SENSOR

(1) Disconnect and isolate the battery negative

cable.

(2) Locate the ambient temperature sensor, below

the grille and behind the front bumper on the radia-
tor support crossmember (Fig. 7).

(3) Unplug the ambient temperature sensor wire

harness connector.

(4) Remove the screw that secures the ambient

temperature sensor to the radiator support cross-
member.

(5) Remove the ambient temperature sensor from

the vehicle.

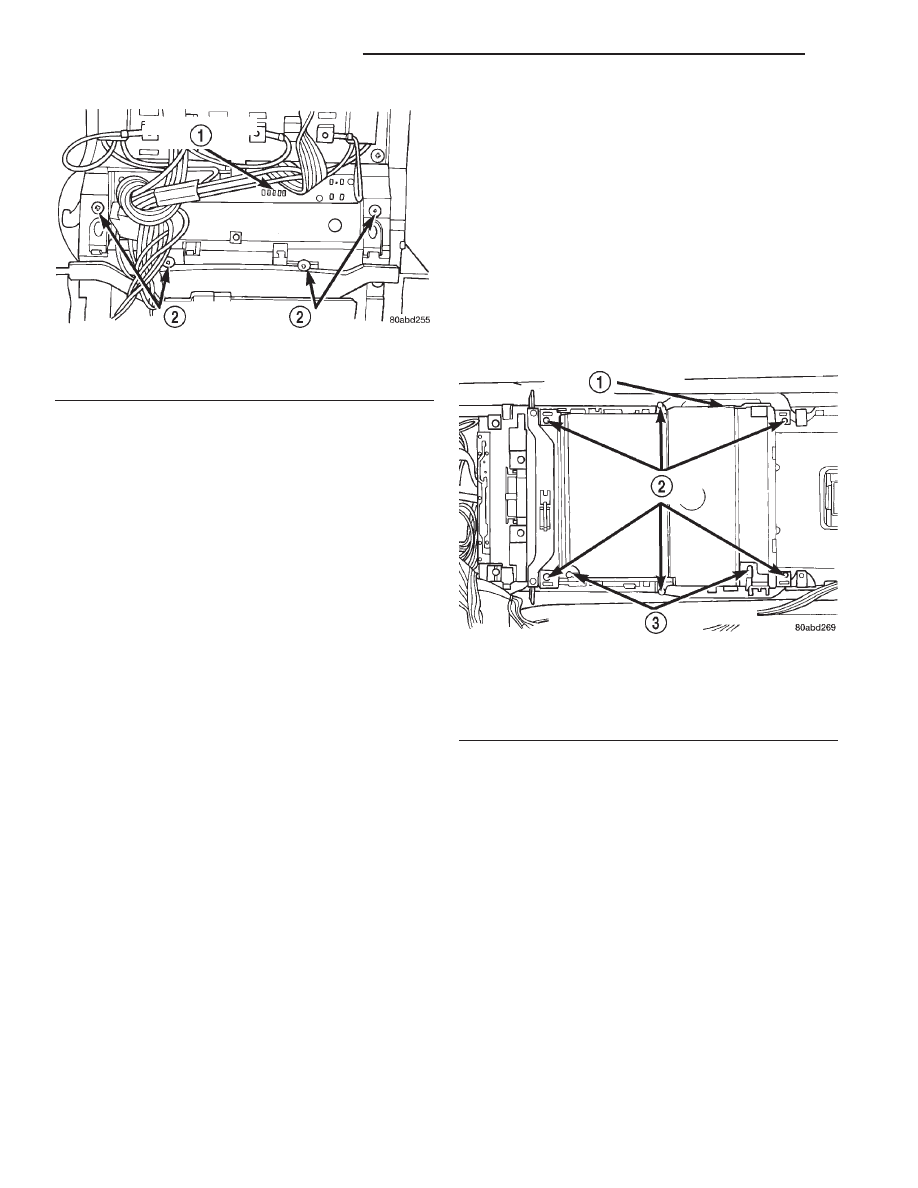

Fig. 5 Push Button Module Remove/Install

1 – PUSH BUTTON MODULE
2 – MOUNTING SCREWS

Fig. 6 Sunglasses Storage Bin Module Remove/

Install

1 – SUNGLASSES STORAGE BIN MODULE
2 – MOUNTING SCREWS
3 – WIRE HARNESS RETAINERS

8V - 8

OVERHEAD CONSOLE SYSTEMS

XJ

REMOVAL AND INSTALLATION (Continued)

(6) Reverse the removal procedures to install.

Tighten the ambient temperature sensor mounting
screw to 3.4 N·m (30 in. lbs.).

SPECIAL TOOLS

COMPASS

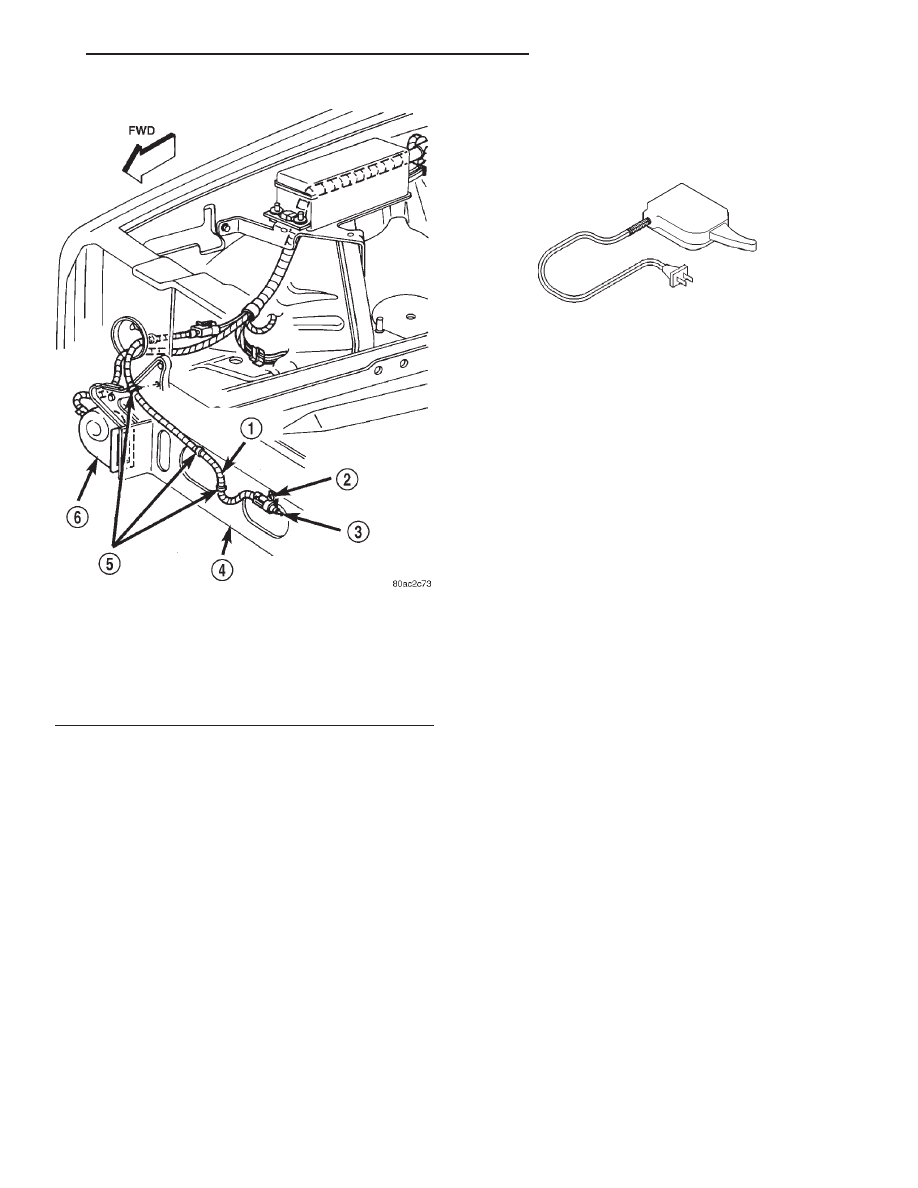

Fig. 7 Ambient Temperature Sensor Remove/Install

1 – WIRE HARNESS
2 – SCREW
3 – SENSOR
4 – RADIATOR SUPPORT CROSSMEMBER
5 – CLIPS
6 – HORN

Degaussing Tool 6029

XJ

OVERHEAD CONSOLE SYSTEMS

8V - 9
