Jeep XJ. Manual - part 126





LAMP BULB SERVICE

TABLE OF CONTENTS

page

page

REMOVAL AND INSTALLATION

FRONT POSITION LAMP BULB . . . . . . . . . . . . . . . 6
SIDE REPEATER LAMP BULB . . . . . . . . . . . . . . . . 6

REAR FOG LAMP BULB . . . . . . . . . . . . . . . . . . . . 7
LICENSE PLATE LAMP BULB . . . . . . . . . . . . . . . . 7

REMOVAL AND INSTALLATION

FRONT POSITION LAMP BULB

REMOVAL

(1) Remove the 2 screws holding the headlamp

bezel in place and remove bezel (Fig. 1).

(2) Remove the 4 screws holding the headlamp

(Fig. 2).

(3) Pull the front position lamp straight from

headlamp (Fig. 3).

(4) Remove the front position lamp bulb from

socket.

INSTALLATION

(1) Install the front position lamp bulb in lamp

socket.

(2) Verify lamp operation.
(3) Install front position lamp in headlamp.
(4) Connect headlamp electrical connector.
(5) Position the headlamp, headlamp retaining

ring and install the retaining screws.

(6) Position the headlamp bezel and install retain-

ing screws.

SIDE REPEATER LAMP BULB

REMOVAL

(1) Grip the side repeater lamp assembly and pull

straight from the fender.

(2) Rotate and pull the socket from the housing

(Fig. 4).

(3) Pull the bulb straight from the socket.

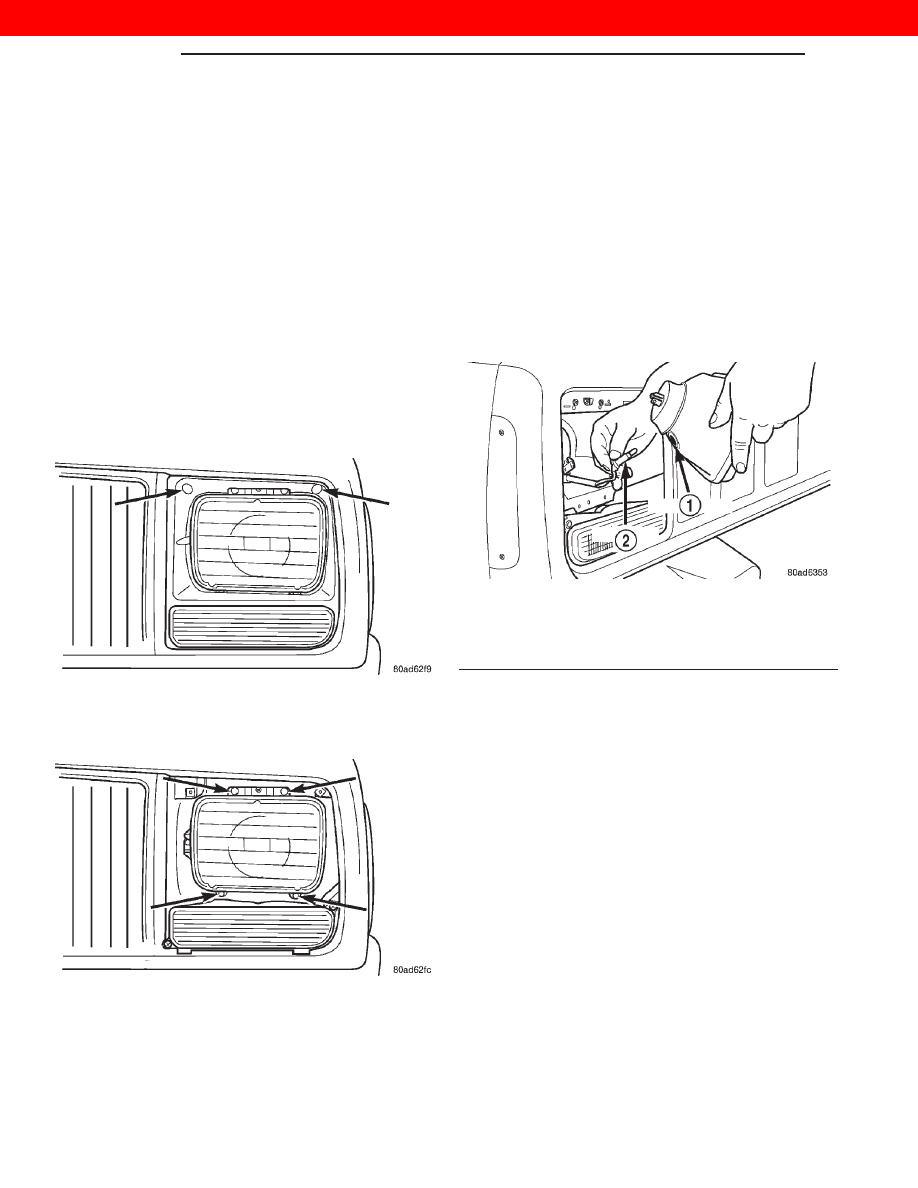

Fig. 1 Headlight Bezel Retaining Screws

Fig. 2 Headlamp Retaining Screws

Fig. 3 Front Position Lamp Grommet & Socket

Location

1 – GROMMET
2 – SOCKET

8L - 6

LAMPS

XJ

2000 JEEP CHEROKEE

INSTALLATION

(1) Align the side repeater lamp bulb to the socket

(Fig. 4).

(2) Push the bulb into the socket.
(3) Verify lamp operation.
(4) Push and rotate the socket into the housing.
(5) Press the lamp assembly into the fender

mounting hole.

REAR FOG LAMP BULB

REMOVAL

(1) There are 3 mounting bolts attaching the tail-

light assembly. When removing, unfasten the 3 bolts
located on the top and side. Lift up and out to
remove the assembly.

(2) Turn the socket assembly 1/3 turn and pull the

socket from the housing (Fig. 5).

(3) Pull the rear fog lamp straight from its socket.

INSTALLATION

(1) Install rear fog lamp bulb in its socket.
(2) Verify lamp operation.

(3) Install the remaining three lamp sockets in the

taillamp assembly.

(4) Position the taillamp assembly and install the

retaining screws.

LICENSE PLATE LAMP BULB

REMOVAL

(1) Remove the appropriate license plate lamp

retaining screws.

(2) Pull lamp housing from rear liftgate. Lamp

must be positioned properly to allow removal without
removing license plate.

(3) Rotate the lamp socket counter clockwise and

pull straight from lamp housing.

(4) Pull the lamp bulb straight from its socket.

INSTALLATION

(1) Install bulb in lamp socket.
(2) Verify lamp operation.
(3) Install lamp socket in lamp housing.
(4) Install license plate lamp assembly in liftgate

and install retaining screws.

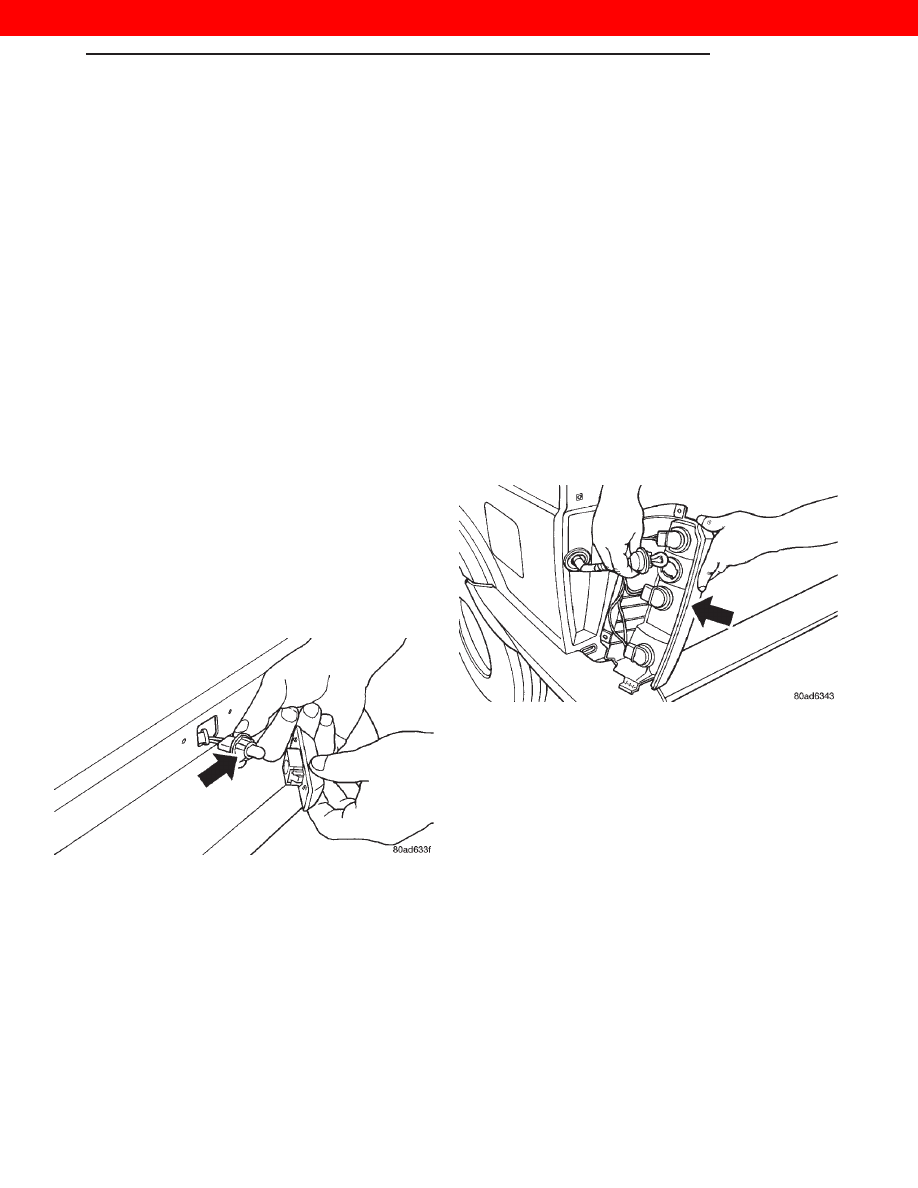

Fig. 4 Side Repeater Lamp

Fig. 5 Rear Lamp Replacement

XJ

LAMPS

8L - 7

REMOVAL AND INSTALLATION (Continued)

2000 JEEP CHEROKEE

LAMP SERVICE

TABLE OF CONTENTS

page

page

REMOVAL AND INSTALLATION

HEADLAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HEADLAMP LEVELING MOTOR. . . . . . . . . . . . . . . 8
SIDE REPEATER LAMP . . . . . . . . . . . . . . . . . . . . . 9

FRONT FOG LAMP . . . . . . . . . . . . . . . . . . . . . . . . 9
REAR TURN SIGNAL, BACKUP, TAILLAMP

AND FOG LAMP . . . . . . . . . . . . . . . . . . . . . . . . . 9

LICENSE PLATE LAMP . . . . . . . . . . . . . . . . . . . . . 9

REMOVAL AND INSTALLATION

HEADLAMP

REMOVAL

(1) Remove the 2 screws holding the headlamp

bezel in place and remove bezel (Fig. 1).

(2) Remove the 4 screws holding the headlamp

(Fig. 2).

(3) Pull the front position lamp straight from

headlamp.

(4) Disconnect the headlamp electrical connector

by pulling straight off.

(5) Remove the headlamp from the vehicle.

INSTALLATION

(1) Install front position lamp in headlamp.
(2) Connect headlamp electrical connector.
(3) Position the headlamp, headlamp retaining

ring and install the retaining screws.

(4) Position the headlamp bezel and install retain-

ing screws.

HEADLAMP LEVELING MOTOR

REMOVAL

(1) Open the hood and disconnect the negative bat-

tery cable.

(2) Raise the vehicle on a hoist or position a

creeper under the front of the vehicle.

(3) Remove

the

appropriate

side

front

splash

shield. Located just in front of the front wheel.

Fig. 1 Headlight Bezel Retaining Screws

Fig. 2 Headlamp Retaining Screws

Fig. 3 Headlamp Leveling Motor

1 – HEADLAMP LEVELING MOTOR
2 – FRONT STABILIZER BAR

8L - 8

LAMPS

XJ

2000 JEEP CHEROKEE

(4) Disconnect the headlamp leveling motor electri-

cal connector.

(5) Rotate the leveling motor 90 degrees until

motor is loose in mounting bracket.

(6) Tilt motor upwards to disconnect motor push

rod from the headlamp leveling linkage.

(7) Remove the headlamp leveling motor from the

vehicle (Fig. 3).

INSTALLATION

(1) Install leveling motor push rod through hole in

mounting bracket and connect push rod on leveling
linkage. The proper angle must be achieved to con-
nect the push rod onto the leveling linkage.

(2) Once the push rod is connected, rotate motor

until tabs line up with tabs in mounting bracket.
Once the tabs are lined up push and rotate the motor
90 degrees to lock in place.

(3) Connect the headlamp leveling motor electrical

connector.

(4) Position the front splash shield.
(5) Lower the vehicle and connect the negative

battery cable.

SIDE REPEATER LAMP

REMOVAL

(1) Grip the side repeater lamp assembly and pull

straight from the fender.

(2) Rotate and pull the socket from the housing

(Fig. 4).

INSTALLATION

(1) Push and rotate the socket into the housing.
(2) Verify lamp operation.
(3) Press the lamp assembly into the fender

mounting hole.

FRONT FOG LAMP

REMOVAL

1. Remove the 2 screws from the bottom cover of

the lamp body.

2. Disconnect the 2 wires from the lamp element.
3. Remove the lamp element from the housing.

INSTALLATION

1. Install the new lamp element in the housing

and reinstall the lower housing.

REAR TURN SIGNAL, BACKUP, TAILLAMP AND
FOG LAMP

REMOVAL

(1) There are 3 mounting bolts attaching the tail-

light assembly. When removing, unfasten the 3 bolts
located on the top and side. Lift up and out to
remove the assembly.

(2) Turn the socket assembly 1/3 turn and pull the

socket from the housing (Fig. 5).

INSTALLATION

(1) Install the four lamp sockets in the taillamp

assembly.

(2) Verify lamp operation.
(3) Position the taillamp assembly and install the

retaining screws.

LICENSE PLATE LAMP

REMOVAL

(1) Remove the appropriate license plate lamp

retaining screws.

(2) Pull lamp housing from rear liftgate. Lamp

must be positioned properly to allow removal without
removing license plate.

(3) Rotate the lamp socket counter clockwise and

pull straight from lamp housing.

Fig. 4 Side Repeater Lamp

Fig. 5 Rear Lamp Replacement

XJ

LAMPS

8L - 9

REMOVAL AND INSTALLATION (Continued)

2000 JEEP CHEROKEE
