LAMP SERVICE

TABLE OF CONTENTS

page

page

REMOVAL AND INSTALLATION

HEADLAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FOG LAMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FRONT PARK/TURN SIGNAL LAMP . . . . . . . . . . . 15
SIDE MARKER LAMP. . . . . . . . . . . . . . . . . . . . . . 15
BACK-UP/BRAKE/REAR TURN SIGNAL/TAIL

LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CENTER HIGH MOUNTED STOP LAMP

(CHMSL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

LICENSE PLATE LAMP . . . . . . . . . . . . . . . . . . . . 16
UNDERHOOD LAMP . . . . . . . . . . . . . . . . . . . . . . 16
CARGO LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
MAP/READING LAMP . . . . . . . . . . . . . . . . . . . . . 17
VISOR VANITY LAMP. . . . . . . . . . . . . . . . . . . . . . 18

REMOVAL AND INSTALLATION

HEADLAMP

REMOVAL

(1) Remove the screws attaching the bezel to the

grille opening panel

(2) Remove the screws attaching the retaining ring

to the headlamp bucket.

(3) Disconnect the headlamp bulb wire harness

connector (Fig. 1).

(4) Separate the bulb from the vehicle.
(5) Remove the spring attaching the headlamp

bucket to the grille opening panel (Fig. 2).

(6) Slide the headlamp bucket downward to disen-

gage it from the headlamp adjusting screws.

INSTALLATION

(1) Position the headlamp bucket in the grille

opening panel and slide the headlamp bucket upward
to engage it with the headlamp adjusting screws.

(2) Install the spring attaching the headlamp

bucket to the grille opening panel.

(3) Connect the wire harness connector.
(4) Position the bulb in the bucket.
(5) Position retaining ring on the headlamp bulb

and install screws.

(6) Install the headlamp bezel.

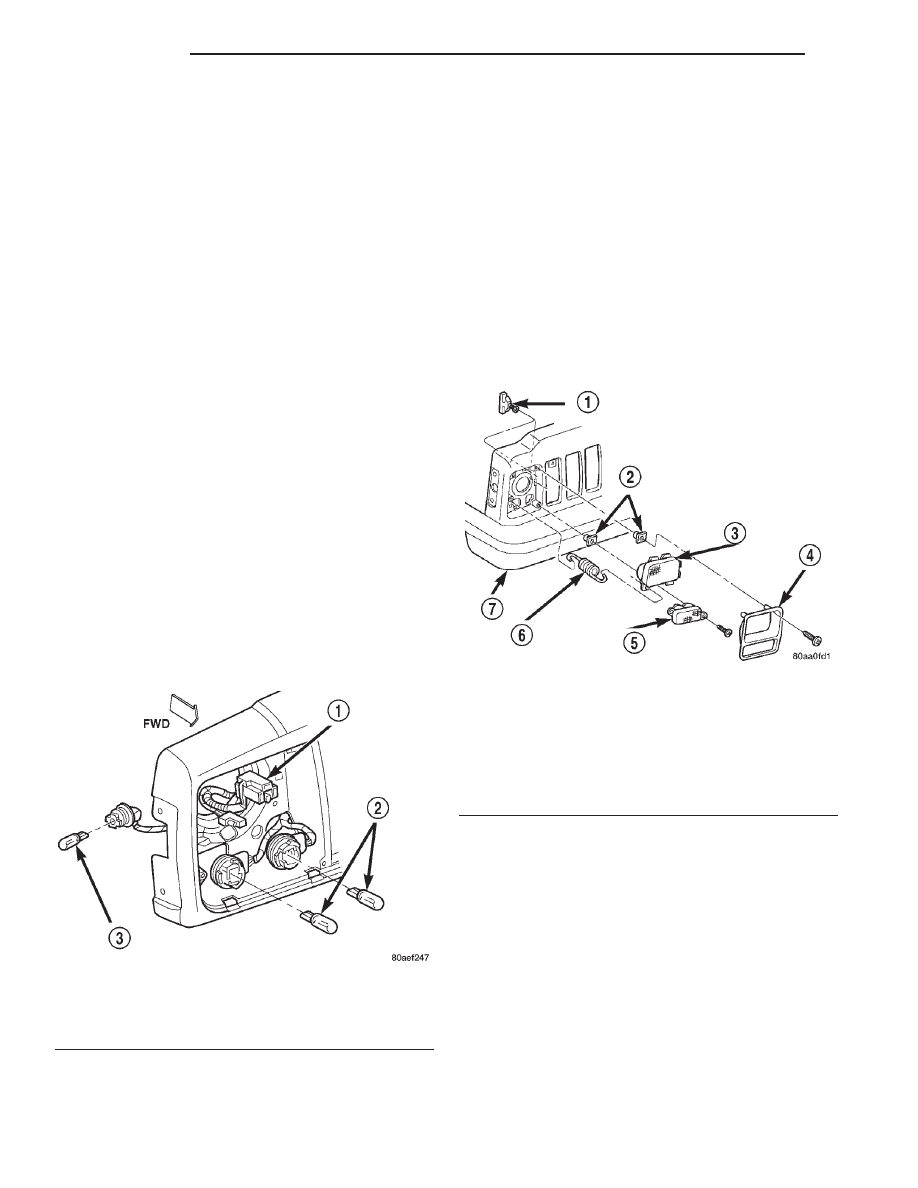

Fig. 1 Headlamp Connector

1 – HEADLAMP CONNECTOR
2 – PARK/TURN LAMP BULB
3 – SIDE MARKER LAMP BULB

Fig. 2 Headlamp

1 – HEADLAMP ADJUSTMENT
2 – NUT
3 – HEADLAMP
4 – BEZEL
5 – PARK/TURN LAMP
6 – SPRING
7 – BUMPER

8L - 14

LAMPS

XJ

FOG LAMP

REMOVAL

(1) Disconnect the fog lamp wire harness connec-

tor.

(2) Remove the screws attaching the fog lamp to

the support (Fig. 3).

(3) Separate the fog lamp from the vehicle.

INSTALLATION

(1) Position the fog lamp in the support bracket

and install the screws.

(2) Connect the fog lamp wire harness connector.

FRONT PARK/TURN SIGNAL LAMP

REMOVAL

(1) Remove the headlamp bezel.
(2) Remove the screws attaching the park/turn sig-

nal lamp housing to the grille opening panel (Fig. 4).

(3) Remove the bulb sockets and separate from the

vehicle.

INSTALLATION

(1) Install bulbs and sockets in the lamp housing.
(2) Position the park/turn signal lamp housing on

the grille opening panel and install the screws.

(3) Install the headlamp bezel.

SIDE MARKER LAMP

REMOVAL

(1) Remove screws attaching side marker lamp

lens to grille opening panel (Fig. 5).

(2) Remove bulb and socket from back side of

lamp.

INSTALLATION

(1) Install bulb and socket in back of side marker

lamp.

(2) Install side marker lamp in grille opening

panel.

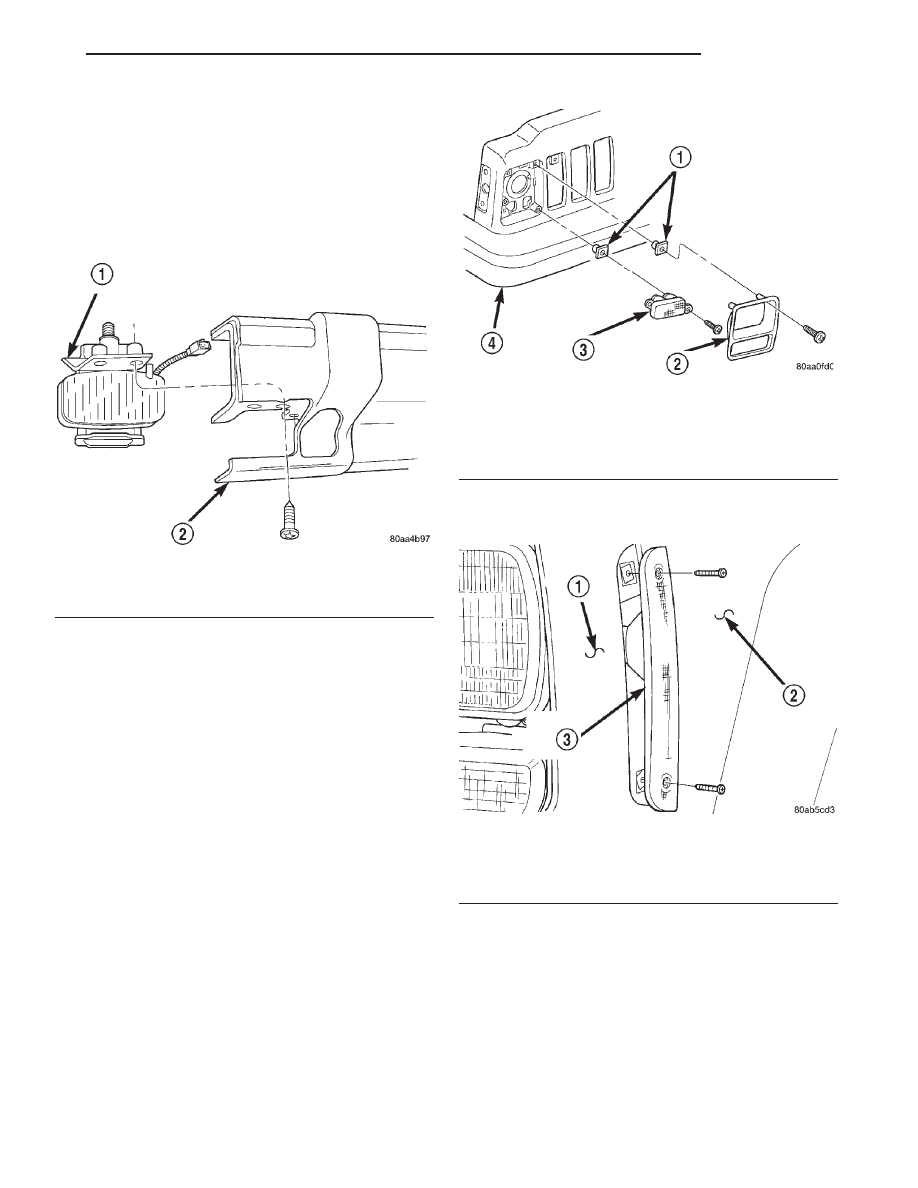

Fig. 3 Fog Lamp

1 – FOG LAMP
2 – BUMPER

Fig. 4 Park/Turn Signal Lamp

1 – NUT
2 – BEZEL
3 – PARK/TURN LAMP
4 – BUMPER

Fig. 5 Side Marker Lamp

1 – GRILLE OPENING PANEL
2 – FENDER
3 – SIDE MARKER LAMP

XJ

LAMPS

8L - 15

REMOVAL AND INSTALLATION (Continued)

BACK-UP/BRAKE/REAR TURN SIGNAL/TAIL
LAMP

REMOVAL

(1) Open the liftgate.
(2) Remove the bolts attaching the tail lamp hous-

ing to the quarter panel (Fig. 6).

(3) Grasp the lamp and pull to disengage it from

the grommet at the base of the lamp.

(4) Rotate the bulb sockets one-third turn and

remove the bulb sockets from the lamp housing.

INSTALLATION

(1) Install the bulb and sockets in the lamp hous-

ing.

(2) Position the lamp housing in the quarter panel

and push to engage the grommet.

(3) Install the lamp housing screws. Tighten the

screws securely.

(4) Install the bolts attaching the tail lamp hous-

ing to the quarter panel.

(5) Close the liftgate.

CENTER HIGH MOUNTED STOP LAMP
(CHMSL)

REMOVAL

(1) Remove the screws attaching the CHMSL to

the liftgate (Fig. 7).

(2) Disconnect the wire harness connector.
(3) Separate the CHMSL from the vehicle.

INSTALLATION

(1) Connect the wire harness connector.
(2) Position the CHMSL on the liftgate.

(3) Install the screws attaching the CHMSL to the

liftgate.

LICENSE PLATE LAMP

REMOVAL

(1) Remove screws attaching the license plate

lamp to the liftgate.

(2) Remove the bulb from the lamp socket.

INSTALLATION

(1) Install bulb in the lamp socket.
(2) Position the license plate lamp on the liftgate

and install screws.

UNDERHOOD LAMP

The underhood lamp is installed on the hood inner

panel. The lamp illuminates when the hood is
opened. A switch that is integral with the lamp base
controls the operation. The switch provides automatic
ON/OFF functions each time the hood is opened and
closed.

REMOVAL

(1) Disconnect the wire harness connector from the

lamp.

(2) Remove lamp lens.
(3) Remove bulb.
(4) Remove screw attaching underhood lamp to the

inner hood panel.

(5) Separate underhood lamp from vehicle.

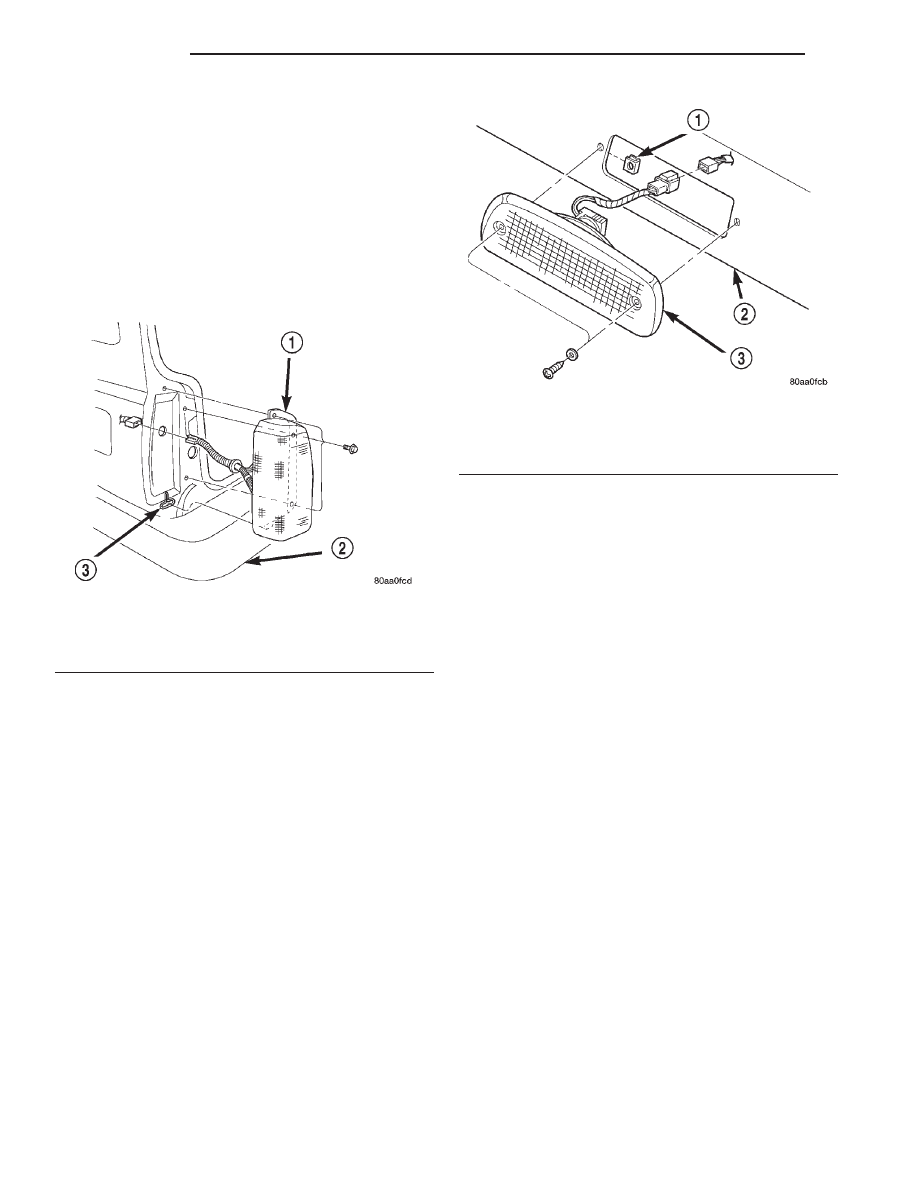

Fig. 6 Tail Lamp

1 – TAIL LAMP
2 – REAR BUMPER
3 – GROMMET

Fig. 7 Center High Mounted Stop lamp

1 – U-NUT
2 – LIFTGATE
3 – CHMSL

8L - 16

LAMPS

XJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Position underhood lamp on hood inner panel.

Ensure anti-rotation tab is positioned in slot on hood
inner panel.

(2) Install the attaching screw through the lamp

and into the hood panel (Fig. 8). Tighten the screw
securely.

(3) Fold lamp housing over and firmly press onto

base to snap into place.

(4) Connect the wire harness connector to the

lamp.

CARGO LAMP

REMOVAL

(1) Insert a small flat blade into the access slots

(Fig. 9).

(2) Carefully pry the lens from the lamp.
(3) Disengage the lens mounting tabs from the

lamp mounting pins (Fig. 10).

(4) Remove the fasteners attaching the lamp to the

roof.

(5) Remove the lamp housing from the headliner

cavity.

(6) Disconnect the wire harness connector.

INSTALLATION

(1) Position the dome lamp housing at the head-

liner cavity.

(2) Connect the wire harness connector.
(3) Install the fasteners attaching the lamp to the

roof.

(4) Position the lens at the lamp housing and force

it upward into the housing until the mounting tabs
are seated on the lamp mounting pins.

MAP/READING LAMP

The map/reading lamp can be serviced by removing

the overhead console. Refer to Group 8C, Overhead
Console for removal/installation procedures.

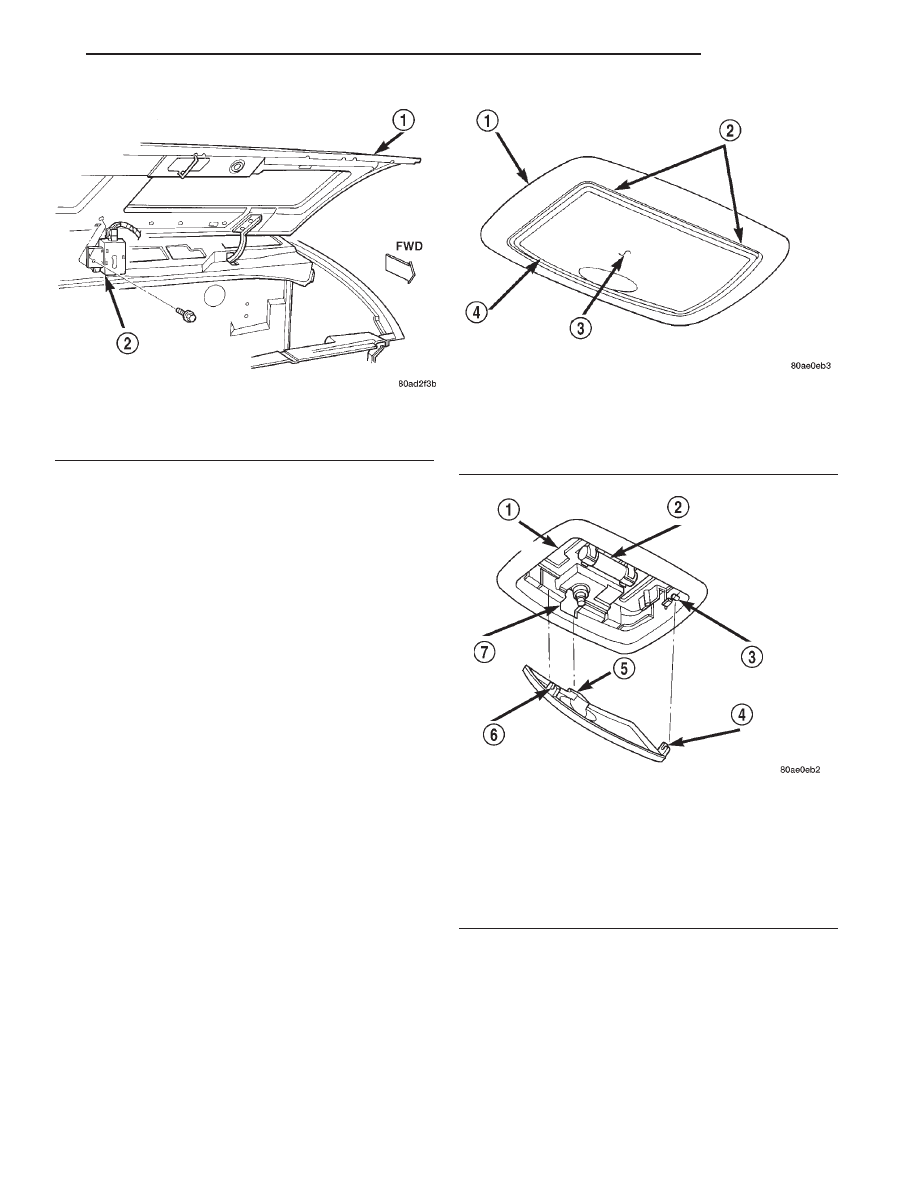

Fig. 8 Underhood Lamp

1 – HOOD
2 – UNDERHOOD LAMP/SWITCH

Fig. 9 Cargo Lamp

1 – HOUSING
2 – SCREWDRIVER SLOTS
3 – CARGO LAMP
4 – LENS

Fig. 10 Cargo Lamp Lens

1 – MOUNTING PIN ON UNDERSIDE
2 – BULB
3 – MOUNTING PIN
4 – MOUNTING TAB
5 – TAB “A”
6 – MOUNTING TAB
7 – SLOT “B”

XJ

LAMPS

8L - 17

REMOVAL AND INSTALLATION (Continued)
