LAMP BULB SERVICE

TABLE OF CONTENTS

page

page

REMOVAL AND INSTALLATION

HEADLAMP BULB . . . . . . . . . . . . . . . . . . . . . . . . 10
FOG LAMP BULB. . . . . . . . . . . . . . . . . . . . . . . . . 10
FRONT PARK/TURN SIGNAL LAMP BULB . . . . . . 11
SIDE MARKER LAMP BULB . . . . . . . . . . . . . . . . . 11
BACK-UP/BRAKE/REAR TURN SIGNAL/TAIL

LAMP BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LICENSE PLATE LAMP BULB . . . . . . . . . . . . . . . 12
CENTER HIGH MOUNTED STOP LAMP

(CHMSL) BULB . . . . . . . . . . . . . . . . . . . . . . . . . 12

UNDERHOOD LAMP BULB . . . . . . . . . . . . . . . . . 12
CARGO LAMP BULB . . . . . . . . . . . . . . . . . . . . . . 13
MAP READING LAMP BULB. . . . . . . . . . . . . . . . . 13
VISOR VANITY LAMP BULB. . . . . . . . . . . . . . . . . 13

REMOVAL AND INSTALLATION

HEADLAMP BULB

REMOVAL

(1) Remove the screws attaching the bezel to the

grille opening panel (Fig. 1).

(2) Remove screws attaching the retaining ring to

the headlamp canister.

(3) Disconnect the headlamp bulb wire harness

connector.

(4) Separate the sealed beam from the vehicle.

INSTALLATION

(1) Connect wire harness connector.
(2) Position bulb in canister.

(3) Position retaining ring on sealed beam and

install screws.

(4) Install headlamp bezel.

FOG LAMP BULB

REMOVAL

(1) Remove the screws attaching the access cover

to the bottom of the fog lamp (Fig. 2).

(2) Remove spring clip securing bulb to fog lamp.
(3) Disconnect bulb wire connector.
(4) Remove bulb element from fog lamp.

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers
or other oily surfaces. Reduced bulb life will result.

(1) Position bulb element in fog lamp.

Fig. 1 Headlamp Bezel

1 – HEADLAMP ADJUSTMENT
2 – NUT
3 – HEADLAMP
4 – BEZEL
5 – PARK/TURN LAMP
6 – SPRING
7 – BUMPER

Fig. 2 Fog Lamp Components

1 – FOG LAMP
2 – CLIP
3 – BULB
4 – ACCESS COVER
5 – BULB SOCKET

8L - 10

LAMPS

XJ

(2) Connect bulb wire connector.
(3) Install spring clip securing bulb to fog lamp.
(4) Install screws attaching the access cover to the

bottom of the fog lamp.

FRONT PARK/TURN SIGNAL LAMP BULB

REMOVAL

(1) Remove headlamp bezel.
(2) Remove

screws

attaching

park/turn

signal

lamp housing to grille opening panel.

(3) Rotate bulb socket one-third turn counter-clock-

wise and remove it from lamp housing (Fig. 3).

(4) Pull bulb from socket.

INSTALLATION

(1) Install bulb in socket.
(2) Install socket in lamp housing.
(3) Install park/turn signal lamp housing.
(4) Install headlamp bezel.

SIDE MARKER LAMP BULB

REMOVAL

(1) Remove screws attaching side marker lamp

housing.

(2) Rotate bulb socket counter-clockwise and pull

from back side of lamp housing (Fig. 4).

(3) Pull bulb from socket.

INSTALLATION

(1) Install bulb in socket.
(2) Install bulb and socket in back of side marker

lamp housing.

(3) Install side marker lamp housing.

BACK-UP/BRAKE/REAR TURN SIGNAL/TAIL
LAMP BULB

REMOVAL

(1) Remove tail lamp housing.
(2) Rotate bulb socket one-third turn counter-clock-

wise and remove bulb socket from lamp housing (Fig.
5).

(3) Pull bulb from socket.

INSTALLATION

(1) Install bulb in socket.
(2) Install bulb and socket in lamp housing.
(3) Install lamp housing.

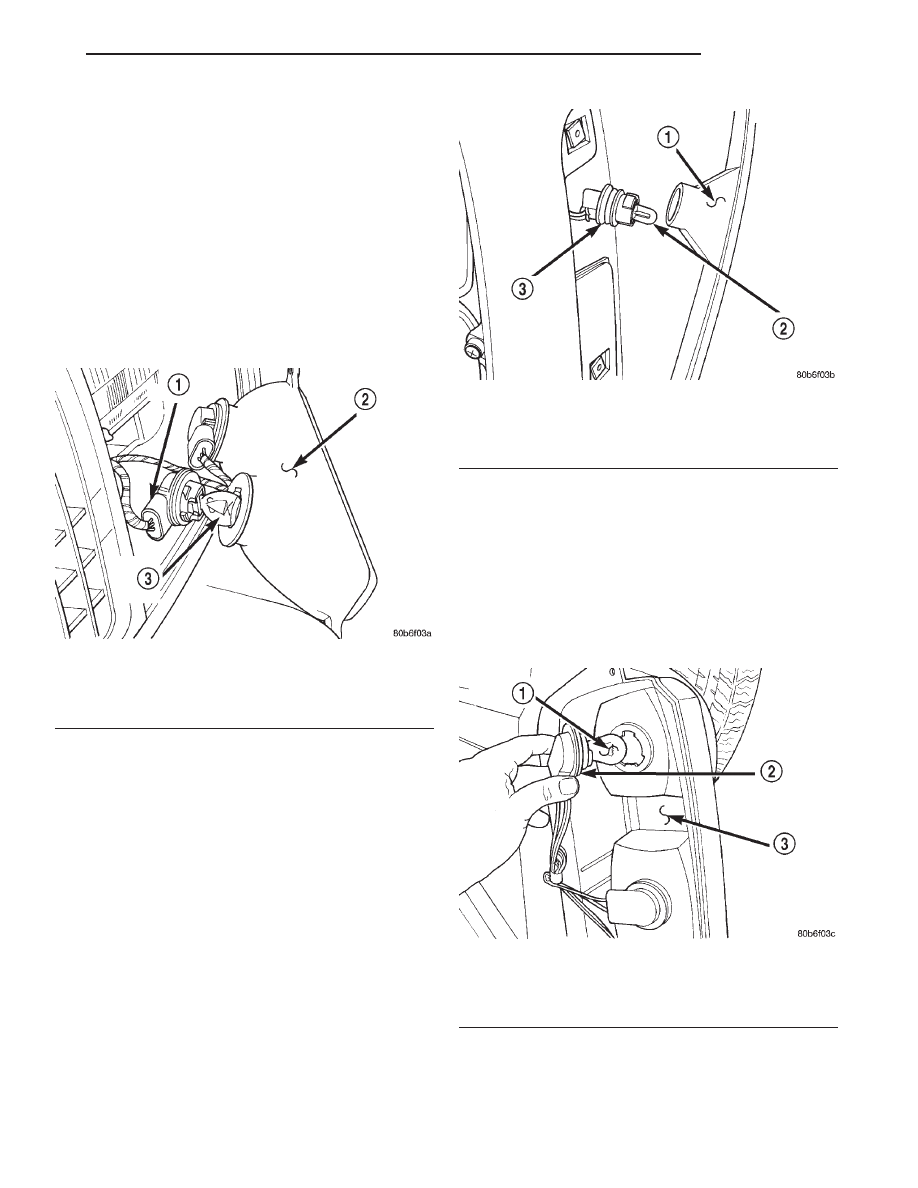

Fig. 3 Park/Turn Signal Lamp Bulb

1 – BULB SOCKET
2 – PARK LAMP HOUSING
3 – PARK LAMP BULB

Fig. 4 Side Marker Lamp

1 – SIDE MARKER LAMP HOUSING
2 – SIDE MARKER LAMP BULB
3 – BULB SOCKET

Fig. 5 Bulb Socket Removal

1 – TAIL LAMP BULB
2 – BULB SOCKET
3 – TAIL LAMP HOUSING

XJ

LAMPS

8L - 11

REMOVAL AND INSTALLATION (Continued)

LICENSE PLATE LAMP BULB

REMOVAL

(1) Remove screws attaching license plate lamp

housing to liftgate.

(2) Rotate

bulb

socket

counter-clockwise

and

remove bulb socket from lamp housing.

(3) Pull bulb from socket.

INSTALLATION

(1) Install bulb in lamp socket.
(2) Install bulb socket in lamp housing.
(3) Install screws attaching license plate lamp

housing to liftgate.

CENTER HIGH MOUNTED STOP LAMP
(CHMSL) BULB

REMOVAL

(1) Remove the screws attaching the lamp housing

to the liftgate.

(2) Rotate bulb socket 1/4 turn counter-clockwise

and pull from housing (Fig. 6).

(3) Pull bulb from socket.

INSTALLATION

(1) Push bulb into socket.
(2) Position socket in lamp and rotate 1/4 turn

clockwise.

(3) Install screws attaching lamp housing to the

liftgate.

UNDERHOOD LAMP BULB

REMOVAL

(1) Insert a small flat blade in the access slot

between the lamp base and lamp lens.

(2) Pry the lamp lens upward and remove the

lamp lens (Fig. 7).

(3) Depress the bulb terminal inward (Fig. 8) to

release the bulb.

INSTALLATION

(1) Engage the replacement bulb wire loop to the

terminal closest to the lamp base wire connector.

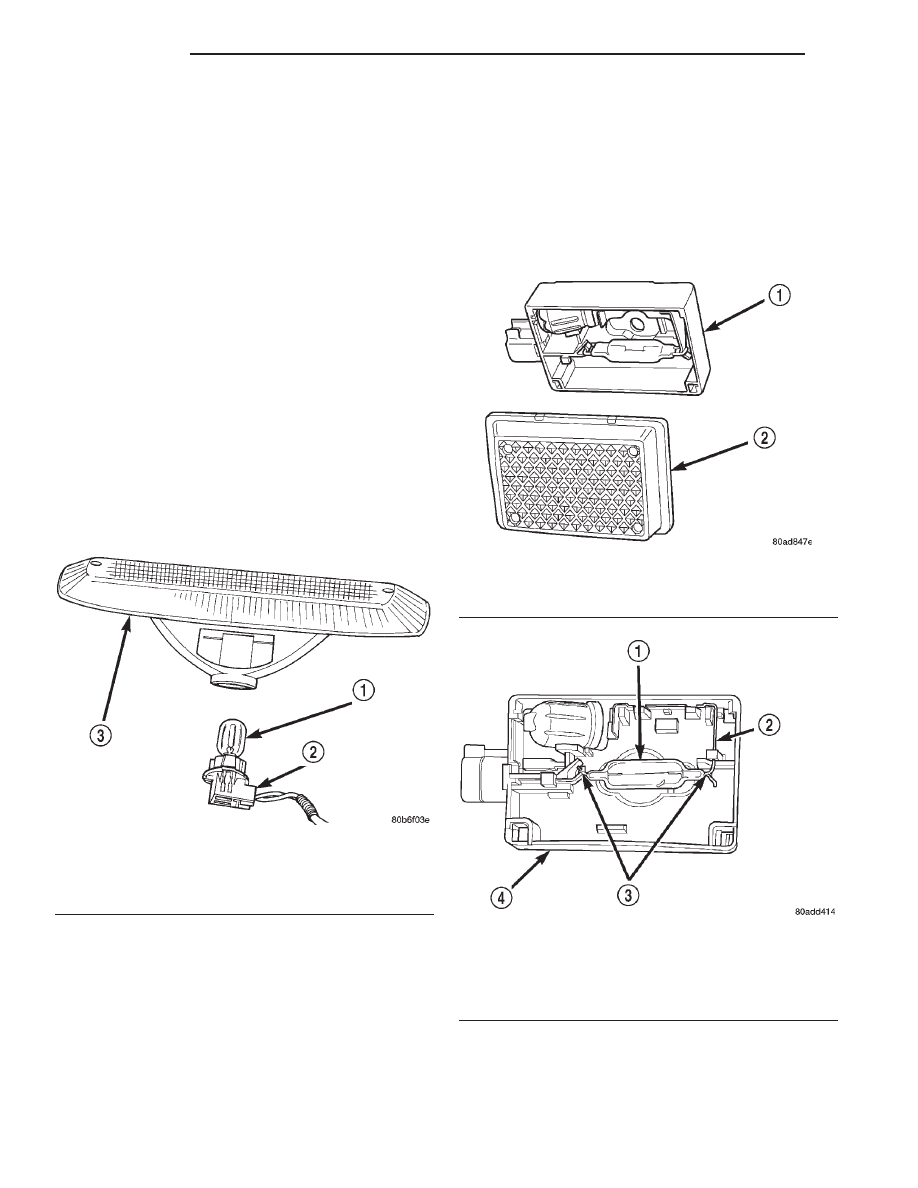

Fig. 6 CHMSL Bulb

1 – CHMSL BULB
2 – BULB SOCKET
3 – CHMSL LAMP HOUSING

Fig. 7 Underhood Lamp Lens

1 – LAMP
2 – LAMP LENS

Fig. 8 Underhood Lamp Bulb

1 – BULB
2 – DEPRESS TERMINAL INWARD
3 – BULB WIRE LOOP
4 – LAMP BASE

8L - 12

LAMPS

XJ

REMOVAL AND INSTALLATION (Continued)

(2) Depress the opposite terminal inward and

engage the remaining bulb wire loop.

(3) Position the lamp lens on the lamp base and

press into place.

CARGO LAMP BULB

REMOVAL

(1) Insert a small flat blade into the access slots

(Fig. 9).

(2) Carefully pry the lens from the lamp.
(3) Grasp bulb and pull from lamp.

INSTALLATION

(1) Position bulb in lamp and snap into place.
(2) Position the lens at the lamp housing and force

it upward into the housing until the mounting tabs
are seated on the lamp mounting pins.

MAP READING LAMP BULB

REMOVAL

(1) Insert a flat blade screwdriver in slot at front

of lens (Fig. 10).

(2) Rotate the screwdriver until lens snaps out of

the housing.

(3) Remove lens from housing.
(4) Remove bulb from terminals.

INSTALLATION

(1) Insert bulb into reading lamp terminals.
(2) Replace lens by holding lens level and pushing

rearward into housing.

(3) Push lens up to snap into housing.

VISOR VANITY LAMP BULB

REMOVAL

(1) Using a small flat blade, carefully pry each cor-

ner of lens outward from lamp.

(2) Separate lens from lamp.
(3) Grasp bulb and pull outward.

INSTALLATION

(1) Position bulb in socket and push into place.
(2) Position lens on lamp and snap into place.

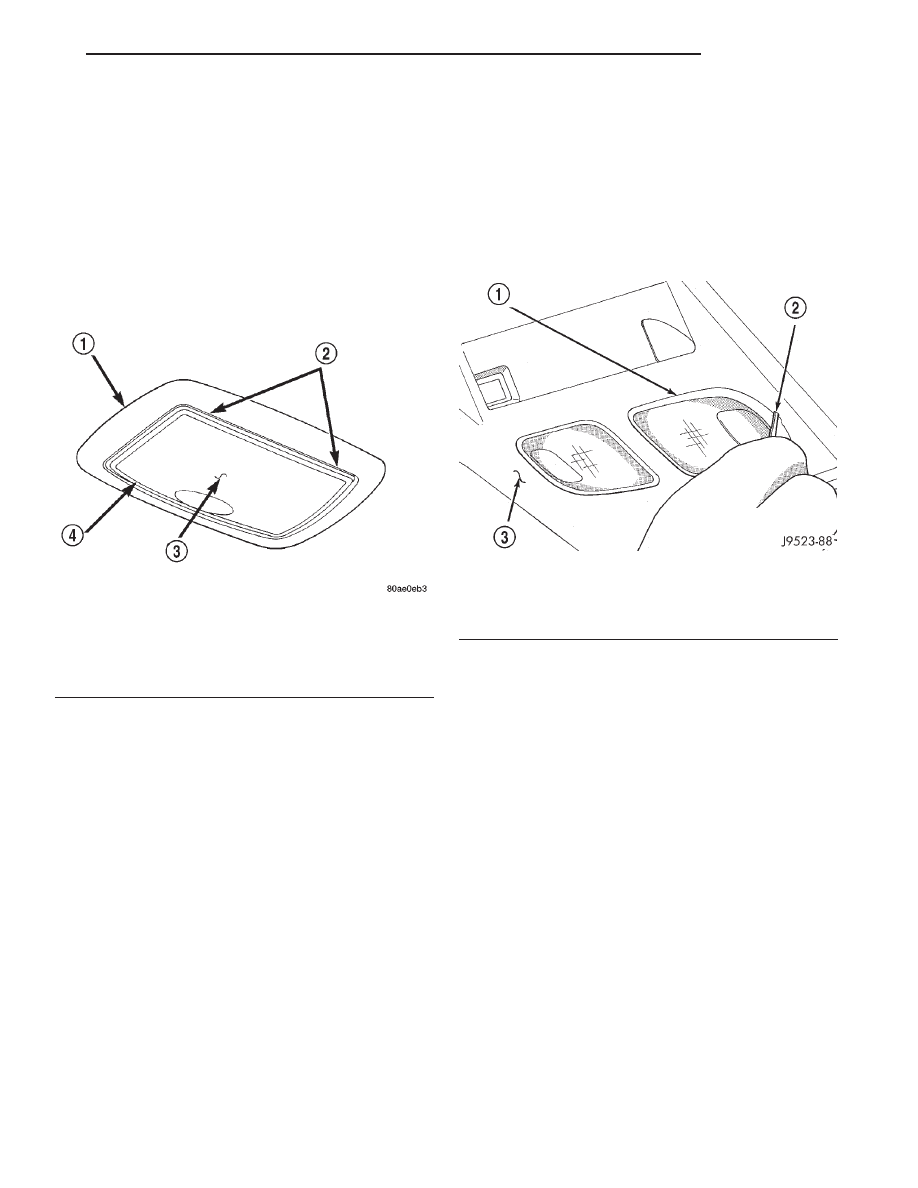

Fig. 9 Cargo Lamp Lens

1 – HOUSING
2 – SCREWDRIVER SLOTS
3 – CARGO LAMP
4 – LENS

Fig. 10 Reading Lamp Bulb

1 – LENS
2 – FLAT BLADE
3 – CONSOLE

XJ

LAMPS

8L - 13

REMOVAL AND INSTALLATION (Continued)
