Jeep XJ. Manual - part 61





CLUTCH

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

CLUTCH COMPONENTS . . . . . . . . . . . . . . . . . . . . 1
CLUTCH HYDRAULIC SYSTEM . . . . . . . . . . . . . . 1

REMOVAL AND INSTALLATION

CLUTCH COVER AND DISC . . . . . . . . . . . . . . . . . 1
PILOT BEARING . . . . . . . . . . . . . . . . . . . . . . . . . . 3

FLYWHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FLYWHEEL RING GEAR . . . . . . . . . . . . . . . . . . . . 7

SPECIFICATIONS

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 8

SPECIAL TOOLS

SPECIAL TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DESCRIPTION AND OPERATION

CLUTCH COMPONENTS

The clutch mechanism consists of a single, dry-type

clutch disc and a diaphragm style clutch cover. A
hydraulic linkage is used to operate the clutch disc
and cover. The clutch components are very similar to
those used in gas engine models.

A pilot bearing is used to support the transmission

input shaft. The bearing is seated in a separate,
removable housing bolted to the flywheel hub.

CLUTCH HYDRAULIC SYSTEM

The clutch hydraulic system should not require

additional fluid under normal circumstances.

NOTE: The

reservoir

fluid

level

will

actually

increase as normal clutch wear occurs. For this rea-
son, it is important to avoid over filling, or remov-
ing fluid from the reservoir.

If inspection indicates additional fluid is needed,

add fluid from a sealed container only. Use Mopar

t

brake fluid, or an equivalent meeting standards SAE
J1703 and DOT 3. Do not use any other type of fluid.

REMOVAL AND INSTALLATION

CLUTCH COVER AND DISC

REMOVAL

(1) Remove the transmission. Refer to Group 21,

Transmission and Transfer Case for procedure.

(2) If the original clutch cover will be reinstalled,

mark position of cover on flywheel for assembly ref-
erence. Use paint or scribe for this purpose.

(3) If the clutch cover is to be replaced, cover bolts

can be removed in any sequence. However, if original
cover will be reinstalled, loosen cover bolts evenly in

a star pattern to relieve spring tension equally. This
is necessary to avoid warping the cover.

(4) Remove the clutch cover bolts and remove

cover and disc (Fig. 1).

INSTALLATION

(1) Lightly scuff sand flywheel face with 180 grit

emery cloth. Then clean surface with brake cleaner.

(2) Lightly lubricate the pilot bearing with Mopar

t

high temperature bearing grease.

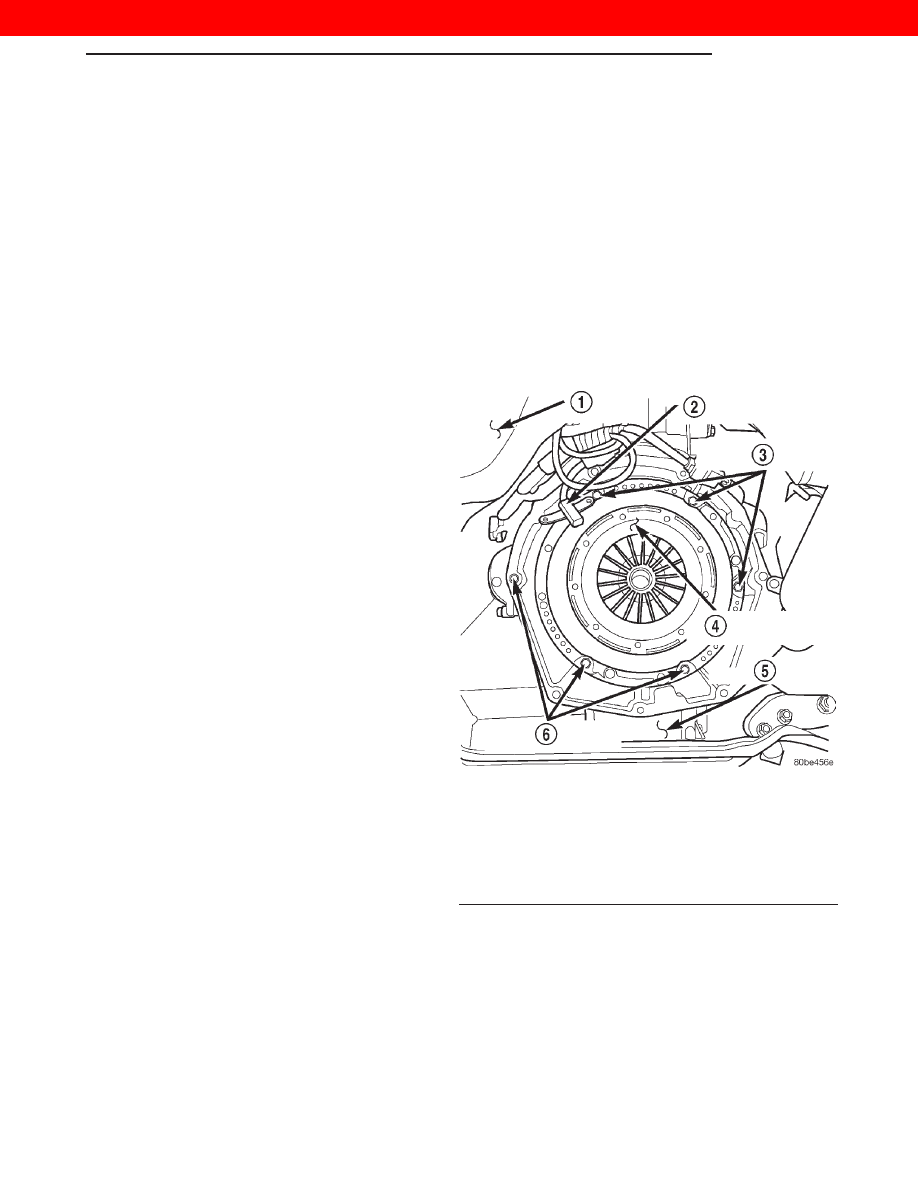

Fig. 1 Clutch Cover (Pressure Plate) View

1 – VEHICLE UNDERBODY
2 – ENGINE SPEED SENSOR
3 – PRESSURE PLATE RETAINING BOLTS
4 – CLUTCH COVER (PRESSURE PLATE)
5 – ENGINE OIL PAN
6 – PRESSURE PLATE RETAINING BOLTS

XJ

CLUTCH

6 - 1

2000 JEEP CHEROKEE

(3) Check free operation of clutch disc by sliding

disc onto transmission output shaft splines. Disc
should slide onto splines freely without binding.

(4) Position the clutch disc on flywheel. Be sure

side of disc marked “flywheel side” is positioned
against flywheel (Fig. 3). If disc is not marked, be
sure flat side of disc hub is placed toward the fly-
wheel.

(5) Insert the clutch alignment tool (Fig. 4) in

clutch disc and pilot bearing.

(6) Position the clutch cover over the disc and on

the flywheel (Fig. 5).

(7) Install the clutch cover bolts finger tight (Fig.

5).

(8) Starting with the bolts marked “P” on the cover

first, tighten clutch cover bolts in a star pattern to 50
N·m torque (37 ft. lbs.).

(9) Apply light coat of Mopar

t high temperature

bearing grease to pilot bearing and splines of trans-
mission input shaft.

CAUTION: Do not over-lubricate as this will result
in grease contamination of the disc.

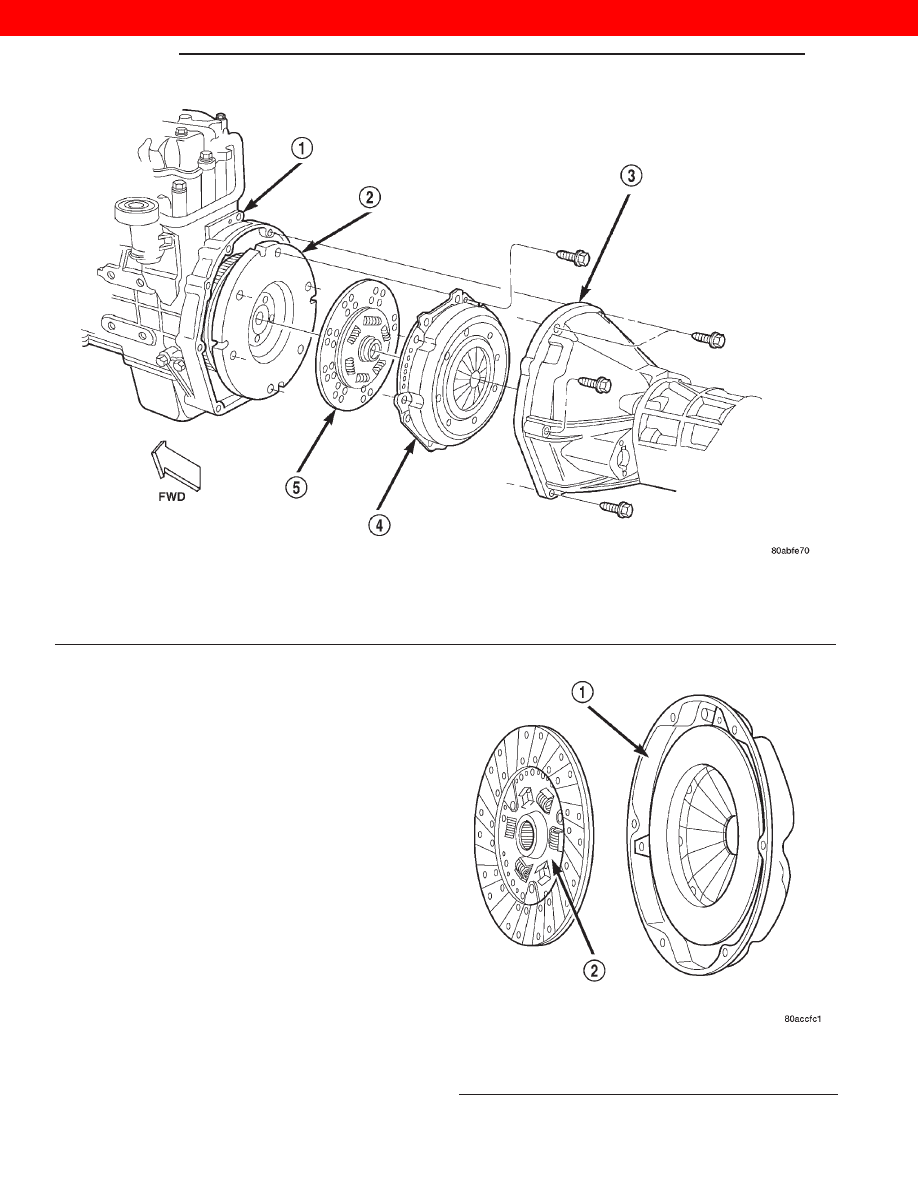

Fig. 2 Clutch Components (VM Diesel)

1 – ENGINE BLOCK
2 – FLYWHEEL
3 – CLUTCH HOUSING AND TRANSMISSION

4 – CLUTCH COVER
5 – CLUTCH DISC

Fig. 3 Clutch Disc Position

1 – INSPECT THIS SURFACE
2 – “FLYWHEEL SIDE” STAMPED ON THIS SURFACE

6 - 2

CLUTCH

XJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP CHEROKEE

(10) Install the transmission and transfer case.

Refer to Group 21, Transmission and Transfer Case
for procedure.

PILOT BEARING

REMOVAL

(1) Remove the transmission and transfer case.

Refer to Group 21, Transmission and Transfer Case
for procedures.

(2) Remove the clutch cover and disc (Fig. 6). Refer

to clutch cover and disc removal and installation in
this group.

(3) Remove the four bolts that attach the pilot

bearing retainer to the flywheel (Fig. 7).

(4) Remove the pilot bearing retainer.
(5) Support the bearing retainer on two wood

blocks.

(6) Remove the pilot bearing with a suitable sized

socket and extension (Fig. 8). Use mallet to tap bear-
ing out of retainer.

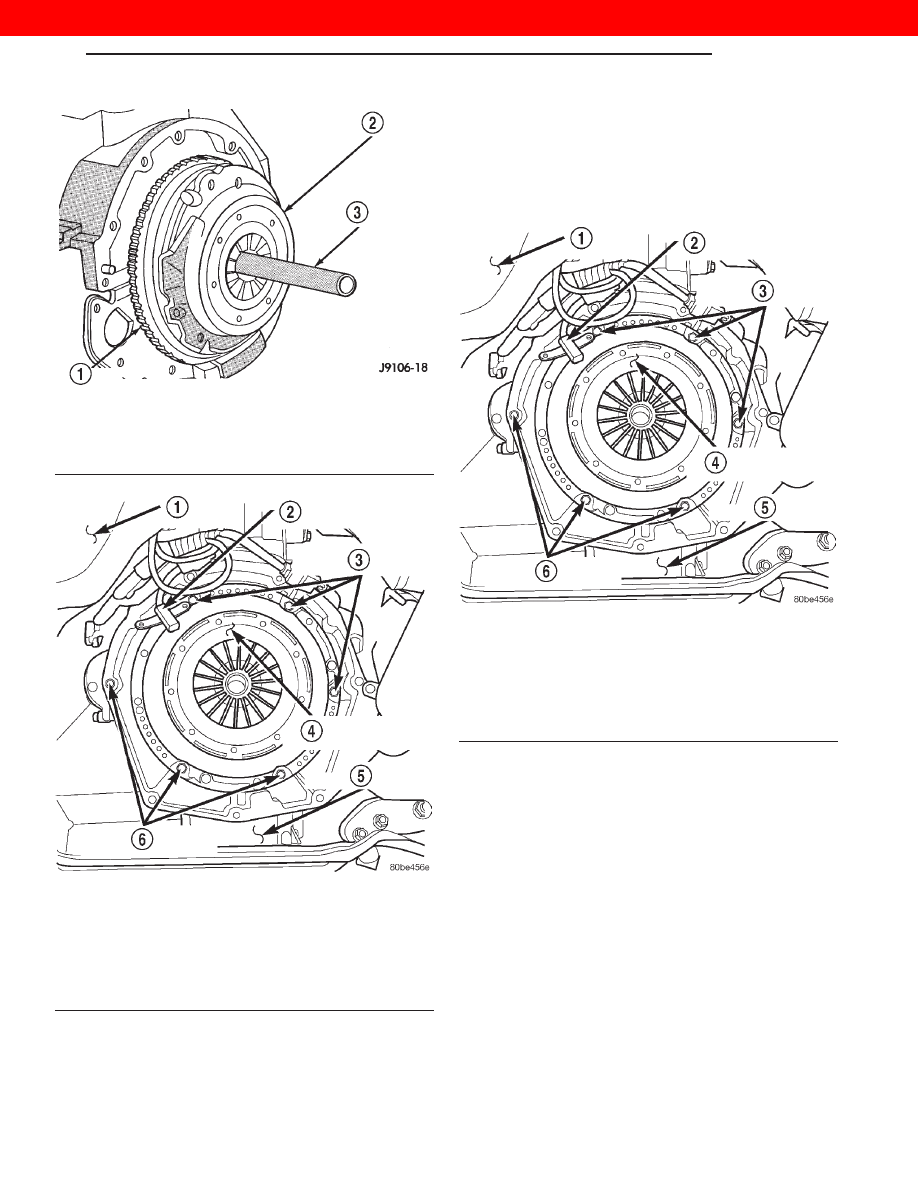

Fig. 4 Clutch Disc Alignment – Typical

1 – FLYWHEEL
2 – CLUTCH COVER AND DISC
3 – CLUTCH DISC ALIGNMENT TOOL

Fig. 5 Clutch Cover (Pressure Plate) View

1 – VEHICLE UNDERBODY
2 – ENGINE SPEED SENSOR
3 – PRESSURE PLATE RETAINING BOLTS
4 – CLUTCH COVER (PRESSURE PLATE)
5 – ENGINE OIL PAN
6 – PRESSURE PLATE RETAINING BOLTS

Fig. 6 Clutch Cover (Pressure Plate) View

1 – VEHICLE UNDERBODY
2 – ENGINE SPEED SENSOR
3 – PRESSURE PLATE RETAINING BOLTS
4 – CLUTCH COVER (PRESSURE PLATE)
5 – ENGINE OIL PAN
6 – PRESSURE PLATE RETAINING BOLTS

XJ

CLUTCH

6 - 3

REMOVAL AND INSTALLATION (Continued)

2000 JEEP CHEROKEE
