DISASSEMBLY AND ASSEMBLY

STANDARD DIFFERENTIAL

DISASSEMBLY

(1) Remove pinion mate shaft lock screw (Fig. 49).
(2) Remove pinion mate shaft.
(3) Rotate the differential side gears and remove

the differential pinion gears and thrust washers (Fig.
50).

(4) Remove the differential side gears and thrust

washers.

ASSEMBLY

(1) Install the differential side gears and thrust

washers.

(2) Install the differential pinion gears and thrust

washers.

(3) Install the pinion mate shaft.
(4) Align the hole in the pinion mate shaft with

the hole in the differential case and install the pinion
mate shaft lock screw.

(5) Lubricate

all

differential

components

with

hypoid gear lubricant.

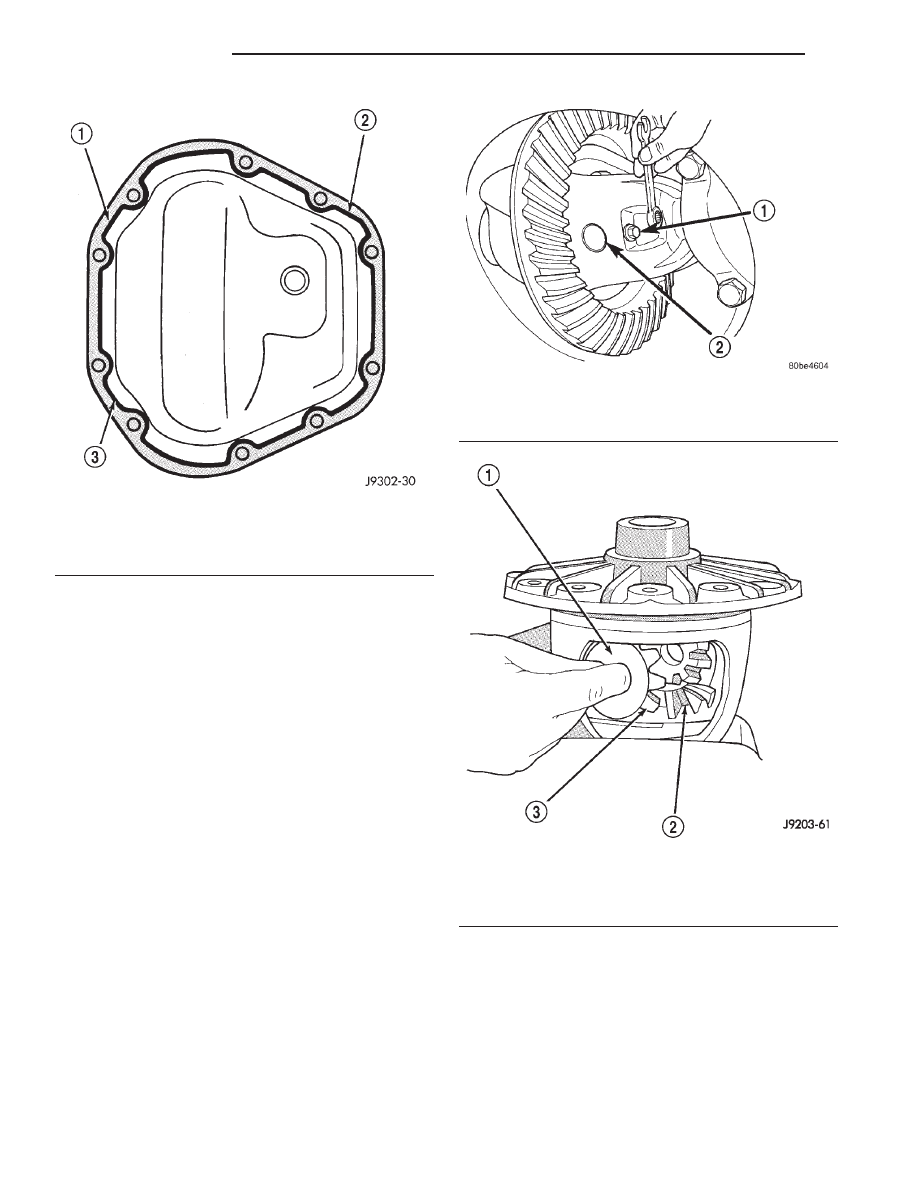

Fig. 48 Typical Housing Cover With Sealant

1 – SEALING SURFACE
2 – CONTOUR OF BEAD
3 – BEAD THICKNESS 6.35mm (1/4”)

Fig. 49 Pinion Mate Shaft Lock Screw

1 – LOCK SCREW
2 – PINION MATE SHAFT

Fig. 50 Pinion Mate Gear Removal

1 – THRUST WASHER
2 – SIDE GEAR
3 – PINION MATE GEAR

3 - 86

194 RBI AXLE

XJ

REMOVAL AND INSTALLATION (Continued)

TRAC-LOK

DIFFERENTIAL

The Trac–lok

y differential components are illus-

trated in (Fig. 51). Refer to this illustration during
repair service.

DISASSEMBLY

(1) Clamp Side Gear Holding Tool 6965 in a vise.
(2) Position the differential case on Side Gear

Holding Tool 6965 (Fig. 52).

(3) Remove ring gear, if necessary. Ring gear

removal is necessary only if the ring gear is to be
replaced. The Trac-lok

y differential can be serviced

with the ring gear installed.

(4) Remove the pinion gear mate shaft lock screw

(Fig. 53).

(5) Remove the pinion gear mate shaft. If neces-

sary, use a drift and hammer (Fig. 54).

(6) Install and lubricate Step Plate C-6960-3 (Fig.

55).

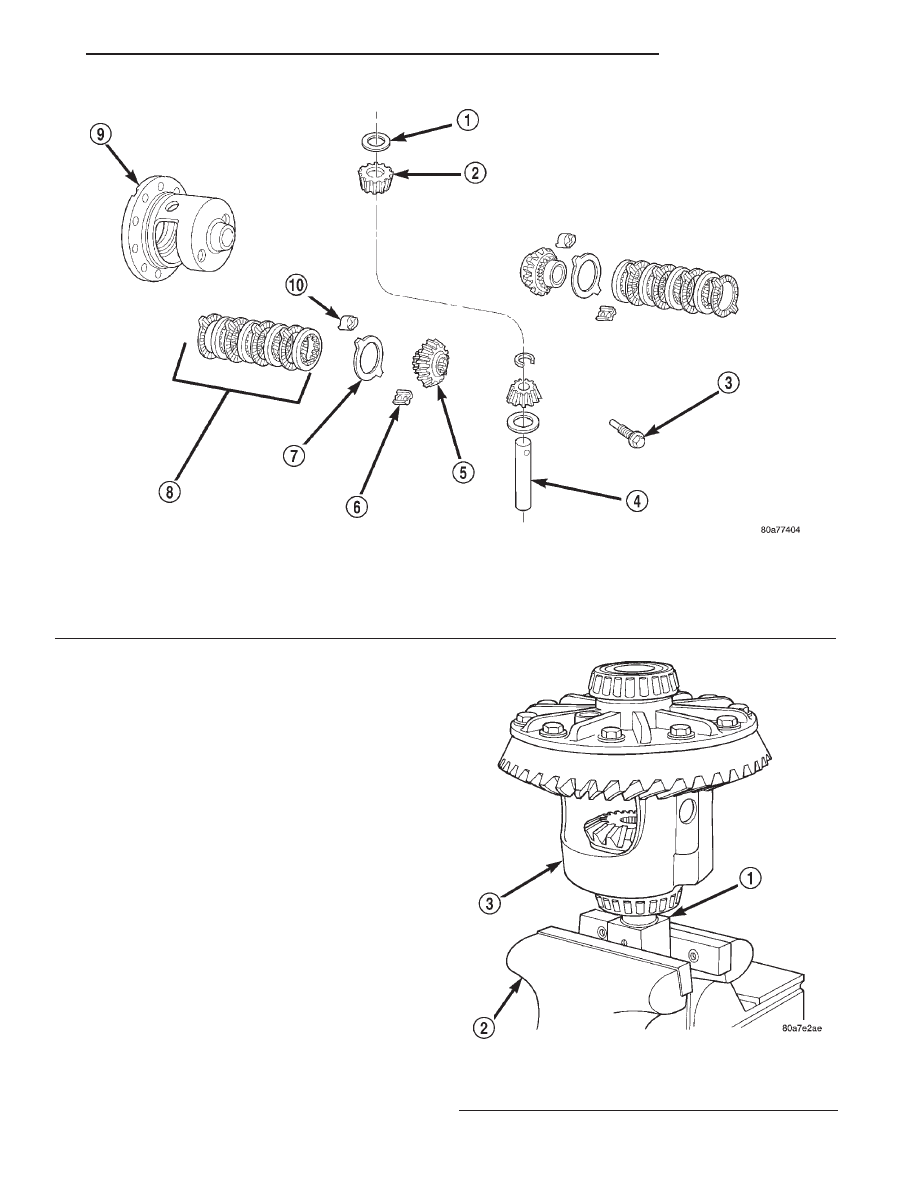

Fig. 51 Trac–lok

Y

Differential Components

1 – THRUST WASHER
2 – PINION
3 – SHAFT LOCK SCREW
4 – PINION MATE SHAFT
5 – SIDE GEAR

6 – RETAINER
7 – DISC
8 – CLUTCH PACK
9 – DIFFERENTIAL CASE
10 – RETAINER

Fig. 52 Differential Case Holding Tool

1 – SPECIAL TOOL 6965
2 – VISE
3 – DIFFERENTIAL

XJ

194 RBI AXLE

3 - 87

DISASSEMBLY AND ASSEMBLY (Continued)

(7) Assemble Threaded Adapter C-6960-1 into top

side gear. Thread Forcing Screw C-6960-4 into
adapter until it becomes centered in adapter plate.

(8) Position

a

small

screw

driver

in

slot

of

Threaded Adapter C-6960-1 (Fig. 56) to prevent
adapter from turning.

(9) Tighten forcing screw tool 122 N·m (90 ft. lbs.)

maximum to compress Belleville springs in clutch
packs (Fig. 57).

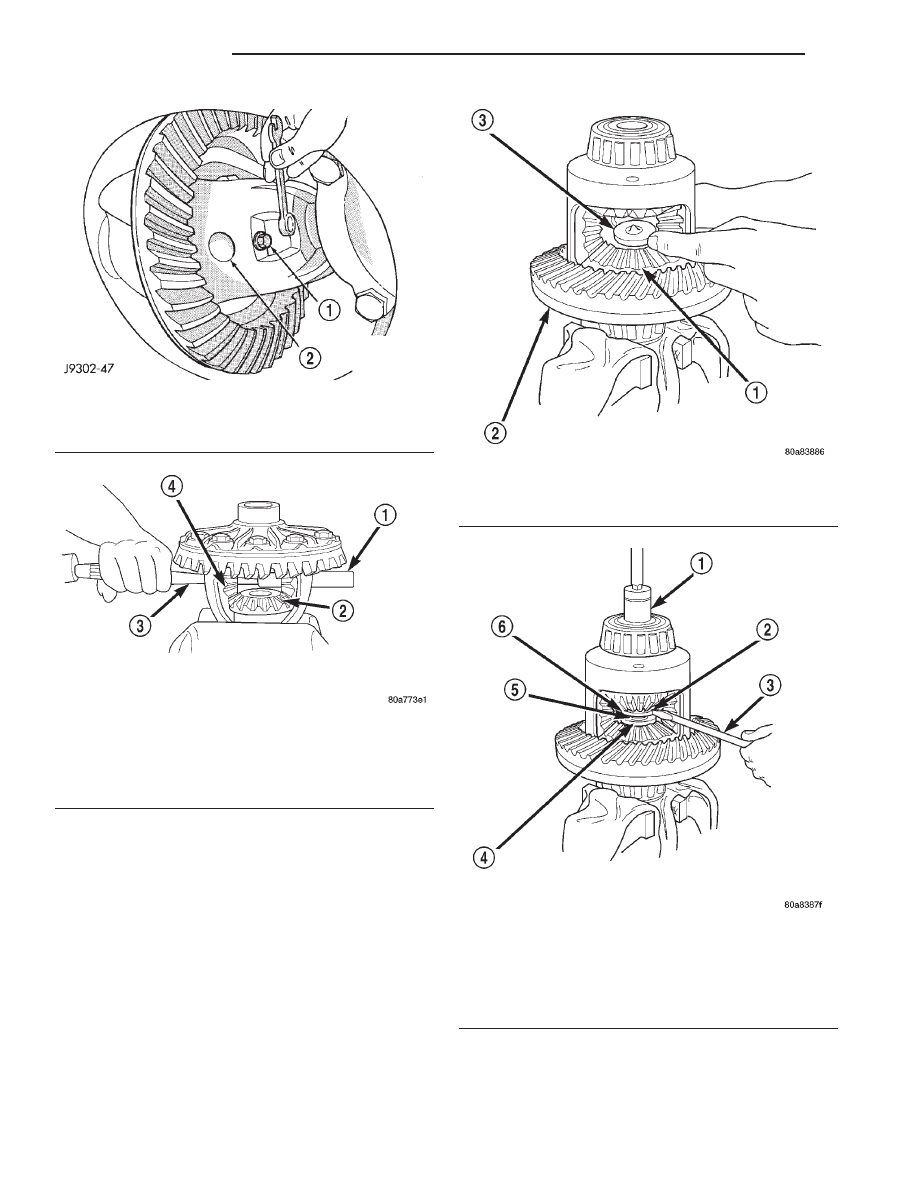

Fig. 53 Mate Shaft Lock Screw

1 – LOCK SCREW
2 – PINION GEAR MATE SHAFT

Fig. 54 Mate Shaft Removal

1 – PINION MATE SHAFT
2 – SIDE GEAR
3 – DRIFT
4 – PINION MATE GEAR

Fig. 55 Step Plate Tool Installation

1 – LOWER SIDE GEAR
2 – DIFFERENTIAL CASE
3 – SPECIAL TOOL C-6960–3

Fig. 56 Threaded Adapter Installation

1 – SOCKET
2 – SLOT IN ADAPTER
3 – SCREWDRIVER
4 – DISC C-6960–3
5 – THREADED ROD C-6960–4
6 – THREADED ADAPTER DISC C–6960–1

3 - 88

194 RBI AXLE

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(10) Using

an

appropriate

size

feeler

gauge,

remove thrust washers from behind the pinion gears
(Fig. 58).

(11) Insert Turning Bar C-6960-2 in case (Fig. 59).
(12) Loosen the Forcing Screw C-6960-4 in small

increments until the clutch pack tension is relieved
and the differential case can be turned using Turning
Bar C-6960-2.

(13) Rotate differential case until the pinion gears

can be removed.

(14) Remove pinion gears from differential case.

(15) Remove Forcing Screw C-6960-4, Step Plate

C-6960-3, and Threaded Adapter C-6960-1.

(16) Remove top side gear, clutch pack retainer,

and clutch pack. Keep plates in correct order during
removal (Fig. 60).

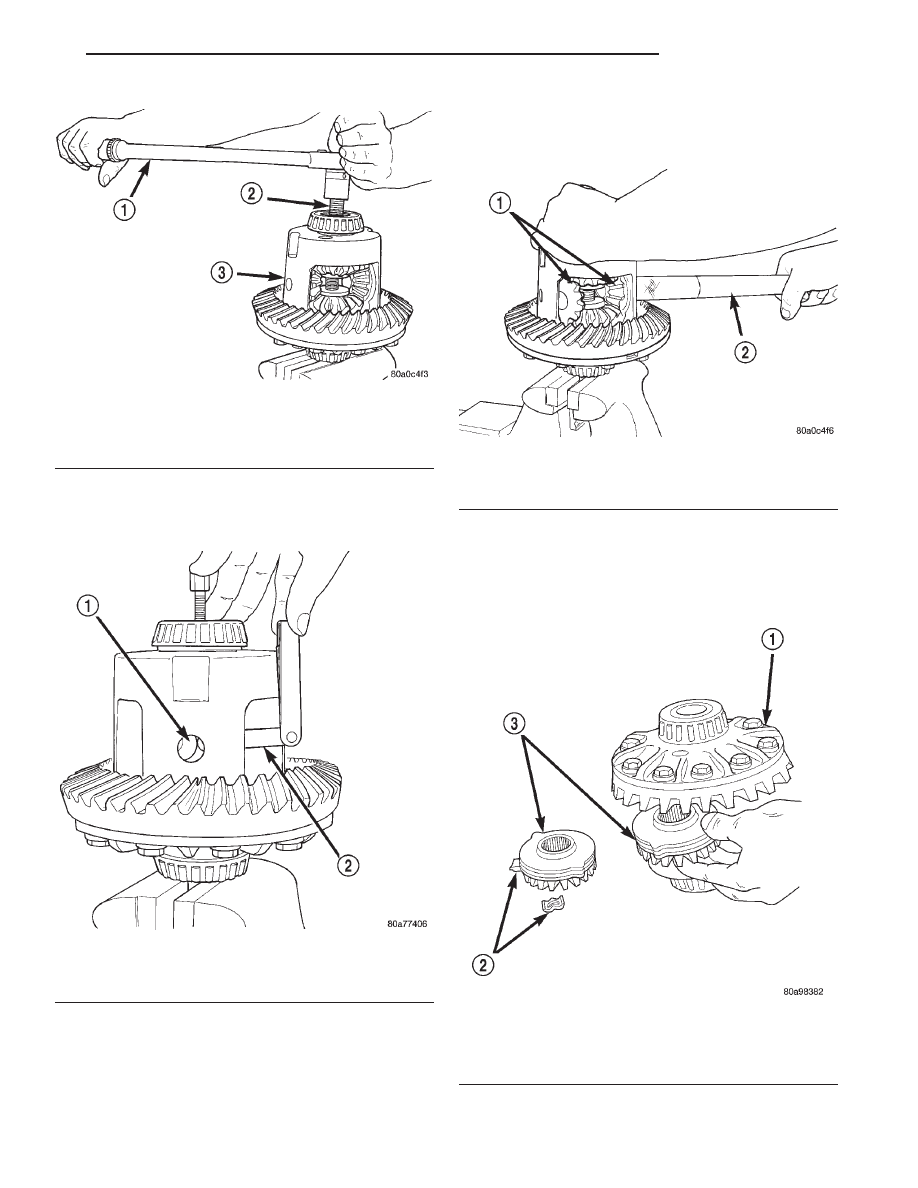

Fig. 57 Tighten Belleville Spring Compressor Tool

1 – TORQUE WRENCH
2 – TOOL ASSEMBLED
3 – DIFFERENTIAL CASE

Fig. 58 Remove Pinion Gear Thrust Washer

1 – THRUST WASHER
2 – FEELER GAUGE

Fig. 59 Pinion Gear Removal

1 – PINION GEARS
2 – TOOL

Fig. 60 Side Gear & Clutch Disc Removal

1 – DIFFERENTIAL CASE
2 – RETAINER
3 – SIDE GEAR AND CLUTCH DISC PACK

XJ

194 RBI AXLE

3 - 89

DISASSEMBLY AND ASSEMBLY (Continued)
