INTRODUCTION

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER . . . . . . . . . . 1
VEHICLE SAFETY CERTIFICATION LABEL . . . . . . 2
INTERNATIONAL SYMBOLS . . . . . . . . . . . . . . . . . 2
FASTENER IDENTIFICATION . . . . . . . . . . . . . . . . . 3

FASTENER USAGE . . . . . . . . . . . . . . . . . . . . . . . . 3
THREADED HOLE REPAIR . . . . . . . . . . . . . . . . . . 3
METRIC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . 6
TORQUE REFERENCES. . . . . . . . . . . . . . . . . . . . . 6

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER

The Vehicle Identification Number (VIN) plate is

located on the lower windshield fence near the left
A-pillar. The VIN contains 17 characters that provide
data concerning the vehicle. Refer to the VIN decod-
ing chart to determine the identification of a vehicle.

The

Vehicle

Identification

Number

is

also

imprinted on the:

• Body Code Plate.

• Vehicle Safety Certification Label.

• Frame rail.
To protect the consumer from theft and possible

fraud the manufacturer is required to include a
Check Digit at the ninth position of the Vehicle Iden-
tification Number. The check digit is used by the
manufacturer and government agencies to verify the
authenticity of the vehicle and official documenta-
tion. The formula to use the check digit is not
released to the general public.

VEHICLE IDENTIFICATION NUMBER DECODING CHART

POSITION

INTERPRETATION

CODE = DESCRIPTION

1

Country of Origin

1 = United States

2

Make

J = Jeep

3

Vehicle Type

4 = MPV

4

Gross Vehicle Weight Rating

F = 4001-5000 lbs.

5

Vehicle Line

F= Cherokee 4X4 (LHD)

N = Cherokee 4X4 (RHD)

B = Cherokee 4X2 (RHD)

T = Cherokee 4X2 (LHD)

6

Series

2 = SE

6 = Sport/Classic

7 = Limited

7

Body Style

7 = 2dr Sport Utility
8 = 4dr Sport Utility

8

Engine

P = 2.5L Gasoline
S = 4.0L Gasoline

9

Check Digit

10

Model Year

Y=2000

11

Assembly Plant

L = Toledo #1

12 thru 17

Vehicle Build Sequence

XJ

INTRODUCTION

1

VEHICLE SAFETY CERTIFICATION LABEL

A vehicle safety certification label (Fig. 1) is

attached to every DaimlerChrysler Corporation vehi-
cle. The label certifies that the vehicle conforms to all
applicable Federal Motor Vehicle Safety Standards.
The label also lists:

• Month and year of vehicle manufacture.

• Gross Vehicle Weight Rating (GVWR). The gross

front and rear axle weight ratings (GAWR’s) are
based on a minimum rim size and maximum cold tire
inflation pressure.

• Vehicle Identification Number (VIN).

• Type of vehicle.

• Type of rear wheels.

• Bar code.

• Month, Day and Hour (MDH) of final assembly.

• Paint and Trim codes.

• Country of origin.

The label is located on the driver-side door shut-

face.

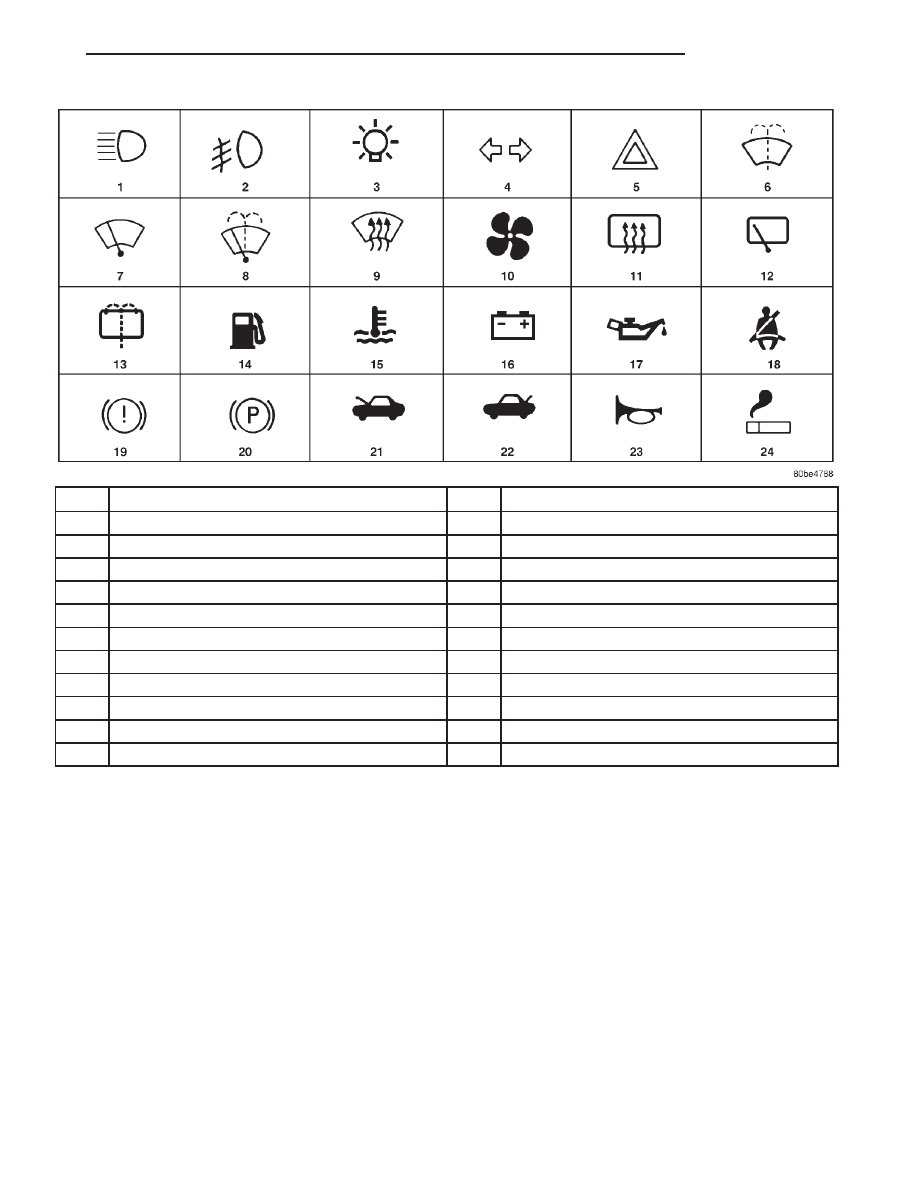

INTERNATIONAL SYMBOLS

DESCRIPTION

The graphic symbols illustrated in the following

International Control and Display Symbols Chart are
used to identify various instrument controls. The
symbols correspond to the controls and displays that
are located on the instrument panel.

Fig. 1 Vehicle Safety Certification Label—Typical

2

INTRODUCTION

XJ

DESCRIPTION AND OPERATION (Continued)

FASTENER IDENTIFICATION

DESCRIPTION

GRADE/CLASS IDENTIFICATION

The SAE bolt strength grades range from grade 2

to grade 8. The higher the grade number, the greater
the bolt strength. Identification is determined by the
line marks on the top of each bolt head. The actual
bolt strength grade corresponds to the number of line
marks plus 2. The most commonly used metric bolt
strength classes are 9.8 and 10.9. The metric
strength class identification number is imprinted on
the head of the bolt. The higher the class number,
the greater the bolt strength. Some metric nuts are
imprinted with a single-digit strength class on the
nut face. Refer to the Fastener Identification and
Fastener Strength Charts.

FASTENER USAGE

WARNING: USE OF AN INCORRECT FASTENER
MAY RESULT IN COMPONENT DAMAGE OR PER-
SONAL INJURY.

Figure art, specifications and torque references in

this Service Manual are identified in metric and SAE
format.

During any maintenance or repair procedures, it is

important to salvage all fasteners (nuts, bolts, etc.)
for reassembly. If the fastener is not salvageable, a
fastener of equivalent specification must be used.

THREADED HOLE REPAIR

Most stripped threaded holes can be repaired using

a Helicoil

t. Follow the manufactures recommenda-

tions for application and repair procedures.

1

High Beam

13

Rear Window Washer

2

Fog Lamps

14

Fuel

3

Headlamp, Parking Lamps, Panel Lamps

15

Engine Coolant Temperature

4

Turn Warning

16

Battery Charging Condition

5

Hazard Warning

17

Engine Oil

6

Windshield Washer

18

Seat Belt

7

Windshield Wiper

19

Brake Failure

8

Windshield Wiper and Washer

20

Parking Brake

9

Windscreen Demisting and Defrosting

21

Front Hood

10

Ventilating Fan

22

Rear hood (Decklid)

11

Rear Window Defogger

23

Horn

12

Rear Window Wiper

24

Lighter

XJ

INTRODUCTION

3

DESCRIPTION AND OPERATION (Continued)
