CENTER CARPET

REMOVAL

(1) Disengage the snaps under front seats.
(2) Remove the carpet.

INSTALLATION

(1) Position the carpet in the vehicle.
(2) Engage the snaps under front seats.

CARGO AREA CARPET

REMOVAL

(1) Position the rear seat in the fold and tumbled

position.

(2) Pull the carpet from under the rear seat.
(3) Remove the Add-A-Trunk, if equipped. (Refer to

23 - BODY/INTERIOR/ADD-A-TRUNK - REMOVAL)

(4) Route the rear seat belt buckles through the

cargo area carpet.

(5) Separate the carpet from the vehicle (Fig. 3).

INSTALLATION

(1) Position the carpet in the vehicle.
(2) Route the rear seat belt buckles through the

cargo area carpet.

(3) Install the Add-A-Trunk, if equipped. (Refer to

23 - BODY/INTERIOR/ADD-A-TRUNK - INSTALLA-
TION)

(4) Return the rear seat to the full rearward posi-

tion.

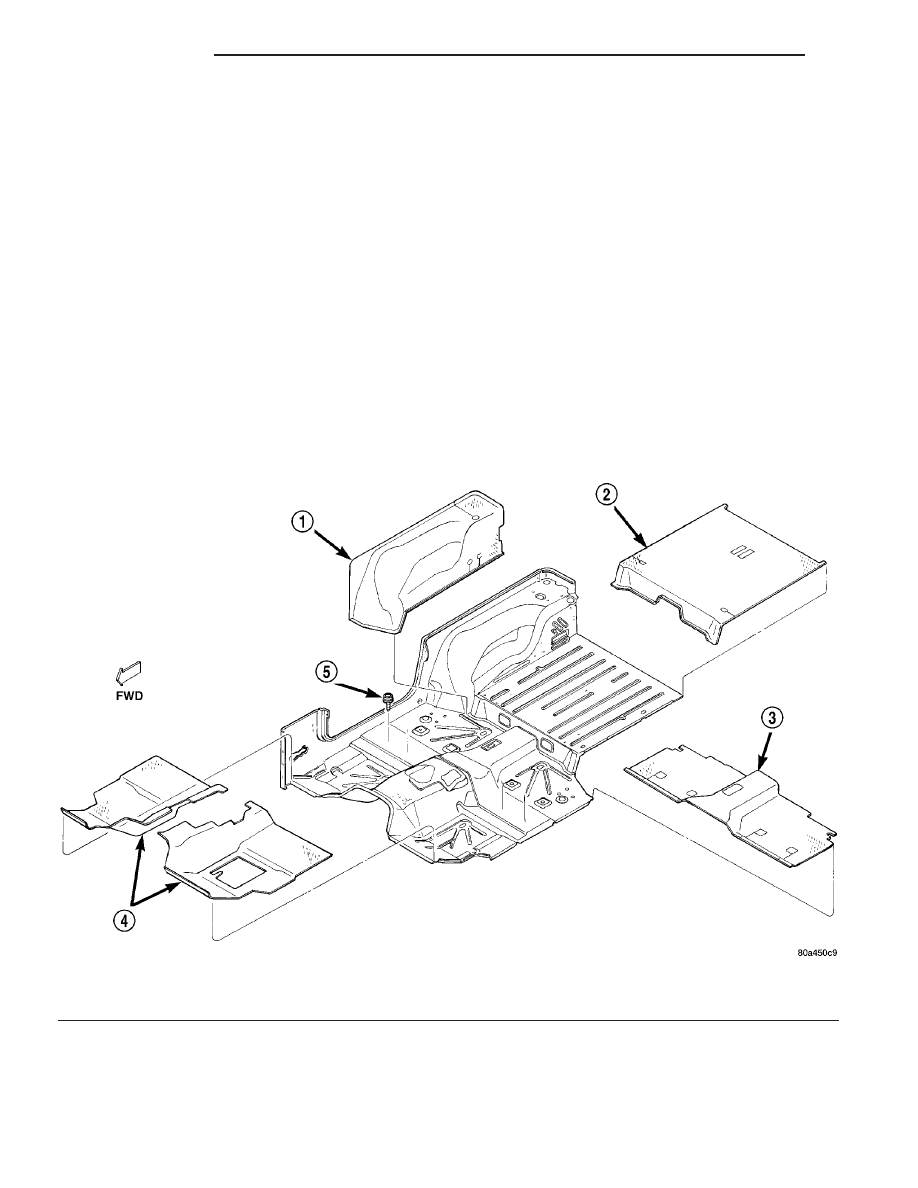

Fig. 3 VEHICLE CARPET

1 - WHEEL HOUSE CARPET
2 - CARGO AREA CARPET
3 - CENTER FLOOR CARPET

4 - FRONT FLOOR CARPET
5 - SNAP

23 - 54

INTERIOR

TJ

WHEELHOUSE CARPET

REMOVAL

(1) Position the rear seat in the full forward posi-

tion.

(2) Remove the Add-A-trunk, if equipped. (Refer to

23 - BODY/INTERIOR/ADD-A-TRUNK - REMOVAL)

(3) Grasp wheelhouse carpet and remove from

vehicle (Fig. 3).

INSTALLATION

(1) Position wheelhouse carpet in vehicle and

adjust as necessary.

(2) Install the Add-A-trunk, if equipped. (Refer to

23 - BODY/INTERIOR/ADD-A-TRUNK - INSTALLA-
TION)

(3) Return the rear seat to the full rearward posi-

tion.

REAR VIEW MIRROR

REMOVAL

(1) Disconnect the electrical connector, if equipped.

(Fig. 4)

(2) Loosen the mirror set screw.
(3) Slide the mirror up and off the support button

(bracket).

INSTALLATION

(1) Slide the mirror onto the support button

(bracket).

CAUTION:

Do

not

over-tighten

the

setscrew

because glass chipping and/or breakage could
result.

(2) Tighten the mirror set screw to 1 N·m (9 in.

lbs.).

(3) Connect the electrical connector, if equipped.

REAR VIEW MIRROR SUPPORT
BRACKET

INSTALLATION

(1) Mark the position for the mirror bracket on the

outside of the windshield glass with a wax pencil.

(2) Clean the bracket contact area on the glass.

Use a mild powdered cleanser on a cloth saturated
with isopropyl (rubbing) alcohol. Finally, clean the
glass with a paper towel dampened with alcohol.

(3) Sand the surface on the support bracket with

fine grit-sandpaper. Wipe the bracket surface clean
with a paper towel.

(4) Apply accelerator to the surface on the bracket

according to the following instructions:

• Crush the vial to saturate the felt applicator.

• Remove the paper sleeve.

• Apply accelerator to the contact surface on the

bracket.

• Allow the accelerator to dry for five minutes.

• Do not touch the bracket contact surface after

the accelerator has been applied.

(5) Apply adhesive accelerator to the bracket con-

tact surface on the windshield glass. Allow the accel-
erator to dry for one minute. Do not touch the glass
contact

surface

after

the

accelerator

has

been

applied.

(6) Install the bracket according to the following

instructions:

• Apply one drop of adhesive at the center of the

bracket contact-surface on the windshield glass.

• Apply an even coat of adhesive to the contact

surface on the bracket.

• Align the bracket with the marked position on

the windshield glass.

• Press and hold the bracket in place for at least

one minute.

NOTE: Verify that the mirror support bracket is cor-
rectly aligned, because the adhesive will cure rap-
idly.

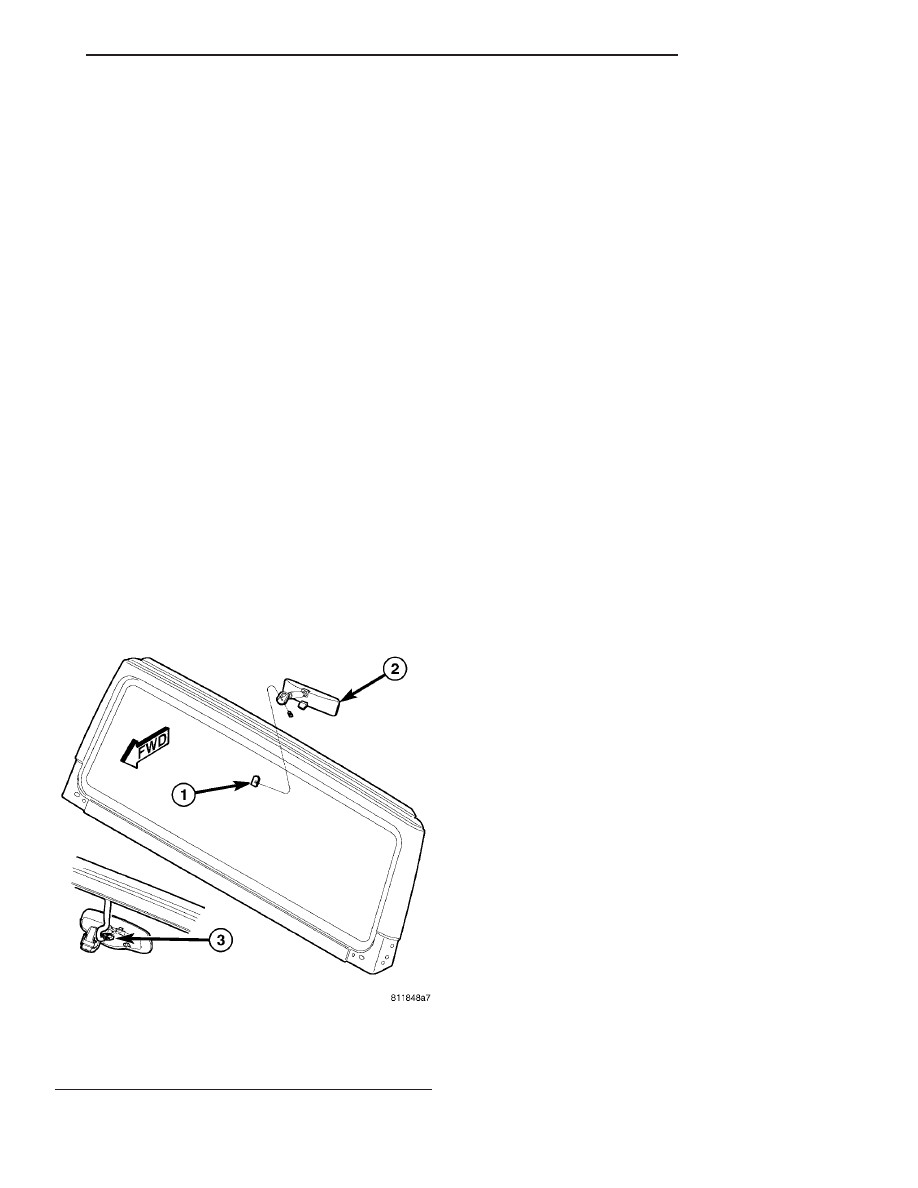

Fig. 4 REAR VIEW MIRROR

1 - SUPPORT BRACKET
2 - MIRROR ASSEMBLY
3 - ELECTRICAL CONNECTOR

TJ

INTERIOR

23 - 55

(7) Allow the adhesive to cure for 8-10 minutes.

Remove any excess adhesive with an alcohol-damp-
ened cloth.

(8) Allow the adhesive to cure for an additional

8-10 minutes before installing the mirror.

SUNVISOR

REMOVAL

(1) Remove the screws that attach the sunvisor

arm support brackets to the windshield frame (Fig.
5).

(2) Remove the sunvisor from the windshield

frame.

INSTALLATION

(1) Position the sunvisor on the windshield frame

and align the arm support bracket holes with the
frame.

(2) Install the screws that attach the sunvisor arm

support brackets to the frame. Tighten the screws
securely.

SHIFT BEZEL - AUTOMATIC
TRANSMISSION

REMOVAL

(1) Pull shift lever handle off of shift lever (Fig. 6).
(2) Using a trim stick C-4755 or equivalent,

remove the shift bezel.

(3) Twist and remove the bezel light.

INSTALLATION

(1) Connect the shift bezel light by twisting into

socket on the bezel.

(2) Position the shift bezel over the shift lever and

install onto the console.

(3) Align the shifter handle keyways and push

handle onto the shifter until fully seated.

Fig. 5 SUNVISOR

1 - SCREWS (2)
2 - WINDSHIELD FRAME
3 - VISOR

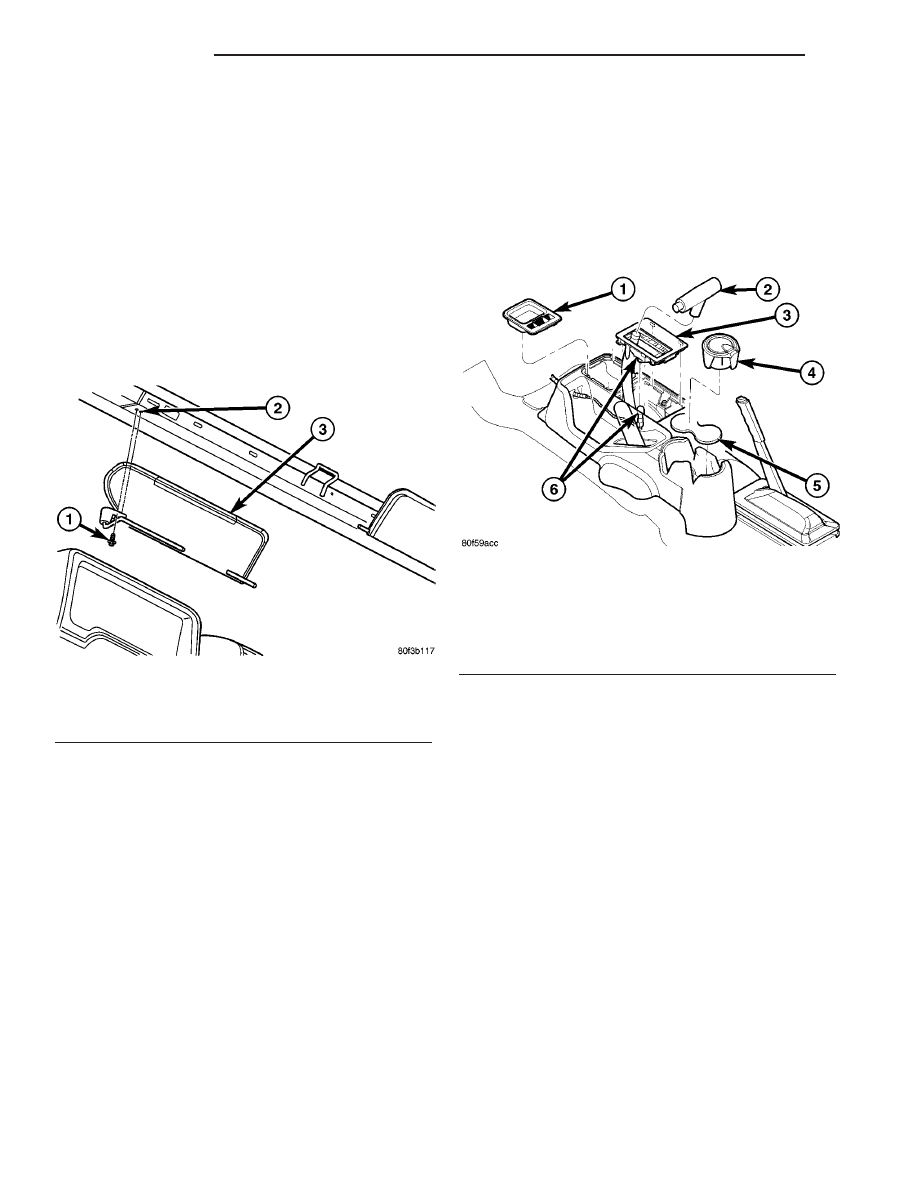

Fig. 6 SHIFT BEZEL

1 - COIN TRAY
2 - TRANSMISSION SHIFT LEVER HANDLE
3 - SHIFT BEZEL
4 - ASH RECEIVER (IF EQUIPPED)
5 - CUP HOLDER MAT
6 - SHIFT BEZEL LIGHT/SOCKET

23 - 56

INTERIOR

TJ

REAR VIEW MIRROR SUPPORT BRACKET (Continued)

SHIFT BOOT

REMOVAL

(1) Using a trim stick C-4755 or equivalent, pry

the shift boot from the bezel.

(2) Using a small flat blade, pry the shift pattern

insert from the shift knob.

(3) Remove the nut attaching the shift knob to the

shift lever (Fig. 7).

(4) Remove the knob and slide the shift boot from

the shift lever.

INSTALLATION

(1) Slide the shift boot over the shift lever.
(2) Snap the shift boot into place in the center con-

sole.

(3) Position the shift knob on the lever, install the

nut and tighten to 34 N·m (25 ft. lbs.).

(4) Position the shift pattern insert on the knob

and press into place.

CENTER CONSOLE

REMOVAL

(1) Remove the cup holder, if equipped. (Refer to

23 - BODY/INTERIOR/CENTER CONSOLE CUP-
HOLDER ASSEMBLY - REMOVAL)

(2) On full console models remove the trim disc

from the bottom of the cup holder (Fig. 10).

(3) Remove the automatic transmission shift bezel,

if equipped. (Refer to 23 - BODY/INTERIOR/SHIFT
BEZEL - REMOVAL)

(4) Using a trim stick C-4755 or equivalent,

remove the air bag deactivation switch and discon-
nect the electrical connector, if equipped.

(5) Remove the bolt(s) attaching the console to the

floor pan (Fig. 8) and (Fig. 9).

(6) Shift transfer case to four low position.
(7) Shift transmission to L (2nd gear for manual

transmission) and remove the console assembly.

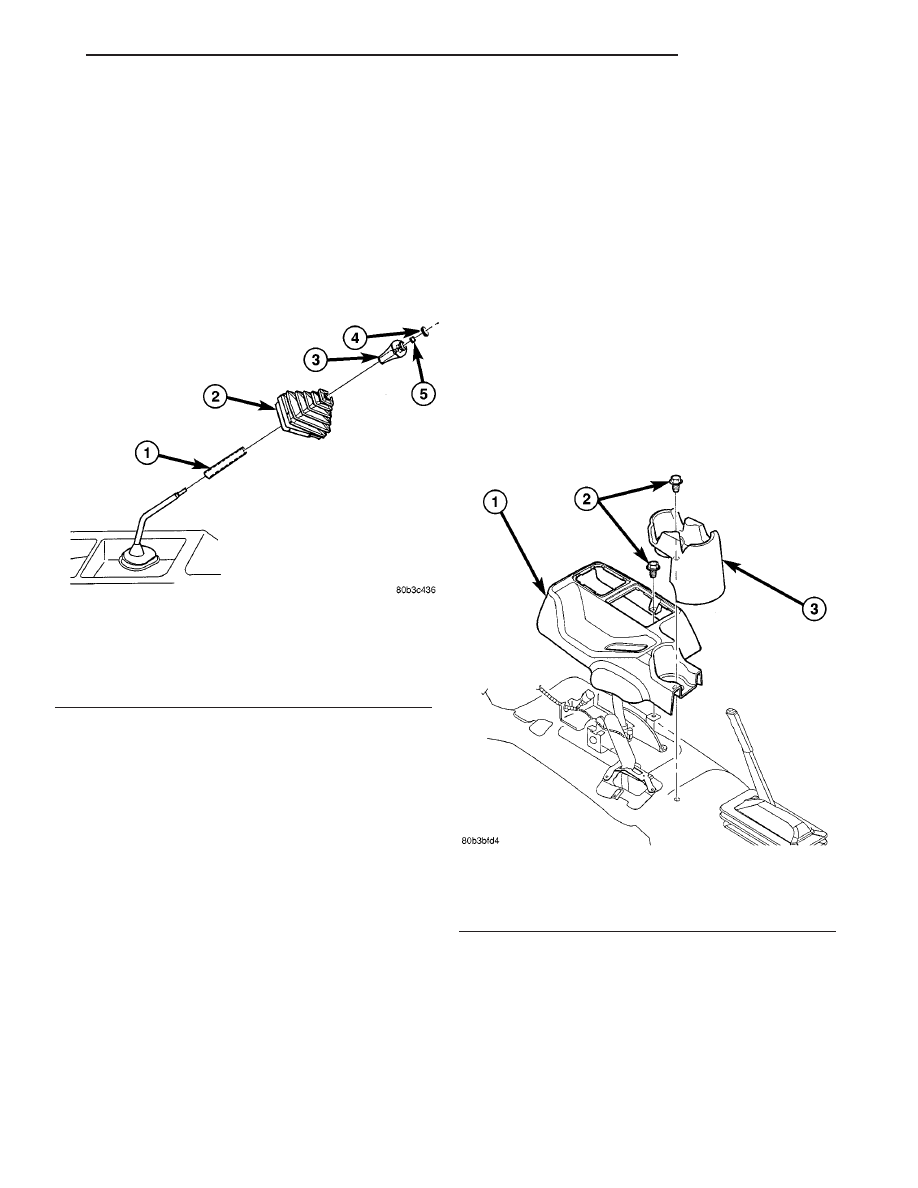

Fig. 7 SHIFT BOOT

1 - BOOT SUPPORT TUBE
2 - SHIFT BOOT
3 - SHIFT KNOB
4 - SHIFT PATTERN CAP
5 - NUT

Fig. 8 MINI CONSOLE

1 - MINI CONSOLE
2 - BOLTS
3 - CUPHOLDER

TJ

INTERIOR

23 - 57
