Jeep Wrangler TJ. Manual - part 543





TAILGATE HINGE

REMOVAL

NOTE: Hinges may be serviced individually. If both
are to be serviced, remove/install hinges one at a
time.

(1) Using a grease pencil or equivalent, mark the

position of the hinge on the body.

(2) Remove the screws attaching the hinge to the

body and tailgate (Fig. 2).

(3) Separate the hinge from the tailgate.

INSTALLATION

NOTE: Hinges may be serviced individually. If both
are to be serviced, remove/install hinges one at a
time.

(1) Prepare and paint the replacement hinge to

match the body paint color.

(2) Lubricate the hinge with spray lubricant.
(3) Align and position the hinge on the body and

tailgate.

(4) Install the screws and tighten the screws to 23

N·m (200 in. lbs.).

TAILGATE LATCH

REMOVAL

(1) Open the tailgate and remove the latch trim

cover (Fig. 3).

(2) Disconnect the outside handle to latch rod.
(3) Disconnect the lock cylinder to latch rod.
(4) Remove the screw attaching latch to tailgate.
(5) Separate the latch from the tailgate.

INSTALLATION

(1) Position the latch in the tailgate.
(2) Install the screw attaching latch to tailgate. Do

not tighten screw.

(3) Connect the lock cylinder to latch rod.
(4) Connect the outside handle to latch rod.
(5) Install the latch trim cover.

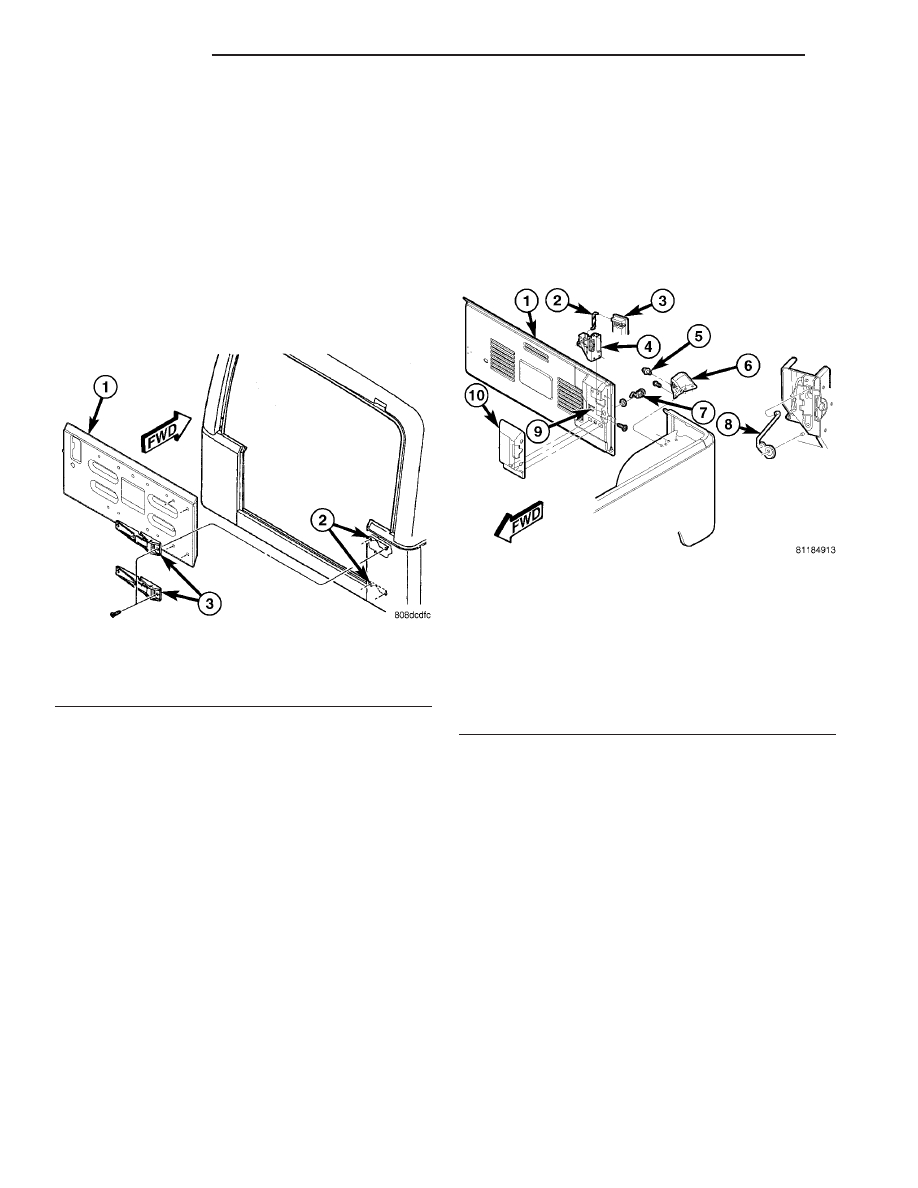

Fig. 2 TAILGATE HINGE

1 - TAILGATE
2 - NUT PLATE
3 - HINGE

Fig. 3 TAILGATE LATCH

1 - TAILGATE
2 - OUTSIDE HANDLE ROD
3 - OUTSIDE HANDLE
4 - LATCH
5 - STRIKER
6 - STRIKER MOUNTING BRACKET
7 - LOCK CYLINDER
8 - LOCK CYLINDER ROD
9 - LOCK CYLINDER RETAINER CLIP
10 - LATCH COVER

23 - 14

TAILGATE

TJ

TAILGATE LATCH STRIKER

REMOVAL

(1) Remove the striker from the bracket.
(2) Remove the shim washers from the bracket.
(3) Remove

the

screws

attaching

the

striker

bracket to the body.

INSTALLATION

(1) Position the striker bracket on the body and

install the screws.

(2) Position the striker and shim washers on the

striker bracket.

(3) Install the striker in the bracket and tighten

the striker to 71 N·m (52 ft. lbs.).

LIFTGATE GLASS HINGE

REMOVAL

(1) Open tailgate.
(2) Open and support liftgate glass.
(3) Remove wiper motor cover (right hinge only).

(Refer to 8 - ELECTRICAL/REAR WIPERS/WASH-
ERS/REAR

WIPER

MOTOR

TRIM

COVER

-

REMOVAL)

(4) Remove the wiper blade. (Refer to 8 - ELEC-

TRICAL/REAR

WIPERS/WASHERS/REAR

WIPER

BLADE - REMOVAL)

(5) Remove the nut attaching the liftgate hinge to

the liftgate glass.

(6) Mark the position of the hinge in the top and

remove the bolts attaching the hinge to the top (Fig.
4).

INSTALLATION

(1) Align and position the hinge on the top and

install the bolts.

(2) Install the nut attaching the liftgate hinge to

the liftgate glass and tighten to 6 N·m (53 in. lbs.).

(3) Install wiper motor cover. (Refer to 8 - ELEC-

TRICAL/REAR

WIPERS/WASHERS/REAR

WIPER

MOTOR TRIM COVER - INSTALLATION)

(4) Install the wiper blade. (Refer to 8 - ELECTRI-

CAL/REAR

WIPERS/WASHERS/REAR

WIPER

BLADE - INSTALLATION)

LIFTGATE GLASS

REMOVAL

(1) Disconnect the rear defroster harness connec-

tors.

(2) Disconnect the wiper motor harness connectors.

WARNING: DO NOT REMOVE THE LIFTGATE SUP-
PORT RODS WITH THE LIFTGATE CLOSED. THE
SUPPORT ROD PISTONS ARE OPERATED BY HIGH
PRESSURE GAS AND COULD CAUSE PERSONAL
INJURY AND/OR VEHICLE DAMAGE IF THEY ARE
REMOVED

WITH

THE

PISTONS

COMPRESSED

(LIFTGATE CLOSED). ONCE REMOVED, DO NOT
ATTEMPT TO DISASSEMBLE OR REPAIR THE SUP-
PORT RODS.

(3) Open the tailgate and liftgate.
(4) Remove support rod cylinders. (Refer to 23 -

BODY/TAILGATE/SUPPORT

CYLINDER

-

REMOVAL)

(5) Remove the bolts attaching the liftgate hinge to

the hardtop (Fig. 5).

(6) Separate the liftgate glass from the hard top.

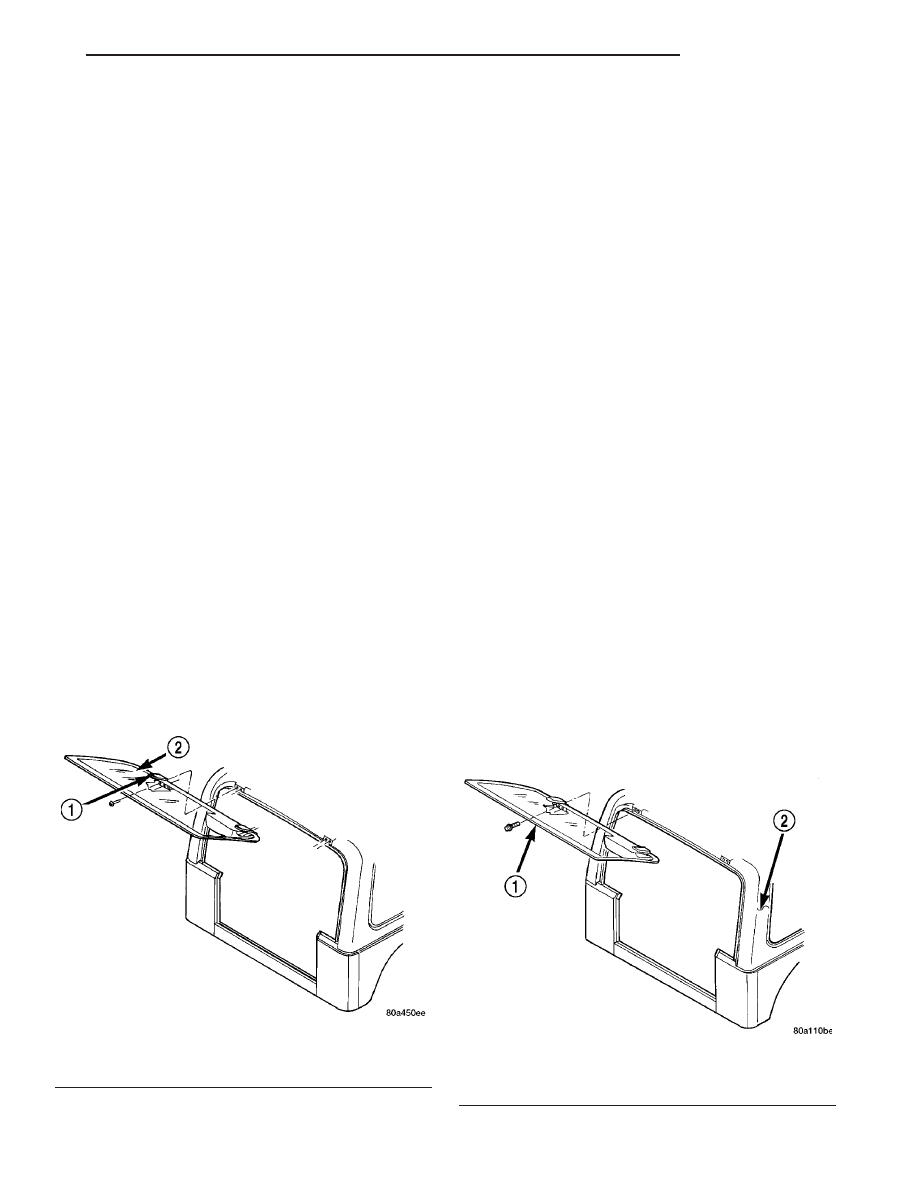

Fig. 4 LIFTGATE HINGE

1 - LIFTGATE HINGE
2 - LIFTGATE GLASS

Fig. 5 LIFTGATE GLASS

1 - LIFTGATE REAR WINDOW
2 - HARD TOP

TJ

TAILGATE

23 - 15

INSTALLATION

Transfer all related components.
(1) If removed, install support rod ball studs and

tighten the nut to 12 N·m (112 in. lbs.).

(2) Position the liftgate glass at the hard top.
(3) Install the bolts attaching the liftgate hinge to

the hardtop and tighten to 10 N·m (95 in. lbs.).

(4) Install the support rod cylinders. (Refer to 23 -

BODY/TAILGATE/SUPPORT CYLINDER - INSTAL-
LATION)

LIFTGATE GLASS
WEATHERSTRIP

DESCRIPTION

The liftgate glass weatherstrip is attached to the

liftgate glass and is not serviceable. If the liftgate
glass weatherstrip needs to be replaced, replace the
liftgate glass. (Refer to 23 - BODY/LIFTGATE
GLASS - REMOVAL)

TAILGATE LOCK CYLINDER

REMOVAL

(1) Open the tailgate.
(2) Remove the latch cover.
(3) Remove the lock cylinder retainer clip.
(4) Remove the lock cylinder from the tailgate

opening.

INSTALLATION

(1) Position the lock cylinder in the tailgate open-

ing.

(2) Connect the lock cylinder to latch rod.
(3) Install the lock cylinder retainer clip.
(4) Install the latch cover.

LIFTGATE GLASS SUPPORT
CYLINDER

REMOVAL

WARNING: DO NOT REMOVE THE LIFTGATE SUP-
PORT RODS WITH THE LIFTGATE CLOSED. THE
SUPPORT ROD PISTONS ARE OPERATED BY HIGH
PRESSURE GAS AND COULD CAUSE PERSONAL
INJURY AND/OR VEHICLE DAMAGE IF THEY ARE
REMOVED

WITH

THE

PISTONS

COMPRESSED

(LIFTGATE CLOSED). ONCE REMOVED, DO NOT
ATTEMPT TO DISASSEMBLE OR REPAIR THE SUP-
PORT RODS.

(1) Open and support the liftgate glass.
(2) Release the support rod cylinder retaining clips

at both ends of each support rod cylinder. (Fig. 6)

(3) Pull the support rods off the ball studs (Fig. 7).

INSTALLATION

(1) Position the support rod cylinders on the ball

studs.

(2) Install the support rod cylinder retainer clips.

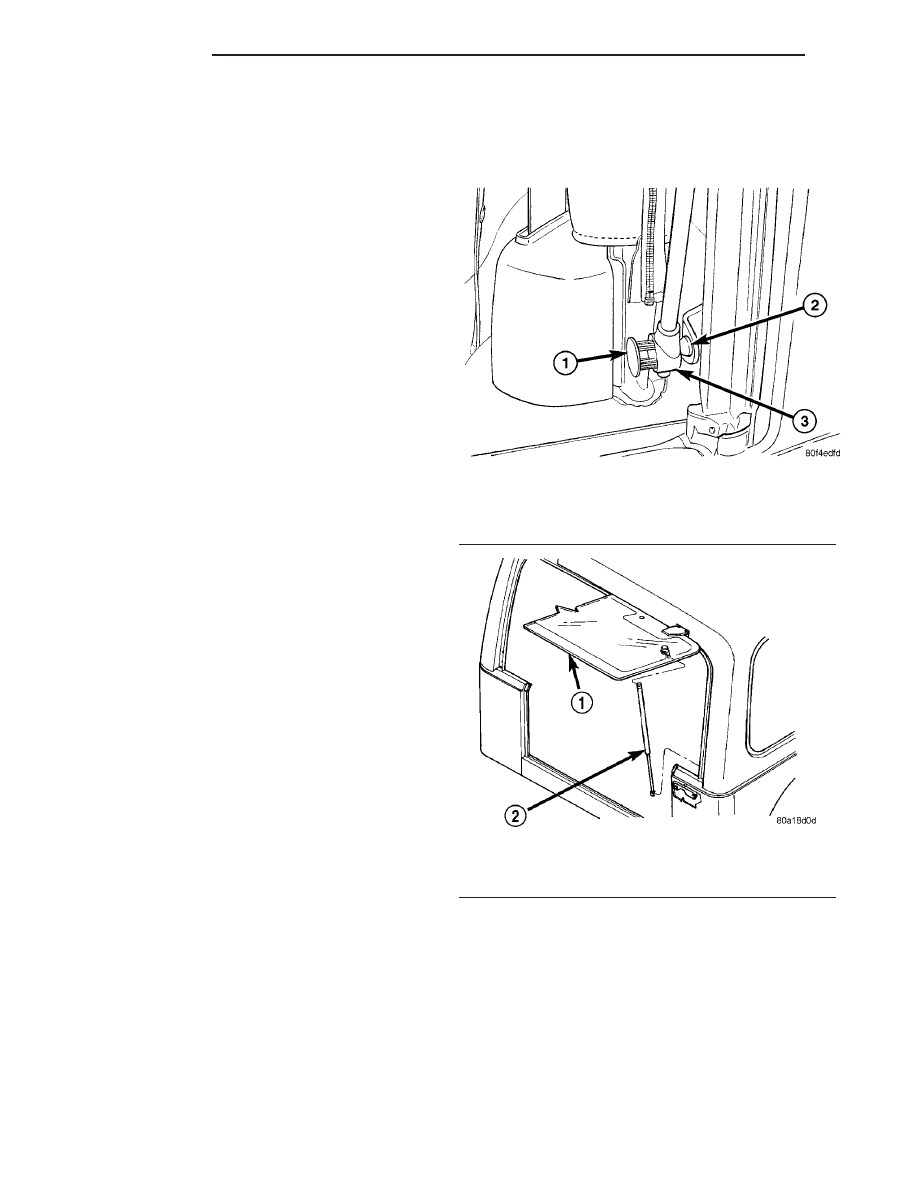

Fig. 6 SUPPORT ROD CYLINDER CONNECTION

1 - CLIP
2 - BALL STUD
3 - SUPPORT ROD END

Fig. 7 SUPPORT ROD CYLINDER REMOVAL

1 - REAR WINDOW LIFT GLASS
2 - SUPPORT CYLINDER

23 - 16

TAILGATE

TJ

LIFTGATE GLASS (Continued)

TAILGATE

REMOVAL

(1) Remove the spare tire.
(2) Open the tailgate and remove the center high

mounted stop lamp (CHMSL) contact cover (Fig. 8).

(3) Disengage the CHMSL electrical connectors.
(4) Remove the screws that attach the tailgate

hinge to the tailgate.

(5) Separate the tailgate from the vehicle.

INSTALLATION

NOTE: If necessary, transfer tailgate related compo-
nents.

(1) Install the screws that attach the tailgate

hinge to the tailgate.

(2) Engage the CHMSL electrical connectors.
(3) Install the CHMSL contact cover.
(4) Close the tailgate and install the spare tire.

ADJUSTMENTS

ADJUSTMENT

(1) Loosen the tailgate hinge-to-body screws.

(2) Align the tailgate in the body opening and

tighten the hinge screws. (Refer to 23 - BODY/BODY
STRUCTURE/GAP

AND

FLUSH

-

SPECIFICA-

TIONS)

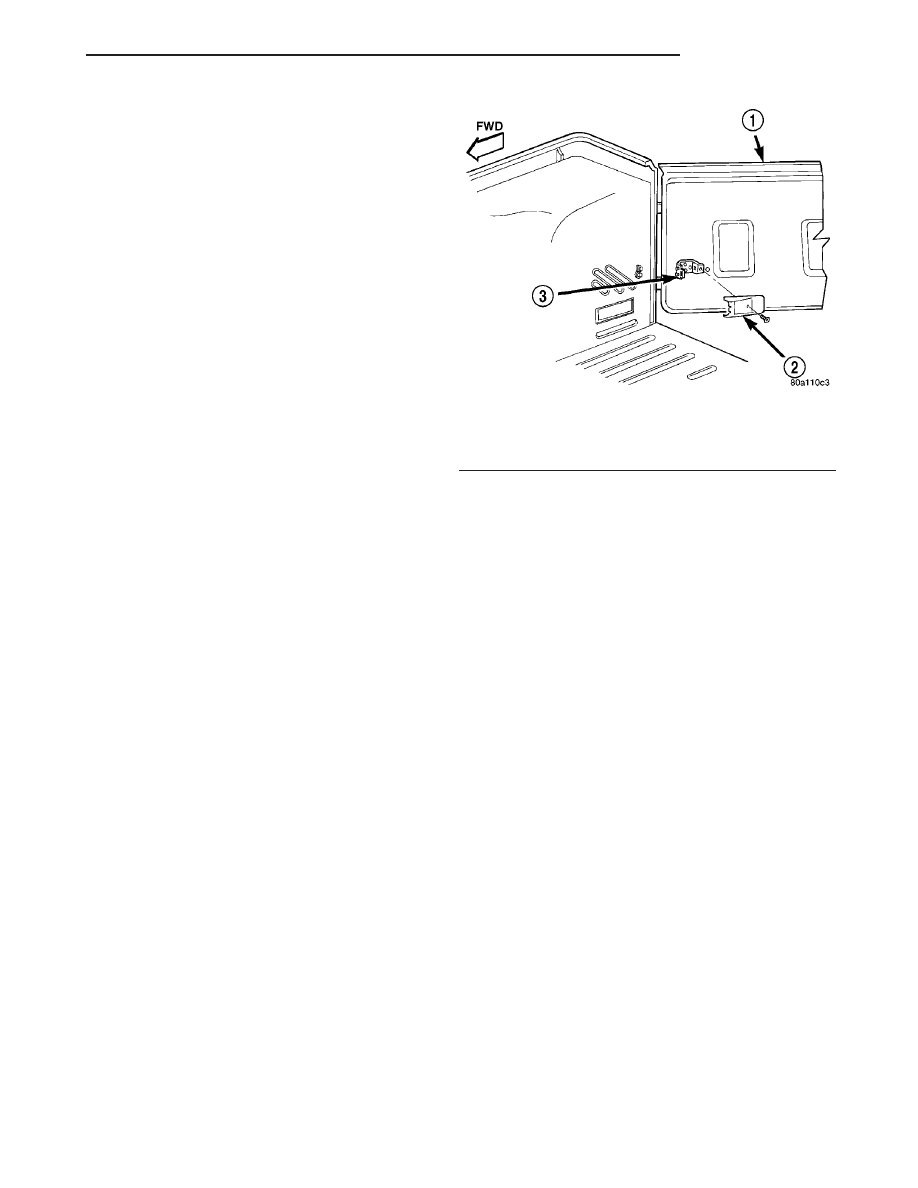

Fig. 8 CHMSL CONTACT COVER

1 - TAILGATE
2 - COVER
3 - CHMSL CONTACT COVER BRACKET

TJ

TAILGATE

23 - 17
