(9) Install boot on output shaft slinger, or output

shaft damper, and crimp retaining clamp with tool
C-4975-A (Fig. 83).

INSTALLATION

(1) Mount transfer case on a transmission jack.
(2) Secure transfer case to jack with chains.

(3) Position transfer case under vehicle.
(4) Align transfer case and transmission shafts

and install transfer case on transmission.

(5) Install and tighten transfer case attaching nuts

to 35 N·m (26 ft. lbs.) torque (Fig. 2).

(6) Connect vehicle speed sensor wires, and vent

hose.

(7) Connect indicator switch harness to transfer

case switch, if necessary. Secure wire harness to clips
on transfer case.

(8) Align and connect propeller shafts. Refer to

Differential and Driveline for proper procedures and
specifications.

(9) Fill transfer case with correct fluid. Check

transmission fluid level. Correct as necessary.

(10) Install

rear

crossmember,

or

skid

plate.

Tighten crossmember bolts to 41 N·m (30 ft. lbs.)
torque.

(11) Remove transmission jack and support stand.
(12) Connect shift rod to transfer case range lever.
(13) Adjust transfer case shift linkage.
(14) Lower vehicle and verify transfer case shift

operation.

SPECIFICATIONS

TRANSFER CASE - NV231

TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Plug, Detent

16-24

12-18

-

Plug, Drain/Fill

20-34

15-25

-

Bolt, Front Brg. Retainer

21

16

-

Bolt, Case Half

27-34

20-25

-

Nut, Front Yoke

122-176

90-130

-

Nut, Range Lever

27-34

20-25

-

Bolt, Rear Retainer

35-46

26-34

-

Nuts, Mounting

35-47

26-35

-

Switch, Indicator

20-34

15-25

-

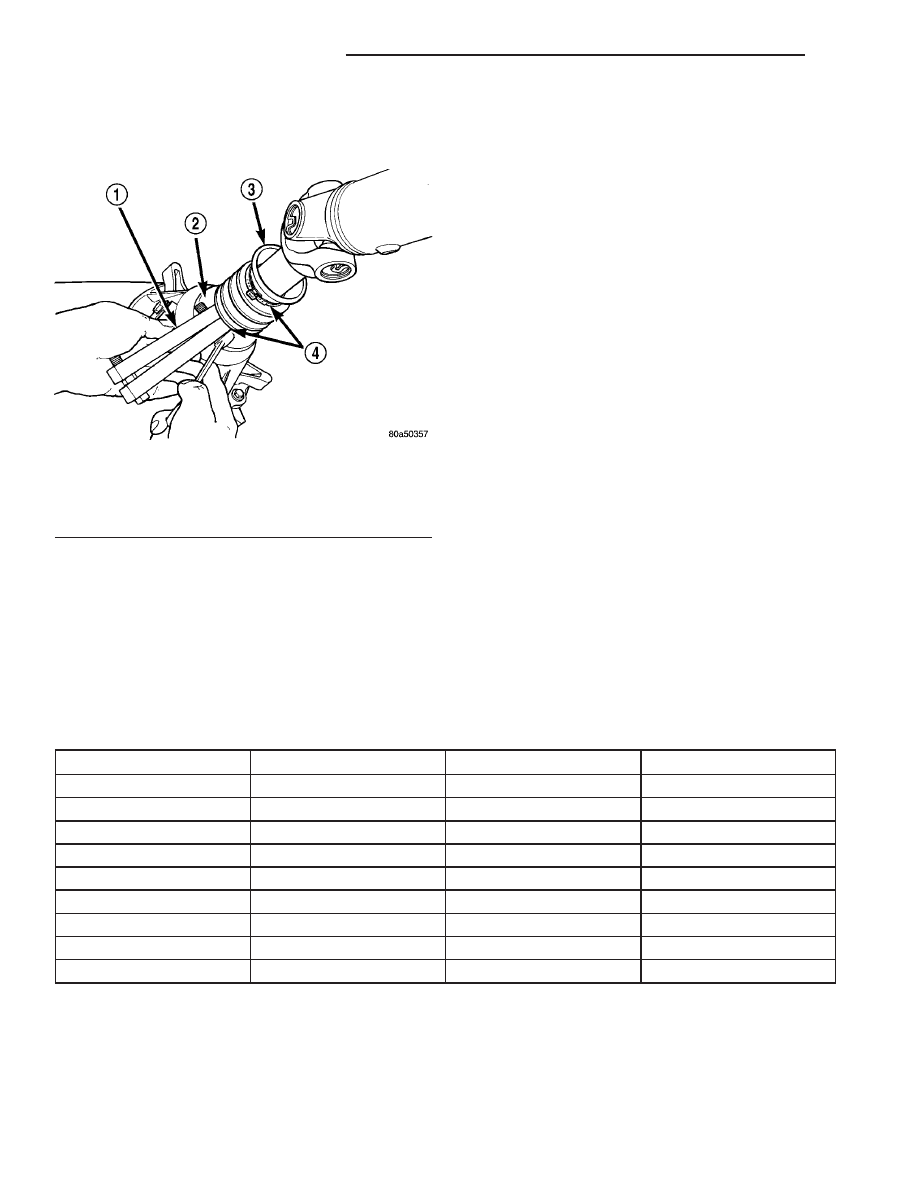

Fig. 83 Slinger Boot Installation - Typical

1 - SPECIAL TOOL C-4975–A
2 - SLINGER
3 - BOOT
4 - CLAMP

21 - 190

TRANSFER CASE - NV231

TJ

TRANSFER CASE - NV231 (Continued)

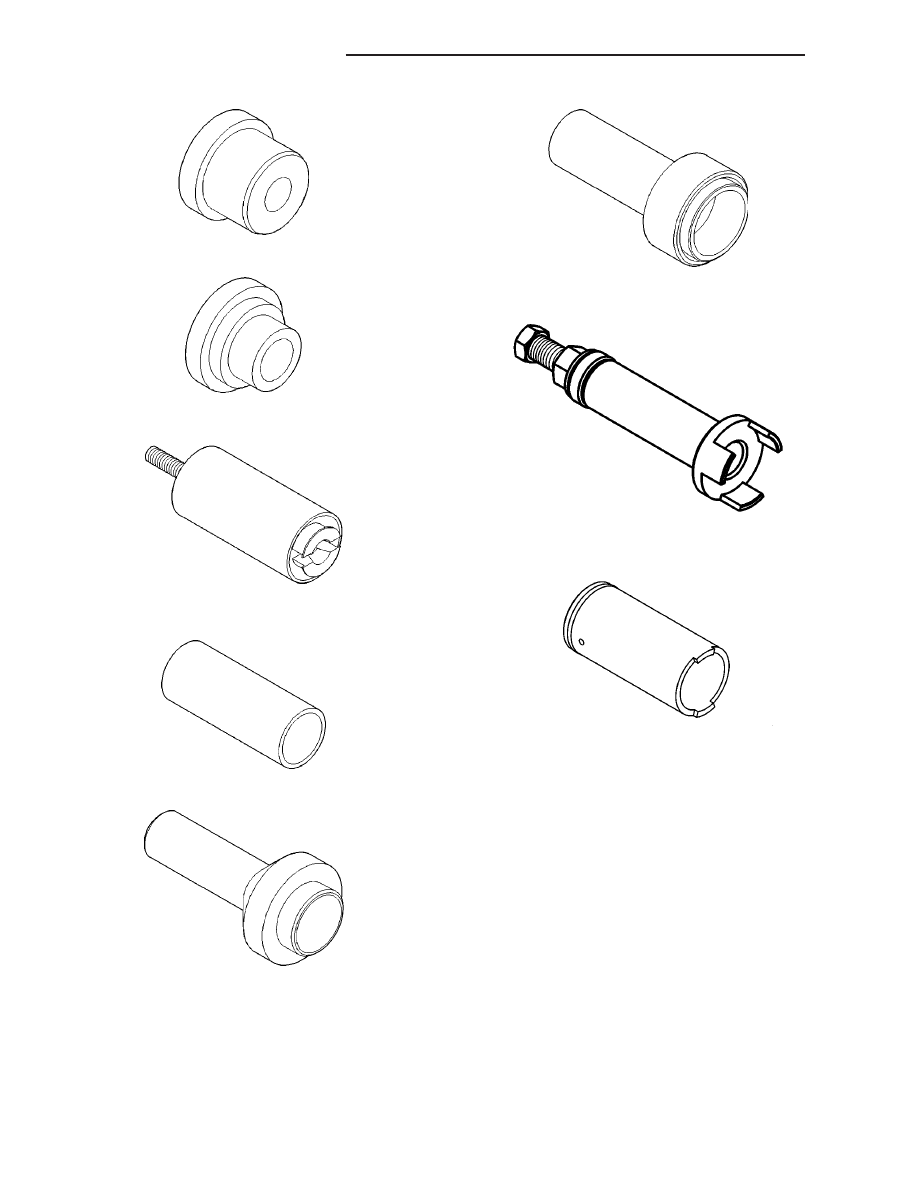

SPECIAL TOOLS

NV231

Installer - C-4076-B

Puller, Slinger - MD-998056-A

Installer - MD-998323

Protector, Seal - 8824

Installer, Boot Clamp - C-4975-A

Installer, Seal - 8143-A

Handle, Universal - C-4171

Installer, Seal - C-4210

Installer, Bearing - 5052

Installer, Bearing - 5065

TJ

TRANSFER CASE - NV231

21 - 191

TRANSFER CASE - NV231 (Continued)

Installer, Bushing - 5066

Installer, Bearing - 8128

Remover - L-4454

Cup - 8148

Installer, Seal - 7884

Installer, Pump Housing Seal - 7888

Installer, Transfer Case Damper Driver - 8422

Installer, Output Shaft Slinger - 8408

21 - 192

TRANSFER CASE - NV231

TJ

TRANSFER CASE - NV231 (Continued)

FLUID

STANDARD PROCEDURE - FLUID DRAIN AND
FILL

The fill and drain plugs are both in the rear case

(Fig. 84). Correct fill level is to the bottom edge of
the fill plug hole. Be sure the vehicle is level to
ensure an accurate fluid level check.

FRONT OUTPUT SHAFT SEAL

REMOVAL

(1) Raise vehicle.
(2) Remove front propeller shaft. (Refer to 3 - DIF-

FERENTIAL & DRIVELINE/PROPELLER SHAFT/
PROPELLER SHAFT - REMOVAL)

(3) Remove front output shaft yoke.
(4) Remove seal from front case with pry tool (Fig.

85).

INSTALLATION

(1) Install new front output seal in front case with

Installer Tool 8143-A as follows:

(a) Place new seal on tool. Garter spring on seal

goes toward interior of case.

(b) Start seal in bore with light taps from ham-

mer (Fig. 86). Once seal is started, continue tap-
ping seal into bore until installer tool seats against
case.

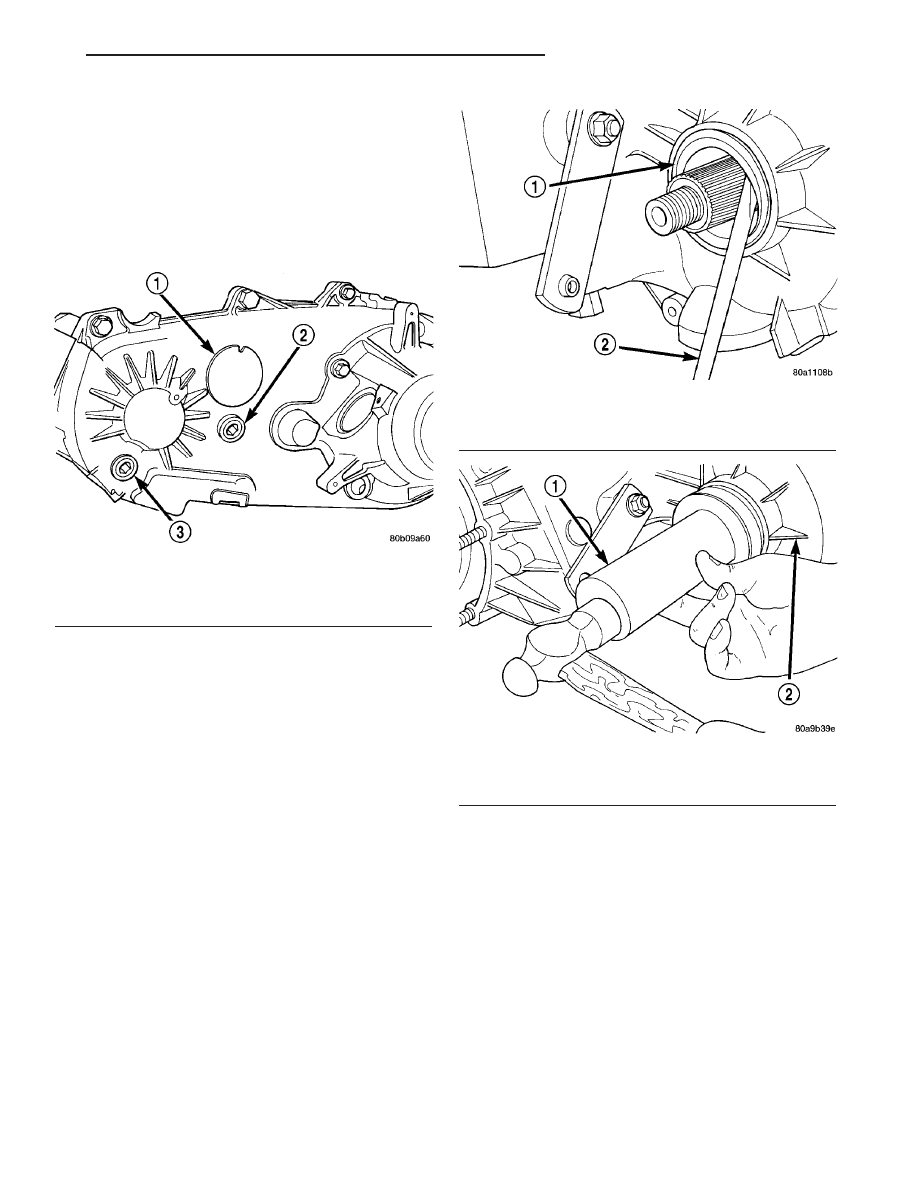

Fig. 84 Fill/Drain Plug And I.D. Tag Locations

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

Fig. 85 Remove Front Output Shaft Seal - Typical

1 - OUTPUT SHAFT SEAL
2 - PRYBAR

Fig. 86 Front Output Seal Installation - Typical

1 - INSTALLER 8143-A
2 - TRANSFER CASE

TJ

TRANSFER CASE - NV231

21 - 193
