(7) Remove valve body bolts-to-case (1) (Fig. 269).

CAUTION: The overdrive and underdrive accumula-
tors and springs may fall out when removing the
valve body.

(8) Carefully remove valve body assembly (1) from

the transmission (Fig. 270).

DISASSEMBLY

NOTE: If the valve body is being reconditioned or
replaced, it is necessary to perform the Quick Learn
Procedure using the DRBIII

T

Scan Tool (Refer to 8 -

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

TRANSMISSION CONTROL MODULE - STANDARD
PROCEDURE)

(1) Remove manual shaft seal.

(2) Remove manual shaft screw (1) (Fig. 271).

(3) Remove Transmission Range Sensor (TRS) (1)

and manual shaft (2) (Fig. 272).

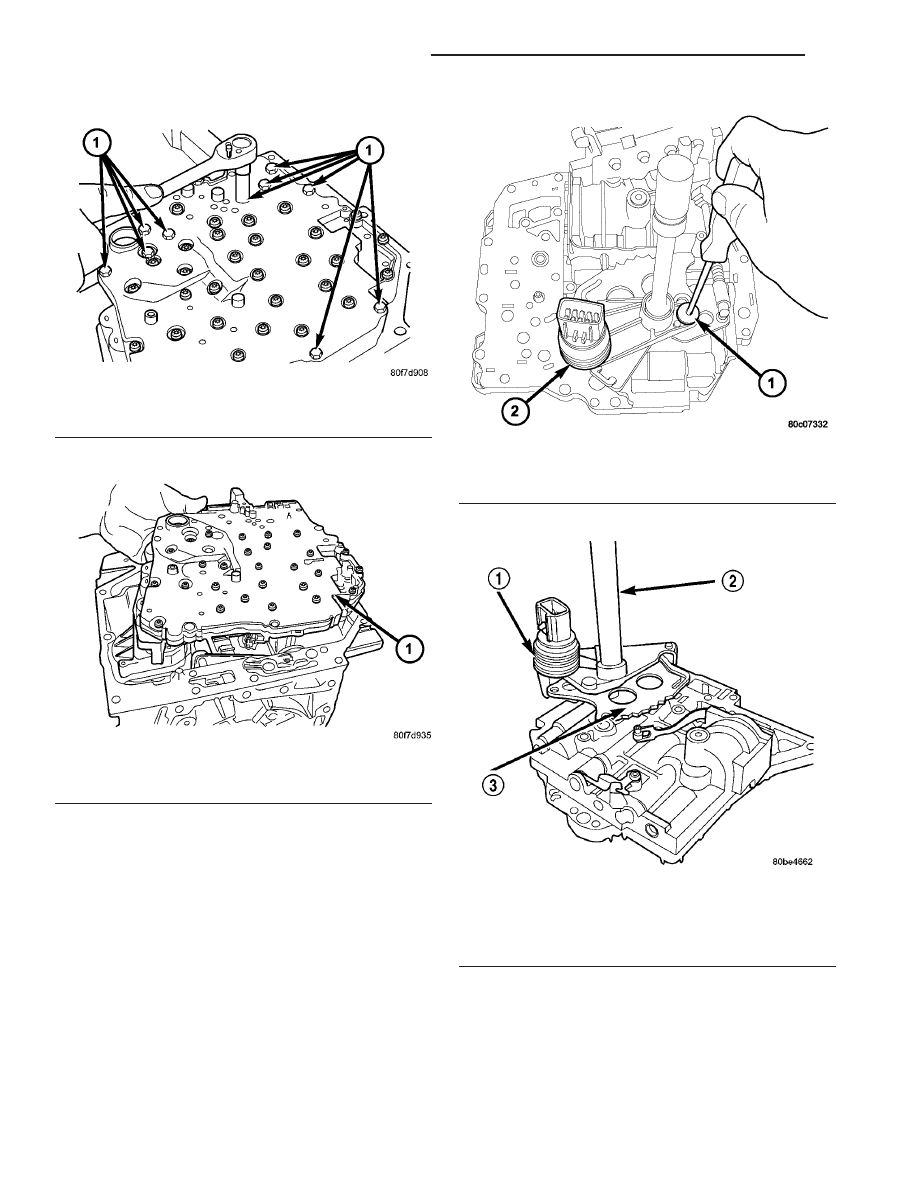

Fig. 269 Remove Valve Body Bolts

1 - BOLTS

Fig. 270 Remove Valve Body From Transmission

1 - VALVE BODY

Fig. 271 Manual Shaft Retaining Screw

1 - SCREW
2 - TRS

Fig. 272 Manual Shaft/Rooster Comb and

Transmission Range Sensor

1 - TRANSMISSION RANGE SENSOR
2 - MANUAL SHAFT
3 - ROOSTER COMB

21 - 154

AUTOMATIC TRANSMISSION - 42RLE

TJ

VALVE BODY (Continued)

(4) Remove Solenoid/Pressure Switch Assembly (1)

from valve body (Fig. 273).

(5) Remove valve body stiffener plate (1) (Fig.

274).

(6) Invert valve body assembly and remove trans-

fer plate-to-valve body screws (1) (Fig. 275).

(7) Remove transfer/separator plate (1) from valve

body (2) (Fig. 276)

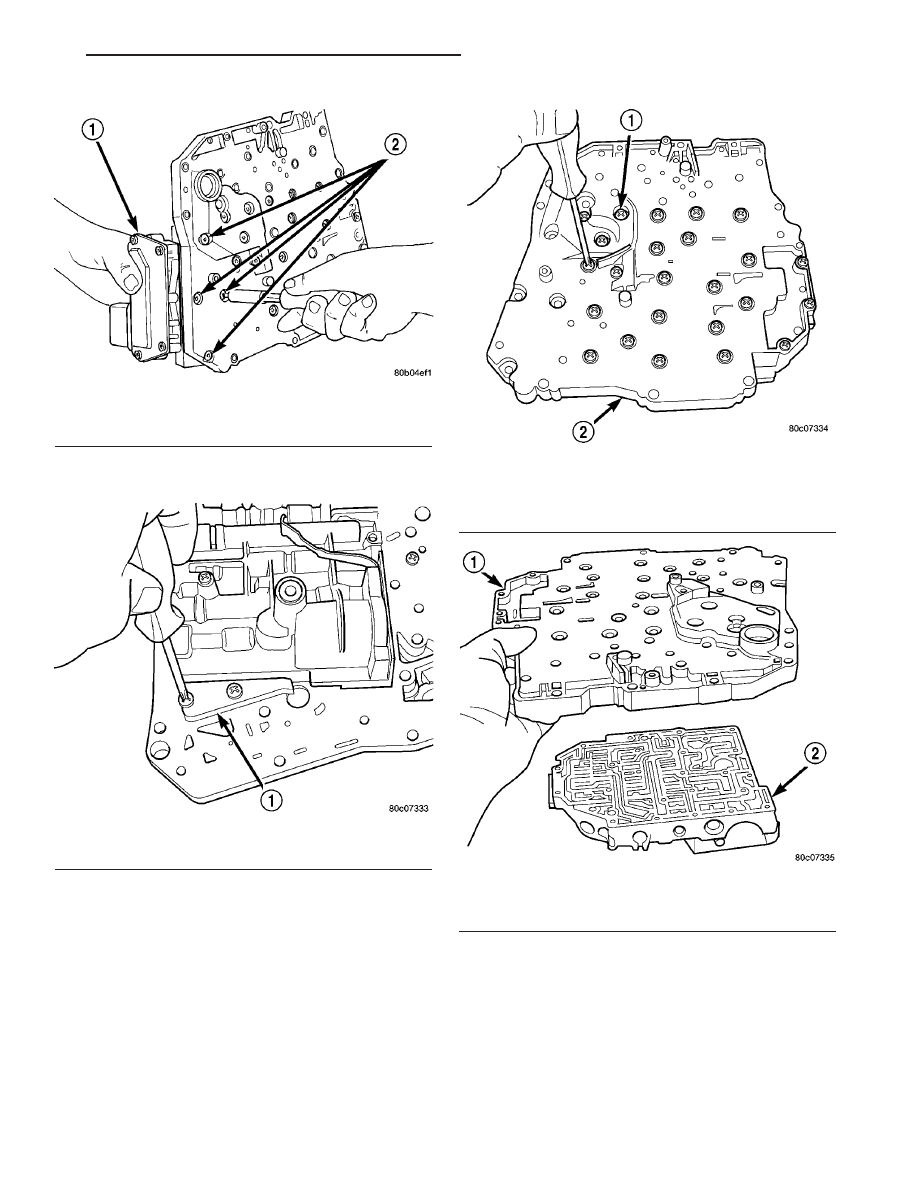

Fig. 273 Solenoid Retaining Screws

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY
2 - RETAINING SCREWS

Fig. 274 Remove Stiffener Plate

1 - STIFFENER PLATE

Fig. 275 Remove Transfer Plate-to-Valve Body

Screws

1 - SCREW (24)
2 - TRANSFER PLATE

Fig. 276 Remove Transfer Plate to Valve Body

1 - TRANSFER PLATE
2 - VALVE BODY

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 155

VALVE BODY (Continued)

(8) Remove

separator

plate-to-transfer

plate

screws (2) (Fig. 277).

(9) Remove separator plate (1) from transfer plate

(2) (Fig. 278).

(10) Remove the oil screen (1) from the transfer

plate (Fig. 279).

(11) Remove thermal valve (1) (Fig. 280) from

transfer plate.

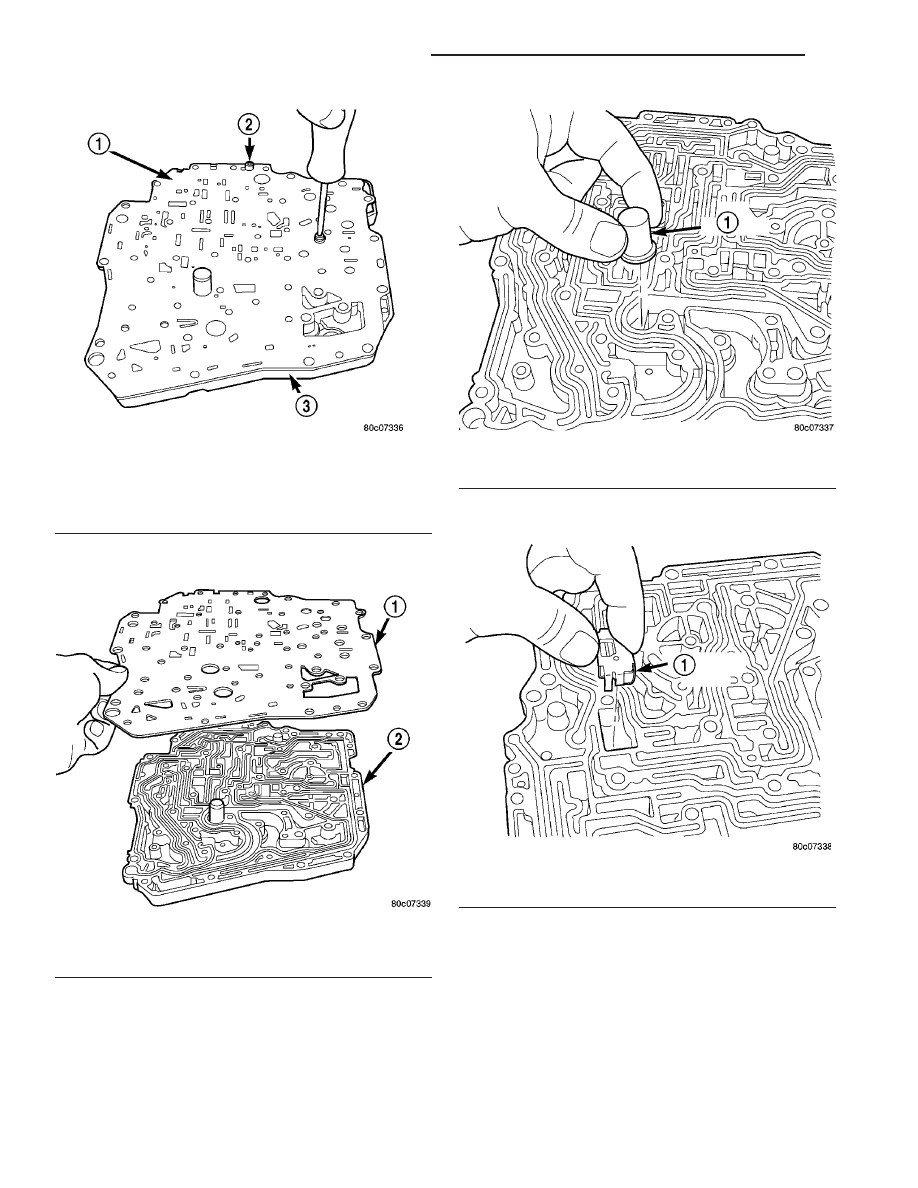

Fig. 277 Remove Separator Plate-to-Transfer Plate

Screws

1 - SEPARATOR PLATE
2 - SCREW (2)
3 - TRANSFER PLATE

Fig. 278 Remove Separator Plate to Transfer Plate

1 - SEPARATOR PLATE
2 - TRANSFER PLATE

Fig. 279 Remove Oil Screen to Transfer Plate

1 - OIL SCREEN

Fig. 280 Remove Thermal Valve to Transfer Plate

1 - THERMAL VALVE

21 - 156

AUTOMATIC TRANSMISSION - 42RLE

TJ

VALVE BODY (Continued)

(12) Remove valve body check balls (1-4). Note

their location for assembly ease (Fig. 281).

(13) Remove 2/4 accumulator assembly (1-5) (Fig.

282).

(14) Remove dual retainer plate (2) from valve

body. Use special tool 6301 (1) to remove plate (2)
(Fig. 283).

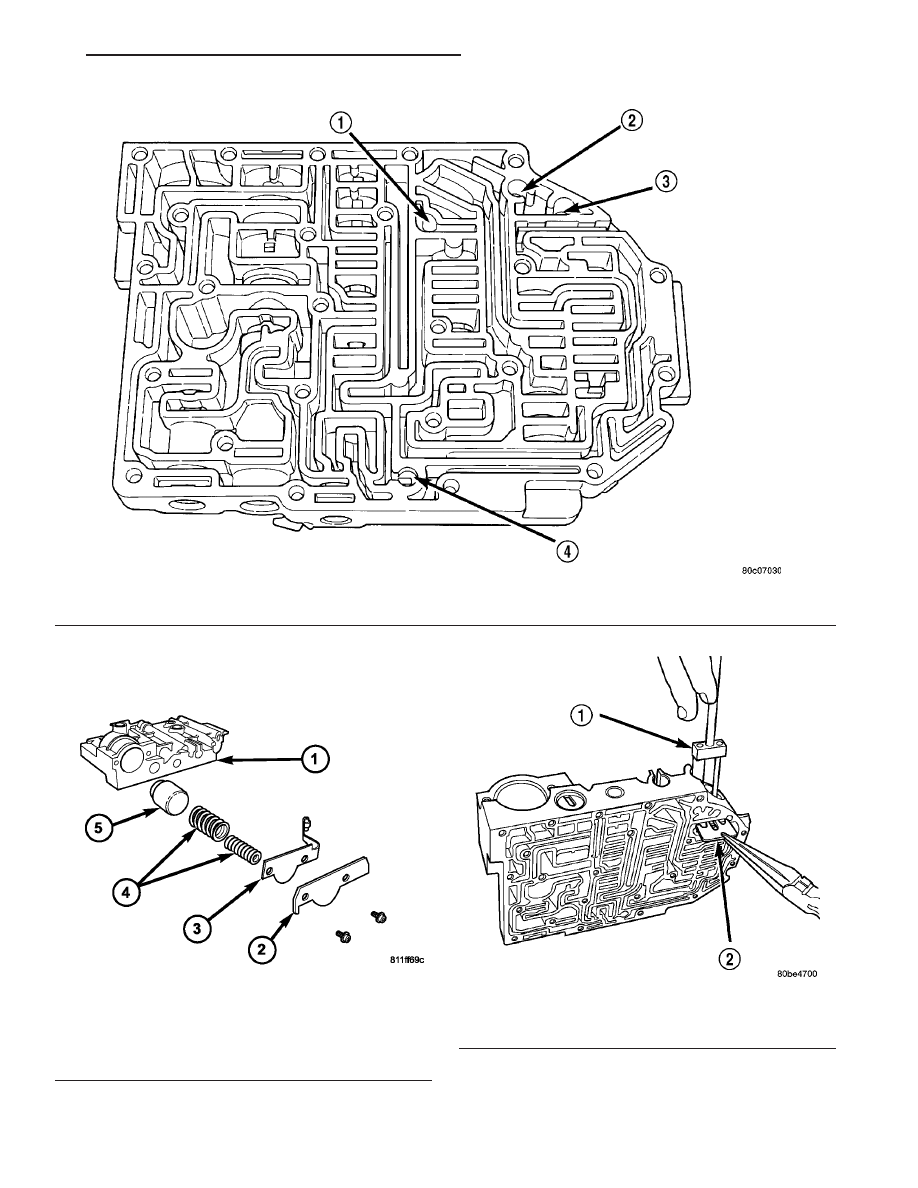

Fig. 281 Ball Check Location

1 - (#4) BALL CHECK LOCATION
2 - (#2) BALL CHECK LOCATION

3 - (#5) BALL CHECK LOCATION
4 - (#3) BALL CHECK LOCATION

Fig. 282 2/4 Accumulator Assembly

1 - VALVE BODY
2 - RETAINER PLATE
3 - DETENT SPRING
4 - RETURN SPRINGS
5 - PISTON

Fig. 283 Remove Dual Retainer Plate using Tool 6301

1 - TOOL 6301
2 - RETAINER

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 157

VALVE BODY (Continued)
