OIL PUMP CLEARANCES
DESCRIPTION
METRIC
STANDARD
Outer Gear-to-Crescent
0.060-0.298 mm
0.0023-0.0117 in.
Inner Gear-to-Crescent
0.093-0.385 mm
0.0036-0.0151 in.
Outer Gear-to-Pocket
0.089-0.202 mm
0.0035-0.0079 in.
Outer Gear Side Clearance
0.020-0.046 mm
0.0008-0.0018 in.
Inner Gear Side Clearance
0.020-0.046 mm
0.0008-0.0018 in.
TORQUE SPECIFICATIONS
Description
N·m
Ft. Lbs.
In. Lbs.
Bolt, Converter-to-Driveplate
88
65
-
Bolt, Fluid Filter-to-Valve Body
5
-
45
Bolt, L/R Clutch Retainer-to-Case
5
-
45
Bolt, Adapter/Extension Housing
54
40
-
Bolt, Manual Valve Lever-to-Manual Valve
5
-
45
Bolt, Oil Pan-to-Case
20
14.5
-
Bolt, Oil Pump-to-Case
30
-
265
Bolt, Park Sprag Retainer
4.5
-
40
Bolt, Reaction Shaft Support Halves
28
-
250
Bolt, Solenoid/Pressure Switch Assy-to-
Valve Body
5.5
-
50
Bolt, Valve Body-to-Case
12
-
105
Bolt, Valve Body-to-Transfer Plate
5
-
45
Fitting, Cooler Line
47.5
35
-
Nut, Output Shaft
271
200
-
Plug, Pressure Tap
5
-
45
Bolt, Input Speed-to-Case Sensor
9
-
80
Bolt, Output Speed-to-Case Sensor
9
-
80
21 - 102
AUTOMATIC TRANSMISSION - 42RLE
TJ

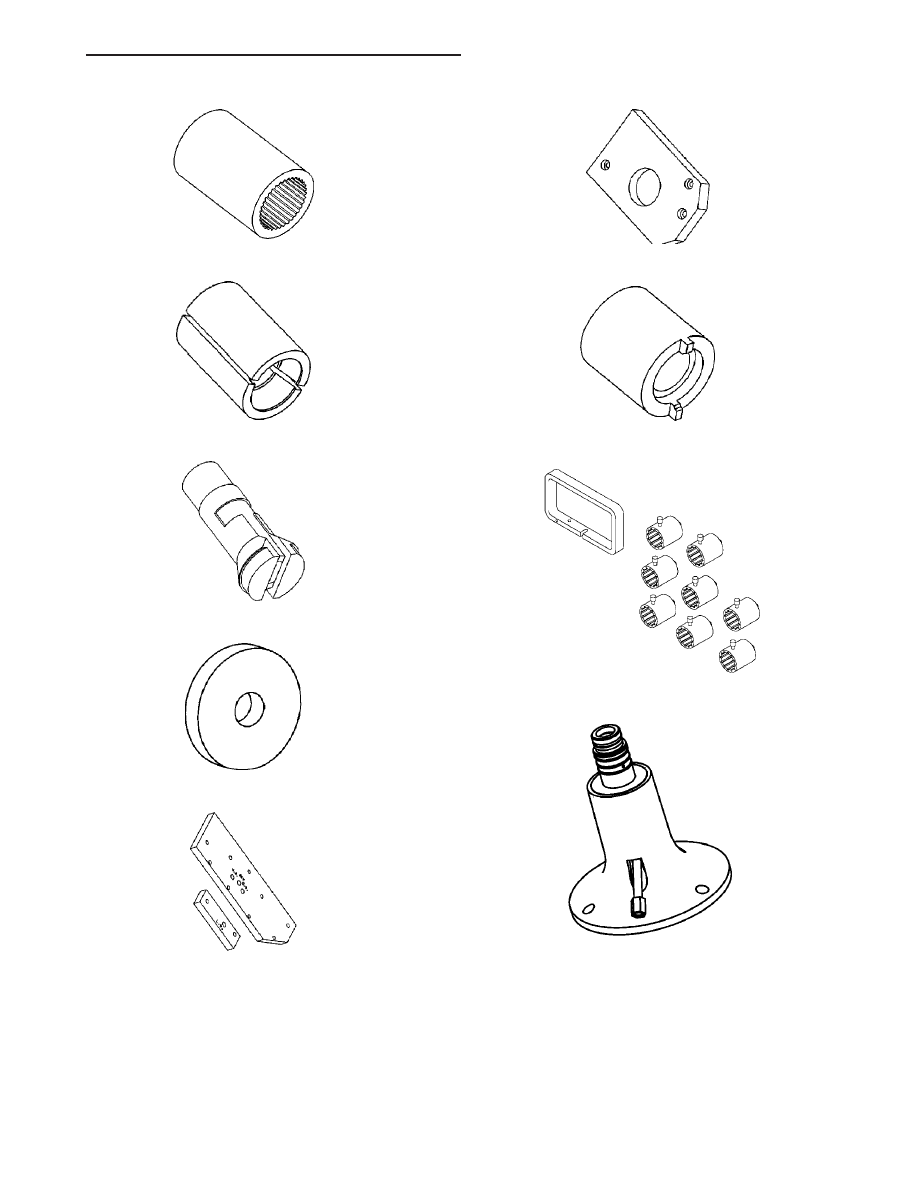

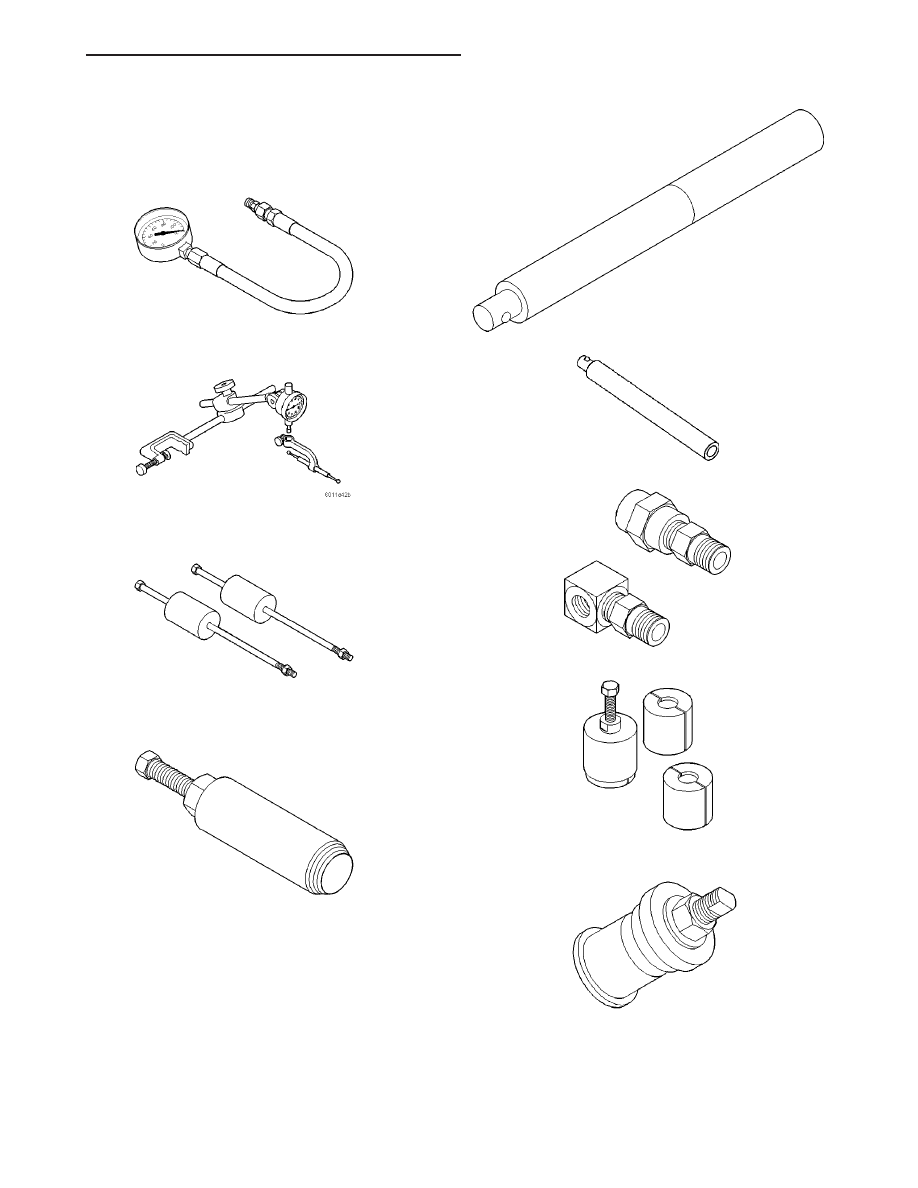

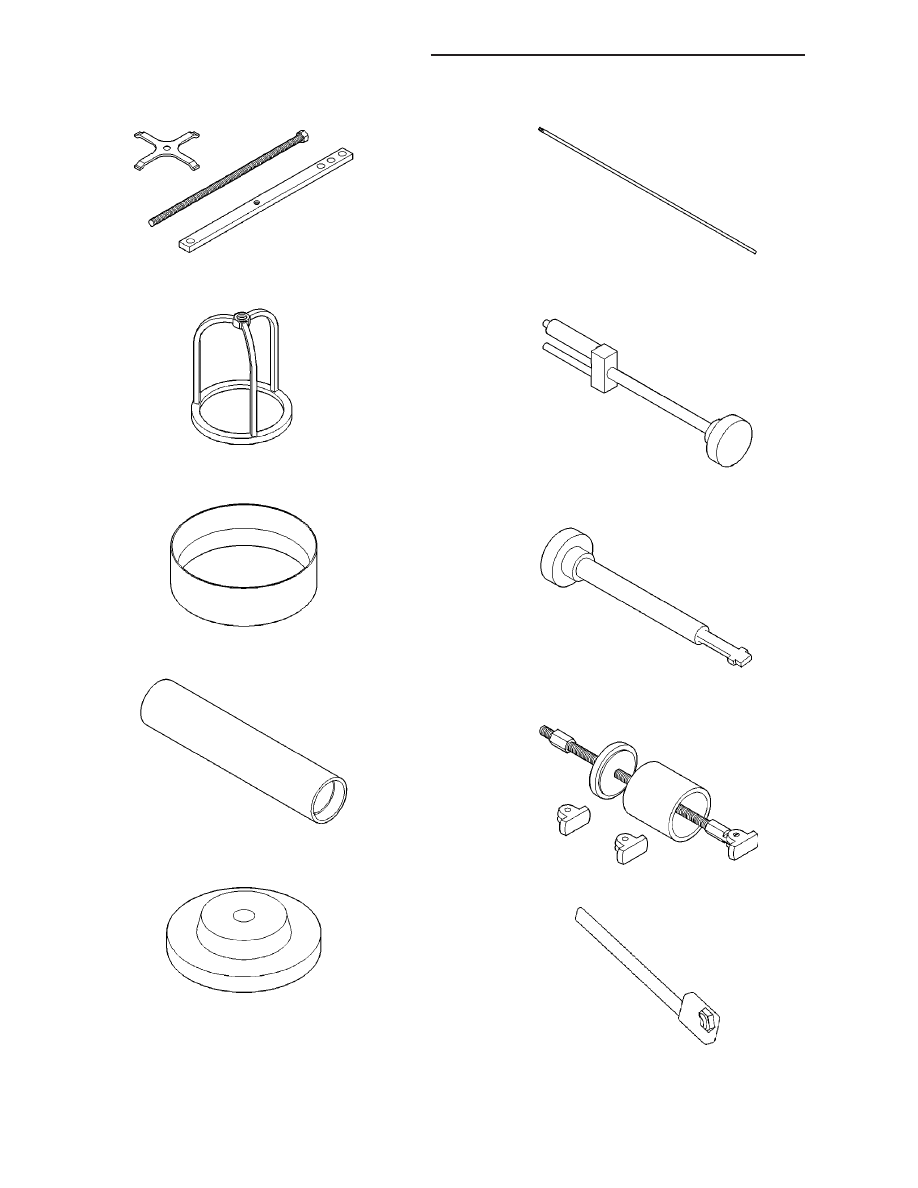

AUTOMATIC TRANSMISSION - 42RLE (Continued)
