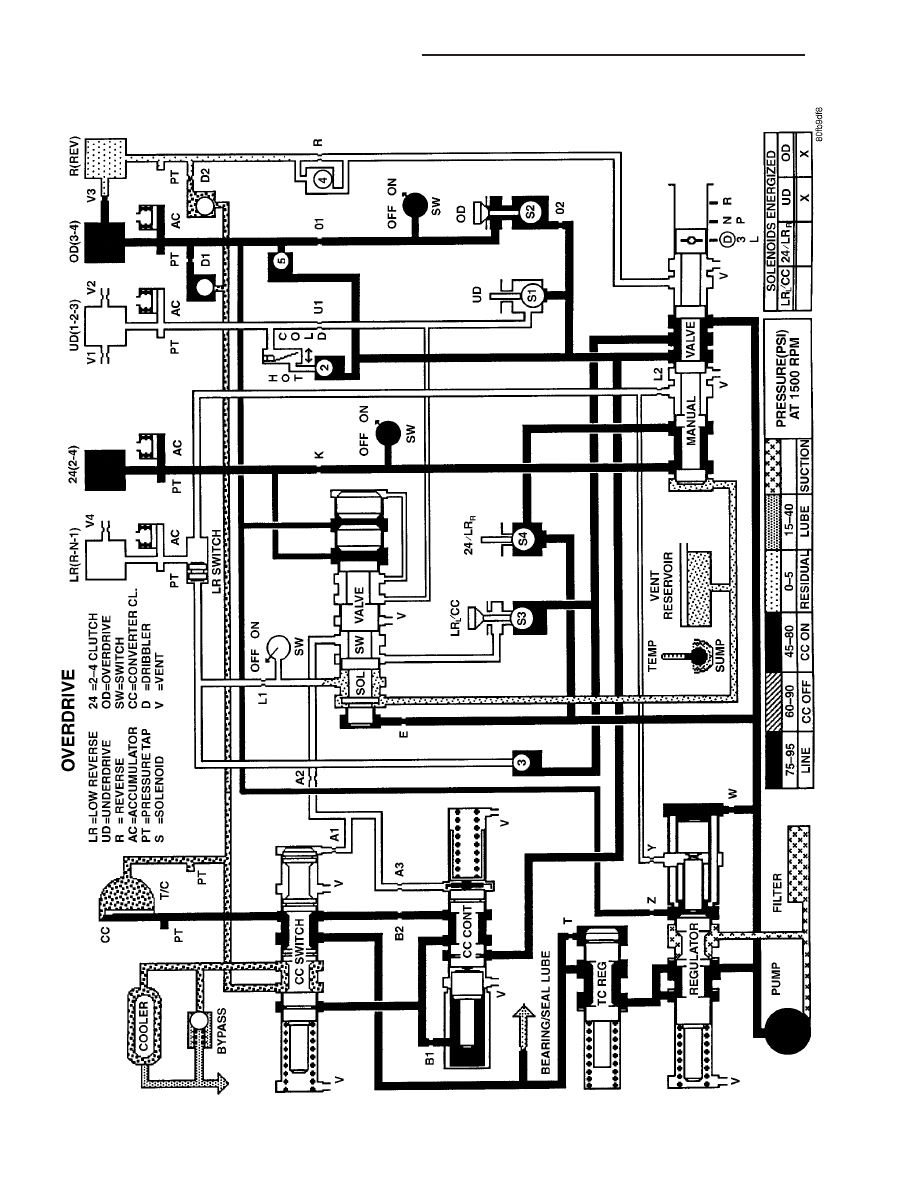

Overdrive

21 - 98

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

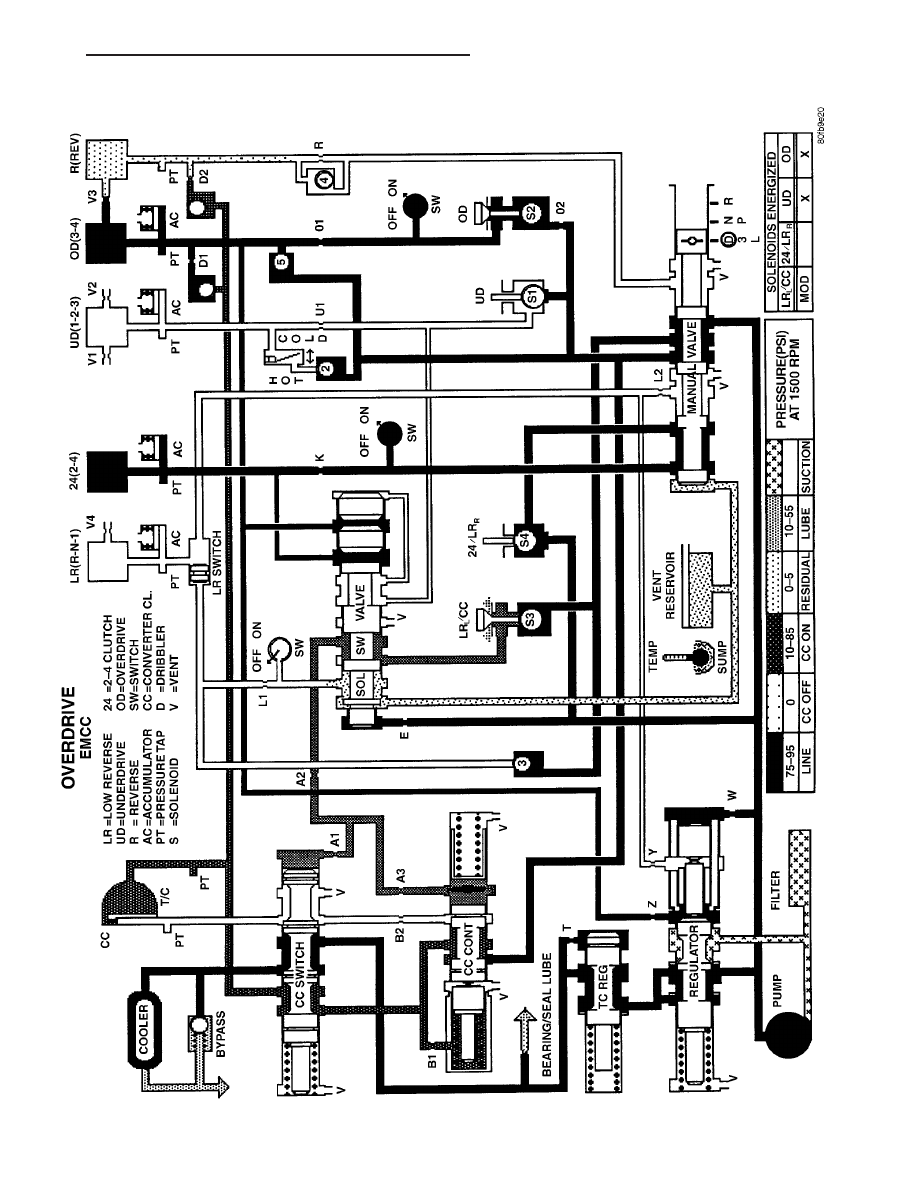

Overdrive

(EMCC)

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 99

AUTOMATIC TRANSMISSION - 42RLE (Continued)

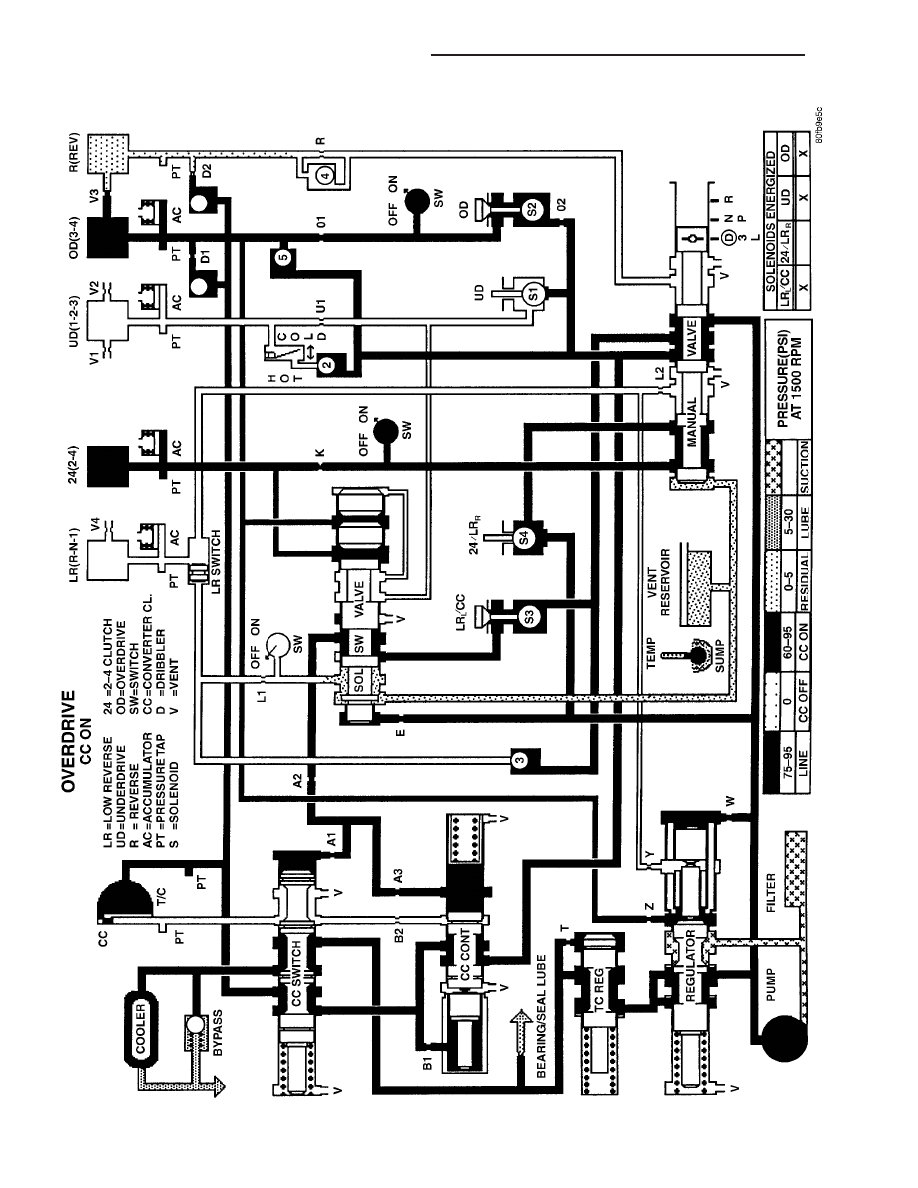

Overdrive

(CC

On)

21 - 100

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

SPECIFICATIONS

42RLE AUTOMATIC TRANSMISSION

GENERAL SPECIFICATIONS

Transmission Type

Four-Speed Automatic, Electronically Controlled, Fully

Adaptive, Electronically Modulated Torque Converter

Lubrication Method

Pump (internal - external gear-type)

Cooling Method

Water Heat Exchanger and/or Air-to-Oil Heat

Exchanger

GEAR RATIOS

1st Gear

2.84:1

2nd Gear

1.57:1

3rd Gear (Direct)

1.00:1

4th Gear (Overdrive)

0.69:1

Reverse Gear

2.21:1

BEARING PRELOAD (DRAG TORQUE)

Description

Metric

Standard

Output Shaft

0.22-0.903 N·m

1-8 in. lbs.

CLUTCH PACK

Description

Metric

Standard

Low/Reverse Clutch (Select

Reaction Plate)

0.84-1.60 mm

0.033-0.063 in.

Two/Four Clutch (No Select)

0.76-2.64 mm

0.030-0.104 in.

Reverse Clutch (Select Snap Ring)

0.89-1.37 mm

0.035-0.054 in.

Overdrive Clutch (No Select)

1.07-3.25 mm

0.042-0.128 in.

Underdrive Clutch (Select Reaction

Plate)

0.94-1.50 mm

0.037-0.059 in.

INPUT SHAFT

Description

Metric

Standard

End Play

0.127-0.635 mm

0.005-0.025 in.

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 101

AUTOMATIC TRANSMISSION - 42RLE (Continued)
