(2) Push 5-6 synchronizer sleeve (1) (Fig. 20) down

on hub and remove detents (2) springs and balls.

(3) Remove 5-6 synchronizer sleeve (1) (Fig. 21)

from hub (2).

(4) Remove 5-6 synchronizer hub (1) (Fig. 22) snap

ring (2).

NOTE: All snap rings are select fit from the factory.

(5) Remove 5-6 synchronizer hub (1) (Fig. 23) and

sixth gear synchronizer rings (2) with a three jaw
puller. Place puller jaws under sixth gear synchro-
nizer rings (2).

(6) Remove sixth gear (1) (Fig. 24) and bearing (2).

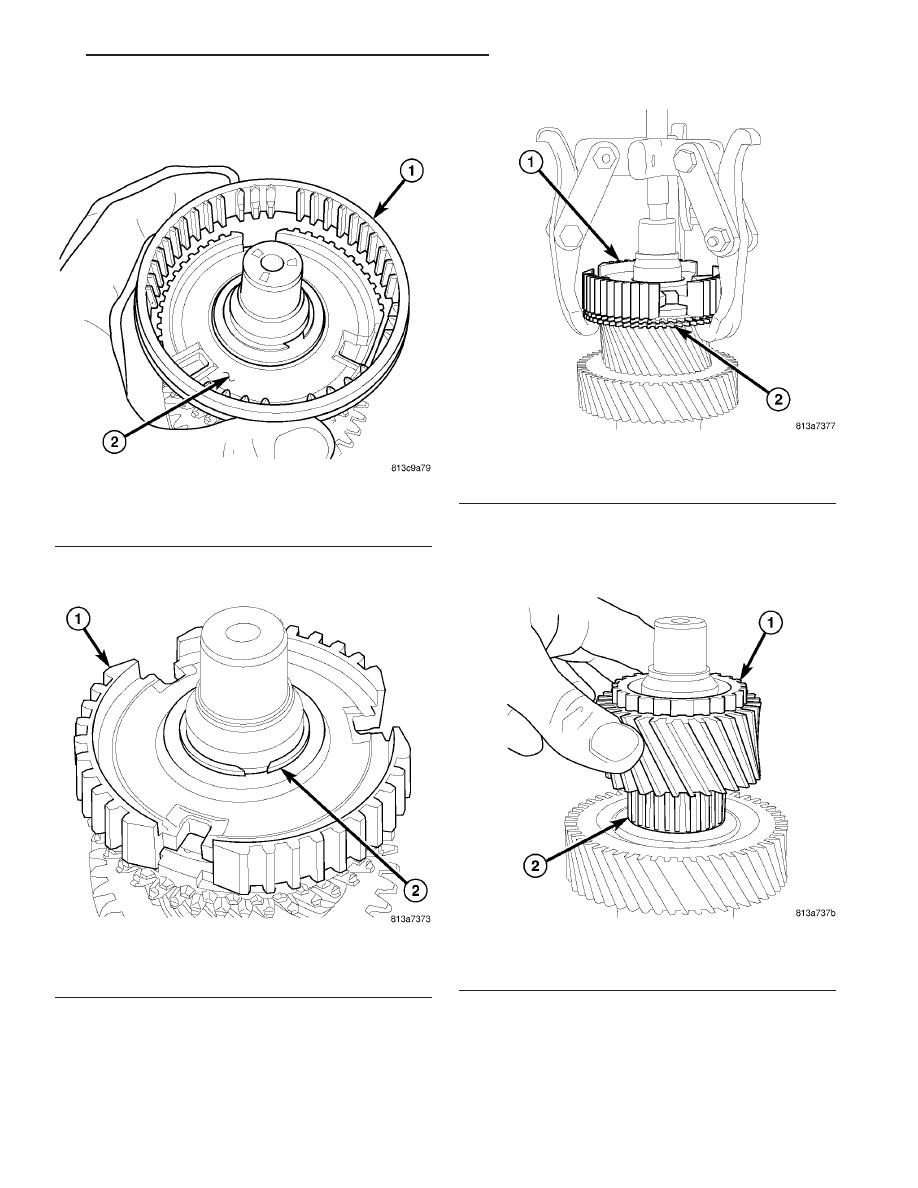

Fig. 21 5-6 SYNCHRONIZER SLEEVE

1 - SYNCHRONIZER SLEEVE
2 - HUB

Fig. 22 5-6 SYNCHRO HUB SNAP RING

1 - SYNCHRONIZER HUB
2 - SNAP RING

Fig. 23 5-6 SYNCHRO HUB

1 - 5-6 SYNCHRONIZER HUB
2 - SIXTH GEAR SYNCHRONIZER RINGS

Fig. 24 SIXTH GEAR & BEARING

1 - SIXTH GEAR
2 - BEARING

TJ

MANUAL TRANSMISSION - NSG370

21 - 7

MANUAL TRANSMISSION - NSG370 (Continued)

(7) Third gear (1) (Fig. 25) and fourth gear (2) are

serviced with the mainshaft only.

(8) Remove mainshaft from Fixture 9648. Turn fix-

ture over in vise and set opposite end of mainshaft in
the fixture.

(9) Remove reverse gear (1) (Fig. 26) synchronizer

sleeve (2) off synchronizer hub.

(10) Remove reverse synchronizer hub (1) (Fig. 27)

detents (2).

(11) Remove reverse synchronizer hub (1) (Fig. 28)

with three jaw puller (2). Place puller jaws in hub
detent openings.

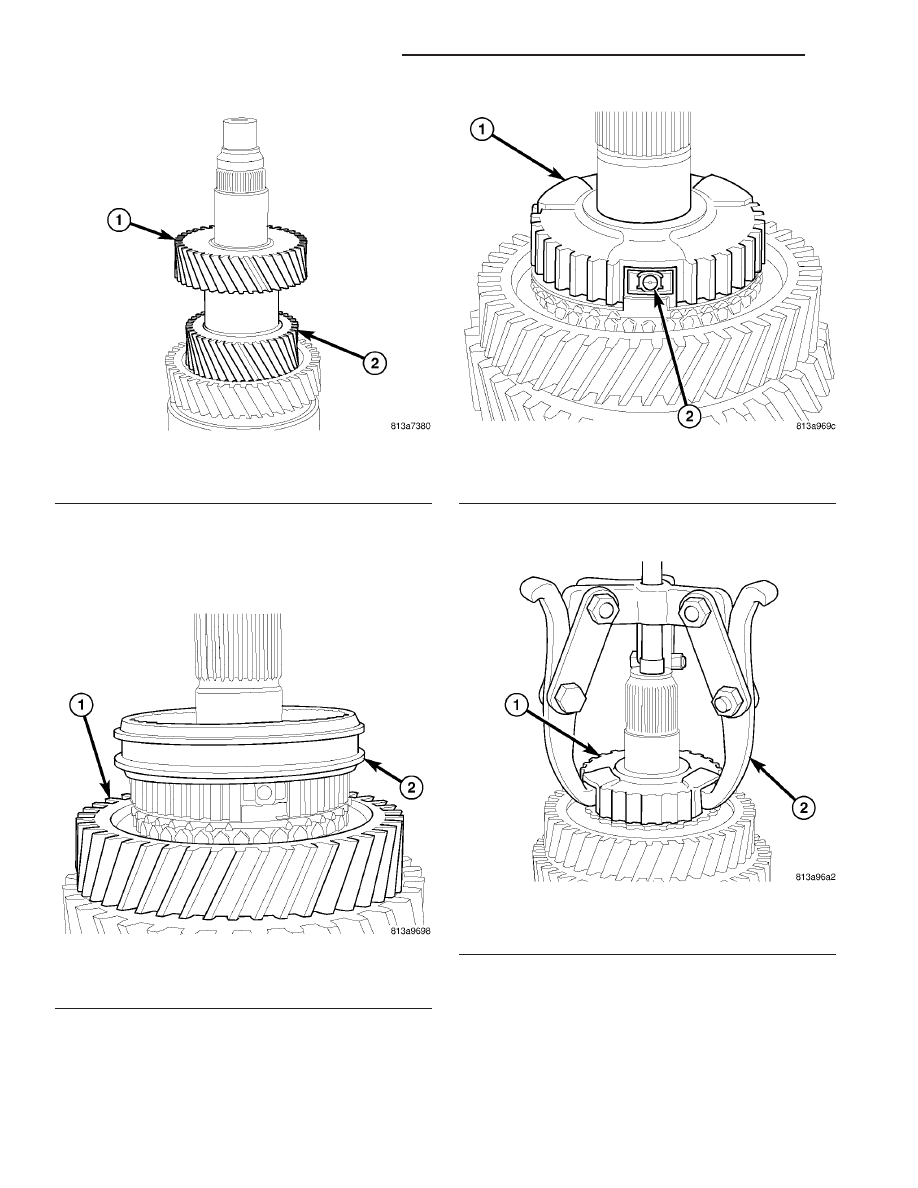

Fig. 25 3-4 GEAR

1 - THIRD GEAR
2 - FOURTH GEAR

Fig. 26 REVERSE GEAR SYNCHRO SLEEVE

1 - REVERSE GEAR
2 - SYNCHRONIZER SLEEVE

Fig. 27 REVERSE SYNCHRO HUB DETENT

1 - SYNCHRONIZER HUB
2 - DETENTS

Fig. 28 REVERSE SYNCHRO HUB

1 - SYNCHRONIZER HUB
2 - THREE JAW PULLER

21 - 8

MANUAL TRANSMISSION - NSG370

TJ

MANUAL TRANSMISSION - NSG370 (Continued)

(12) Remove reverse gear (1) (Fig. 29) synchronizer

ring (2).

(13) Remove reverse gear (1) (Fig. 30) and bearing

(2).

(14) Remove reverse gear bearing race (1) (Fig.

31), thrust washer (2) and first gear (3) with puller
(4). Place puller jaws under first gear (3).

(15) Remove first gear bearing.

(16) Remove first gear synchronizer rings.
(17) Push 1-2 synchronizer sleeve down on hub.

Remove 1-2 synchronizer hub (1) (Fig. 32) detents
(2), balls and springs.

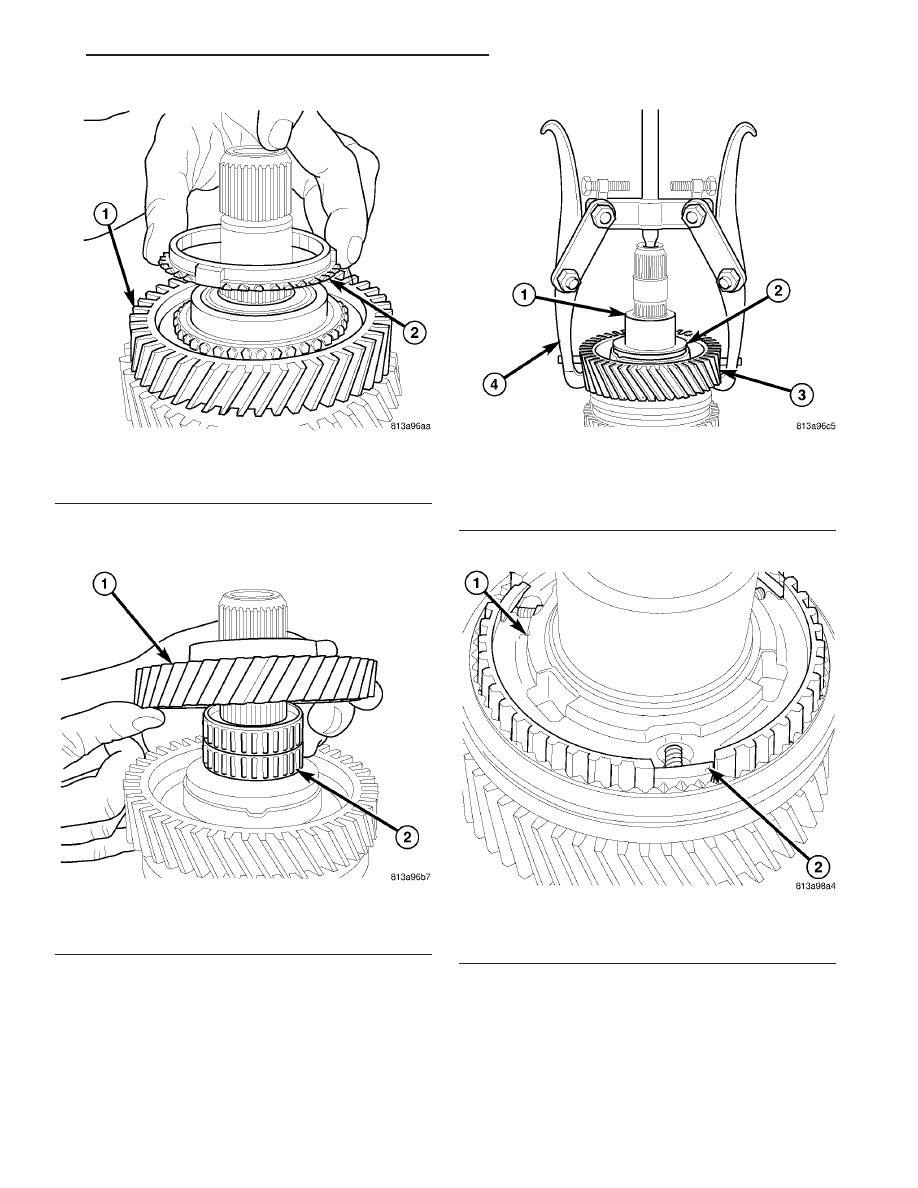

Fig. 29 REVERSE SYNCHRONIZER

1 - REVERSE GEAR
2 - SYNCHRONIZER FRICTION RING

Fig. 30 REVERSE GEAR

1 - REVERSE GEAR
2 - BEARING

Fig. 31 FIRST GEAR

1 - BEARING RACE
2 - THRUST WASHER
3 - FIRST GEAR
4 - PULLER

Fig. 32 1-2 SYNCHRO DETENT

1 - 1-2 SYNCHRONIZER HUB
2 - DETENTS

TJ

MANUAL TRANSMISSION - NSG370

21 - 9

MANUAL TRANSMISSION - NSG370 (Continued)

(18) Remove 1-2 synchronizer sleeve (1) (Fig. 33)

from synchronizer hub (2).

(19) Remove 1-2 synchronizer hub (1) (Fig. 34)

snap ring (2).

(20) Remove 1-2 synchronizer hub (1) (Fig. 35),

synchronizer rings and second gear (2) off shaft with
a press. Place second gear (2) on press plates and
press shaft through 1-2 synchronizer hub (1), syn-
chronizer rings and second gear (2)

COUNTERSHAFT

The countershaft (1) and 3-4 synchronizer (2) are

serviced as an assembly only (Fig. 36).

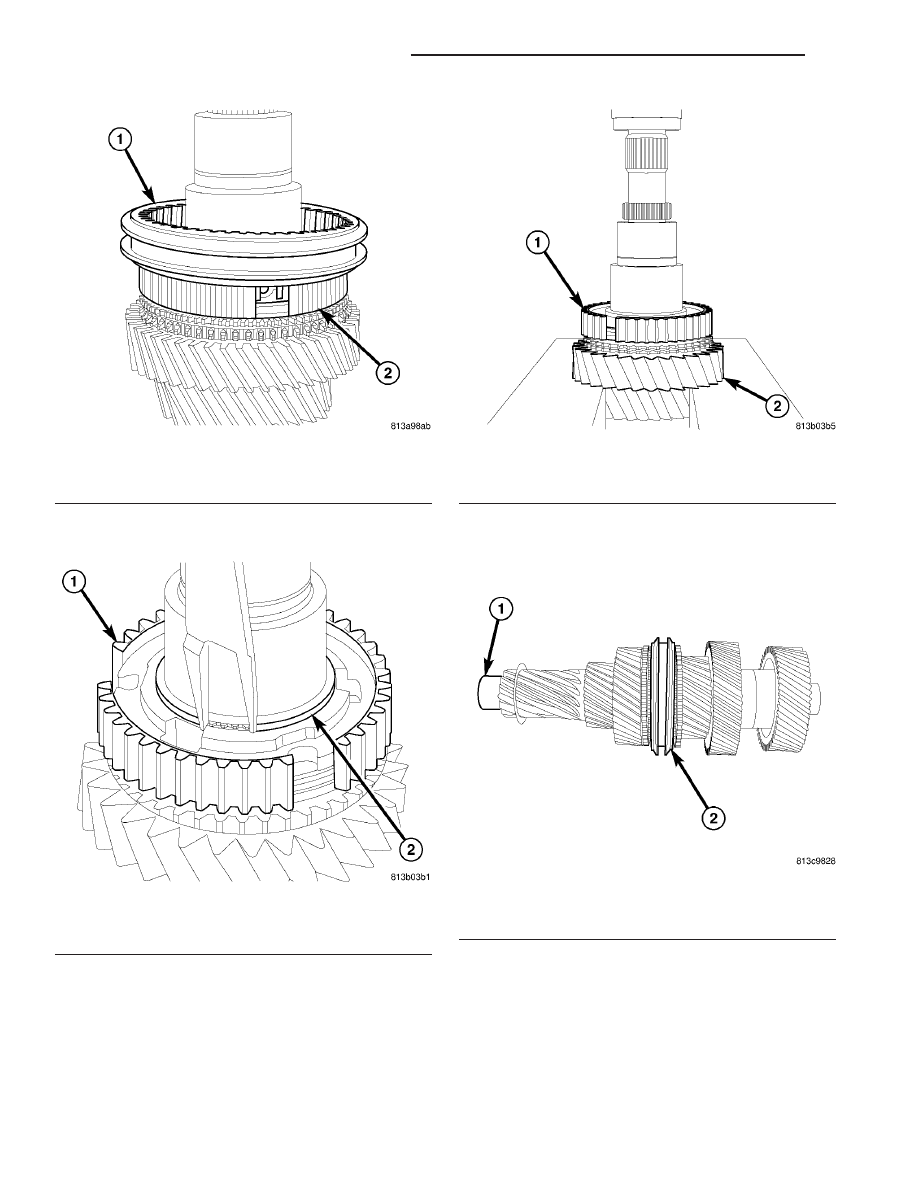

Fig. 33 1-2 SYNCHRO SLEEVE

1 - 1-2 SYNCHRONIZER SLEEVE
2 - SYNCHRONIZER HUB

Fig. 34 1-2 SYNCHRO HUB SNAP RING

1 - SYNCHRONIZER HUB
2 - SNAP RING

Fig. 35 SECOND GEAR

1 - SYNCHRONIZER HUB
2 - SECOND GEAR

Fig. 36 COUNTERSHAFT

1 - BEARING SURFACES
2 - 3-4 SYNCHRONIZER ASSEMBLY

21 - 10

MANUAL TRANSMISSION - NSG370

TJ

MANUAL TRANSMISSION - NSG370 (Continued)
