Jeep Wrangler TJ. Manual - part 457





TAILPIPE

DESCRIPTION

TAILPIPE

DESCRIPTION

The tailpipe (Fig. 12) is made of galvanized steel

OPERATION

The tailpipe channels the exhaust out of the muf-

fler and out from under the vehicle to control noise
and prevent exhaust gas fumes from entering the
passenger compartment.

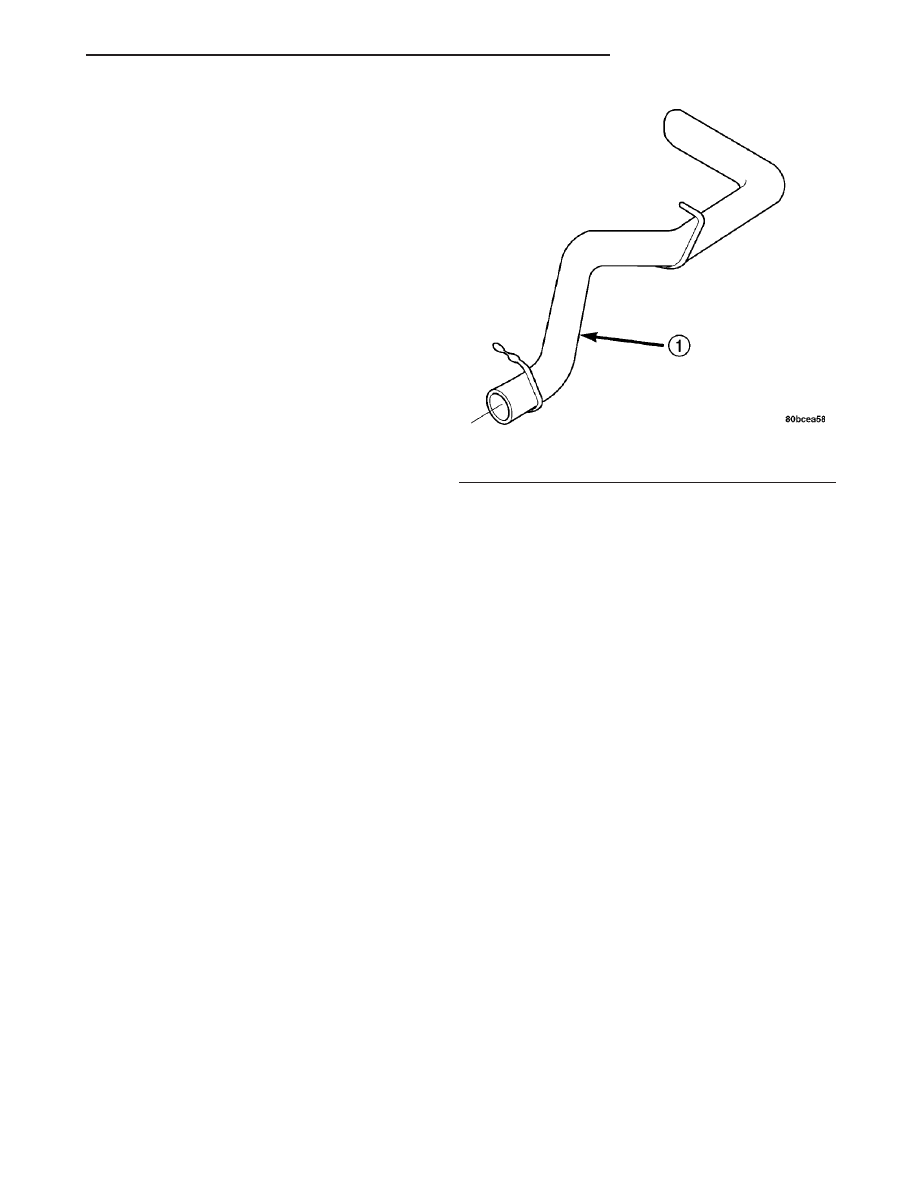

Fig. 12 Tailpipe - Typical

1 - TAILPIPE

TJ

EXHAUST SYSTEM

11 - 11

FRAME & BUMPERS

TABLE OF CONTENTS

page

page

FRAME & BUMPERS

SPECIFICATIONS

TORQUE SPECIFICATIONS

. . . . . . . . . . . . . . 1

FRONT EXTENSION

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRONT BUMPER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

REAR EXTENSION

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

REAR BUMPER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

FRAME

STANDARD PROCEDURE - FRAME SERVICE

. . 3

SPECIFICATIONS

FRAME DIMENSIONS

. . . . . . . . . . . . . . . . . . . 4

TRANSFER CASE SKID PLATE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

FUEL TANK SKID PLATE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

FRONT TOW HOOK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

REAR TOW HOOK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

TRANSMISSION SKID PLATE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

FRAME & BUMPERS

SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

FRONT BUMPER SCREW

108

80

FRONT TOW HOOK SCREW

108

80

FUEL TANK SKID PLATE NUTS

16

12

138

FUEL TANK STRAP NUTS

5

40

MAIN FLOOR TO HOLD DOWN BOLT

68

50

RADIATOR TO FRAME HOLD DOWN BOLT

60

45

REAR BUMPER BOLT

77

57

REAR FLOOR TO FRAME BOLT

47

35

REAR TOE HOOK SCREW

77

57

TRANFER CASE SKID PLATE BOLTS

45

33

TRANSMISSION MOUNT NUTS

35

26

TRANSMISSION SKID PLATE TO FRAME BOLTS

45

33

TRANSMISSION SKID PLATE TO TRANSFER CASE SKID

PLATE BOLTS

28

21

TJ

FRAME & BUMPERS

13 - 1

FRONT EXTENSION

REMOVAL

(1) Remove the bolts attaching the bumper exten-

sion to the bumper (Fig. 1).

(2) Separate the extension from the bumper.

INSTALLATION

(1) Position the extension to the bumper
(2) Install the screws retaining the front bumper

extension. (Fig. 1)

FRONT BUMPER

REMOVAL

(1) If equipped, disconnect the fog lamp harness

connector.

(2) Remove the screws that attach the bumper to

the frame rail (Fig. 2).

(3) If equipped, remove the tow hook. (Refer to 13 -

FRAME & BUMPERS/FRAME/FRONT TOW HOOK
- REMOVAL)

(4) Separate the bumper from the vehicle.

INSTALLATION

(1) Position the bumper on the vehicle.
(2) If equipped, install the tow hook. (Refer to 13 -

FRAME & BUMPERS/FRAME/FRONT TOW HOOK
- INSTALLATION)

(3) Install the screws that attach the bumper to

the frame rail and tighten to 108 N·m (80 ft. lbs.).

(4) If equipped, Connect the fog lamp harness con-

nector.

REAR EXTENSION

REMOVAL

(1) Remove the screws attaching the bumper

extension to the bumper (Fig. 3).

(2) Separate the extension from the bumper.

INSTALLATION

(1) Position the extension on the bumper.
(2) Install the screws attaching the bumper exten-

sion to the bumper.

REAR BUMPER

REMOVAL

(1) Remove the bolt attaching the bumper to frame

rail. (Fig. 3)

(2) If equipped, remove the rear tow eye/hook.

(Refer to 13 - FRAME & BUMPERS/FRAME/REAR
TOW HOOK - REMOVAL)

(3) Disconnect the rear fog lamp electrical connec-

tor, if equipped.

(4) Remove the nuts attaching the bumper to the

rear frame crossmember.

(5) Separate the bumper from the vehicle.

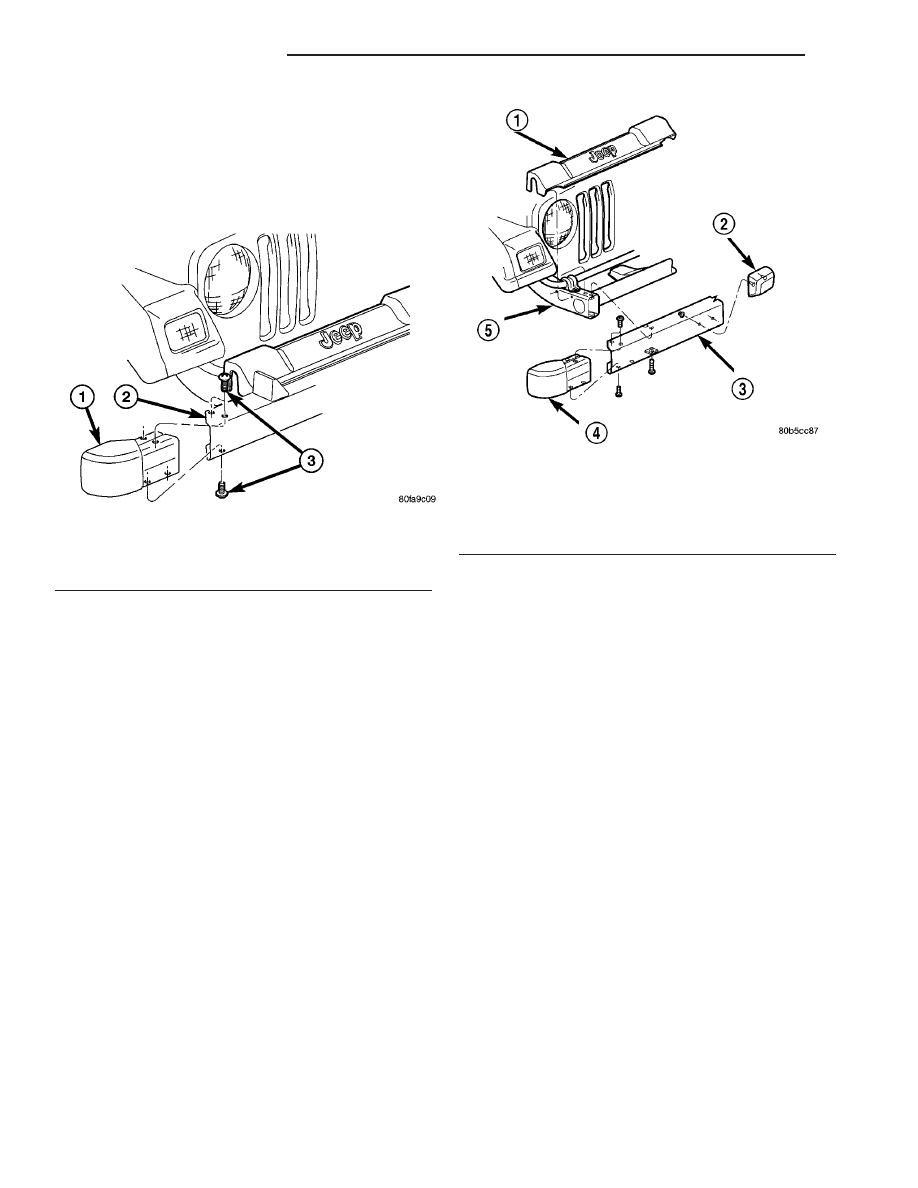

Fig. 1 BUMPER EXTENSION

1 - BUMPER EXTENSION
2 - FRONT BUMPER
3 - BOLTS (2 ON TOP AND 1 ON BOTTOM)

Fig. 2 FRONT BUMPER COMPONENTS

1 - VALANCE
2 - BUMPER GUARD
3 - FRONT BUMPER
4 - BUMPER EXTENSION
5 - FRAME

13 - 2

FRAME & BUMPERS

TJ
