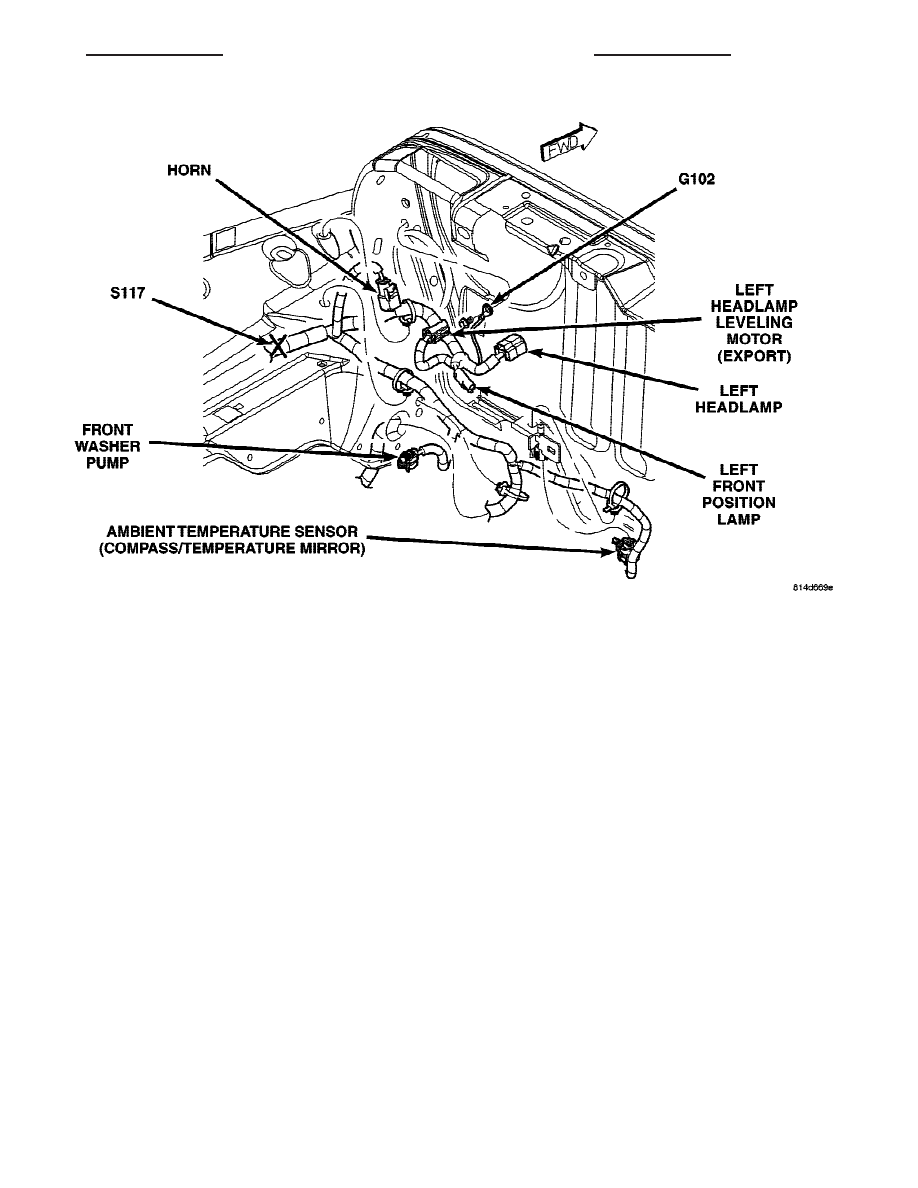

Fig. 1 -LEFT HEADLAMP

TJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 11

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

2

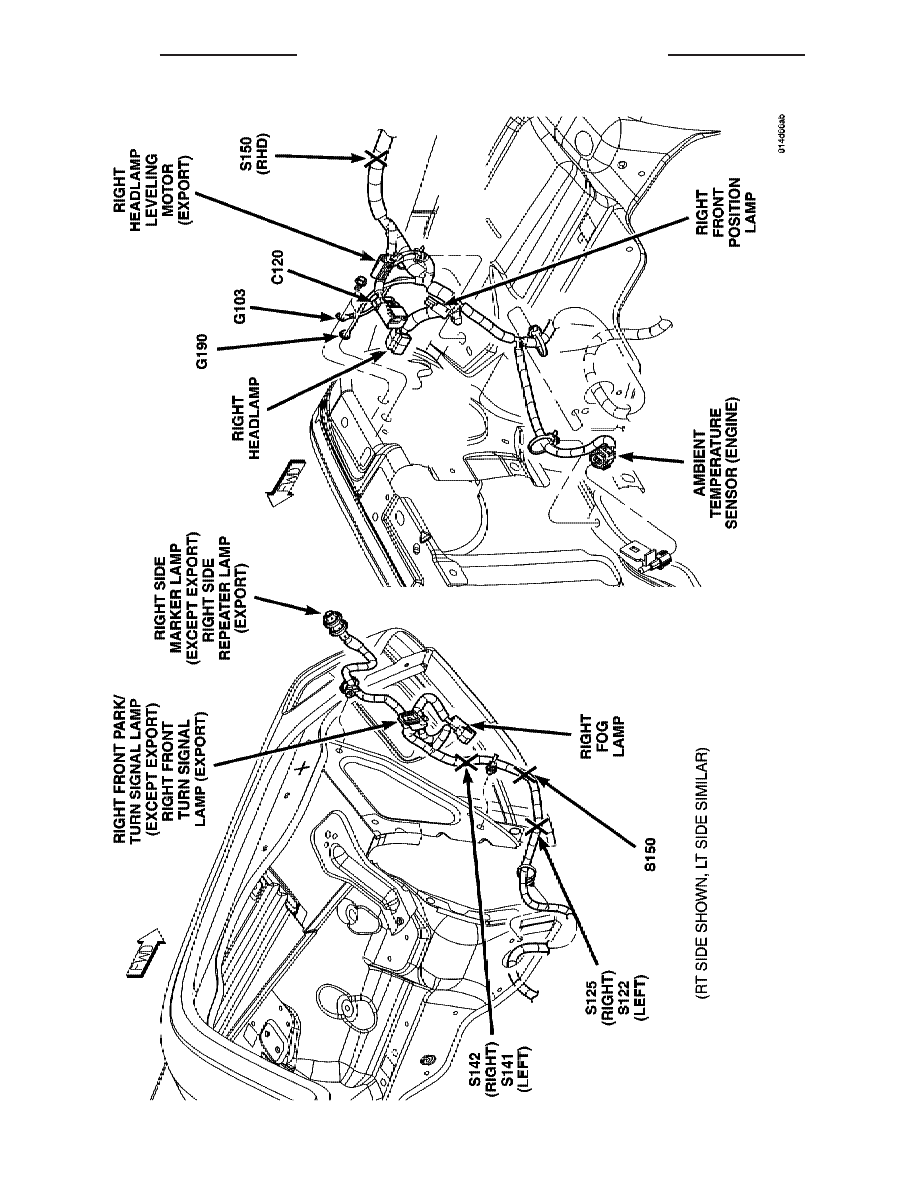

-RIGHT

HEADLAMP

8W - 91 - 12

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

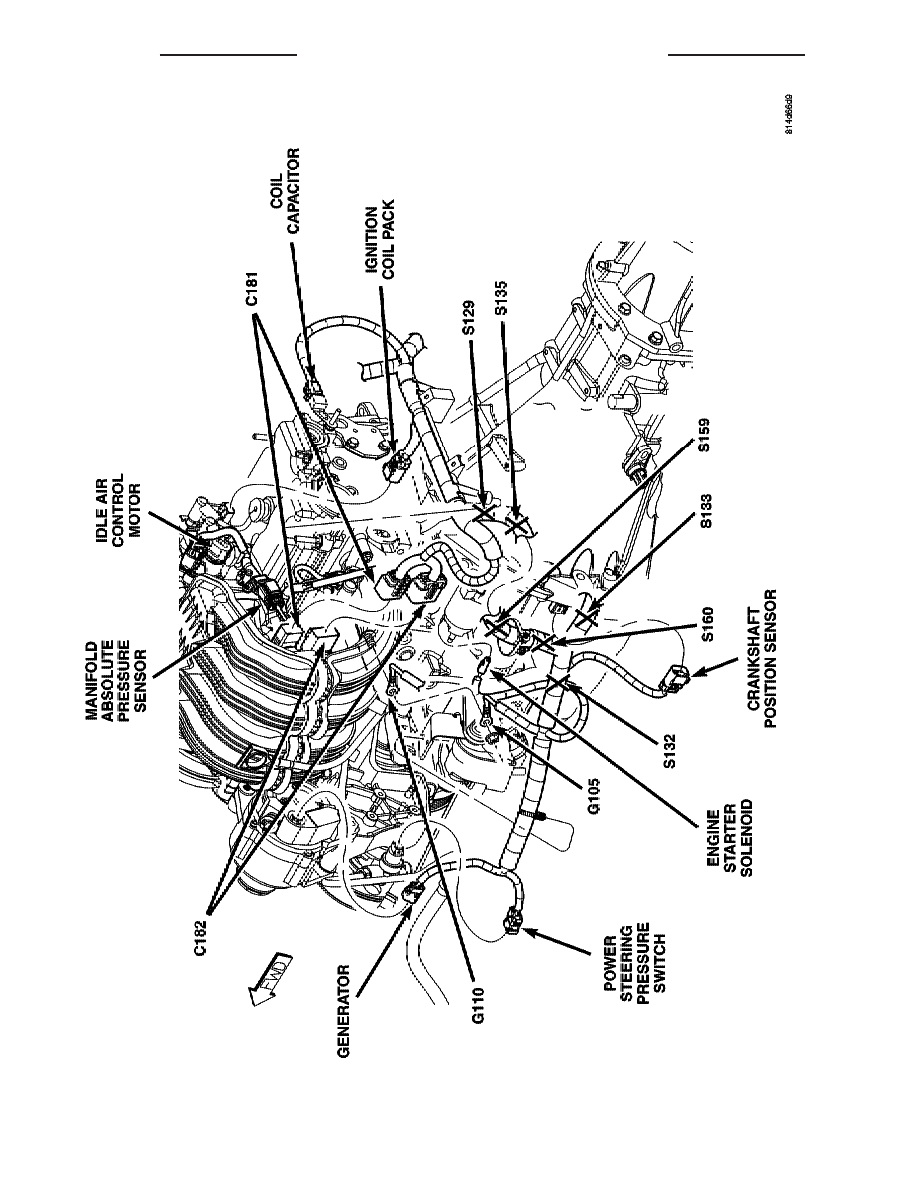

Fig. 3 -2.4L ENGINE LEFT FRONT

TJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 13

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

4

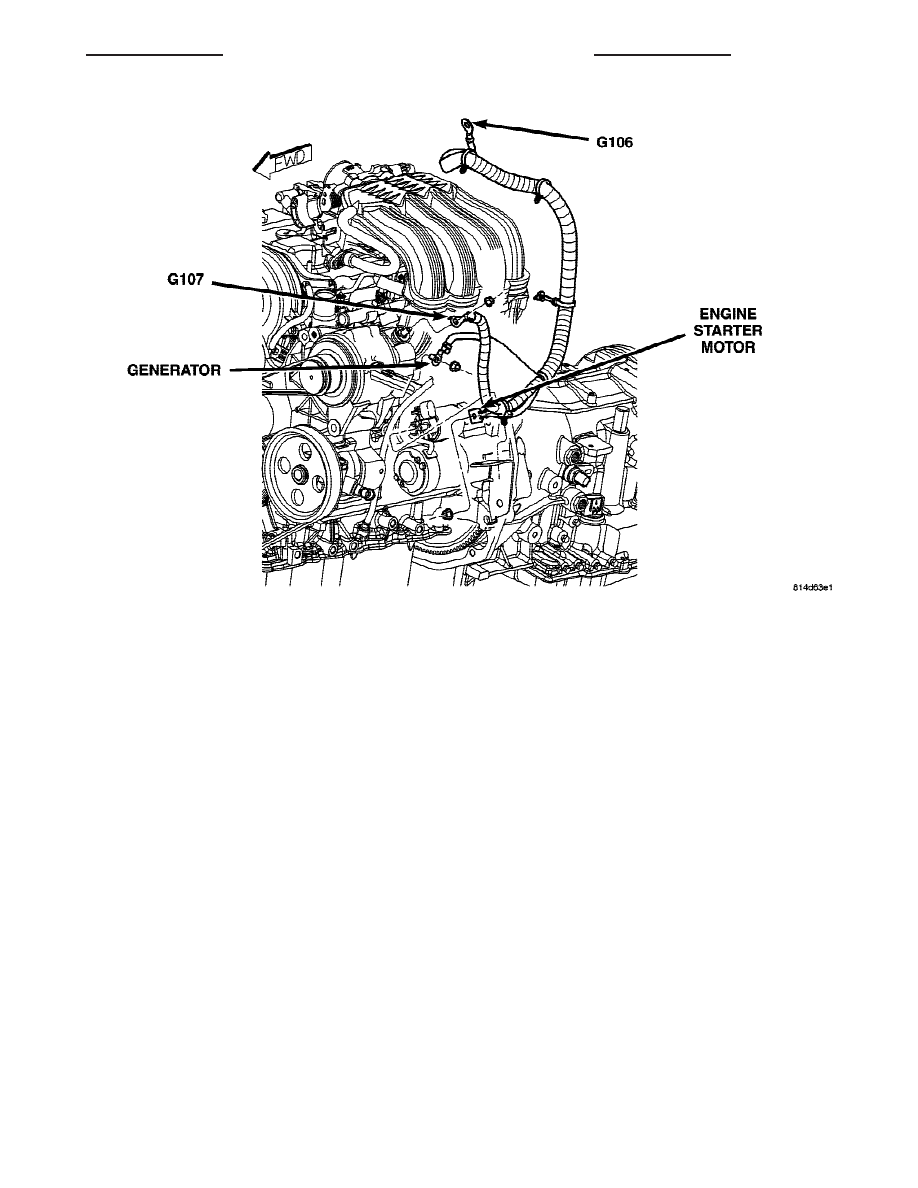

-2.4

L

ENGINE

LEFT

REAR

8W - 91 - 14

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
