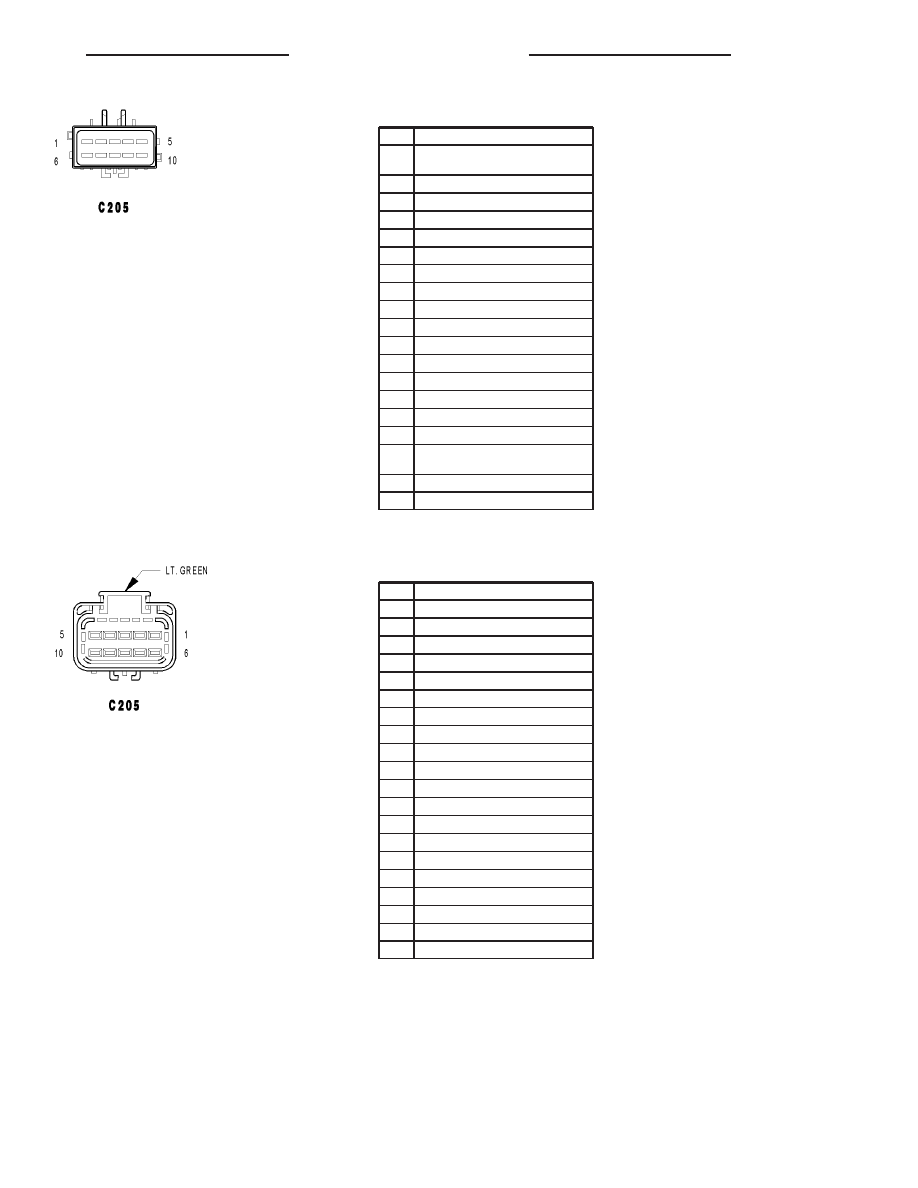

C205 - (HVAC SIDE)
CAV
CIRCUIT
1
Z134 20DB/WT (EXCEPT HEATER
ONLY)
1
Z11 20DB/WT (HEATER ONLY)
2
C71 14TN (EXCEPT HEATER ONLY)
2
C4 14TN (HEATER ONLY)
3
C72 14LG (EXCEPT HEATER ONLY)
3
C5 14LG (HEATER ONLY)
4
C73 14LB (EXCEPT HEATER ONLY)
4
C6 14LB (HEATER ONLY)
5
F504 20OR (EXCEPT HEATER ONLY)
5
F24 20OR (HEATER ONLY)
6
C132 20YL (EXCEPT HEATER ONLY)
6
C132 20YL (HEATER ONLY)
7
C75 12BK/TN (EXCEPT HEATER ONLY)
7
C7 12BK/TN (HEATER ONLY)
8
A502 12RD/LG (EXCEPT HEATER ONLY)
8
A111 12RD/LG (HEATER ONLY)
9
F504 20DB/WT (EXCEPT HEATER
ONLY)
9
F24 20DB/WT (HEATER ONLY)
10
Z1 20BK
C205 - LT. GREEN (I/P SIDE)
CAV
CIRCUIT
1
Z134 20BK/LG (EXCEPT HEATER ONLY)
1
Z11 20DB/WT (HEATER ONLY)
2
C71 18DB/BR (EXCEPT HEATER ONLY)
2
C4 18TN (HEATER ONLY)
3
C72 16DB/OR (EXCEPT HEATER ONLY)
3
C5 16LG/LB (HEATER ONLY)
4
C73 14DB/VT (EXCEPT HEATER ONLY)
4
C6 14LB (HEATER ONLY)
5
F504 20GY/PK (EXCEPT HEATER ONLY)
5
F504 20GY/PK (EXCEPT HEATER ONLY)
5
F24 20RD/DG (HEATER ONLY)
6
C132 20DB/YL (EXCEPT HEATER ONLY)
6
C36 20DB/RD (HEATER ONLY)
7
C75 12DB/GY (EXCEPT HEATER ONLY)
7
C7 12BR/TN (HEATER ONLY)
8
A502 12RD/LG (EXCEPT HEATER ONLY)
8
A111 12RD/LB (HEATER ONLY)
9
F504 20GY/PK (EXCEPT HEATER ONLY)
9
F24 20RD/DG (HEATER ONLY)
10
Z1 20BK
TJ
8W-80 CONNECTOR PIN-OUTS
8W - 80 - 15
